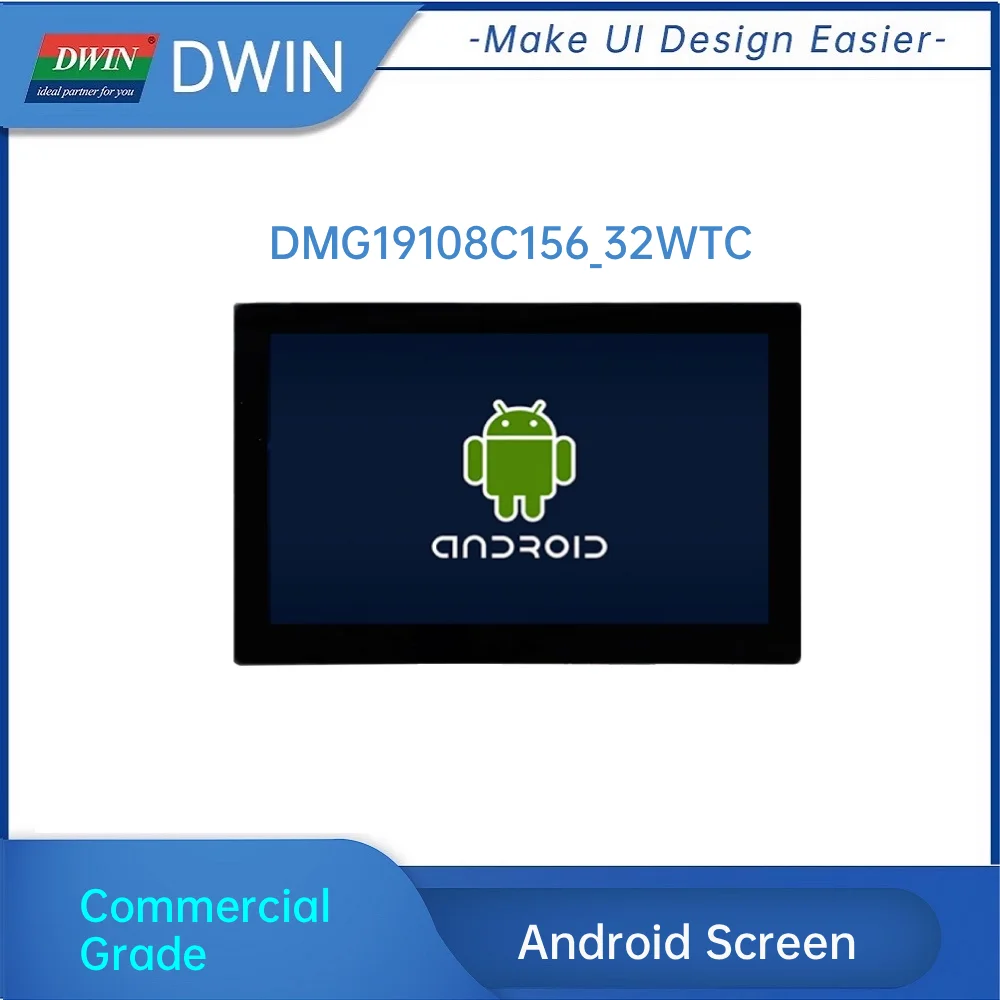

15.6 Inch 200nit 1920x1080 Embedded Android Display Capacitive Touch Screen

Product Description

Properties

Parameters

MotherboardLevel

Commercial-grade

CPU

RK3566,Quad-core ARMCortex-A55,1.8GHz Processor

OS

Android11

Storage

8GbyteseMMC

RAM

2GbytesLPDDR4

Properties

Parameters

Description

Size

15.6 inch

-

Active Area (AA)

343.2mm (W)x192.6mm (H)

-

Viewing Area(VA)

342.2mm (W)x191.6mm (H)

-

Resolution

1920×1080

-

Backlight Service Life

>20000 Hrs

Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level

Brightness

200nit

100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)

Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Properties

Min

Typ

Max

Unit

Power Voltage

9.0

12.0

36.0

V

Recommended power supply: 12V 1A DC

Properties

Parameters

Touch Type

Capacitive touch panel

Properties

Conditions

Min

Typ

Max

Unit

Working Temperature

60%RH at 12V voltage

-20

25

65

℃

Storage Temperature

-

-30

25

80

℃

Working Humidity

25℃

10%

60%

90%

RH

Conformal Coating

Y

ESD

Air: ±8KV; Contact: ±6KV

Additional cooling required for operation above 65℃.

Properties

Description

User Interface

10Pin_3.81mm Horizontal socket

COM

RS232*2(COM5 & COM9), RS485*1(COM8), TTL*1(COM0), TTL*1(COM2, debug)

Ethernet

10/100Mbps

USB

USB 2.0*2 (HOST), Micro USB*1 (OTG)

SD Card

Max 64G

RTC

Accuracy: ±20ppm @25℃

Speaker

2Pin_1.25mm interface*1

Microphone

2Pin_1.25mm interface*1

Camera

USB*1/MIPI*1(front or rear optional)

Wi-Fi

IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4

Bluetooth Version

BT4.2

4G Module

Factory not configured, customizable to add

HDMI

23PIN_HDMI_SH
