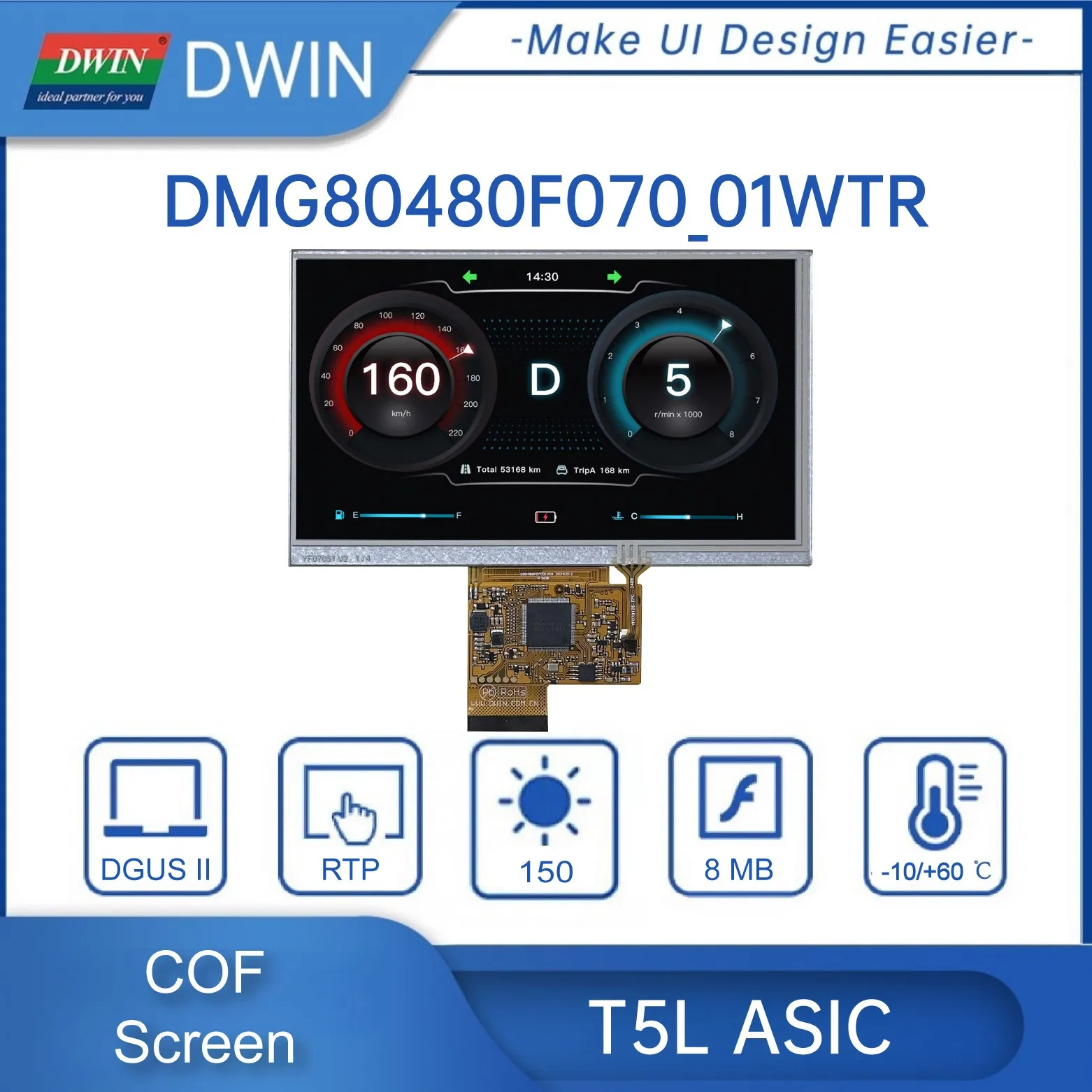

7 inch, 800*480 resolution, 262K colors, TN-TFT-LCD, COF structure, Resistive To

Product Description

Features

• Based on the T5L0 ASIC, running the DGUS II human-machine interaction software platform.

• 7 inch, 800*480 resolution, TN-TFT LCD.

• COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.

• 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development

Product Parameters

Main Chip

T5L0

User Interface

50Pin_0.5mm FPC

FLASH

8M Bytes

UI Version

DGUS II / TA

Power Supply

HDL662S adapter board power supply

Display Color

262K colors

Dimensions

7 inch

Resolution

800*480

Active Area (A.A.)

153.68mm (W)×85.52mm (H)

Viewing Angle

Normal viewing angle, typical value of 70°/70°/30°/40°(L/R/U/D)

Backlight Service Life

＞10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTR:150nit
WN:200nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Interface Parameters

Item

Conditions

Min

Typ

Max

Unit

Baud Rate

User Set(Configure the CFG file)

3150

115200

3225600

bps

Output Voltage

(TXD)

Output 1

3.0

3.3

-

V

Output 0

-

0

0.3

V

Input Voltage

(RXD)

Input 1

-

-

3.3

V

Input 0

0

-

0.5

V

Interface

UART2: TTL;
UART4: TTL;（Only available after OS configuration）
UART5: TTL;（Only available after OS configuration）

Data Format

UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

410mA

VCC=5V, max backlight

115mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating Environment

Operating Temperature

-10℃~60℃

Storage Temperature

20℃~70℃

Operating Humidity

10%~90%RH, typical value of 60% RH

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?

Answer:

No, you should update the program to LCD first, and then assemble it.

Step 1, check the software platform of the screen, mentioned in the datasheet.

Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.

Step 3, update the software program and test

Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?

Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?

Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?

Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166

- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

https://forums.dwin-global.com/

-

International website:

https://www.dwin-global.com/

- Development tool:

https://www.dwin-global.com/tool-page/

- Development guide:

https://www.dwin-global.com/development-guide/

- DGUS video tutorial:

https://www.dwin-global.com/t5l-dgus-v7-6-video-tutorial/

- Leave messages to us on Aliexpress.
