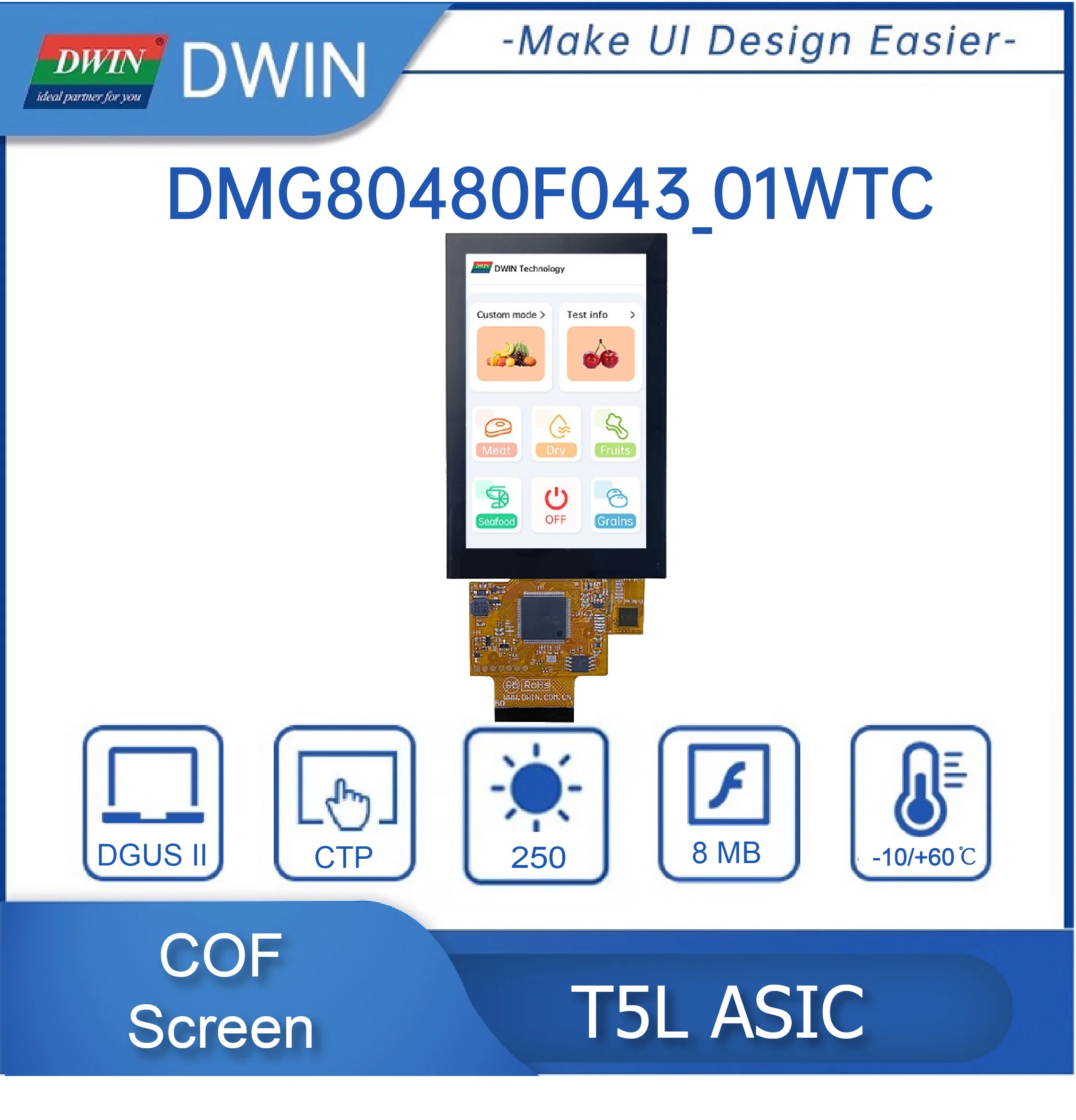

4.3 Inch TFT LCD Module 800*480 HMI Touch Screen COF Structure Capacitive Smart

Product Description

Features

• Based on T5L0, running DGUS II system.

• 4.3 inch,480*800 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle


• COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.

• 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.

• Accessories: LHDL662S, HDLUSB1, SD card.

Specifications

Product Parameters

Main Chip

T5L0

User Interface

50Pin_0.5mm FPC

FLASH

8M Bytes

UI Version

TA / DGUSII

Power Supply

USB power supply

Display Color

262K colors

Dimensions

4.3 inch

Resolution

480*800

Active Area (A.A.)

56.16mm (W)×93.60mm (H)

Viewing Angle

Wide viewing angel, typical value of 85°/85°/85°/85°(L/R/U/D)

Backlight Service Life

＞10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTC&WTCZ01:250nit
WTCZ02: 50nit
WN:300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Interface Parameters

Item

Conditions

Min

Typ

Max

Unit

Baudrate

User Set(Configure the CFG file)

3150

115200

3225600

bps

Output Voltage

(TXD)

Output 1, Iout = 8mA

3.0

3.3

-

V

Output 0, Iout = -8mA

-

0

0.3

V

Input Voltage

(RXD)

Input 1

-

-

3.3

V

Input 0

0

-

0.5

V

Interface

UART2: TTL;
UART4: TTL;（Only available after OS configuration）
UART5: TTL;（Only available after OS configuration）

Data Format

UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)

Electrical specifications

Rated Power

<5W

Operating Voltage

3.6~5.5V, typical value of 5V

Operating Current

230mA

VCC=5V, max backlight

WTC:105mA
WN:100mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating Environment

Operating Temperature

-10℃~60℃

Storage Temperature

20℃~70℃

Operating Humidity

10%~90%RH, typical value of 60% RH

ESD Test

Test temperature: 25°C.
Test process: the product was placed on the test bench to perform contact and air discharge in turn of the serial screen iron frame and display area . During the experimental process, it was observed whether the screen is dead, black, white, splash, or reboot. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Discharge Type

Discharge Value

Result

Contact discharge

±4KV

Normal operation

Air discharge

±4KV

Normal operation

EFT Test

Test temperature: 25°C
Test process: the product was placed on the test bench to perform contact and the smart screen is energized by the power supply coupled with a EFT generator. During the experimental process, it was observed whether abnormal reset, display or touch phenomena occurs. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Test Item

Test Standard

Result

Power supply

±1KV;100KHz

Normal operation

High and Low Temperature Test

Test temperature: -20~70℃
Test process: the product will be placed obliquely in the high and low temperature test chamber for 12h for 20 on and off cycles. Then it will be check at room temperature after power on for the appearance and function, CTP offset situation, jumping point, page random switching and failure.

Temperature

Result

High temperature（70℃）

Normal operation

Low temperature（-20℃）

Normal operation

Dimension

Form Factor

WTC:68.26(W) ×109.47 (H) ×4.45(T) mm
WTCZ01:68.26(W) ×109.47 (H) ×4.45(T) mm
WTCZ02:68.26(W) ×109.47 (H) ×5.10(T) mm
WN:60.86(W) ×102.57 (H) × 2.8(T) mm

Net Weight

WTC:-
WN:42g

Packaging Standards

Model

Dimensions

Layer

Quantity/Layer

Quantity(Pcs)

Carton1：

220mm(L)×160mm(W)×47mm (H)

1

4

4

Carton2：

250mm(L)×200mm(W)×80mm (H)

1

8

8

Carton3：

320mm(L)×270mm(W)×80mm (H)

1

16

16

Carton4：

450mm(L)×350mm(W)×300mm(H)

2

60

120

Carton5：

600mm(L)×450mm(W)×300mm(H)

3

80

240

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD first, and then assemble it.
Step 1, check the software platform of the screen, mentioned in the datasheet.
Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.
Step 3, update the software program and test
Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
