5 Inch 800x480 900 Bright 40PIN RGB 24bit TFT LCD Module With Resistive Touch LN

Product Description

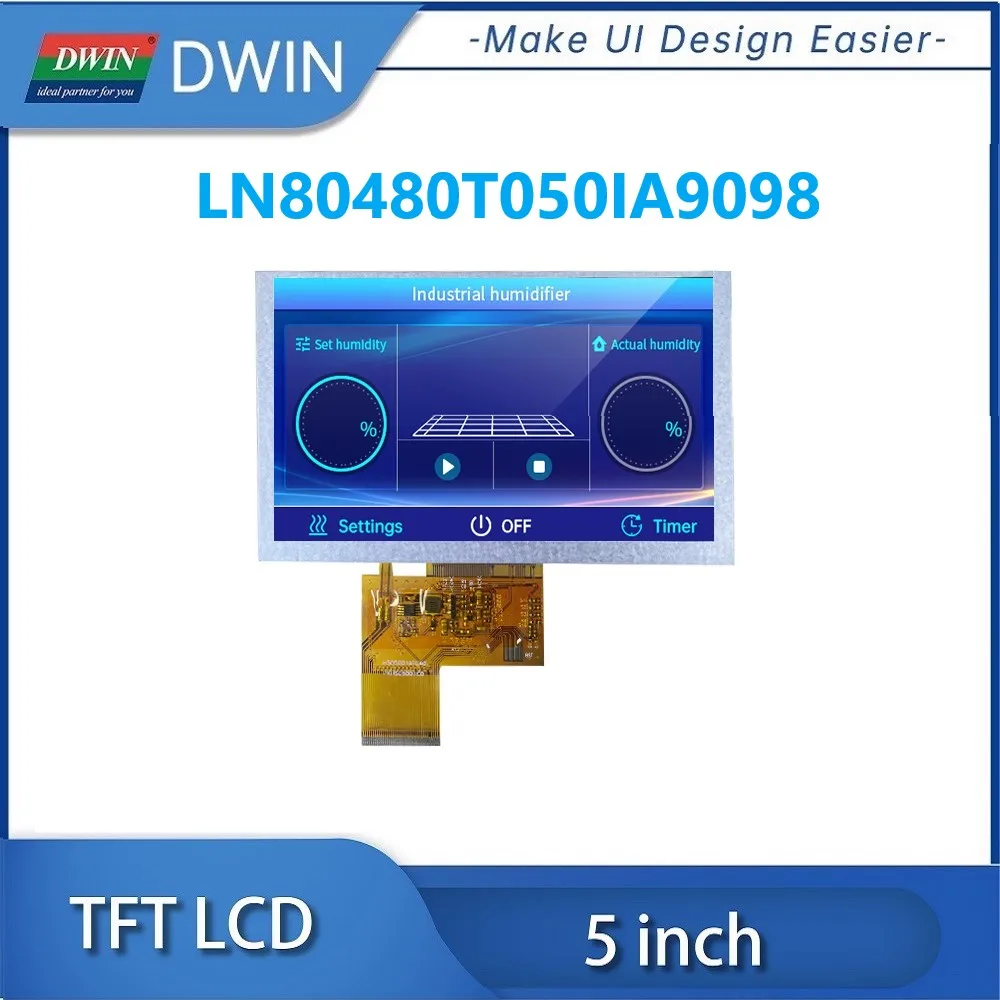

DWIN 5 Inch 800x480 900 Bright 40PIN RGB 24bit TFT LCD Module With Resistive Touch LN80480T050IA9098

Support customization for TFT LCD, such as interface, luminance, wide temperature, FPC length&shape, Anti-glare

High standard: OEM A-grade glass, 30 days charged aging, no bad pixels and full inspection

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

5.0

inch

Resolution

800(H)*480(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.135(W)*0.135(H)

mm

Viewing Direction

6 o’clock

-

Mechanical

Characteristics

Outside Dimension

120.7(W)*75.8(H)*3.0(D)

mm

Active Area

108.0(W)*64.8(H)

mm

Luminance

900

cd/m²

LED Numbers

20 LEDS

-

Pin Order

From left to right

40PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_24bit

-

Color Depth

16.7M

colors

Driver IC

ILI6122+ILI5960

-

Temperature

Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min

Typ.

Max

Unit

Remark

Digital Power Voltage

VDD

3.0

3.3

3.6

V

Digital Operation Current

IVDD

-

25

-

mA

Power Voltage

VDD

-0.5

-

5

V

TFT Gate on Voltage

VGH

12

-

18

V

TFT Gate off Voltage

VGL

-12

-

17

V

TFT Common Voltage

VCOM

-2

-

5

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Voltage

VF

11.2

12

13.2

V

If=100mA

Luminance

LV

800

900

-

cd/m²

If=100mA

Connection Mode

P

4chips serial*5

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

40

50

-

Deg.

Note 2

Bottom

60

70

-

Left

60

70

-

Right

60

70

-

Response Time

Tr+Tf

θ=0°

-

35

50

ms

Note 4

Contrast Ratio

CR

θ=0°

600

800

-

Color Chromaticity

Wx

θ=0°

0.260

0.290

0.320

Note 5

Wy

0.290

0.320

0.350

Rx

TBD

TBD

TBD

Ry

TBD

TBD

TBD

Gx

TBD

TBD

TBD

Gy

TBD

TBD

TBD

Bx

TBD

TBD

TBD

By

TBD

TBD

TBD

Resistive Touch Parameters(LN80480T050IA9098-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Luminance

600 cd/m²

Structure

ITO Film+ ITO Glass+ FPC

Outline Size(mm)

120.20(L)*74.80(W)*1.55(T)

Active Area(mm)

110.20(L)*63.80(W)

Surface Hardness

3H

Light Transmittance

78%±3%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃
