5 Inch HMI Intelligent LCD Touch Screen 720x1280 TFT Display Module TTL UART Sma

Product Description

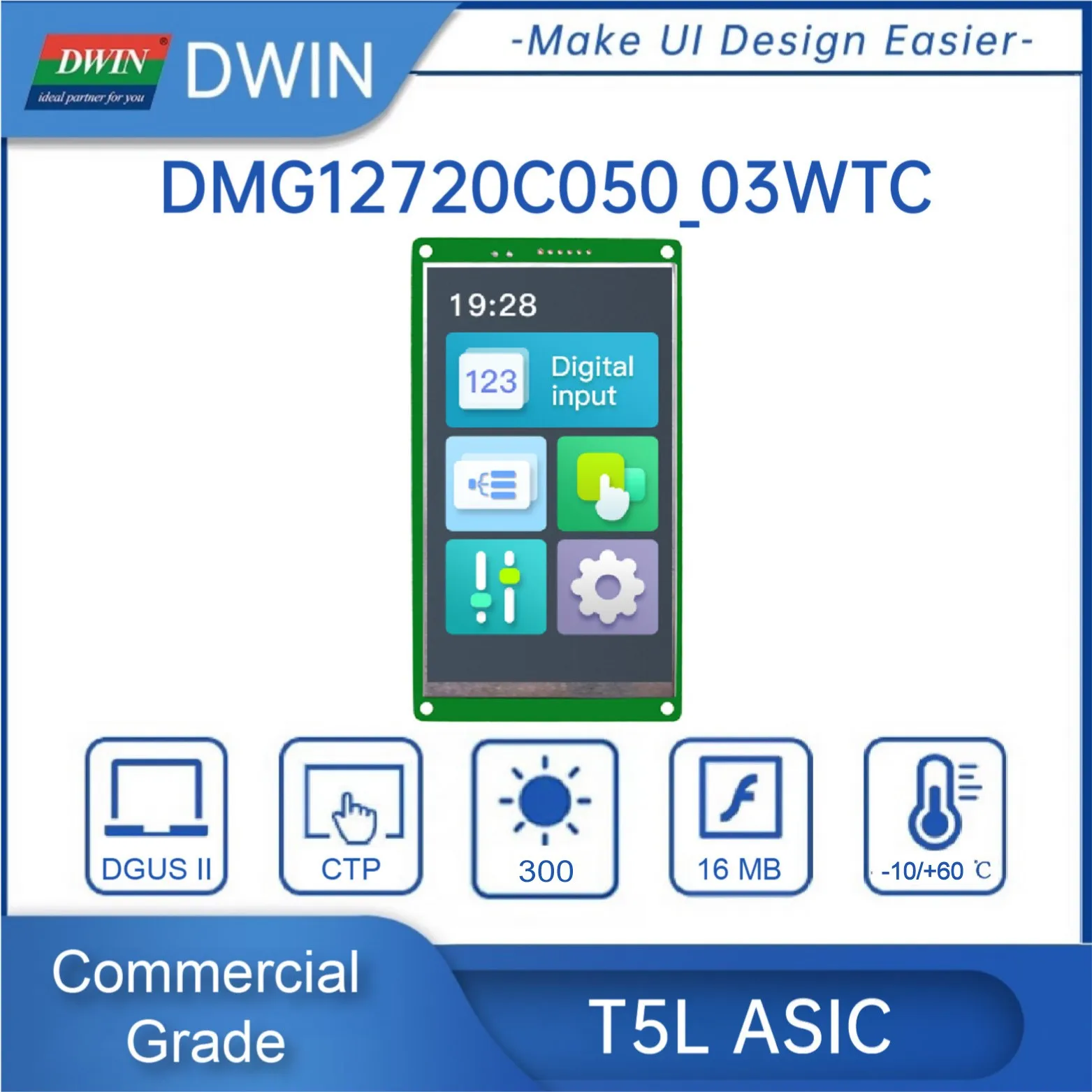

DWIN 5.0 Inch 720 x 1280 Resolution, 16.7M color, commercial high standard TFT LCD module HMI display

• Based on T5L2, running DGUS II system, commercial grade.

• 5.0-inch, 720*1280 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.

• Incell touch screen.

Specification

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）

Resolution

720×1280 pixels (0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

62.1mm (W)×110.40mm (H)

View Area (V.A.)

63.1mm (W)×111.4mm (H)

Backlight Mode

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Touch parameters

Type

Capacitive touch panel

Structure

INCELL structure

Light Transmittance

>95%

Serial interface parameters

Mode

UART2: TTL/CMOS
UART4: TTL/CMOS (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = 1mA

3.0

3.3

-

V

Output 0, Iout = -1mA

-

0

0.3

V

Input 1, Iin = 1mA

2.4

3.3

5.0

V

Input 0, Iin = -1mA

0

-

0.5

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

548mA

VCC=5V, max backlight

120mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-10℃~60℃(5V @ 60% RH)

Storage Temperature

-20℃~70℃

Conformal coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

71.8mm (W)×133.9mm (H)×9.4mm (T)

Installation Dimensions

Positioning hole: 67.0(+0.3mm)×119.2(+0.3mm)

Net Weight

65g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
