Name: 5.0 Inch 800*480 TFT LCD Display Module Dsiplay Serial Port HMI Touch Panel Resi
Brand: Prime Living
SKU: H-398180767117
Price: 98.99 CAD
Availability: InStock

Product Description

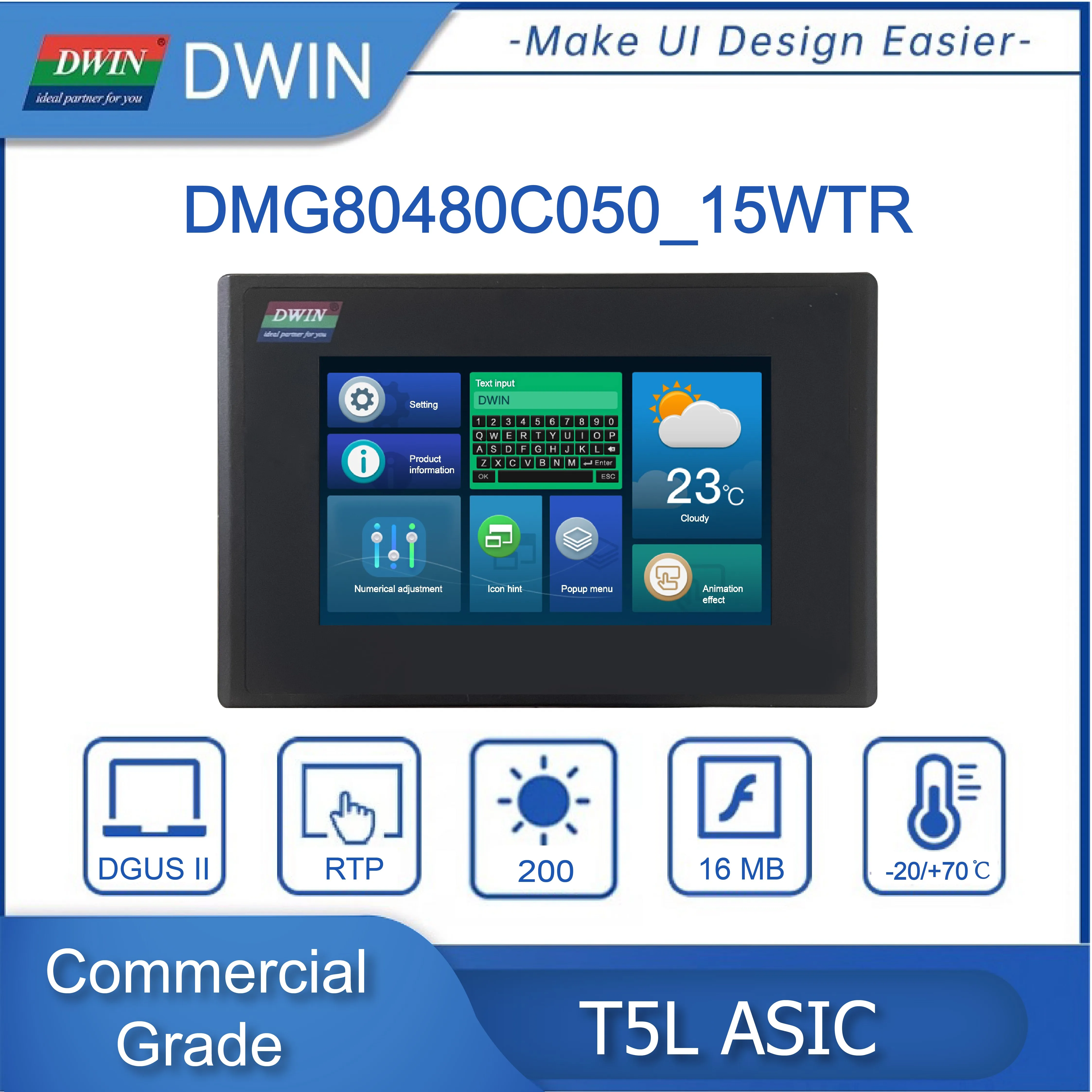

5.0 Inch 800*480 TFT LCD Display Module Dsiplay Serial Port HMI Touch Panel Resistive Touch Screen with Enclosure

Features:
Based on T5L0, running DGUS II system, commercial grade.

5.0-inch, 800*480 pixels resolution, 262K colors, TN TFT display.

Resistive touch screen.

With shell

About DWIN: Basic on Human-MachineInteraction, DWIN technology mainly for Industrial LCD Panel, TFT LCD Module, HMI Display and Touch Screen, provide the Whole Product Line Solution, technical consultation and after sale service for all kinds of display module, offer HMI Panel, Industrial Displays, interactive touch panel,capacitive/resistive touch screens. Our touch panels size range from 1.3inch to 32inch ,can be applied to new energy, financial equipment, engineering machinery, medical instruments, industrial equipment and consumer electrical products. We can be your Best Partner for the Double Win.

Hardware and interface description

T5L0 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 time.

LCM interface

FPC40_0.5mm, RGB interface

User interface

8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s

Expand Flash

Expandable to 56Mbytes NOR Flash or 40Mbytes NOR Flash+512Mbytes
NAND Flash.When expanding Flash, components such as decoders and
capacitors need to be soldered. Please consult the corresponding
salesperson for relevant customization.

Flash

16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times

Buzzer

3V passive buzzer

SD interface

FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

PGT05 interface

When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display

Color

18-bit 6R6G6B

LCD Type

N-TFT-LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)

Active Area (A.A.)

109.0mm (W)×65.8mm (H)

Resolution

800×480 pixels (support 0°/90°/180°/270°)

Backlight

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

200nit

Touch parameters

Type

RTP (Resistive touch screen)

Structure

ITO film + ITO glass

Light Transmittance

78%±3%

Serial interface parameters

Mode

UART2: RS232

UART4: RS485 ((Only available after OS configuration)

Voltage Level

Output 1; -5.0~3.0 V

Output 0; 3.0~5.0V

Input 1; -15.0~-5.0V

Input 0; 5.0~15.0V

Baudrate

3150~3225600bps, typical value of 115200bps

Voltage Level

Output 1;2.5~5.0 V

Output 0; -5.0~-2.50V

Input 1; 0~2.5V

Input 0; -2.5~-0.2V

Baudrate

3150~921600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 mods(OS configuration)

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

9~36V, typical value of 5V

Operating Current

VCC=12V, max backlight, 170mA

VCC=12V, backlight off, 80mA

Recommended power supply: 12V 0.5A DC

Operating environment

Operating Temperature

-20~70℃(12V @ 60% RH)

Storage Temperature

-30~80℃

Anti-UV

N(Not recommended for outdoor use)

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

160.0mm (W)×107.0mm (H) ×23.5mm (T)

Net Weight

260g
