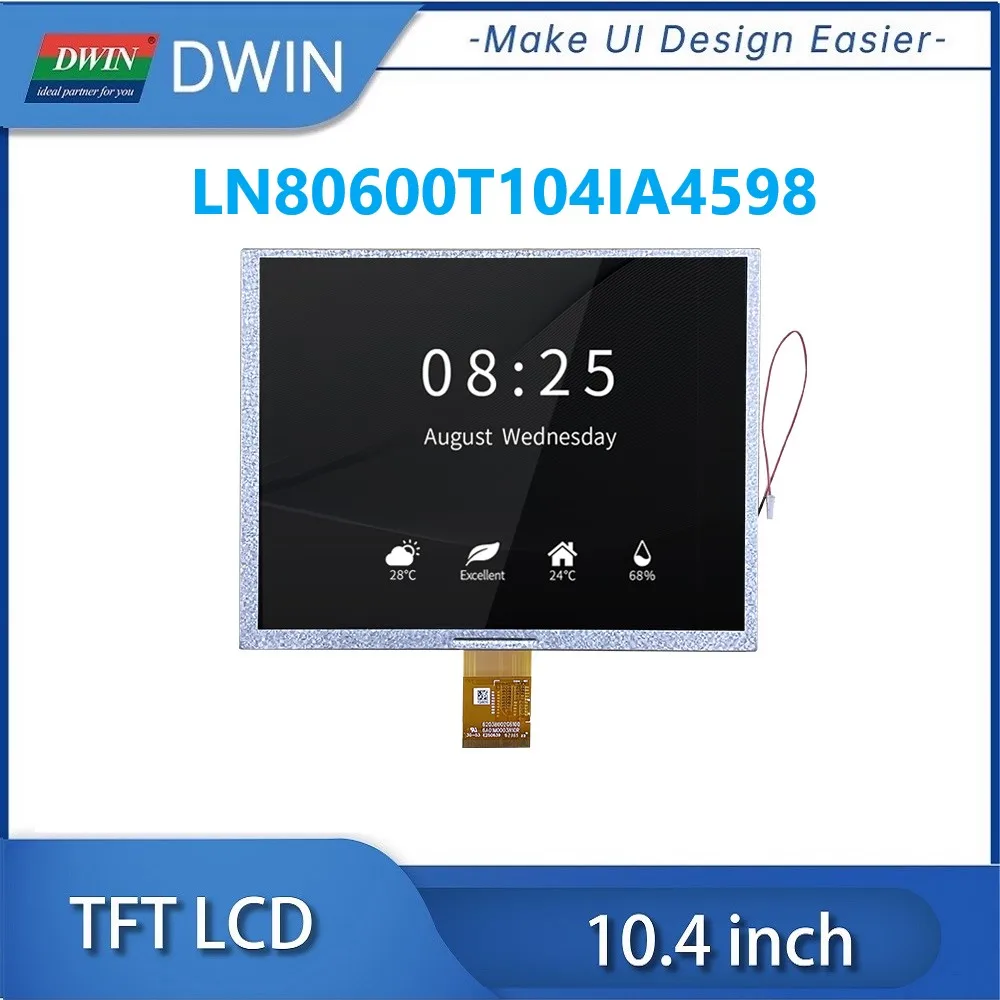

10.4 Inch 800x600 450nit RGB 60PIN TN TFT LCD Display Module Resistive Touch Scr

Product Description

DWIN 10.4 Inch 800x600 450nit RGB 60PIN HX8677/HX8264 Driver IC TN TFT LCD Display With Resistive Touch LN80600T104IA4598

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

10.4

inch

Resolution

800(H)*600(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.264(H)*0.264(V)

mm

Viewing Direction

6 o’clock

-

Mechanical

Characteristics

Outside Dimension

228.5(W)*175.5(H)*5.9(D)

mm

Active Area

211.2(W)*158.4(H)

mm

Luminance

450

cd/m²

LED Numbers

36 LEDS

-

Pin Order

From left to right

60PIN

-

Weight

390

g

Electrical
Characteristics

Interface

RGB

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

HX8677/HX8264

-

Temperature Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Digital Power Voltage

VCC

3.0

3.3

3.6

V

Power for Analog Circuit

AVDD

11.5

12

12.5

V

Gate on Voltage

VGH

-

18

-

V

Gate off Voltage

VGL

-

-7

-

V

Common Voltage

VCOM

-

5.3

-

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Voltage for LED Backlight

VL

-

9.6

-

V

Current for LED Backlight

IL

-

240

-

mA

Luminance(with LCD)

Lv

-

450

-

cd/m²

If=240mA

LED Life Time

--

-

30000

-

Hr

Input/Output Terminals

PIN NO.

Symbol

Function

Remark

1

GND

Power Ground

2

AVDD

Analog input voltage

3

VCC

Digital input voltage

4

R0

Red data input (LSB)

5-10

R1-R6

Red data input

11

R7

Red data input (MSB)

12

G0

Green data input (LSB)

13-18

G1-G6

Green data input

19

G7

Green data input (MSB)

20

B0

Blue data input (LSB)

21-26

B1-B6

Blue data input

27

B7

Blue data input (MSB)

28

CLKIN

Dot clock input

29

DEN

Data enable signal

30

HSD

HSYNC signal

31

VSD

VSYNC signal

32

MODE

H: DE mode (Default)L: SYNC mode

33-35

NC

No connect (please leave it open)

36

VCC

Digital input voltage

37

NC

No connect (please leave it open)

38-39

GND

Power Ground

40

AVDD

Analog input voltage

41

VCOM

VCOM DC input

42

DITHB

Dithering function setting

H: Disable dithering function

L: Enable dithering function

43

NC

No connect (please leave it open)

44

VCOM out

Connect a capacitor

45-55

NC

No connect (please leave it open)

56

VGH

TFT turn on voltage

57

VCC

Digital input voltage

58

VGL

TFT turn off voltage

59

GND

Power Ground

60

NC

No connect (please leave it open)

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

40

50

-

Deg.

Note 2

Bottom

50

60

-

Left

60

70

-

Right

60

70

-

Contrast Ratio

CR

θ=0°

300

500

-

Response Time

TON

25℃

-

10

15

ms

Note 4

TOFF

-

15

25

ms

Note 4

Color Chromaticity

(CIE1931)

Wx

0.225

0.275

0.325

Note 1

Wy

0.293

0.343

0.393

Rx

0.223

0.273

0.323

Ry

0.411

0.461

0.511

Gx

0.503

0.553

0.603

Gy

0.310

0.360

0.410

Bx

0.102

0.152

0.202

By

0.086

0.136

0.185

Resistive Touch Parameters(LN80600T104IA4598-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Structure

ITO Film+ ITO Glass+ FPC

Control Type

-

Outside Dimension

174.00(L)*225.3(W)*1.55(T)

Active Area

158.4(L)*211.2(W)

Surface Hardness

3H

Light Transmittance

≧78%

Life

Over 1,000,000
times touch

Operating temperature

-10~70℃

Storage temperature

-20~80℃
