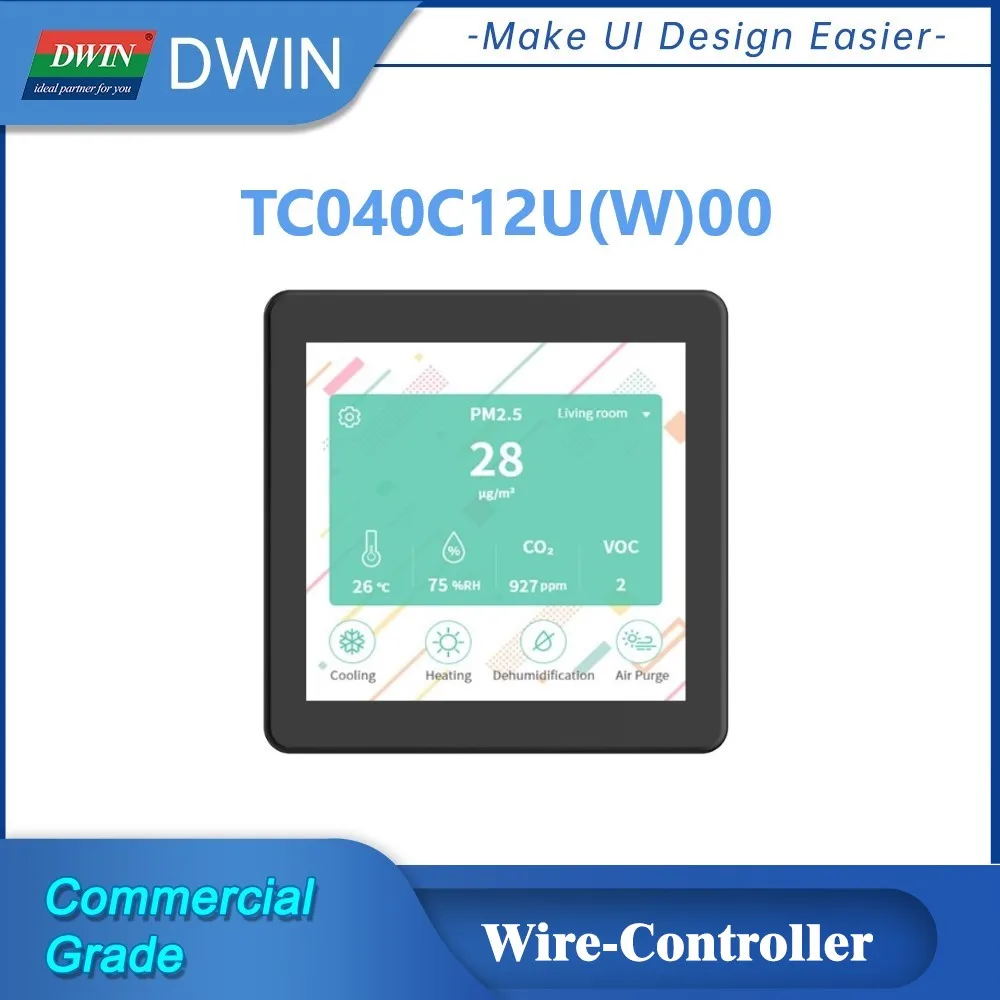

4 Inch Wire Controller IPS TFT LCD Display 480*480 Wifi Smart Home Wall Mounted

Product Description

Company Introduction

DWIN is one of the few companies in the industry that can independently develop and design dedicated chips for human-computer interaction based on market experience. DWIN’s ASIC design removes the redundant functions of common general-purpose chips, strengthens the related performance of human-computer interaction (such as built-in high-speed video memory, etc.), helps users reduce the overall hardware cost, and also reduces the development difficulty of the interactive part, so that customers can focus more on their core technologies, so as to promote the development and update iterations of products and technologies.

Product Description

Item

Parameter

Description

Color

16.7M (16777216) colors

24 bit color 8R8G8B

（A.A.）

71.86mm (W)*67.96mm (H)

480*480

Resolution

480*480

Support 0°/90°/180°/270°rotated display

Backlight

LED

≥10000H（Continuous working with maximum brightness, time of brightness halves）

Brightness

250nit

100 levels adjustment(It's not recommend to set brightness to 1%~30% of the maximum, which may lead a flicker)

Notice: displaying a high contrast still screen for more than 30 minutes may result in an image blurring. Please add the screensaver to avoid.

Item

Condition

Min

Typ.

Max

Unit

Power Voltage

-

9

12

36

V

Operation Current

VCC = +12V, Backlight on

-

100

-

mA

VCC = +12V, Backlight off

-

40

-

mA

Item

Condition

Min

Typ.

Max

Unit

Working Temperature

60%RH at 12V Voltage

-20

25

70

℃

Storage Temperature

-

-30

25

80

℃

Working Humidity

25℃

0%

60%

90%

RH

Protective Paint

-

-

None

-

-

Item

Condition

Item

Condition

Min

Typ.

Baud Rate

User Set

3150

115200

3225600

bps

（V_AB）

Output 1

2.5

5

-

V

Output 0

-

-5

-2.5

V

（V_AB）

Input 1

0

2.5

-

V

Input 0

-

-2.5

-0.2

V

Interface

RS485

Socket

4PIN_2.0mm

US

None

SD Slot

Yes (SDHC/FAT32 file format)

Item

Typical value

Features

Typical value

Unit

Description

FLASH

16Mbytes

Space of Font

2022/12/4

Mbytes

A single font of 256Kbytes,store font, icon libraries, and other binary files

Picture Storage
(.ICL file)

2022/12/4

Mbytes

JPEG format(Picture quantity relate to JPEG size, size of a single JPEG image file should not exceed 248 Kbytes)

(DGUSⅡ)

128Kbytes

Variable Storage Space

/

/

Data is not saved when power down

(DGUSⅡ)

512Kbytes

User database

/

/

Data is saved when power down

UI Version

TA / DGUSⅡ ( DGUSⅡ pre-installed )

Peripherals

Capacitive touch screen, Built-in Speaker

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
