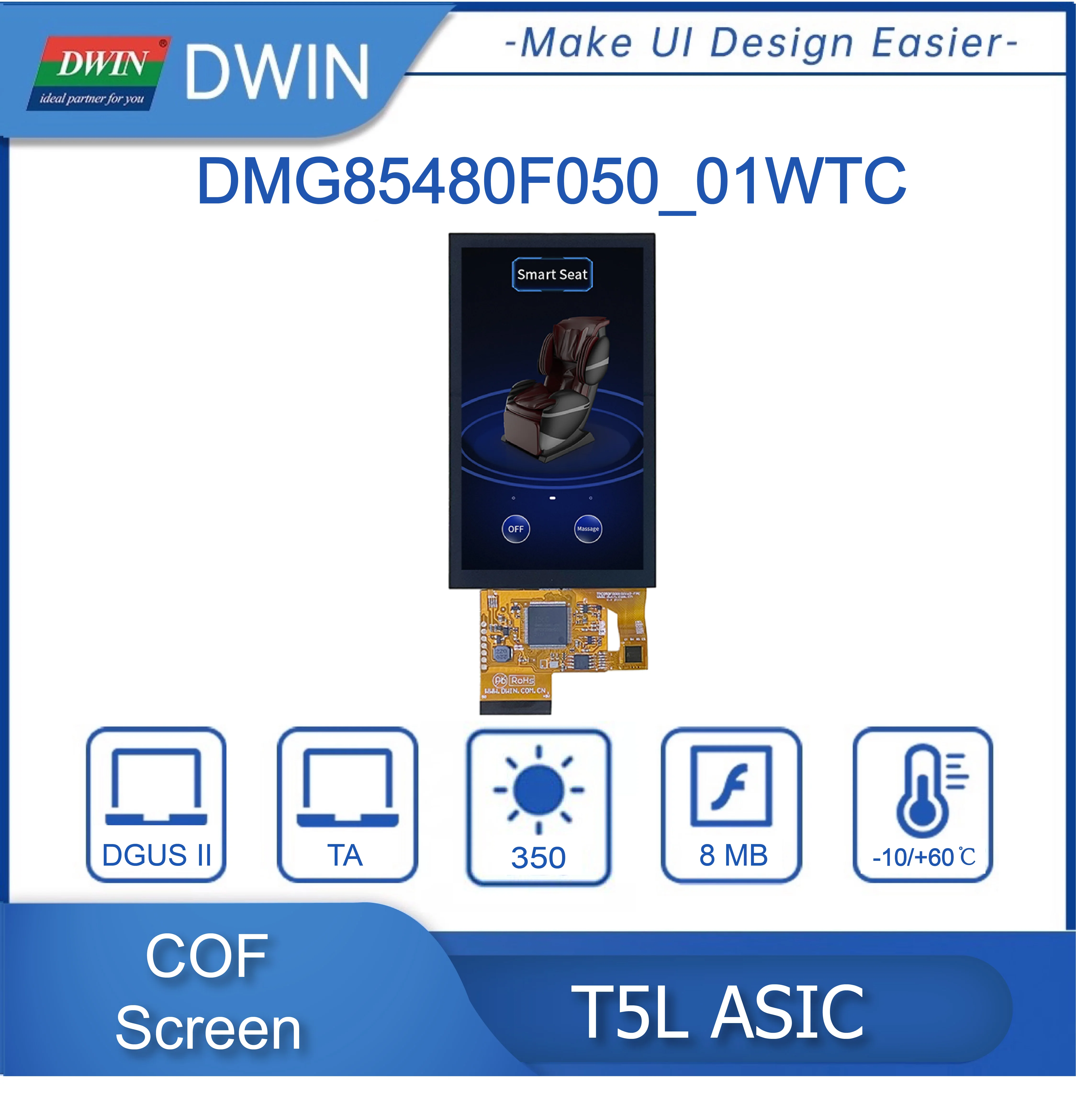

5" 480x854 IPS TFT LCD Display COF Ultra-thin and Ultra-light Capacitive Screen

Product Description

Features:

• Based on T5L0, running DGUS II system.

• 5 inch, 480*854 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.

• Smart screen without TP, product thickness of only 2.06mm.

• LCD and TP frame lamination process, with high structural reliability. (capacitive touch screen)

• Optional TP appearance of black, white and integrated black.(capacitive touch screen)

• COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.

• 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.

DMG85480F050_01WTC

Display

Color

262K colors

Active Area (A.A.)

61.23mm (W)×109.25mm (H)

Resolution

480x854

Backlight

LED

Brightness

WTC:400nit

WN:450nit

Voltage & Current

Power Voltage

4.5～5.5V

Operation Current

VCC=5V, max backlight 300mA

VCC=5V, backlight off 95mA

Reliability Test

Working Temperature

-10 ~ 60 ℃

Storage Temperature

-20 ~ 70 ℃

Working Humidity

10% ~ 90% RH

Interface

Baudrate

3150 ~ 3225600bps，Type:115200bps

Output Voltage
（TXD）

Output 1, Iout =-8mA，Min =3V；Type.=3.3V

Output 0, Iout = 8mA,Max=0.3V

Input Voltage
（RXD）

Input 1,Type=3.3V

Input 0,Max=0.5V

Interface

UART2: TTL;
UART4: TTL;

UART5: TTL

User Interface

50Pin_0.5mm FPC

Dimension

Dimension

73.33(W) ×126.13(H) ×3.69(T) mm

Reliability Test

• ESD Test

• EFT Test

• High and Low Temperature Test

T5L0 ASIC

• High-speed display memory, 2.4GB/S bandwidth. 18-bit color display resolution support up to 1024*768 (TA mode), 854*480 (DGUS mode).
• 2D hardware acceleration and the UI with animation and icons as its main feature is extremely cool and smooth.
• Images and icons stored in JPEG format. Adopt Low-cost 16Mbytes SPI Flash.
• High quality ratio and sound restoration and playback.
• 128Kbytes variable storage space for exchanging data with OS CPU Core and memory.
• 2 10-bit 800KHz DC/DC controllers simplify LED backlight, analog power design and save cost and space.
• Support DGUS development and simulation on PC. Support backend remote upgrade.

• Standard 8051 core and instruction set, 64Kbytes code space, 32Kbytes on-chip RAM.
• 64-bit integer mathematical operation unit (MDU), including 64-bit MAC and 64-bit divider
• Built-in software WDT, 3 16-bit Timers, 12 interrupt signals support up to four levels of interrupt nesting。
• Support IAP online simulation and debugging with unlimited breakpoints.
• Upgrade code online through DGUS system.

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
