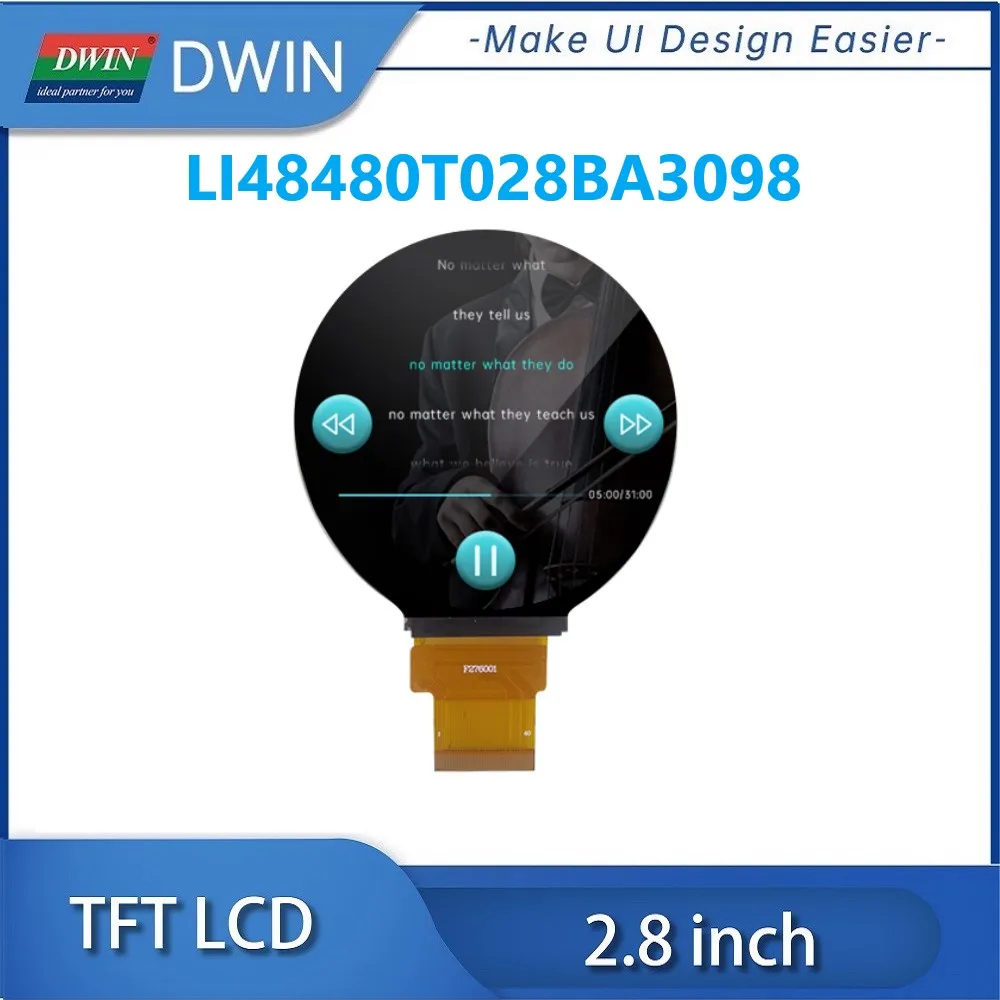

2.8 Inch 480x480 Circular IPS TFT LCD Module RGB 24bit 300nit LCD Display LI4848

Product Description

DWIN 2.8 Inch 480x480 Circular IPS TFT LCD Module RGB 24bit 300 Bright OCA Bonding Capacitive Touch Screen LI48480T028BA3098

Support customization for TFT LCD, such as interface, luminance, wide temperature, FPC length&shape, Anti-glareProdcut Specification

Feature

Description

Unit

Display Spec.

Size

2.76

inch

Resolution

480(H)* 3(RGB)*480(V)

pixels

Pixel Configuration

RGB Vertical Stripe

-

Pixel Pitch

0.1461(H)*0.1461(V)

mm

Viewing Direction

ALL

-

Mechanical

Characteristics

Outside Dimension

73.03(W)*76.48(H)*2.3(D)

mm

Active Area

70.13(W)*70.13(H)

mm

Luminance

300

cd/m²

LED Numbers

4 LEDS

-

Pin Order

From left to right

40PIN_0.5mm

-

Electrical
Characteristics

Interface

RGB_24bit

-

Color Depth

16.7M

colors

Driver Condition

2.8(Type)

V

Driver IC

ST7701S

-

Temperature

Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Analog Voltage

VCC

2.6

2.8

3.3

V

Input Logic High Voltage

VIH

0.7VCC

-

VCC

V

Input Logic Low Voltage

VIL

GND

-

0.3VCC

V

Output Logic High Voltage

VOH

0.8VCC

-

VCC

V

Output Logic Low Voltage

VOL

GND

-

0.2VCC

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Voltage

VF

10.8

12

13.2

V

Forward Current

IF

-

20

-

mA

Luminance

Lv

-

300

cd/m²

Power Consumption

PLED

-

240

-

mW

Uniformity(with L/G)

Avg

75

80

-

%

LED Life Time

Hr

-

30000

-

Hour

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

80

85

-

Deg.

Note 2

Bottom

80

85

-

Left

80

85

-

Right

80

85

-

Contrast Ratio

CR

θ=0°

1000

1200

-

Response Time

Tr+Tf

θ=0°

-

35

40

ms

Note 4

Color Chromaticity

(CIE1931)

Wx

θ=0°

0.617

0.647

0.677

Note 5

Wy

0.283

0.313

0.343

Rx

0.233

0.263

0.293

Ry

0.530

0.560

0.590

Gx

0.107

0.137

0.167

Gy

0.076

0.106

0.136

Bx

0.268

0.298

0.328

By

0.297

0.327

0.357

Color Gamut

NTSC

θ=0°

60

65

-

%

Capacitive Touch Parameters(LI48480T028BA3098-TCF)

Feature

Description

Type

CTP (Capacitive touch panel)

Structure

G+FF

Outline Size(mm)

87.28(L)*87.28(W)*1.10(T)

View Area(mm)

70.73(L)*70.73W)

Control Type

GT911

Surface Hardness

6H

Light Transmittance

＞90%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃
