10.4 Inch 800x600 TFT LCD Display Module TTL/RS232 UART Capacitive/Resistive HMI

Product Description

Company Introduction

DWIN is one of the few companies in the industry that can independently develop and design dedicated chips for human-computer interaction based on market experience. DWIN’s ASIC design removes the redundant functions of common general-purpose chips, strengthens the related performance of human-computer interaction (such as built-in high-speed video memory, etc.), helps users reduce the overall hardware cost, and also reduces the development difficulty of the interactive part, so that customers can focus more on their core technologies, so as to promote the development and update iterations of products and technologies.

Product Description---DMG80600C104_03W

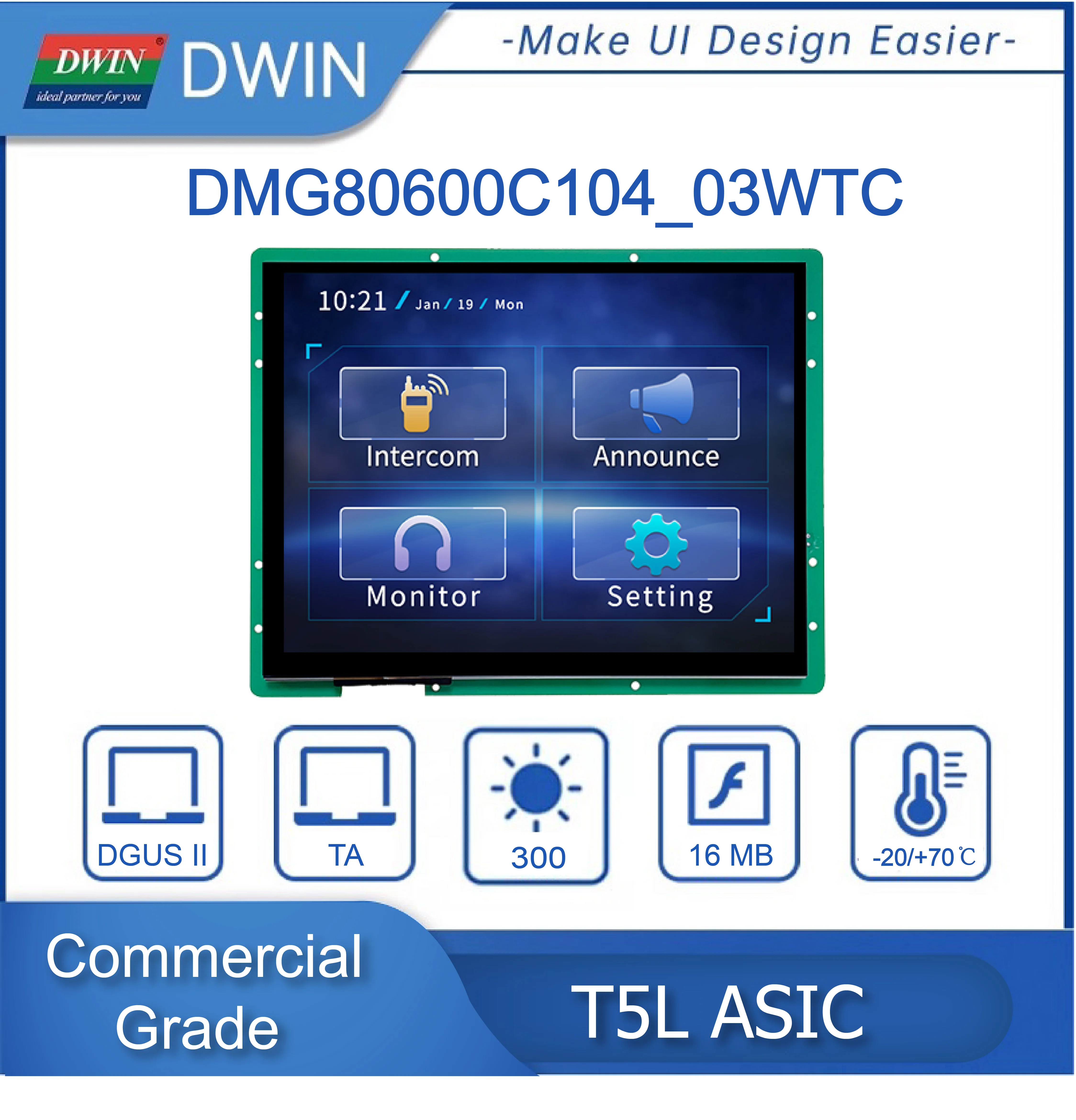

Based on T5L1, running DGUS II system, commercial grade.

10.4-inch, 800*600 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.

Capacitive touch screen/Resistive touch screen.

Display

Color

16.7M colors

Display Area（A.A）

211.2mm (W)×158.4mm (H)

Resolution

800×600

Backlight

LED

Brightness

WTC&WTR:300 nit

WN:350nit

Voltage & Current

Power Voltage

6~15V, typical value of 12V

Operation Current

VCC = +12V, Backlight on,330mA

VCC = +12V, Backlight off,110mA

Reliability Test

Working Temperature

-20℃~70℃ (12V @ 60% RH)

Storage Temperature

-30℃~80℃

Working Humidity

10%~90%RH

Interface

Baudrate

3150~3225600bps

Output Voltage

Output 1: 2.7~ 3.2 V

Output 0: 0.1~ 0.4 V

Input Voltage
（RXD）

Input 1: 2.4~5.5V

Input 0: 0~1.0V

Socket

8Pin_2.0mm

SD slot

YES (SDHC/FAT32 Format)

Dimension

Dimension

247.8mm (W)×193.7mm (H)×16.3mm (T)

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.
