5 Inch Incell IPS TFT LCD Display 720x1280 300 Bright MIPI 40PIN Capacitive Touc

Product Description

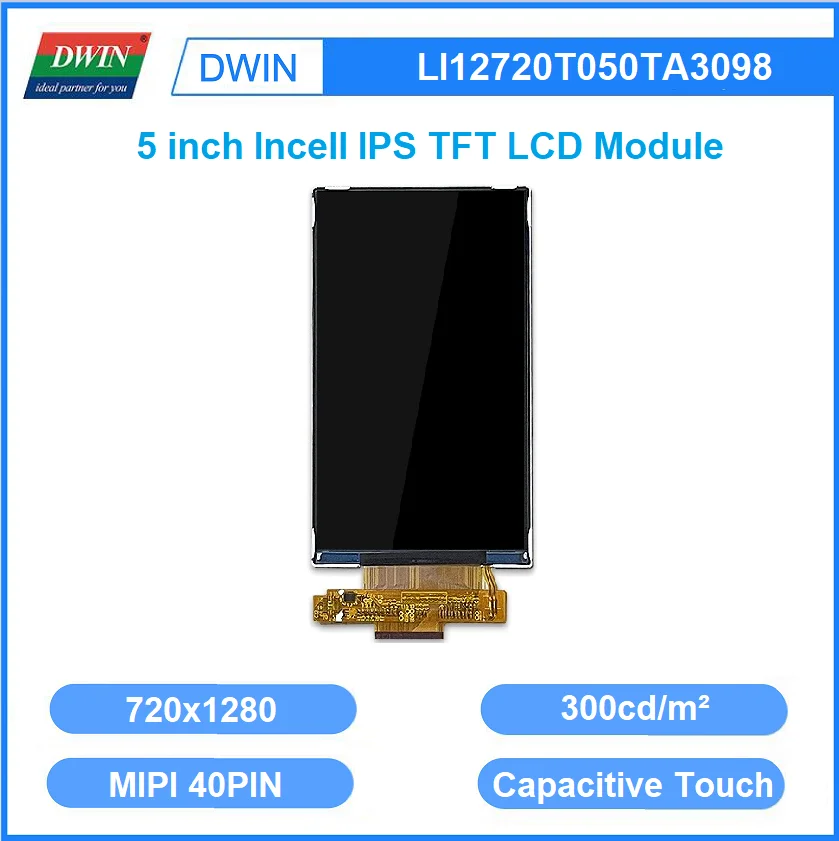

DWIN 5 Inch Incell IPS TFT LCD Display 720x1280 300 Bright MIPI 40PIN Capacitive Touch LI12720T050TA3098

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

5.0

inch

Resolution

720(H)*1280(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.08625(W)*0.08625(H)

mm

Viewing Direction

ALL

-

Mechanical

Characteristics

Outside Dimension

66.10(W)*118.30(H)*1.61(D)

mm

Active Area

62.10(W)*110.40(H)

mm

Luminance

300

cd/m²

CTP Touch Method

Finger

-

Number of Simultaneous Touches

2

-

Minimum Touch Area

Φ7

CTP Structure

Incell(Without Cover Lens)

-

LED Numbers

12 LEDS

-

Pin Order

From left to right

40PIN_0.5mm

-

Weight

-

g

Electrical

Characteristics

Interface

MIPI

-

CTP Interface

IIC

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

ILI9881H

-

Temperature Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Driving TFT LCD Panel

Item

Symbol

Min

Typ.

Max.

Unit

Remark

Logic OperatingVoltage

IOVCC

1.7

1.8

1.9

V

Operating Voltage

AVDD

5.9

6.0

6.1

V

AVEE

-6.1

-6.0

-5.9

V

VCCB

3.2

3.3

3.4

V

Input Signal Voltage Low Level

VIL

0

-

0.3* IOVCC

V

Input Signal Voltage High Level

VIH

0.7* IOVCC

-

IOVCC

V

Output Signal Voltage Low Level

VOL

0

-

0.2* IOVCC

V

Output Signal Voltage High Level

VOH

0.8* IOVCC

-

IOVCC

V

LED Backlight Specification

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Voltage for LED Backlight

VL

8.4

9.6

10.8

V

Current for LED Backlight

IL

-

80

100

mA

Backlight Power Consumption

WBL

-

768

1080

mW

3 series,

4 parallel

Luminance(with LCD)

Lv

-

300

-

cd/m²

If=80mA

LED Life-Time

Hr

10000

20000

-

hrs

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

70

85

-

Deg.

Note 2,3

Bottom

70

85

-

Left

70

85

-

Right

70

85

-

Contrast Ratio

CR

700

900

-

Note 3

Color Chromaticity

(CIE1931)

Wx

θ=0°

0.253

0.283

0.313

Note 1,5

Wy

0.272

0.302

0.332

Rx

0.598

0.628

0.658

Ry

0.303

0.333

0.363

Gx

0.285

0.315

0.345

Gy

0.579

0.609

0.639

Bx

0.111

0.141

0.171

By

0.022

0.052

0.082

Uniformity

U

70

80

-

%

Color Gamut

NTSC

65

70

-

%

Response Time

TON

25℃

-

30

40

ms

TOFF
