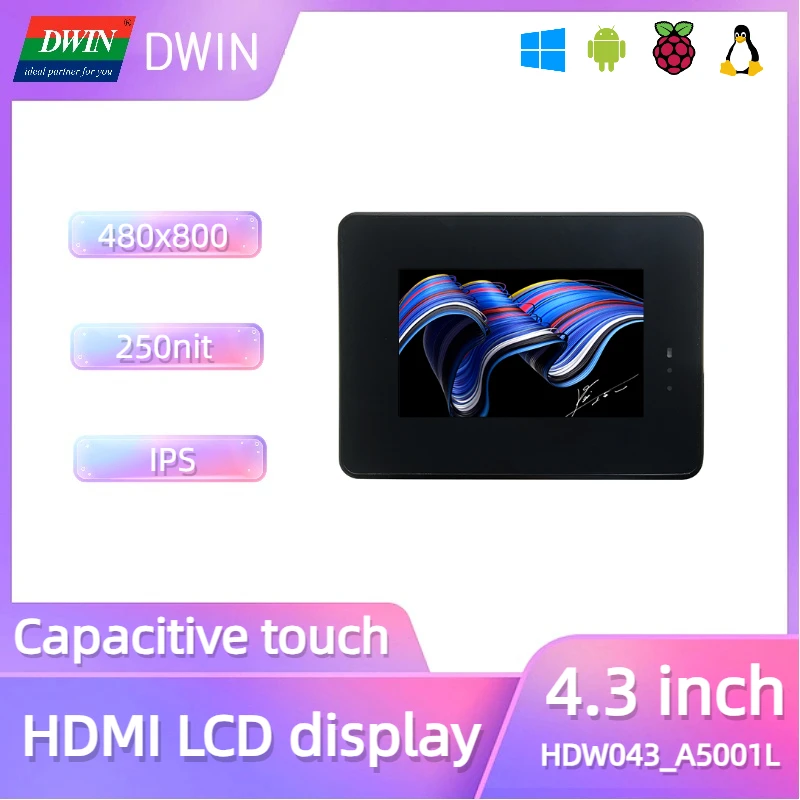

4.3 Inch 480*800 LCD IPS TFT Display HD Interface Capacitive Touch Screen for Wi

Product Description

Product detail

Information

HDW043_A5001L

Support Linux, Android, Windows and Raspberry Pi.

Display

Color

16.7M colors，24-bit 8R8G8B

Panel Type

IPS-TFT-LCM, wide viewing angle

Viewing Angle

85°85°85°/85°(L/R/U/D)，Best View: symmetrical

Active Area (A.A）

93.20mm (W) ×55.76mm (H)

View Area(V.A)

93.20mm (W) ×55.76mm (H)

Resolution

480*800

Backlight

LED. ≥20000H(Continuous working with maximum brightness, time of the brightness decays to 50%)

Brightness

250nit

Voltage & Current

Power Voltage

12~36V, typical value of 12V

Current Parameters

VCC=12V, Minimum starting voltage: 120mA

VCC=12V, Standard supply voltage: 120mA

VCC=36V, Maximum supply voltage: 80mA

Reliability Test

Working Temperature

-10~60℃, 60%RH at 12V voltage

Storage Temperature

-20~70℃

Protective Level

IP65(Front)

ESD

Air discharge ±4KV

Working Humidity

10%~90%RH,25℃

Interface

Socket

Power interface, HD interface, USB interface

SD Card Slot

None

USB Interface

Yes (Connect USB Capactive touch screen)

Peripheral

HDW043_A5001L

Capacitive touch panel

Dimension

Dimension

143.0(W)x107.0(H)x23.0(T)mm

Net Weight

280g

Packing Capacity

Model

Size

Layer

Quantity/Layer

Quantity(Pcs)

Carton1：

220mm(L)×160mm(W)×47mm(H)

1

1

1

Carton2：

250mm(L)×200mm(W)×80mm(H)

2

1

2

Carton3：

320mm(L)×270mm(W)×80mm(H)

2

2

4

Carton4：

450mm(L)×350mm(W)×300mm(H)

1

20

20

Carton5：

600mm(L)×450mm(W)×300mm(H)

1

34

34

Product show

Why choose us

Company introduction

AROUND 20-YEAR EXPERIENCE

DWIN technologies was founded in 2003 at ZHONGGUANCUN, Beijing, Absolutely，DWIN has become the top supplier of LCMs in China.

DWIN has set up regional marketing and application support in China as well as overseas countries such as India, Poland, Brazil and the United States.

STRONG MANUFACTURING CAPABILITY

By 2023, a manufacturing and service base with a total floor area of 400,000 square meters will be established in Hunan. It covers the whole process production from glass cleaning, cutting, IC bonding, laminating and backlight assembly.

Factory view

Main size

Inch

LCD type

Brightness

Color

Resolution

Note

4.3

IPS

250

16.7M

480*800

IPS

250

16.7M

480*800

With shell

5.0

TN

250

65K

800*480

7

IPS

300

16.7M

1024*600

TN

250

16.7M

800*480

TN

800

16.7M

800*480

IPS

600

16.7M

1024*600

TN

800

16.7M

800*480

IPS

600

16.7M

1024*600

IPS

250

16.7M

1024*600

With shell

8

IPS

400

16.7M

1024*768

IPS

250

16.7M

1024*768

With shell

8.88

IPS

250

16.7M

1920*480

With shell

10.1

IPS

300

16.7M

1024*600

IPS

500

16.7M

1024*600

IPS

550

16.7M

1024*600

With shell

IPS

300

16.7M

1280*800

10.4

IPS

300

16.7M

1024*768

12.1

TN

300

16.7M

1280*800

15.6

IPS

250

16.7M

1920*1080

18.5

IPS

200

16.7M

1366*768

With shell

21.5

IPS

190

16.7M

1920*1080

IPS

300

16.7M

1920*1080

With shell
