Product Description

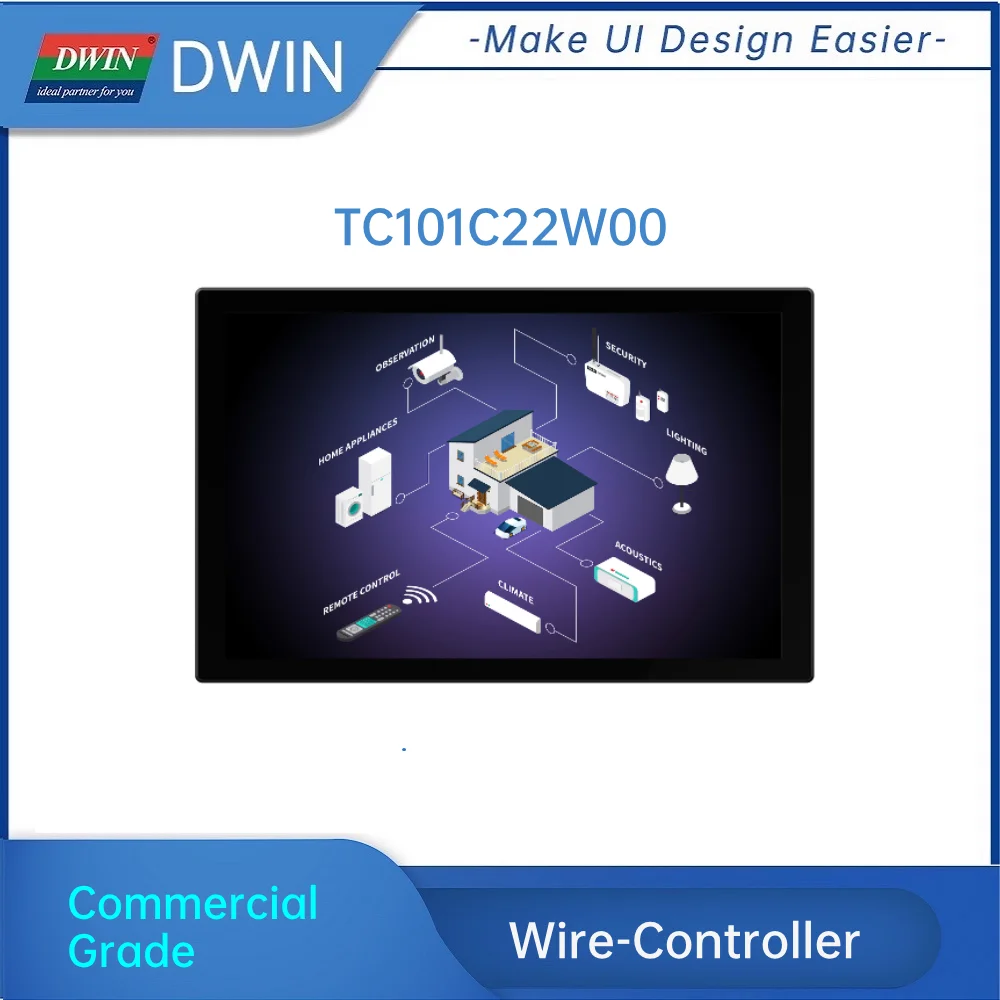

10.1 Inch 350nit 1280*800 Tuya Wifi Smart Touch Ultra-thin IPS LCD Display Capacitive Screen Control Panel Wired Controller
10.1 Inch 350nit 1280*800 Tuya Wifi Smart Touch Ultra-thin IPS LCD Display Capacitive Screen Control Panel Wired ControllerFeatures
* Powered by T5L2 ASIC, running DGUS II HMI platform, wirecontroller.* 10.1 inch, 1280*800 resolution, IPS-TFT-LCD.
* OCA bondedcapacitive touch screen.
* With RTC and Tuya Wi-Fi
* Conformal coating. T5L2 ASIC DWIN independently developed, mass production in 2019. Dual 8051 cores, GUI and application run on separate 8051 cores. User interface One 8Pin_5.08mm socket for power supply and serial communication. Flash 16MB NOR Flash and 128MB NAND Flash for storing UI files like fonts, images, music, with over 100,000 erase/write cycles. Buzzer 3V passive buzzer. RTC Super-capacitor powered, accuracy: ±20ppm @25℃, maintains operation for 7 days after power-off. SD card slot For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate. Wi-Fi module Tuya Wi-Fi module. PGT05 interface For programming DGUS firmware. LCD Type IPS, TFT LCD. Viewing Angle Wide viewing angle (80°/80°/80°/80° typical), high contrast, and good color reproduction. Resolution 1280x800 (support 0°/90°/180°/270°) Viewing Area (VA) 216. 58mm (W)×134.76mm (H) Backlight LED Backlight Service Life >20000 hours Brightness 350nit Brightness Control 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
