Product Description

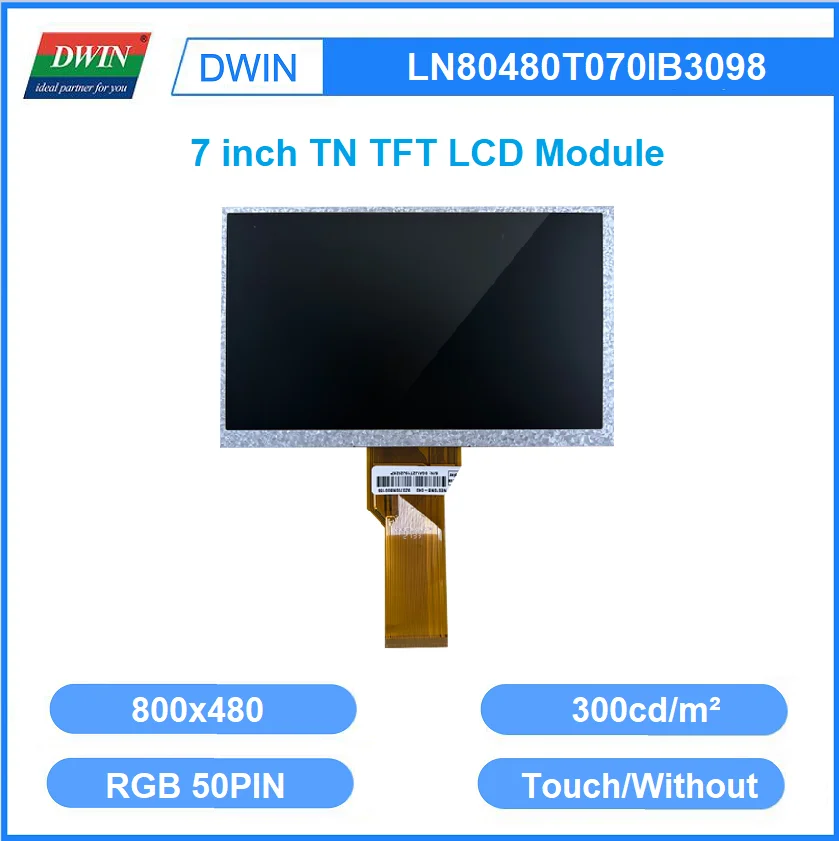

7 Inch 800x480 24bit RGB 300nit TN TFT LCD Display Capacitive Resistive Touch For ESP32 STM32

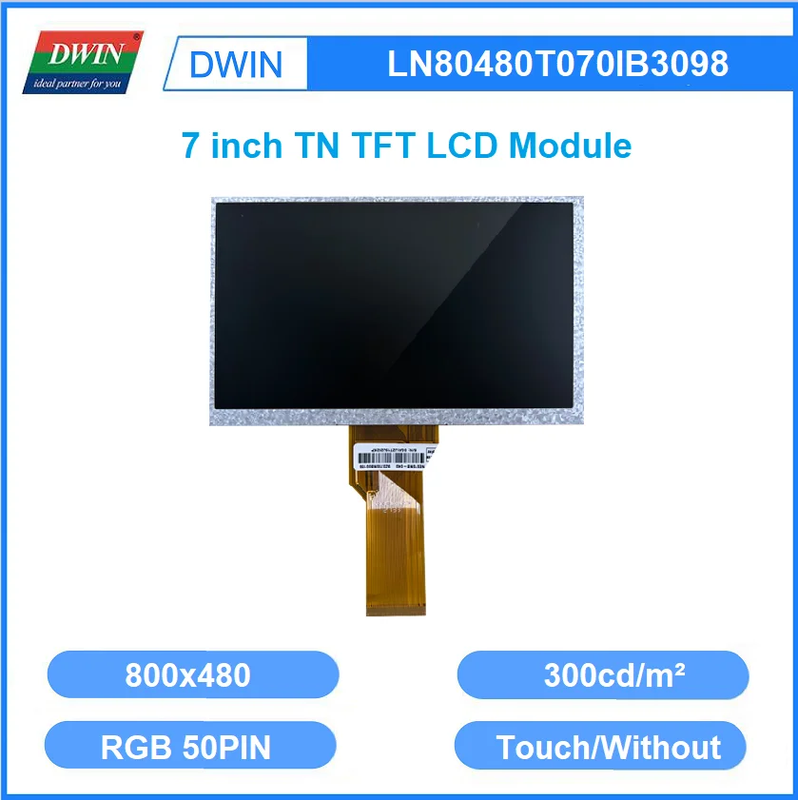

7 Inch 800x480 24bit RGB 300nit TN TFT LCD Display Capacitive Resistive Touch For ESP32 STM32DWIN 7 Inch 800x480 24bit RGB 300nit TN TFT LCD Display Capacitive Resistive Touch For ESP32 STM32
High standard: OEM A-grade glass, 30 days charged aging, no bad pixels and full inspectionProdcut Specification
Feature
Description
Unit
Display Spec.
Size
7.0
inch
Resolution
800(H)*480(V)
pixels
Pixel Configuration
RGB island
-
Pixel Pitch
0.0642(H)*0.1790(V)
mm
Viewing Direction
6 o’clock
-
Mechanical
Characteristics
Outside Dimension
165.0(W)*100.0(H)*3.3(D)
mm
Active Area
154.08(W)*85.92(H)
mm
Luminance
300
cd/m²
LED Numbers
21 LEDS
-
Pin Order
From left to right
50PIN_0.5mm
-
Weight
-
g
Electrical
Characteristics
Interface
RGB_24bit
-
Color Depth
16.7M
colors
Driver Condition
3.3(Type)
V
Driver IC
EK79713BCGB/EK73202ACGB
-
Temperature
Range
Operating Temp.
-20~70
℃
Storage Temp.
-30~80
℃
Electrical Characteristics
Driving TFT LCD Panel
Item
Symbol
Min.
Typ.
Max.
Unit
Remark
Digital Voltage
DVDD
3.0
3.3
3.6
V
Analog Voltage
AVDD
-
10.32
-
V
Gate Driver High Voltage
VGH
15.35
15.98
16.48
V
Gate Driver Low Voltage
VGL
-6.3
-6.8
-7.2
V
Input Signal Voltage
VCOM
3.64
4.14
4.64
V
LED Backlight Specification
Item
Symbol
Min.
Typ.
Max.
Unit
Remark
Forward Voltage
VF
8.4
9
9.9
V
Forward Current
IF
-
140
-
mA
Luminance
Lv
-
300
-
cd/m²
Uniformity(withL/G)
Avg
75
80
-
%
LEDLife-Time
Hr
-
30000
-
Hour
Optical Characteristics
Item
Symbol
Condition
Min.
Typ.
Max.
Unit
Remark
Viewing Angle
Top
CR≧10
-
50
-
Deg.
Note 2
Bottom
-
70
-
Left
-
70
-
Right
-
70
-
Contrast Ratio
CR
θ=0°
400
500
-
Response Time
Tr+Tf
θ=0°
-
25
50
ms
Note 4
Color Chromaticity
(CIE1931)
Wx
θ=0°
0.26
0.31
0.36
Note 5
Wy
0.28
0.33
0.38
Rx
-
-
-
Ry
-
-
-
Gx
-
-
-
Gy
-
-
-
Bx
-
-
-
By
-
-
-
Transmittance
(w/o DBEF)
T%
θ=0°
4.06
4.61
-
%
Resistive Touch Parameters(LN80480T070IB3098-TR)
Feature
Description
Type
RTP (Resistive touch panel)
Luminance
200 cd/m²
Structure
ITO Film+ ITO Glass+ FPC
Outline Size(mm)
163.8(L)*97.8(W)*1.5(T)
Active Area(mm)
153.68(L)*86.18W)
Surface Hardness
3H
Light Transmittance
78%±3%
Operating Temperature
-20~70℃
Storage Temperature
-30~80℃
Life
≥1,000,000 times 150g N
Capacitive Touch Parameters(LN80480T070IB3098-TCF)
Feature
Description
Type
CTP (Capacitive touch panel)
Luminance
250 cd/m²
Structure
G+G
Outline Size(mm)
164.6(L)*99.7(W)*1.6(T)
View Area(mm)
154.08(L)*85.92W)
Control Type
GT911
Surface Hardness
6H
Light Transmittance
≥85%
Operating Temperature
-10~60℃
Storage Temperature
-20~70℃
