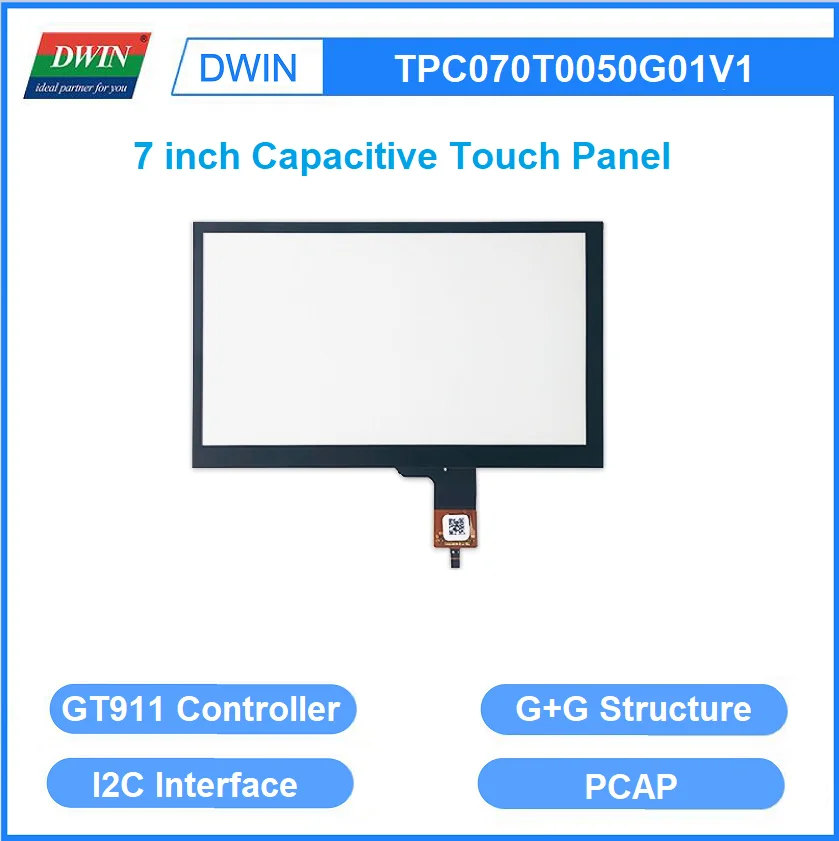

7 Inch G+G Structure Capacitive Touch Panel I2C Interface GT911 Controller TPC07

Product Description

DWIN 7 Inch G+G Structure Capacitive Touch Panel I2C Interface GT911 Controller TPC070T0050G01V1

Structure

Materials

Description

Cover Lens

Glass

Thickness:0.70mm

SCA

Adhesive

Thickness:0.20mm

Sensor

Glass

Thickness:0.70mm

Item

Description

Unit

Connection

COF

-

Screen Size

7

inch

Physical Dimension

164.6(L)*99.7(W)*1.6(T)

mm

View Area

154.08(L)*85.92(W)

mm

Tail Length

40±0.5

mm

Support Operation

Finger

-

Surface Hardness

6H

-

Interface Type

I²C

-

Touch IC

GT911

-

Operating Temperature

-10~60

℃

Storage Temperature

-20~70

℃

PIN

Signal

Description

1

SCL

I²C Serial Clock Input

2

SDA

I²C Serial Data Input And Output

3

INT

Interrupt

4

GND

Ground

5

VDD-3.3V

Power Voltage

6

RST

Reset

Item

Value

Remark

Light Transmittance

≥85%

-

No.

Test Items

Test Condition

Remark

1

High Temperature Storage

70℃±2℃×72Hours

2

Low Temperature Storage

-20℃±2℃×72Hours

3

High Temperature, High
Humidity Storage

60℃,90% RH 72Hours

4

Thermal Shock

-20℃(30min)~25℃(5min)~60℃(30min),

50cycles.

5

ESD

Air: ±8KV. Touch: ±4KV.

6

Ball Drop

Ball 25.4mm/64g/40cm drop one time on the center of lens VA, no defect.
