2.8 Inch 350nit 240x320 TFT LCD Module RGB 18bit Capacitive Resistive Touch For

Product Description

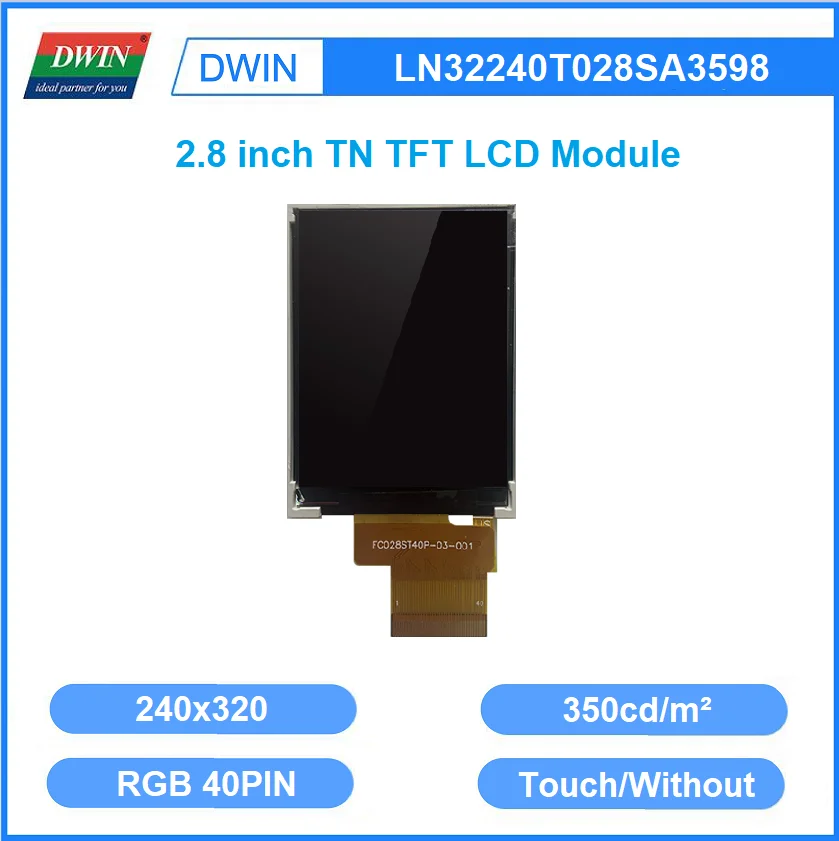

DWIN 2.8 Inch 350nit 240x320 TFT LCD Module RGB 18bit Capacitive Resistive Touch For STM32 ESP32 LN32240T028SA3598

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

2.8

inch

Resolution

240(H)*320(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.06(H)*RGB*0.18(V)

mm

Viewing Direction

6 o’clock

-

Mechanical

Characteristics

Outside Dimension

49.5(W)*68.7(H)*2.15(D)

mm

Active Area

43.2(W)*57.6(H)

mm

Luminance

350

cd/m²

LED Numbers

4 LEDS

-

Pin Order

From left to right

40PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_18bit

-

Color Depth

262K

colors

Driver Condition

2.8(Type)

V

Driver IC

ST7789

-

Temperature

Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Analog Voltage

VCC

2.6

2.8

3.3

V

Input Logic High Voltage

VIH

0.7VCC

-

VCC

V

Input Logic Low Voltage

VIL

GND

-

0.3VCC

V

Output Logic High Voltage

VOH

0.8VCC

-

VCC

V

Output Logic Low Voltage

VOL

GND

-

0.2VCC

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Voltage

VF

11.2

12.8

13.2

V

Forward Current

IF

-

20

-

mA

Uniformity(with L/G)

Avg

75

80

-

%

Luminance(with LCD)

Lv

-

350

cd/m²

LED LifeTime

Hr

-

30000

-

Hour

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

-

20

-

Deg.

Note 2

Bottom

-

50

-

Left

-

70

-

Right

-

70

-

Contrast Ratio

CR

θ=0°

-

500

-

Response Time

Tr+Tf

θ=0°

-

16

-

ms

Note 4

Color Chromaticity

(CIE1931)

Wx

θ=0°

0.281

0.301

0.321

Note 5

Wy

0.317

0.337

0.357

Rx

0.601

0.621

0.641

Ry

0.312

0.332

0.352

Gx

0.274

0.294

0.314

Gy

0.557

0.577

0.597

Bx

0.121

0.141

0.161

By

0.137

0.157

0.177

Transmittance

Tr

-

-

6.4

-

%
