Product Description

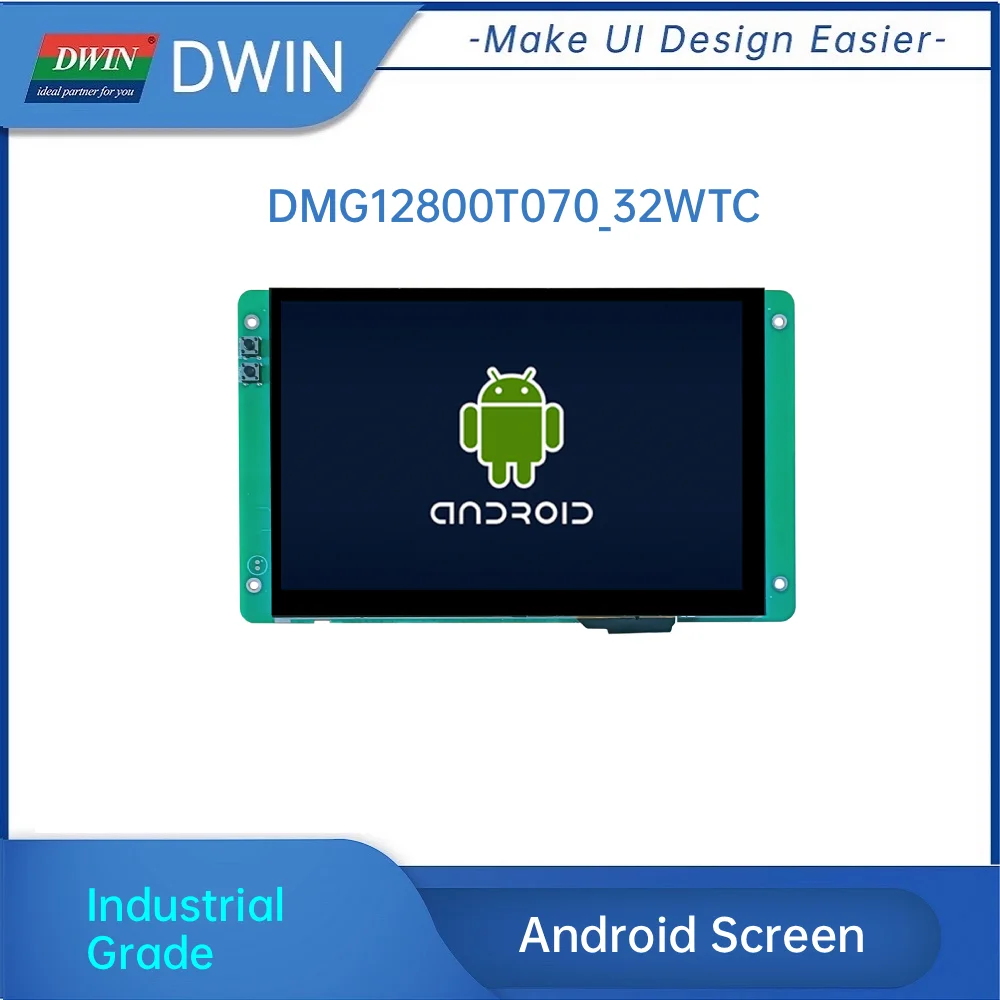

7 Inch 1280x800 250nit Embedded Android Display LCD Wi-Fi 4 Module Capacitive Touch Screen
7 Inch 1280x800 250nit Embedded Android Display LCD Wi-Fi 4 Module Capacitive Touch ScreenFeatures
* Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system. * 7.0-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, CTP. * Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals. * Available for USB and SD card updates. * Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc. * Available for RS232 and RS485 port to connect and communicate with external devices. Peripherals and Interfaces Properties Description User Interface 10Pin_3.81mm Horizontal socket COM RS232*2(COM5 & COM9), RS485*1, RS232/TTL*1(COM0, RS232 default) Ethernet 10/100Mbps USB USB 2.0*2(HOST), Micro USB*1(OTG) SD Card Max 64G RTC Accuracy: ±20ppm @25℃ Speaker 2Pin_1.25mm interface*1 Microphone 2Pin_1.25mm interface*1 Headphone 3.5mm spacing interface*1 Camera MIPI interface Wi-Fi IEEE 802.11Bb/g/n, 2.4GHz, Wi-Fi 4 Bluetoot BT4.2 Master Control Parameters Properties Parameters Motherboard Level Industrial CPU RK3566, Cortex-A55, quad-core OS Android 11 FLASH 8Gbytes EMMC RAM 2Gbytes LPDDR4 Display Parameters Properties Parameters Description Color 16.7M (16777216) colors 24 bit color 8R8G8B Panel Type IPS IPS process, TFT LCM with wide viewing angle Viewing Angle 85/85/85/85 (L/R/U/D) Best View: symmetrical Active Area (A.A.) 149.76mm (W)*93.60mm (H) 1280*800 Pixel Visible Area (V.A.) 150.76mm (W)*94.60mm (H) 1280*800 Pixel Resolution 1280*800 Pixel Available for 0°/90°/180°/270°rotated display Backlight LED ≥20000H(time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) Brightness 250nit 100 levels adjustment(It's not recommend to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.) Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.About Prime Living
