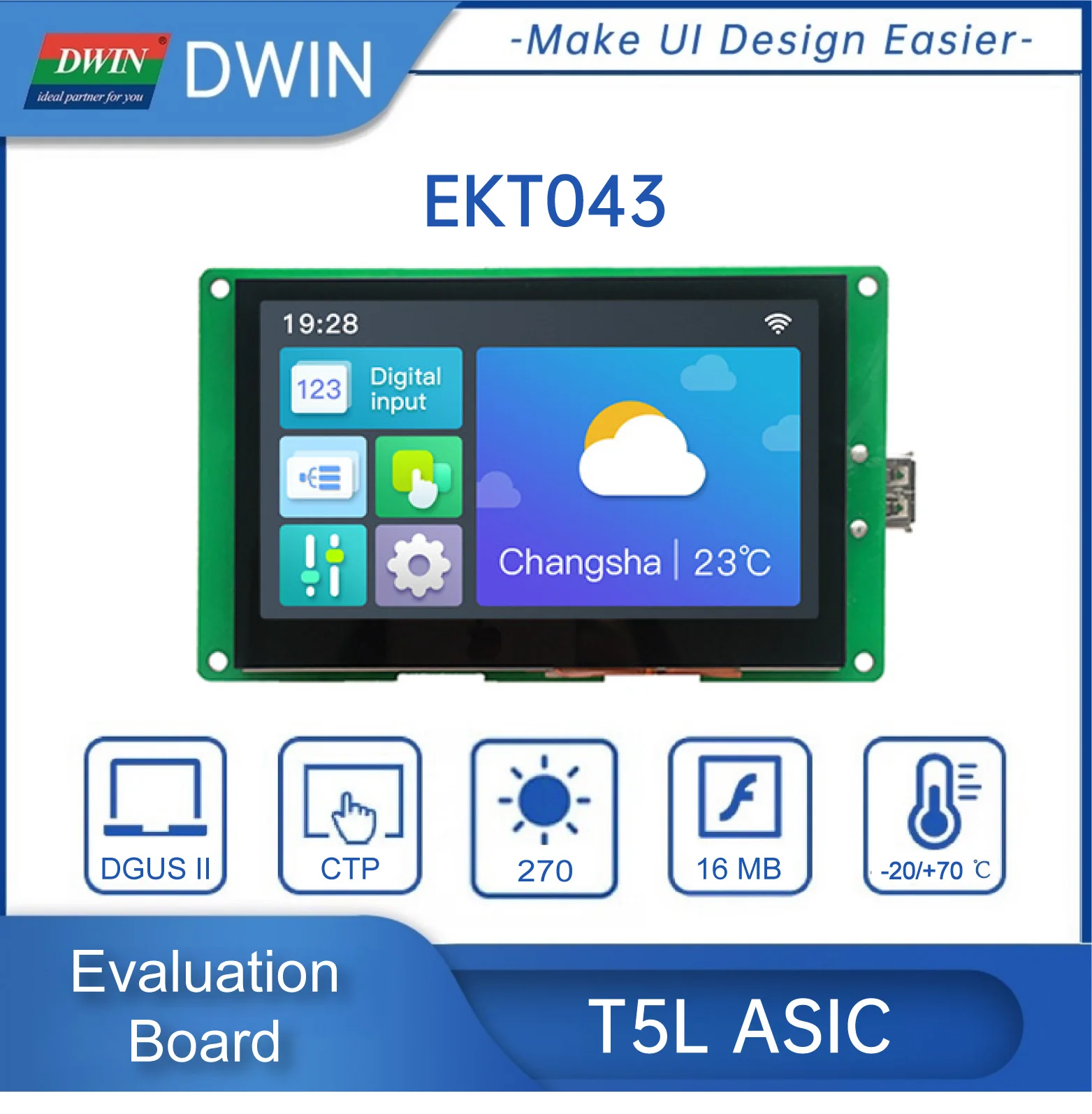

EKT043 T5L1 Evaluation Board with WiFi Module Interface Keil Online, 4.3 Inch Di

Product Description

Features

• Based on T5L1, running DGUS II system, Development board.

• 4.3-inch, 480*272 Pixels resolution, 16.7M Colors, TN-TFT-LCD, Normal viewing angle.

• Capacitive touch screen.

• 2.54mm pitch pad pins ,including IO, UART, CAN and AD from user CPU core for easy secondary development.

Specification

Display parameters

LCD Type

TN, TFT LCD

Viewing Angle

Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)

Resolution

480×272 pixels (0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

96.54mm (W)×55.36mm (H)

Backlight Mode

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

270nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART1: TTL/CMOS;

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

3.0

3.3

-

V

Output 0, Iout = 4mA

-

0

0.3

V

Input 1

2.4

3.3

5.0

V

Input 0

0

-

0.5

V

Baud Rate

921600bps

Data Format

UART1: N81

Interface Cable

Dual-male-USB:HDLUSB1 connect to computer

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

210mA

VCC=5V, max backlight

70mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(5V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal Coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

127.3(W) ×73.2(H) ×17.5(T) mm

Installation Dimensions

Positioning hole: 106.5(+0.3mm)×68.3(+0.3mm)

Net Weight

115g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD first, and then assemble it.
Step 1, check the software platform of the screen, mentioned in the datasheet.
Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.
Step 3, update the software program and test
Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
