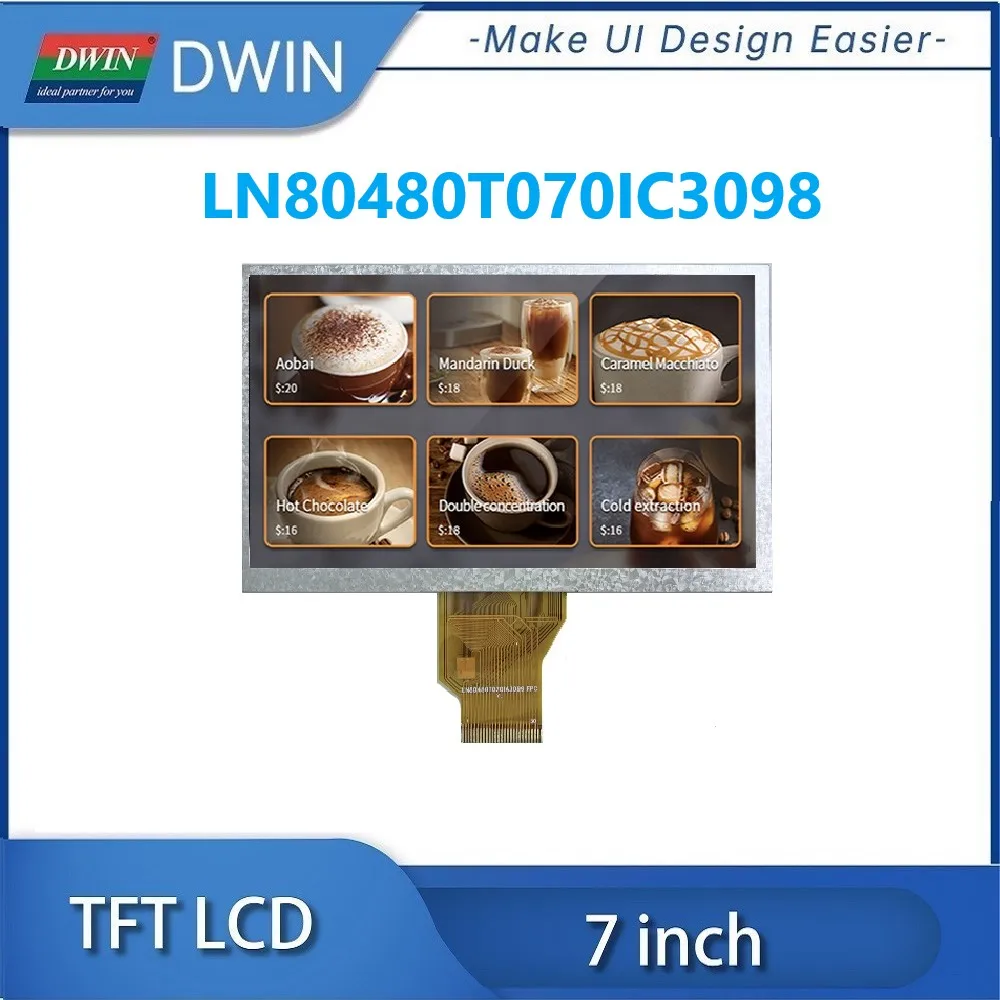

7 Inch 800x480 RGB Interface TN TFT LCD Display LCD Touch Panel Resistive Touch

Product Description

DWIN 7 Inch 800x480 RGB Interface TN TFT LCD Display Resistive Touch With Competitive Price LN80480T070IC3098

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

7.0

inch

Resolution

800(H)*480(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.179(H)*0.193(V)

mm

Viewing Direction

6 o’clock

-

Mechanical

Characteristics

Outside Dimension

165.0(W)*100.0(H)*3.5(D)

mm

Active Area

154.08(W)*85.92(H)

mm

Luminance

300

cd/m²

LED Numbers

21 LEDS

-

Pin Order

From left to right

50PIN_0.5mm

-

Weight

102

g

Electrical

Characteristics

Interface

RGB_24bit

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

ILI6137A+ILI5960

-

Temperature Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Digital Power Voltage

DVDD

3.0

3.3

3.6

V

Analog Power Voltage

AVDD

10.2

10.4

10.6

V

Gate on Voltage

VGH

-

15.0

-

V

Gate off Voltage

VGL

-

-10.0

-

V

Common Voltage

VCOM

3.7

4.0

4.2

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Voltage for LED Backlight

VF

8.4

9.0

9.9

V

Current for LED Backlight

IF

-

140

-

mA

Luminance(with LCD)

Lv

-

300

-

cd/m2

If=140mA

LED Life-Time

-

50000

-

-

Hour

Input/Output Terminals

PIN NO.

Symbol

Function

Remark

1-2

LEDA

LED anode

3-4

LEDK

LED cathode

5

GND

Ground

6

VCOM

Common voltage

7

DVDD

Power for digital circuit

8

MODE

DE/SYNC modeselect. Normally pull high

H: DEmode, L: HSD/VSDmode

9

DE

Data ENABLE

10

VS

Vertical sync input. Negative polarity

11

HS

Horizontal sync input. Negative polarity

12-19

B7-B0

Data bus

20-27

G7-G0

Data bus

28-35

R7-R0

Data bus

36

GND

Ground

37

DCLK

Clock signal

38

GND

Ground

39

L/R

Left/right selection

40

U/D

Up/down selection

41

VGH

Gate on voltage

42

VGL

Gate off voltage

43

AVDD

Power for analog circuit

44

RESET

Global reset pin

45

NC

No connection

46

VCOM

Common voltage

47

DITHB

Dithering setting. DITH= “H” 6bit resolution(last 2 bit of input data truncated); DITH= “L” 8bit resolution(default setting)

48

GND

Ground

49

NC

No connection

50

NC

No connection

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

50

60

-

Deg.

Note 2

Bottom

60

70

-

Left

60

70

-

Right

60

70

-

Contrast Ratio

CR

θ=0°

-

500

800

Response Time

Tr+Td

θ=ψ=0, 60°C

-

25

50

-

Color Chromaticity

(CIE1931)

Wx

0.290

0.310

0.330

Note 1

Wy

0.310

0.330

0.350

Rx

0.561

0.581

0.601

Ry

0.291

0.311

0.331

Gx

0.291

0.311

0.331

Gy

0.535

0.555

0.575

Bx

0.116

0.136

0.156

By

0.099

0.119

0.139

Color Temperature

TC

-

7800

-

K

Note 3

Resistive Touch Parameters(LN80480T070IC3098-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Luminance

200 cd/m²

Structure

ITO Film+ ITO Glass+ FPC

Outline Size(mm)

163.8(L)*97.8(W)*1.5(T)

Active Area(mm)

153.68(L)*86.18(W)

Surface Hardness

3H

Light Transmittance

78%±3%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Life

Over 1,000,000 times touch

Capacitive Touch Parameters(LN80480T070IC3098-TCF)

Feature

Description

Type

CTP (Capacitive touch panel)

Luminance

250 cd/m²

Structure

G+G

Outline Size(mm)

164.6(L)*99.7(W)*1.6(T)

View Area(mm)

154.08(L)*85.92W)

Control Type

GT911

Surface Hardness

6H

Light Transmittance

≥85%

Operating Temperature

-10~60℃

Storage Temperature

-20~70℃
