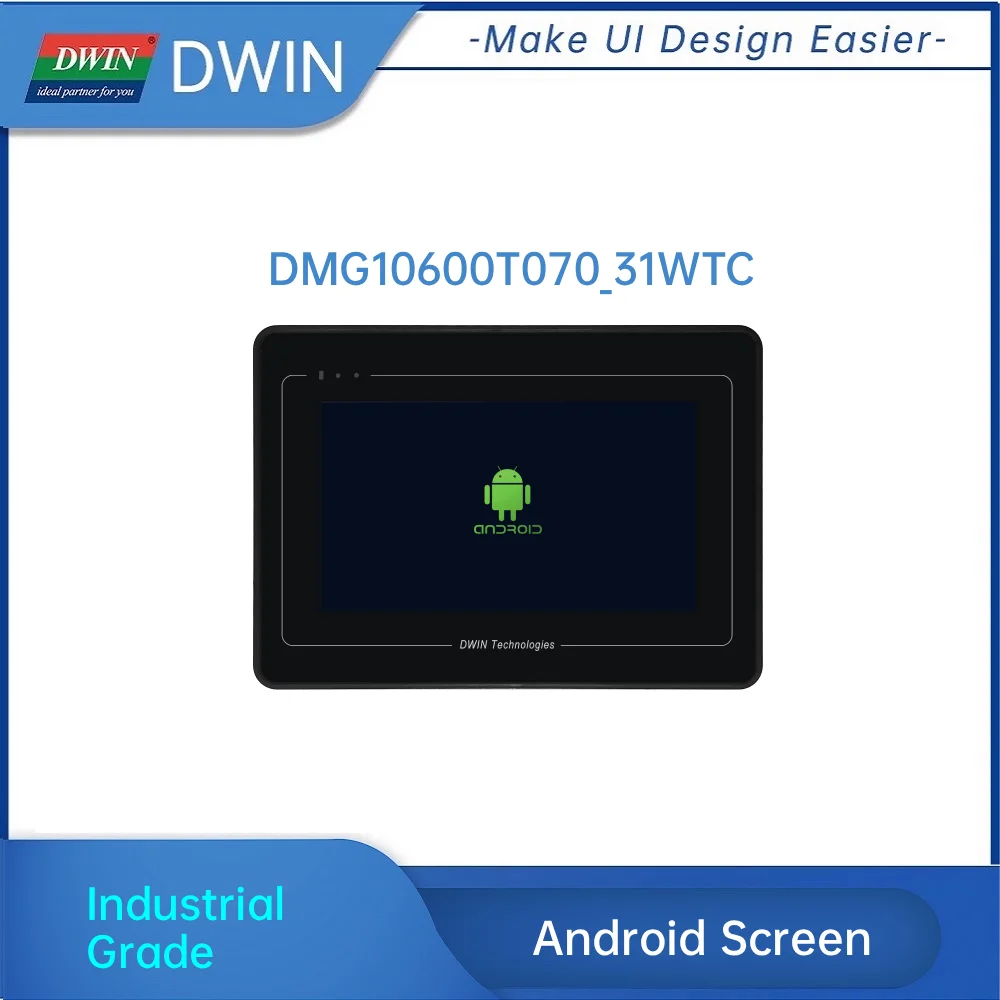

7.0 Inch 1024x600 250nit Embedded Android Display Capacitive Touch Screen with S

Product Description

Properties

Parameters

Motherboard Level

Industrial-grade

CPU

RK3566, Quad-core ARM Cortex-A55 1.8GHz Processor

OS

Android 11

RAM

2Gbytes LPDDR4

Storage

8Gbytes eMMC

Properties

Parameters

Description

Size

7.0 inch

-

LCD Type

IPS, TFT LCD

-

Viewing Angle

85°/85°/85°/85°

Wide viewing angle, high contrast, and good color reproduction

Active Area (AA)

154.20mm(W)×85.88mm (H)

-

Viewing Area (VA)

155.00mm(W)×87.50mm (H)

-

Resolution

1024×600

-

BacklightService Life

>20000 Hrs

Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level

Brightness

250nit

100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)

Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Properties

Parameters

Touch Type

Capacitive touch panel

Structure

G+G structure with tempered glass surface

Properties

Min

Typ

Max

Unit

PowerVoltage

9.0

12.0

36.0

V

Recommended power supply:12V 1A DC.

Properties

Conditions

Min

Typ

Max

Unit

WorkingTemperature

60%RH at 12V voltage

-20

25

65

℃

StorageTemperature

-

-30

25

80

℃

WorkingHumidity

25℃

10%

60%

90%

RH

Conformal Coating

Y

ESD

Air: ±8KV, Contact: ±6KV

EFT

Group pulse interference ±2KV

CE Certification

Y

RoHSCertification

Y

Additional cooling required for operation above 65℃.

Properties

Description

User Interface

10Pin_3.81mm vertical socket, power interface (3PIN_Φ2.0DH)

COM

RS232*2 (COM5 & COM9), RS485*1 (COM7), TTL*1 (COM0)

USB

USB 2.0 *2 (HOST), Type C *1 (OTG)

Speaker

2Pin_1.25mm interface *1

SD card

Max. 64G

LAN

10/100Mbps

Wi-Fi

IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4

Bluetooth Version

BT4.2

RTC

Accuracy: ±20ppm @25℃
