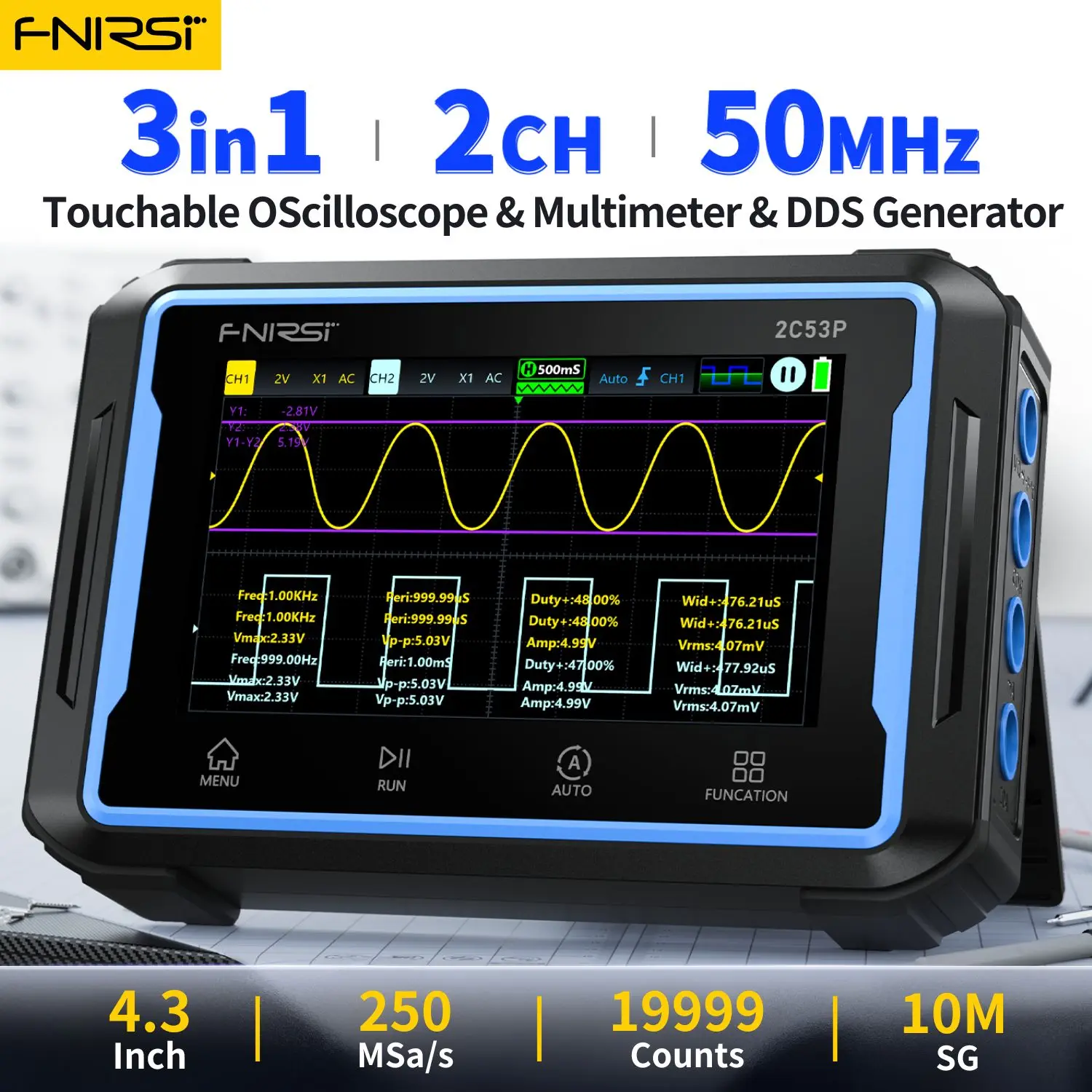

2C53P Touch Screen Digital Oscilloscope+Multimeter+Signal Generator 3IN1 Dual Ch

Product Description

FNIRSI-2C53P is a three-in-one dual-channel model launched by FNIRSI with comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.

Word oscilloscope. This device has three major functions: oscilloscope, multimeter and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture and has

It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum peak voltage measurement of ±400V; supports waveform screenshots.

Save and view to facilitate secondary analysis. The multimeter function is 4 and a half digits and 19999 points of true RMS, supporting AC and DC voltage and current measurements, capacitance, resistance,

With measuring functions such as diode, continuity, temperature, etc., it is an ideal multi-functional instrument whether used by professionals, factories, schools, enthusiasts or families. Inside

Set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 10MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle

Adjustable. It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery with a standby time of up to 4 hours. With small size

Provide users with more and stronger practical functions, while also having good portability.
Oscilloscope

Channel：Dual channel

Analog bandwidth：50MHz

Real-time sample rate：250MSa/s

Storage depth：Up to 64kByte

Input mpedance：1MΩ

Time base range：10ns/div - 10s/div

Vertical sensitivity：10mv/div - 10v/div

Vertical resolution8 bits

Maximum measured voltage：±400V

Probe：1x/10x

torage space：13

Bandwidth limitSupport 20MHz limit

Trigger mode：AUTO/Normal/Single

Trigger type：Rising edge, Falling edge

Trigger level range：8 cells (positive/negative)

Waveform display mode：XY/YT/Scroll

Coupling method：AC/DC

Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width

Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT

Save waveform screenshot：Yes

Export waveform images from computer：Yes

Multimeter

DC Voltage：1.9999V/19.999V/199.99V/1000.0V

AC voltage：1.9999V/19.999V/199.99V/750.0V

DC current：19.999mA/199.99mA/1.9999A/9.999A

AC current：19.999mA/199.99mA/1.9999A/9.999A

Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω

Capacitance：999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF

Temperature：(-55~1300℃)/(-67~2372℉)

Diode：Yes

Continuity test：Yes

Signal Generator

Channel：Single channel

Frequency：0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）

Amplitude：0.1V-3.0V

Square wave duty cycle0-100%

Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

Basic Parameters

Screen size & resolution：4.3 Inch (480*272 pixels)

Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen

BacklightBacklight brightness can be set

Power supply：TYPE-C（5V/2A）

Battery：4000mAh lithium battery

Language：Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인

Product size：about 145x98x35mm

Product net weight：about 360g

2C53P Standard

1. 2C53P（2CH Touchable Oscilloscope Multimeter 3in1）*1

2. P6100 Probe *2

3. Multimeter probe *1

4. Alligator clip probe *1

5. Data cable *1

6. Product Manual *1
