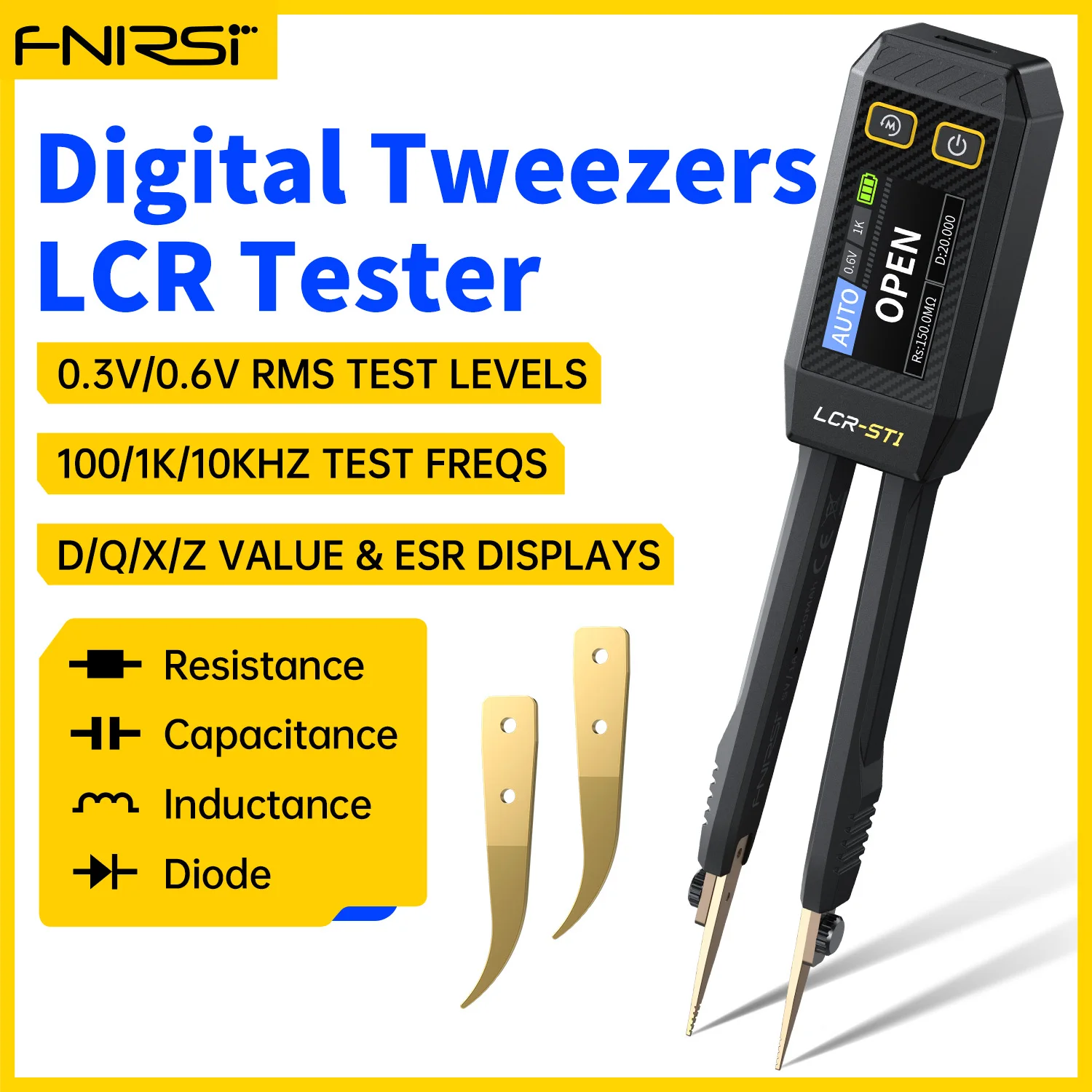

LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance

Product Description

The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.

This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.

Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!

1.Product Model: LCR-ST1

2.Capacitance range: 1pF-22mF

3.Inductance range: 1μh-10H

4.Resistance range: 10mΩ-10MΩ

5.Diode: On voltage 0.7V

6.Frequency test: 100Hz, 1kHz, 10KHz

7.Level test: 0.3V, 0.6V RMS

8.Parameter display: ESR, D value, Q value, Z value, X value

9.Display: 1.14'' color screen

10.Charging Interface: Type-C, 5V/A

11.Power Supply: 250mAh lithium battery

12.Auto recognition measurement: Support

13.Replaceable tweezer head: Support

14.Auto shutdown: Support

15.Data hold: Support

16.History record: Connect to PC to view and export

17.Language: Chinese, English

18.Size: 28×19×150mm

19.Weight: 41g

① LCR-ST1 without Bag

1. LCR-ST1 smart tweezers

2. Pointed head (one pair)

3. Magnetic patch

4. USB data cable

5. User manual

② LCR-ST1 with Bag

1. LCR-ST1 smart tweezers

2. Pointed head (one pair) + Hook head (one pair)

3. Storage bag

4. Magnetic patch

5. USB data cable

5. User manual
