Fine-tuning Pivoting Bracket Magnetic Base For Laser Level, Tripod, Wall Hang Mo

Product Description

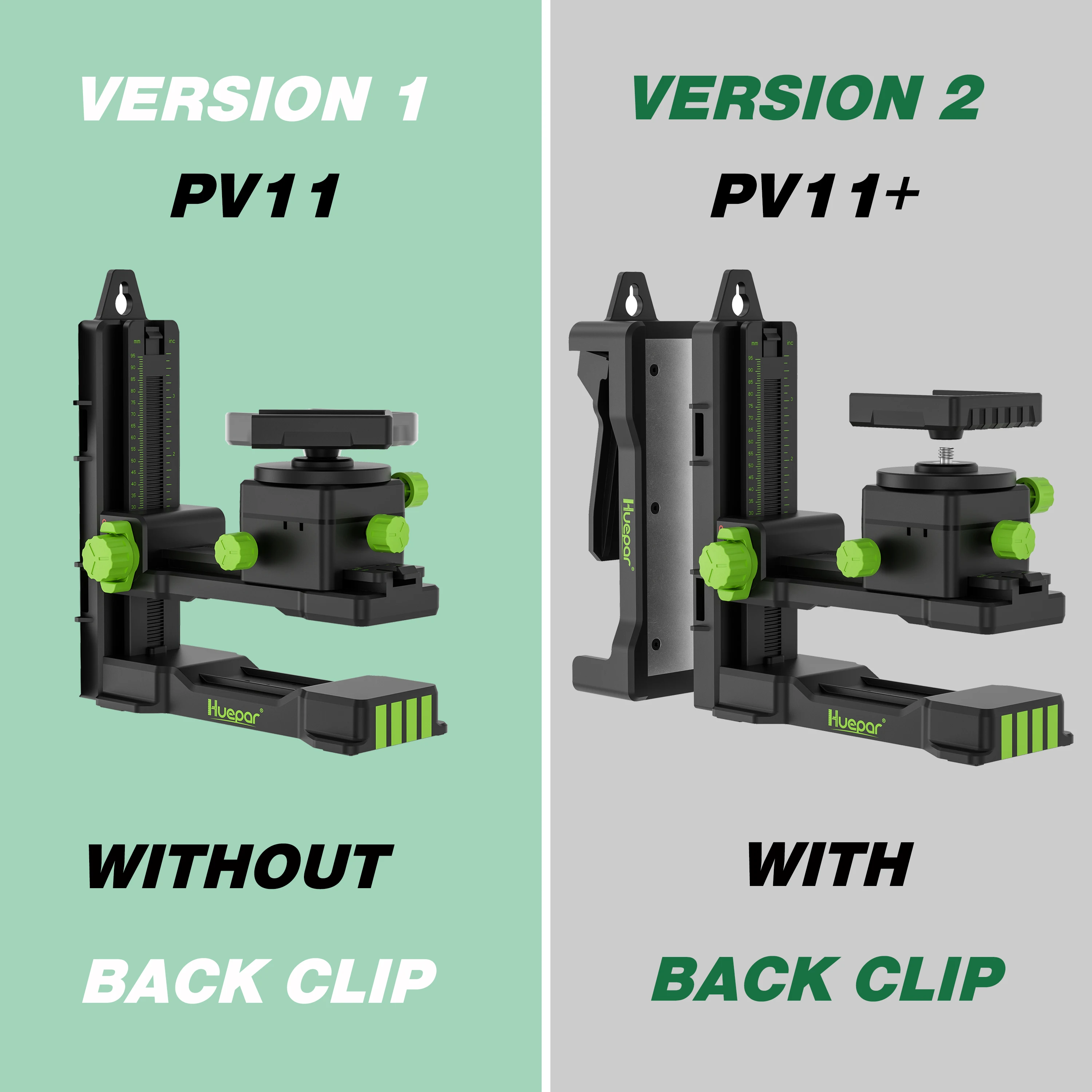

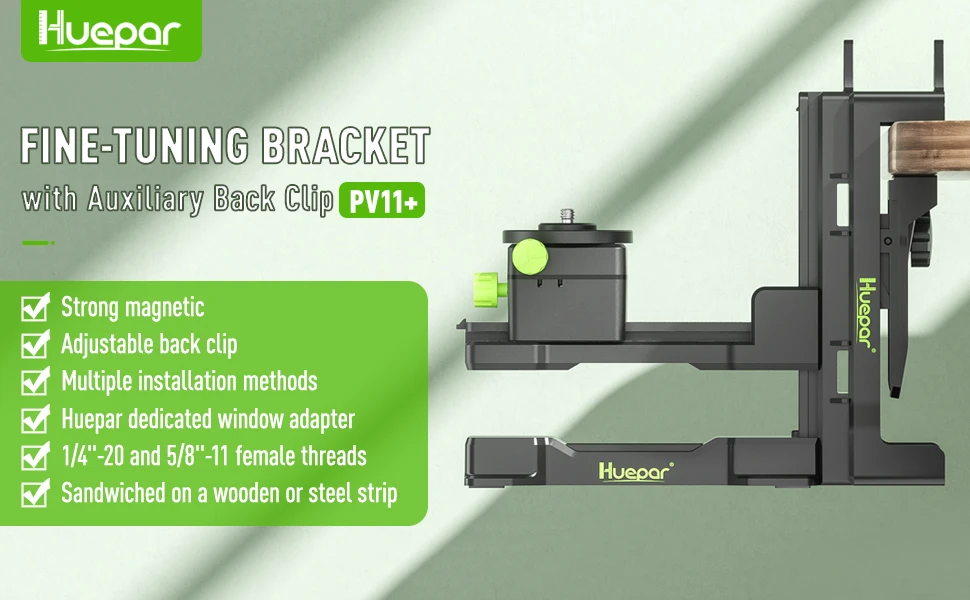

Huepar Fine-tuning Pivoting Bracket Magnetic Base For Laser Level, Tripod, Wall Hang Mounted Holder With Back Clip PV11+

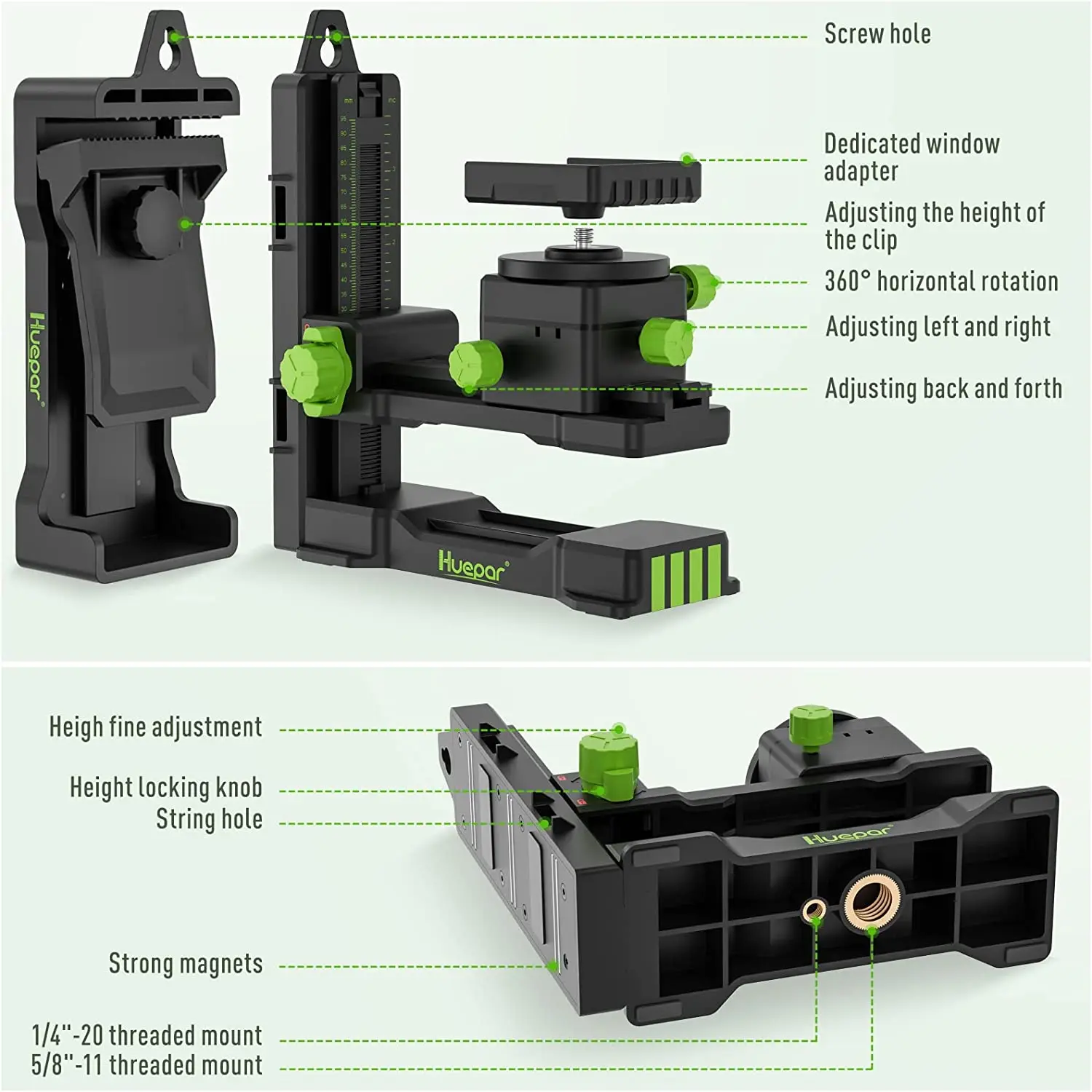

Specification of Huepar PV11+ Adjustable Base:

Magnetic Pivoting Bracket with Dedicated Window Adapter:

Height Adjustment Graduations: mm / inch

Male Thread for Laser Level: 1/4"-20

Female Thread for Tripod or laser pole: 1/4"-20 and 5/8"-11

The length of the male thread to the side of the bracket: 3-9 cm

Load capacity: 3KG

Net Weight & Size: 443g & 23 x 18.7 x 7 cm

Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the horizontal position back and forth), Height adjustment.

The adapter is only compatible with: Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG

Multi-functional Auxiliary Back Clip:

The opening size of the clip: 0.5 - 5cm

The size of the steel sheet: 15 x 5cm

Net Weight & Size: 309g , 18.7 x 7 x 3.8 cm

Adjustment: Opening size of clip

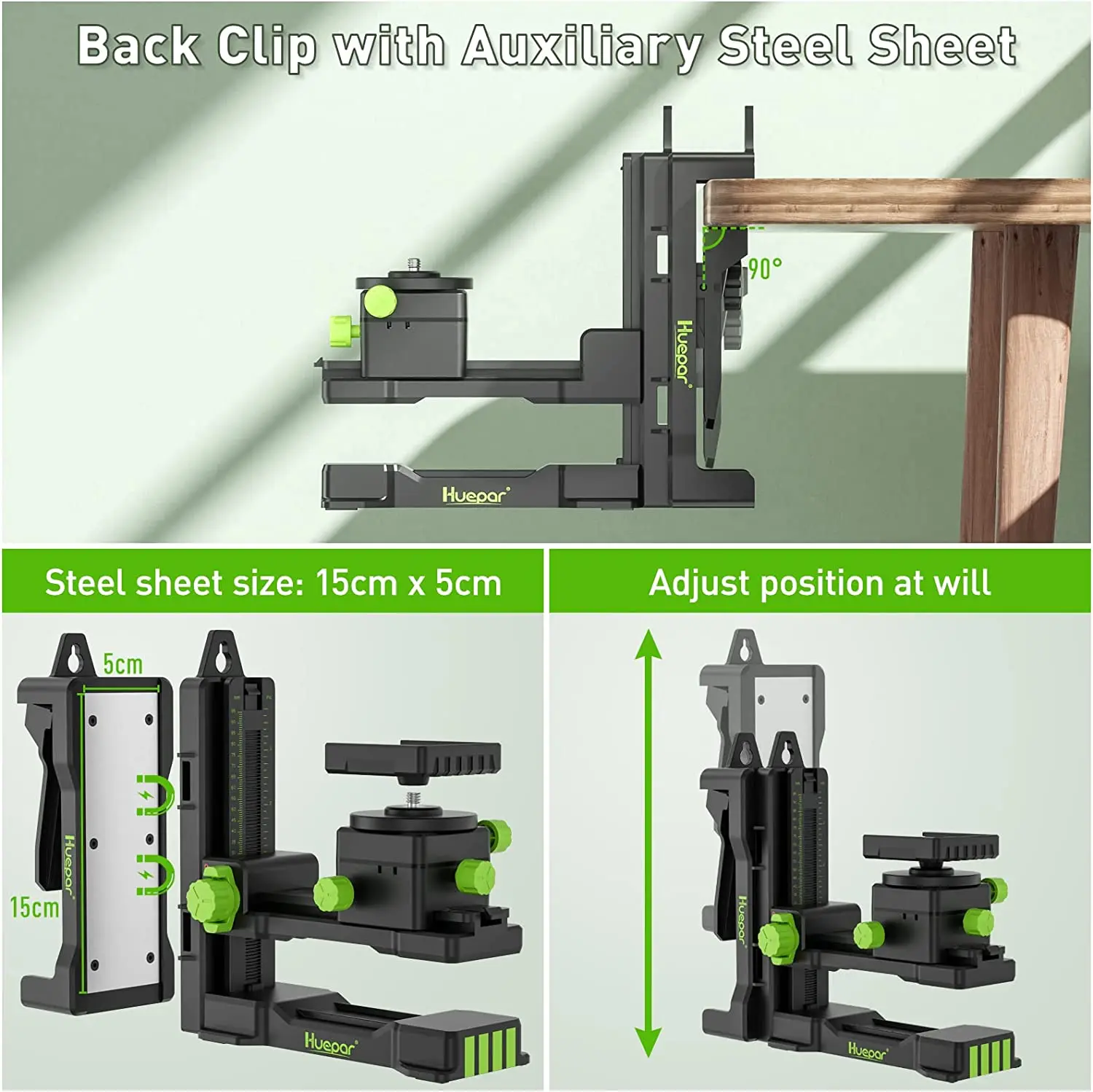

Multi-functional Adjustable Auxiliary Spring Back Clip

The spring back clip is compatible with most magnetic bases at the market, increasing the adsorption force of the magnets and stability.

The opening size of the clip can be adjusted, offers the ability to mount to any object up to 5cm thick.

A nail hole in the clip enables to be fixed firmly on the wall.

The size of the steel plate of the back clip is 5cm (W) x 15cm (L).

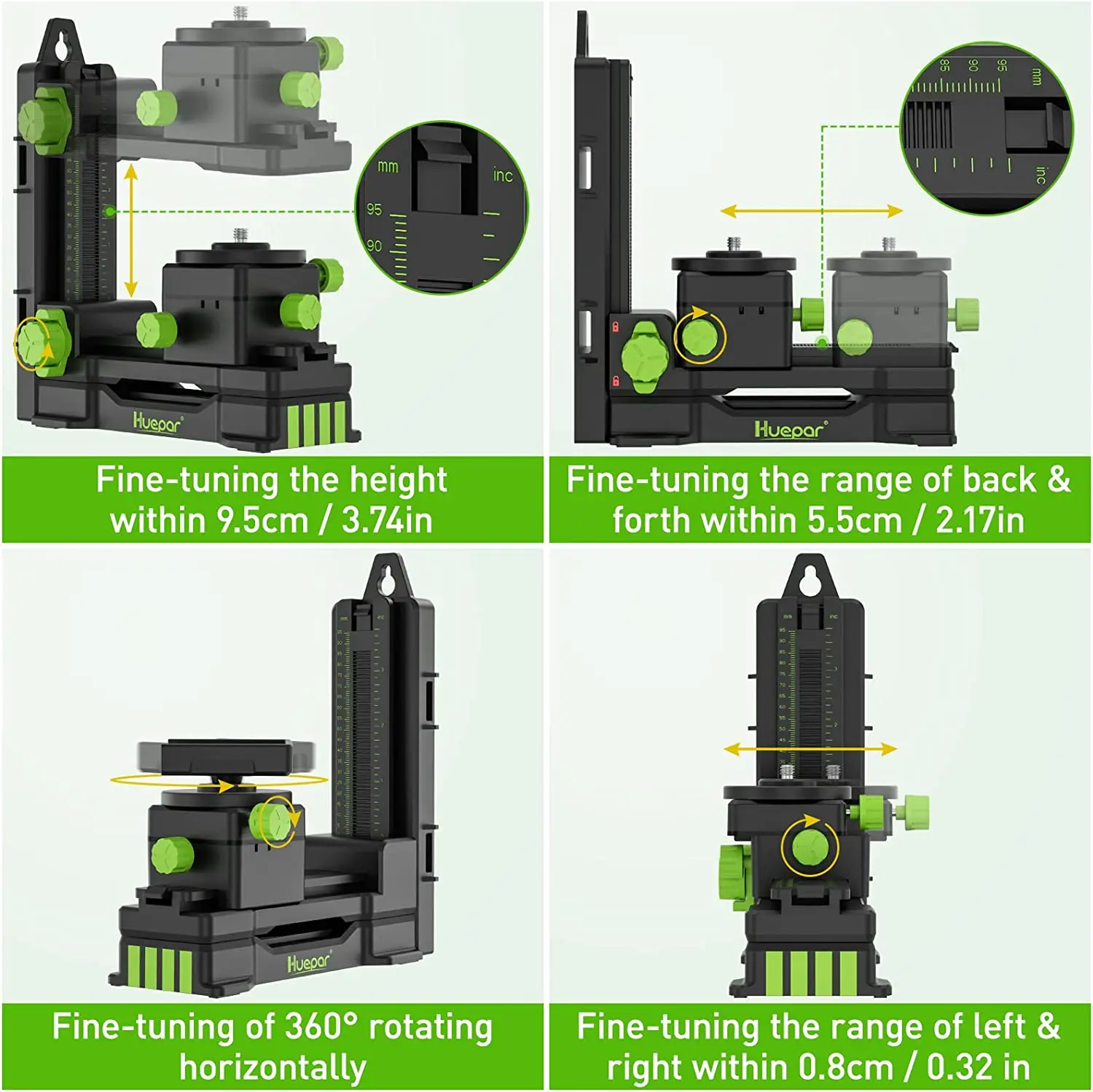

Multidirectional Adjustable Bracket

Adjust the height within 9.5 cm. A locking knob enables to fix the working height.

The graduations are marked in inches and millimeters for easy readouts.

Adjust the position back and forth within 5.5cm to suit for laser tools of different size.

Make 360° adjustments clockwise or counterclockwise.

Adjust the horizontal position left and right within 0.8cm.

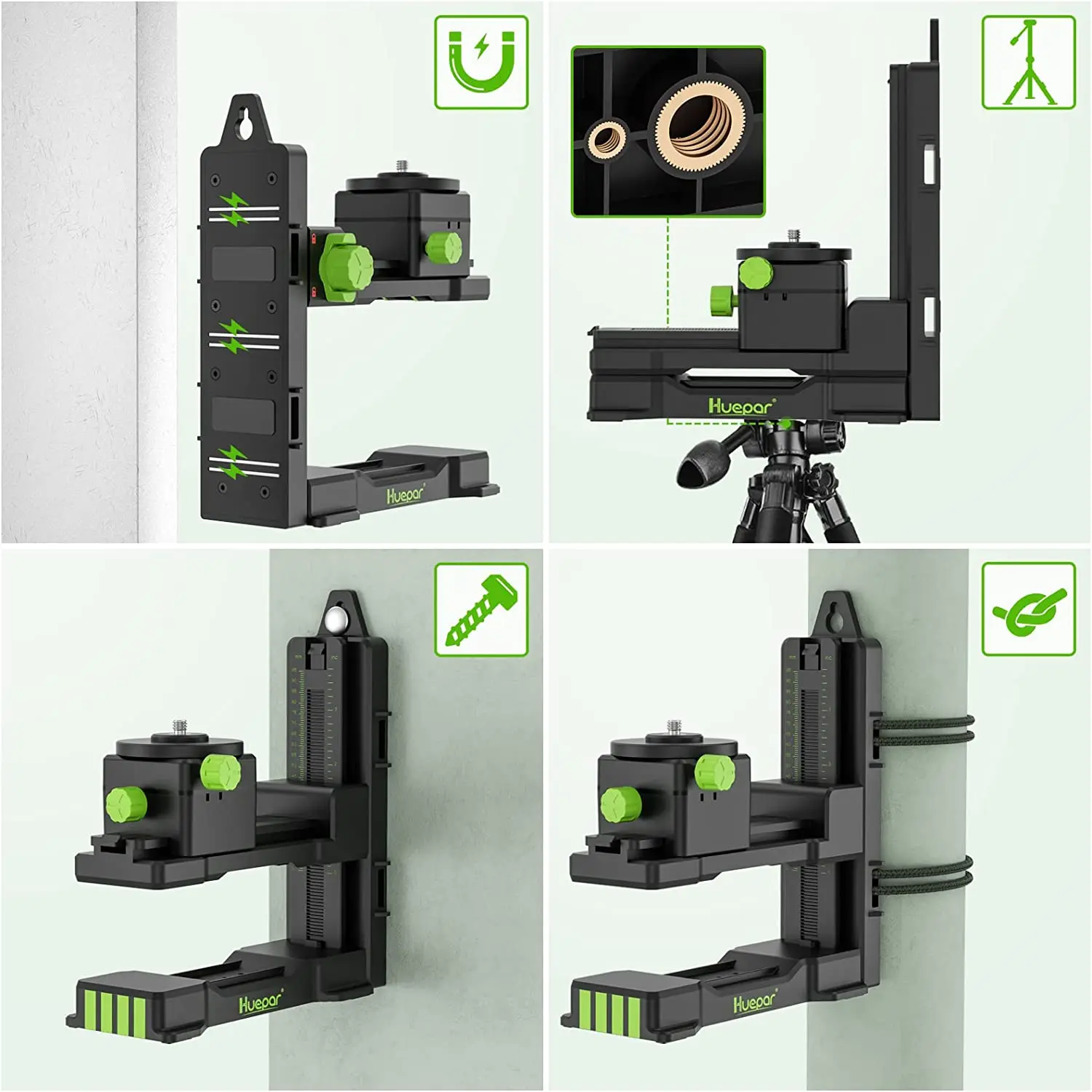

Multiple Installation Methods of the Bracket

With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces.

The magnetic bracket has 1/4 In-20 and 5/8 In-11 threaded mounts on the bottom delivering versatility to be used with standard tripod or pole mounts.

Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer.

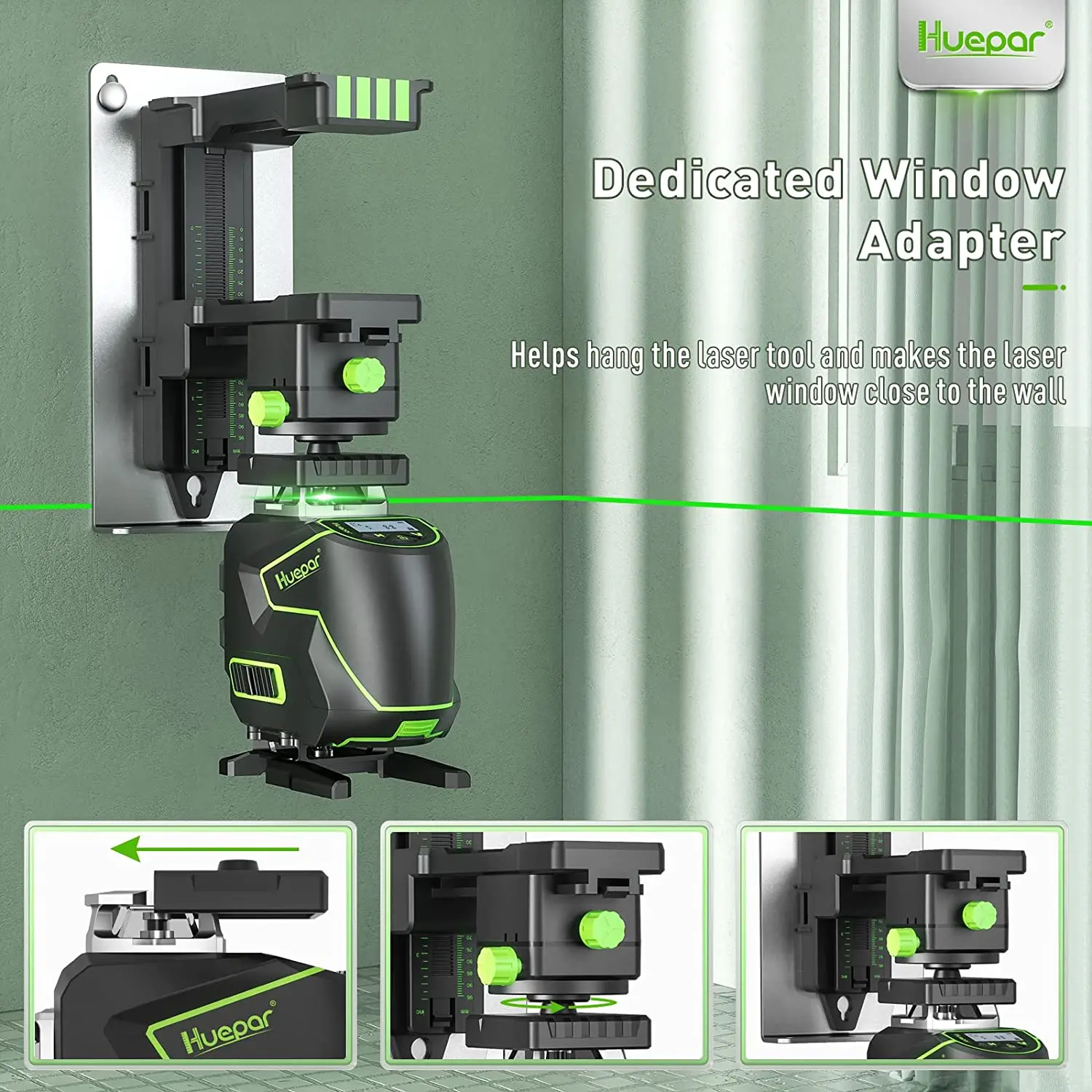

Huepar Dedicated Laser Window Adapter

A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.

Due to the special design of the groove, Huepar adapter is only suitable for certain models:

Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG
