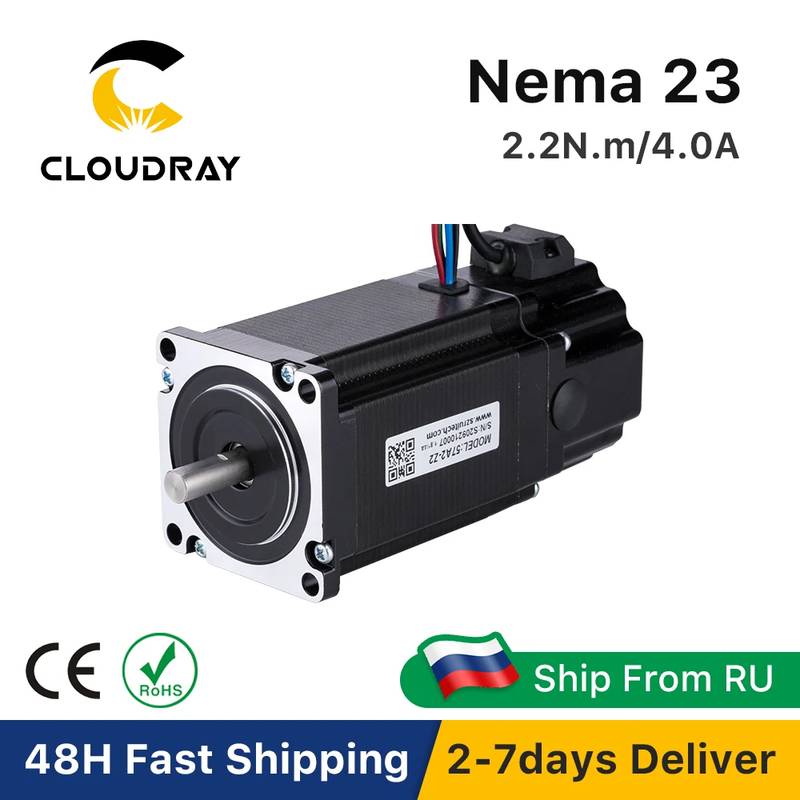

Nema 23 Stepper Motor 57mm 220Ncm 4A 2 Phase Stepper Motor with Brake 4-lead for 3D printer CNC Laser Grind Foam Plasma CutNema23 Stepper motor parameters
Model
Step Angle
Motor Length
Rated
Current
Phase
Resistance
Phase
Inductance
Holding Torque
Rotor
Inertin
Lead wire
Weight
Buy
(deg)
(mm)
(A)
(Ohm)
(mH)
(N.m)
(g.cm²)
(No)
(g)
23CS09B-280
1.8
55
2.8
0.42ohm±10%
1.53mH±20%
0.9
260
4
700
23CS09C-280
1.8
55
2.8
0.42ohm±10%
1.53mH±20%
0.9
260
4
700
23CS13B-280
1.8
64
2.8
0.64ohm±10%
2.65mH±20%
1.3
460
4
1100
23CS13C-280
1.8
64
2.8
0.64ohm±10%
2.65mH±20%
1.3
460
4
1100
23CS15C-280
1.8
76
2.8
0.55ohm±10%
1.45mH±20%
1.5
150
4
900
23CS22C-400
1.8
80
4.0
0.41ohm±10%
2.0mH±20%
2.2
460
4
1200
23CS30C-500
1.8
102
5.0
0.82ohm±10%
3.73mH±20%
3.0
720
4
1500
23CS13C-280Z (Brake)
1.8
115
2.8
0.64ohm±10%
2.65mH±20%
2.8
460
4
1100
23CS22C-400Z(Brake)
1.8
119
4.0
0.41ohm±10%
2.0mH±20%
4.0
460
4
1600
23CS30C-500Z(Brake)
1.8
143
5.0
0.82ohm±10%
3.73mH±20%
5.0
720
4
1500
