Product Description
P6X 5.5" Camera Field Monitor 3D LUT HDR IPS Panel TouchScreen Display 4K HDMI-Compatible 1920x1080 Video Focus Assis
P6X 5.5" Camera Field Monitor 3D LUT HDR IPS Panel TouchScreen Display 4K HDMI-Compatible 1920x1080 Video Focus Assis* Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
* Waveform (RGB, YUV, Y)
* HDR
* Vector
* Histogram (RGB1,RGB2,Y )
* Embedded Audio
* Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
* False Colors (Normal, ARRI)
* Over Exposure (10RE～100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Grid (2x2,3x3,4x4,5x5,6x6,7x7,8x8,9x9, Custom)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
* Image Flip ( H Flip, V Flip, H_V Flip )
* Image Freeze
* Center Marker
* Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
* Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
* Marker Color (Red, Green, Blue, Black, White, Gray)
* User Switch (1~4)
* Zoom Mode (2X、4X、9X、16X、User)
* Pixel to Pixel
* Display Adjustment (can adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
* Display Range(Auto, Limit, Full)
* Built-in fan(can be adjustable 1~5))
* Color Temp. ( 5600K, 6500K, 9300K, User.Under the “user”, the red, green, and blue values of the image can be adjusted 0~255)
Package Including:
1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× Type-C to USB
1× Manual

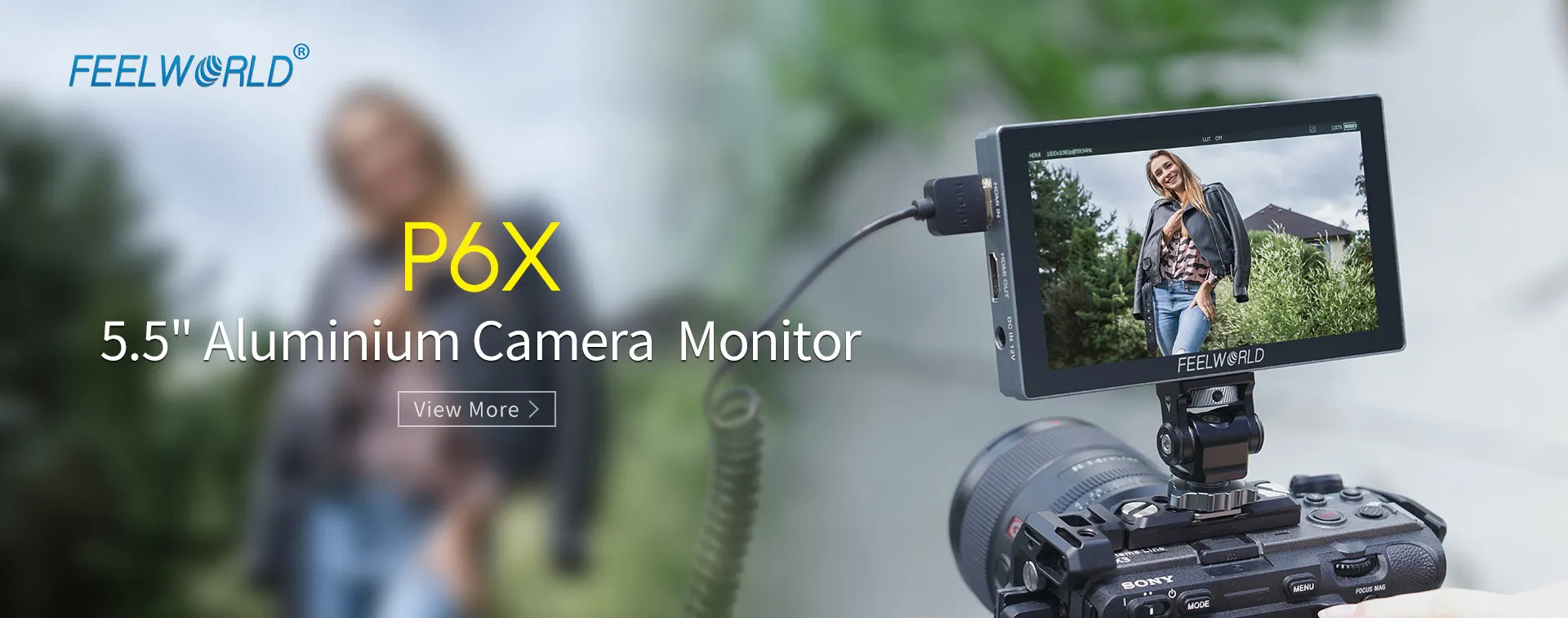

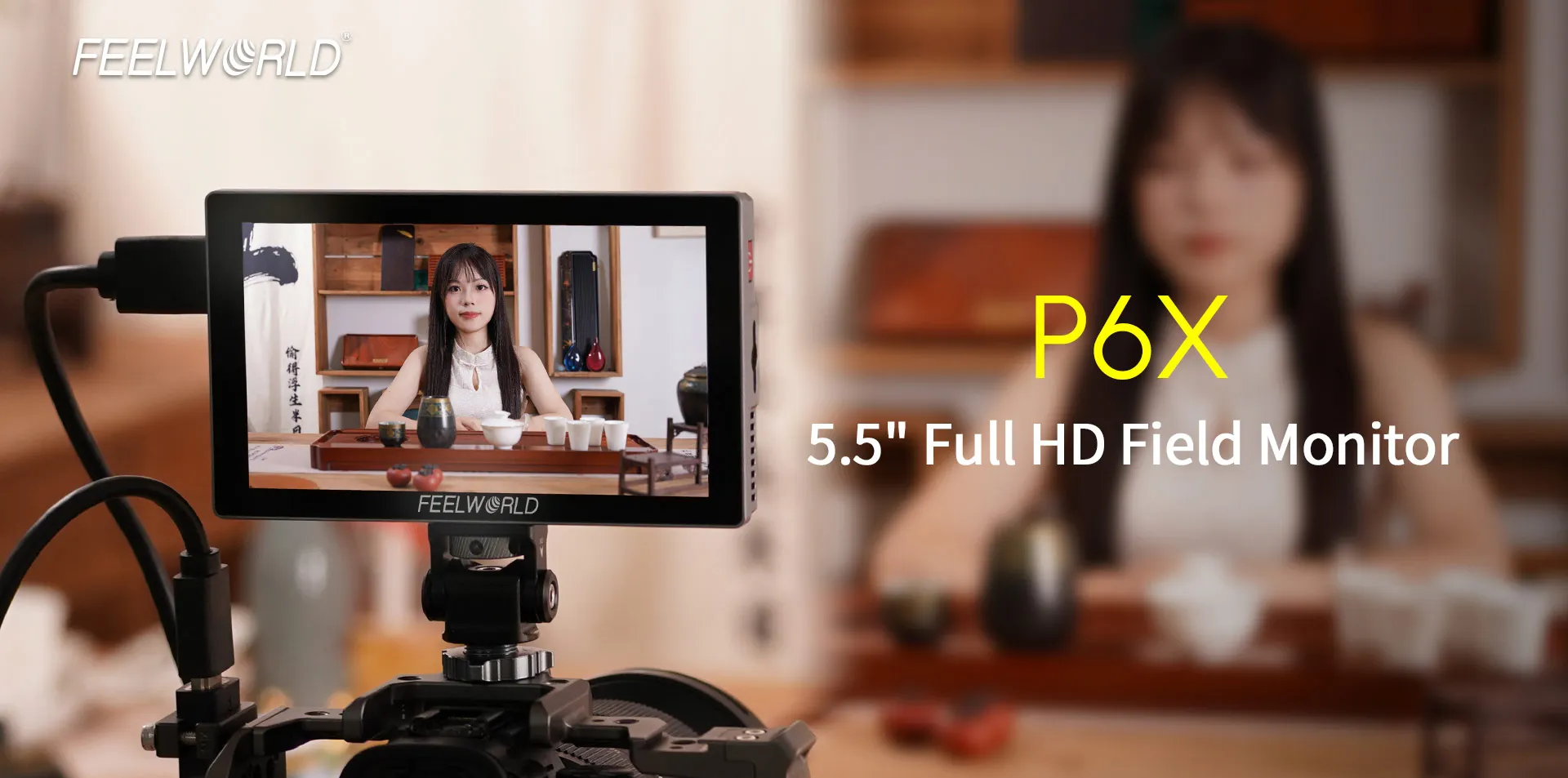

Exquisite. Lightweight . Almighty
FEELWORLD P6X has up to 4K@60Hz HDMI transmission rate allows you to experience the smoothness of high-speed transmission; 5.5-inch high brightness touch screen，make shooting more efficient;all metal body, sturdy and durable; A series of camera assistance functions help photographers to compose on-site and save post production time. P6X is perfect for video creators.

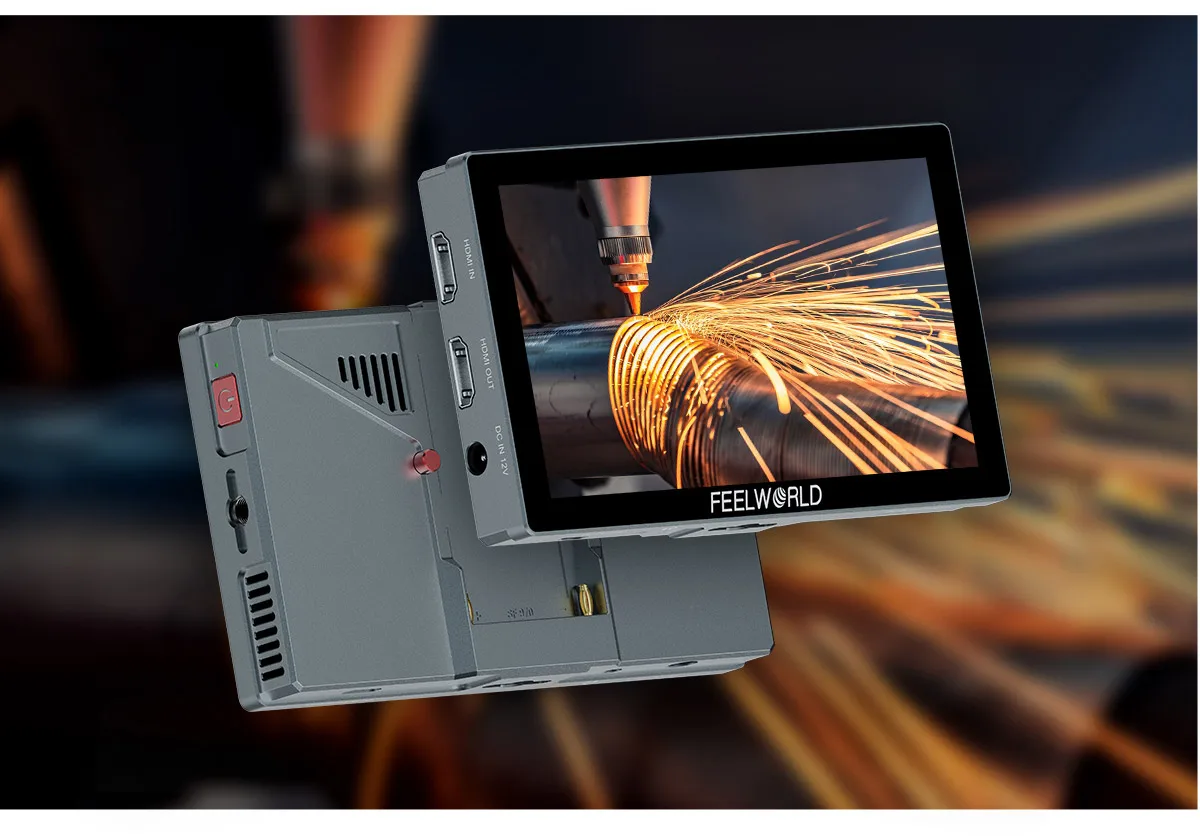

Rugged Aluminium Housing
249g,durable and portable, suitable for various shooting environment.

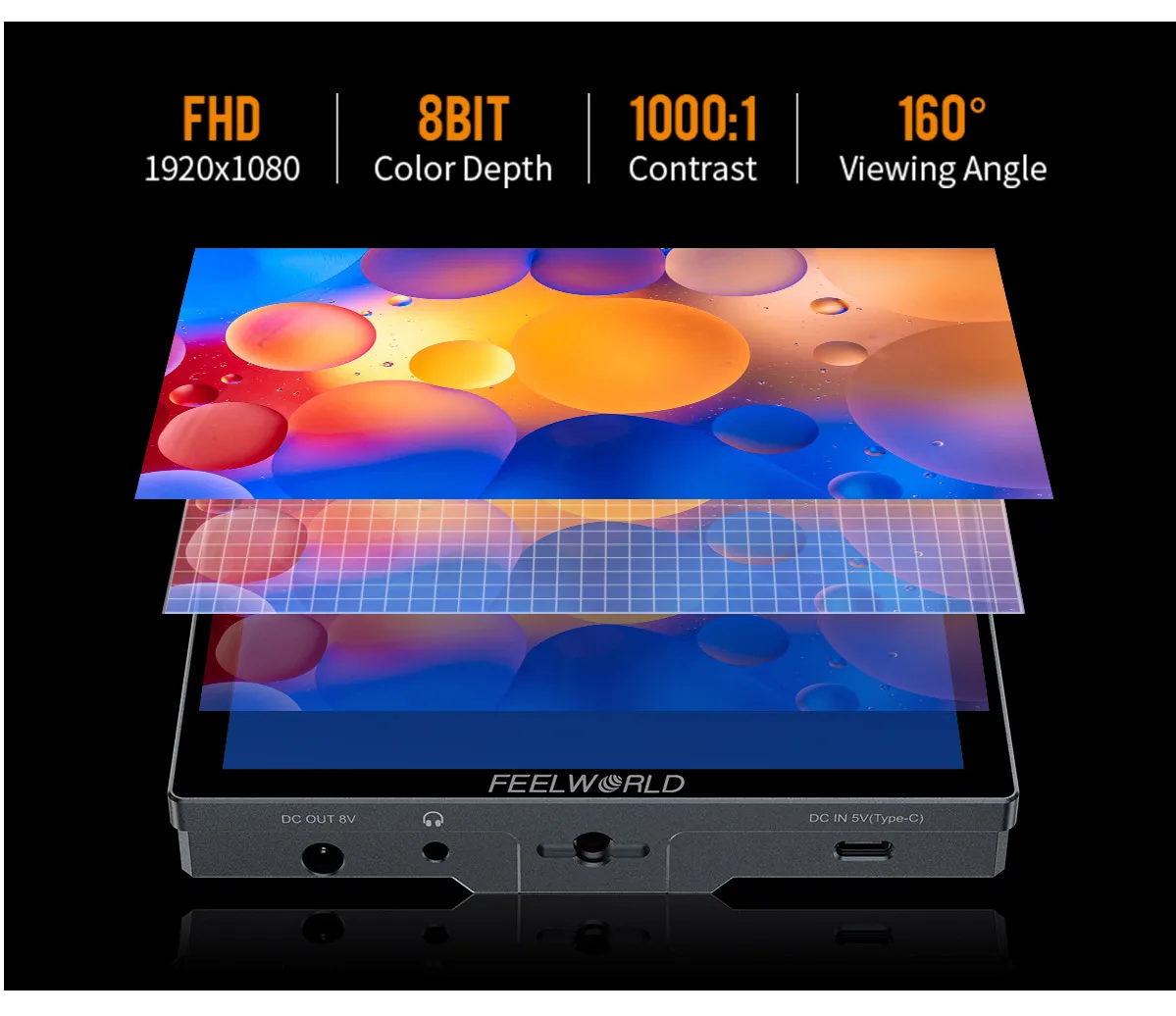

5.5-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 5.5-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
1000Nit, Daylight Viewable
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

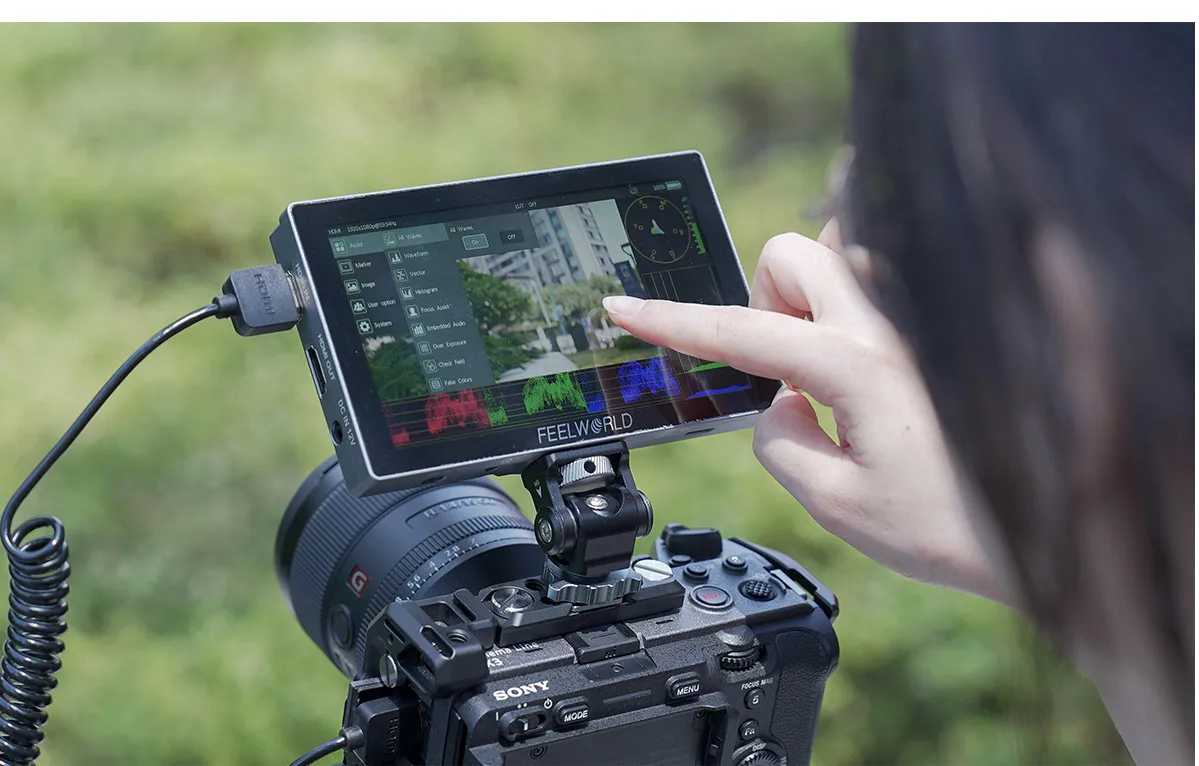

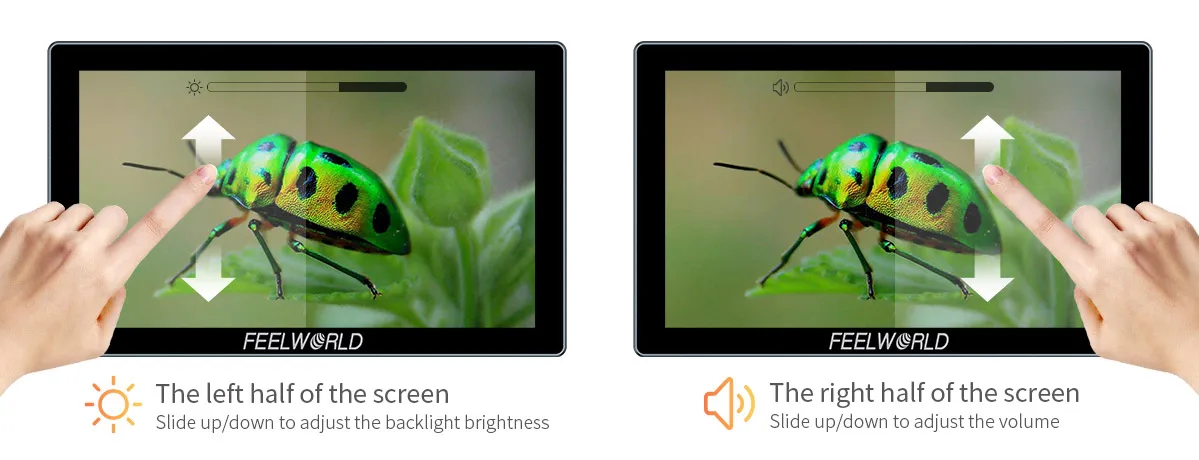

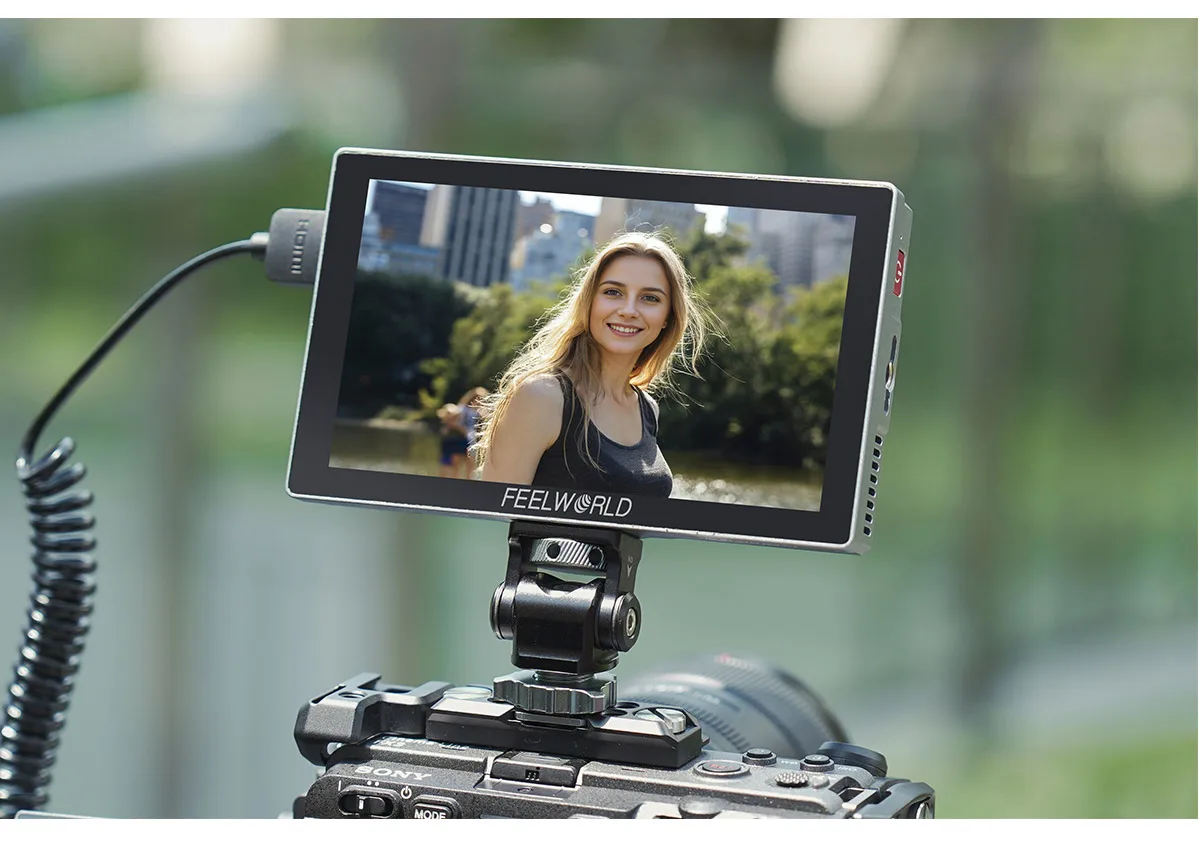

Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

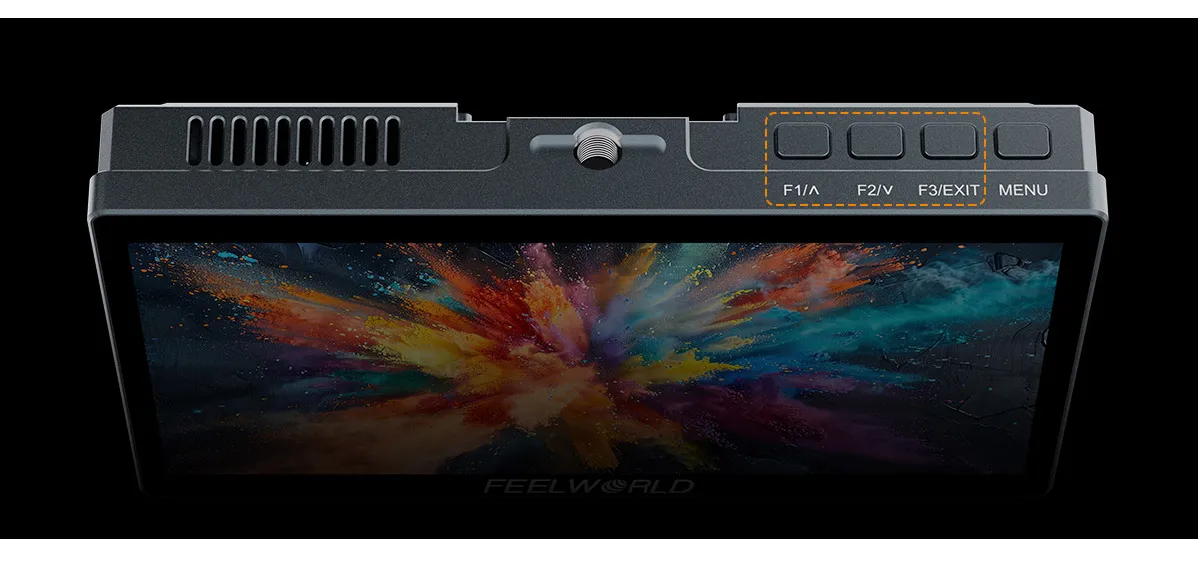

Button Operation, More SelectionExcept touch control, P6X also provides button operation. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

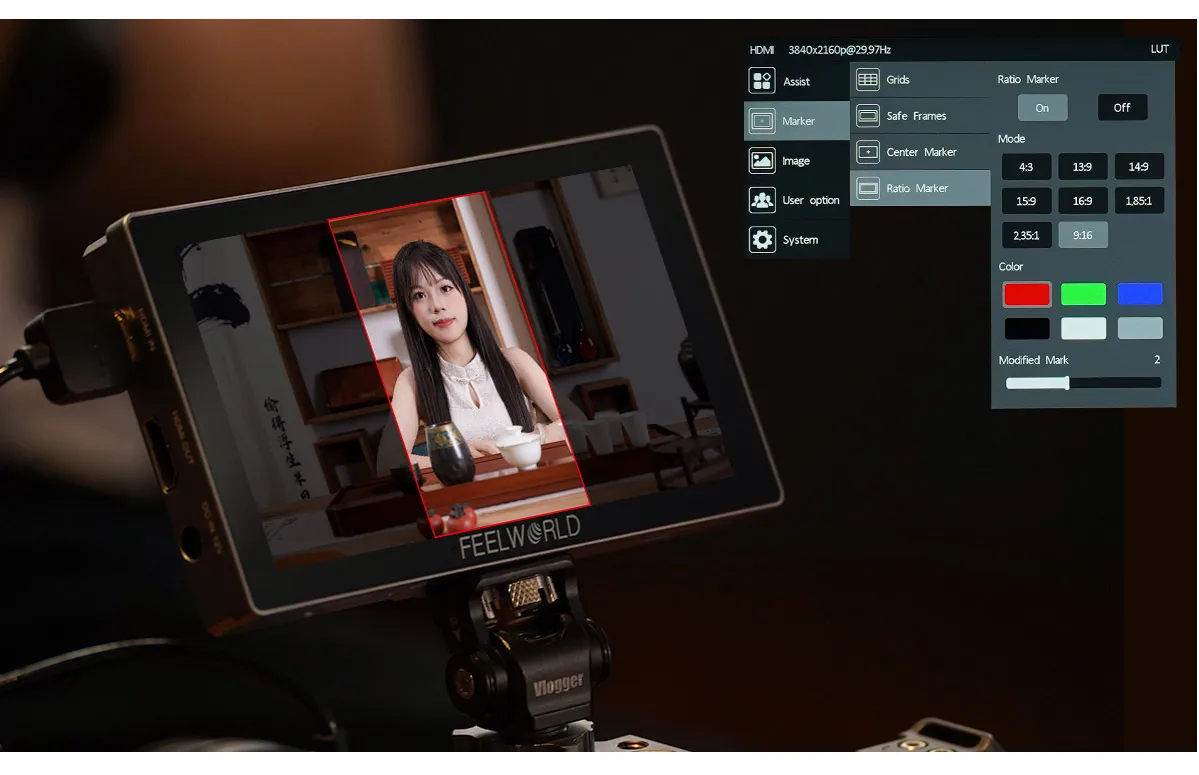

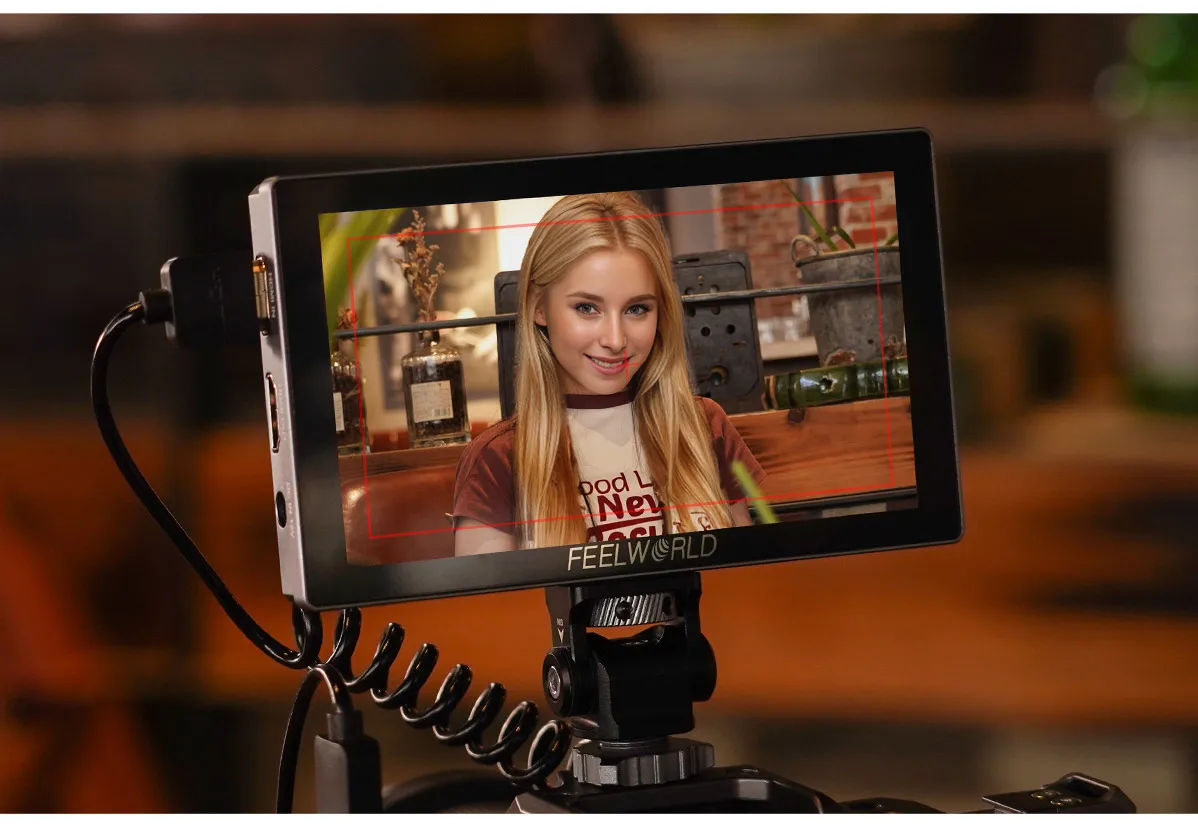

9：16 Vertical Screen Marker
P6X has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, instagram.

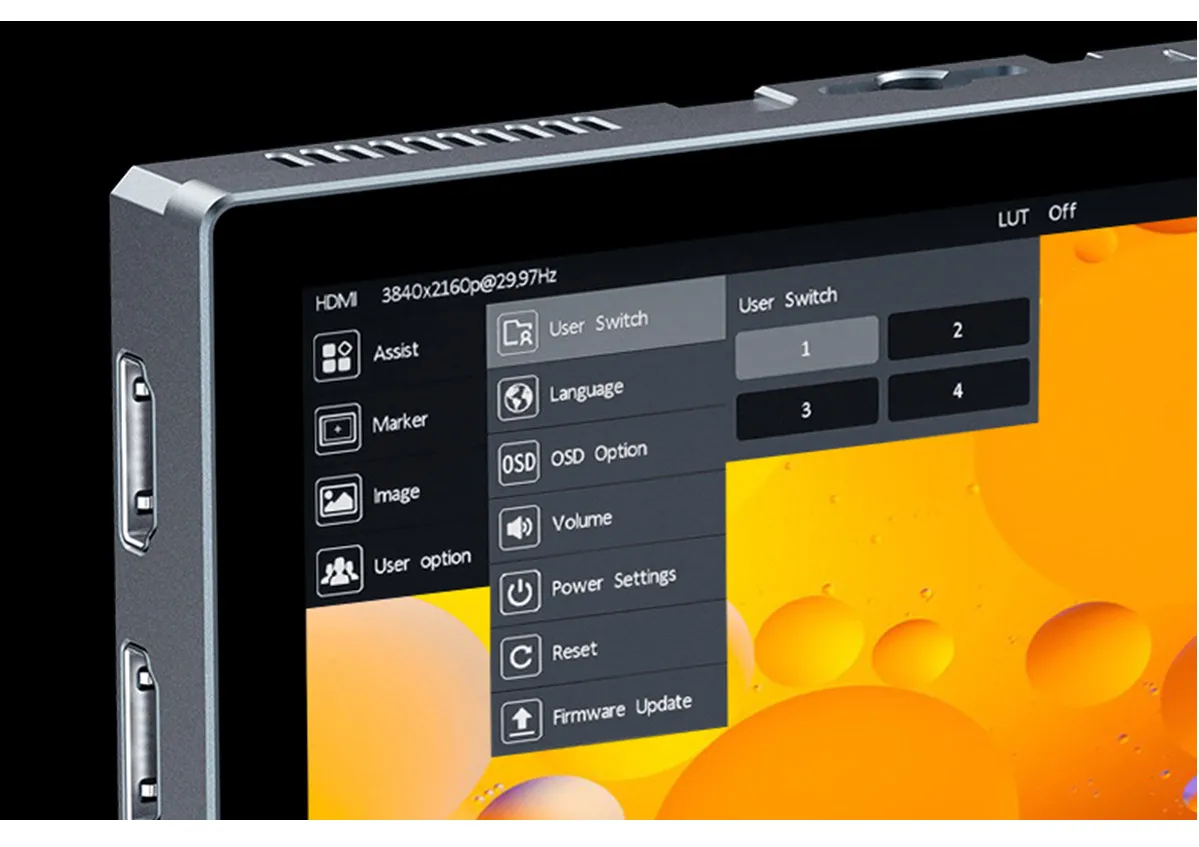

Menu User Switch
P6X provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.

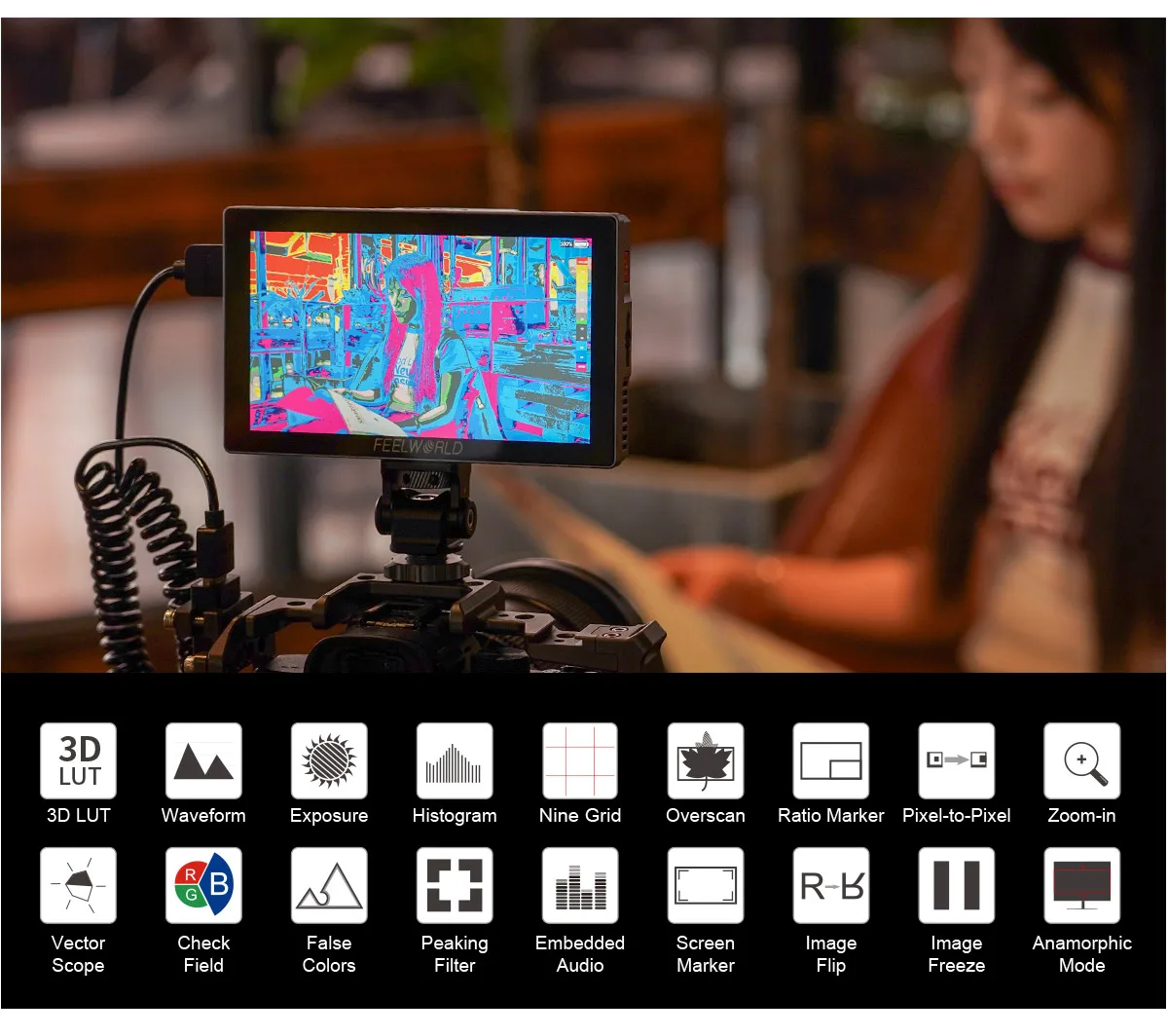

Full Range of Auxiliary Functions

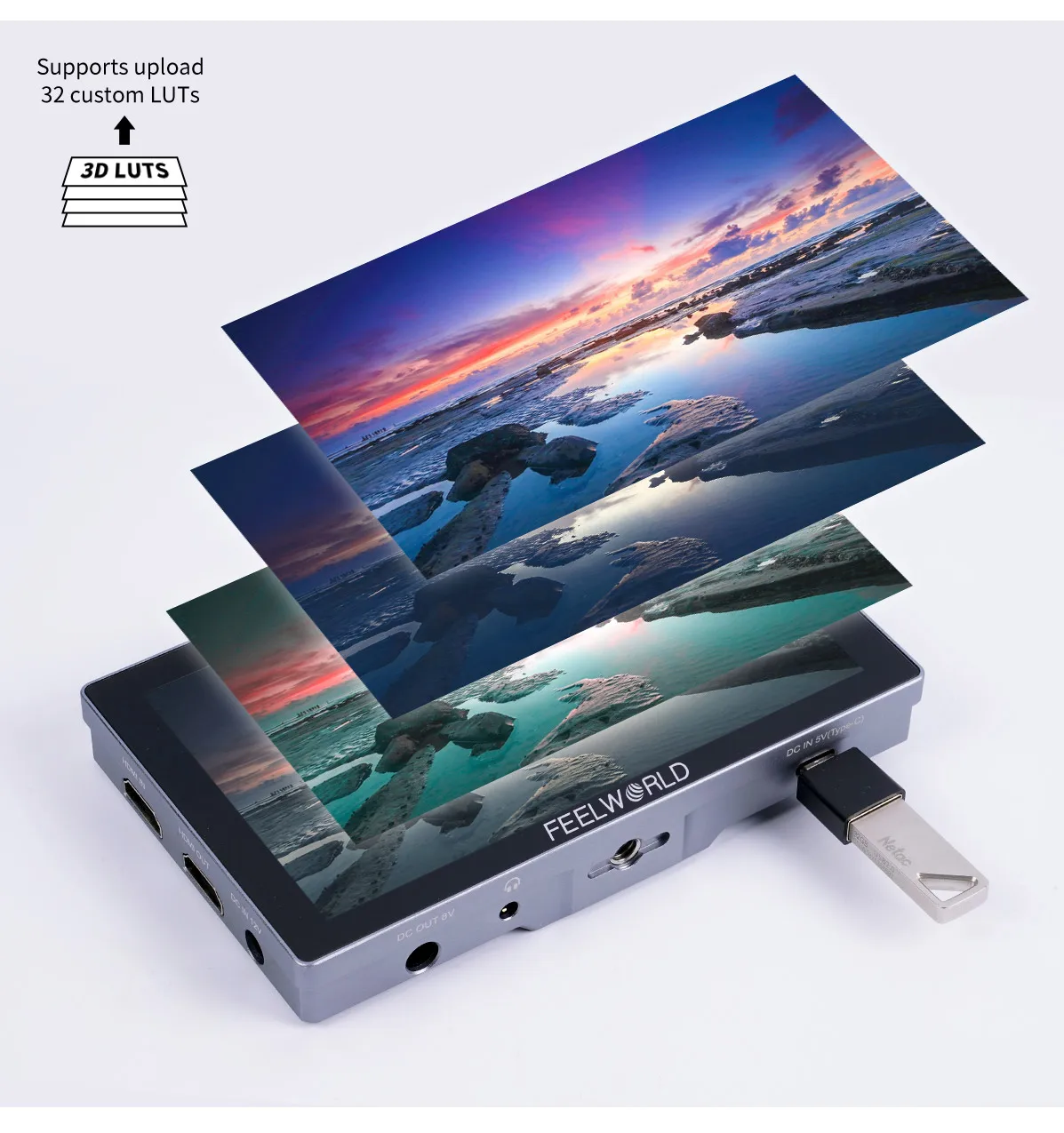

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory Type-C to USB adapter, then connect with Type-C interface of P6X.

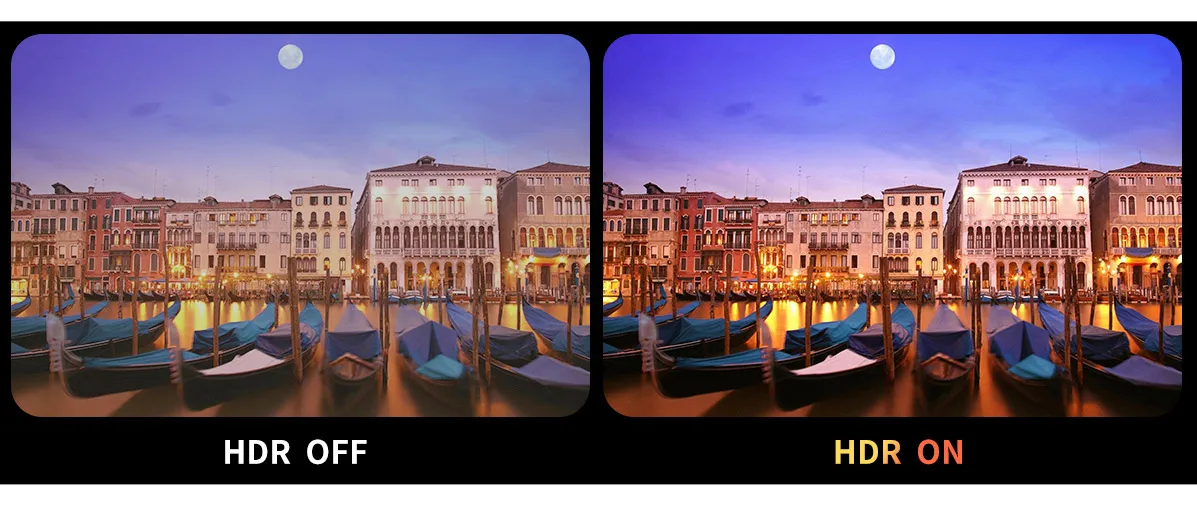

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Accurate waveform monitoringSave your budgetBuilt-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. P6X becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

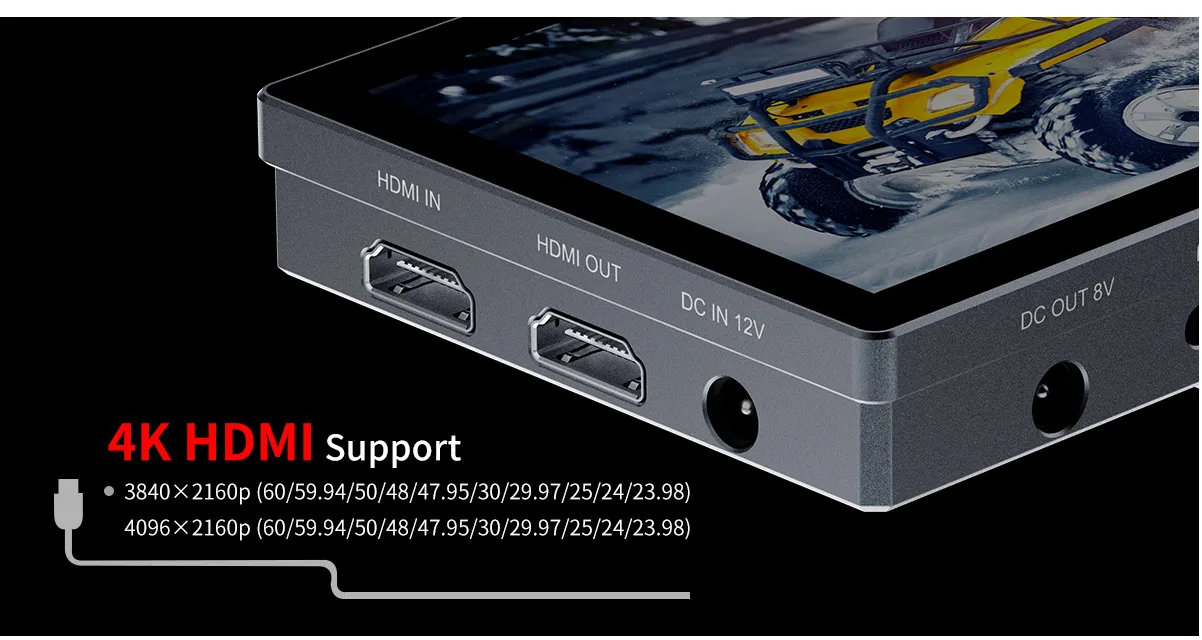

4K HDMI Input and Output，High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

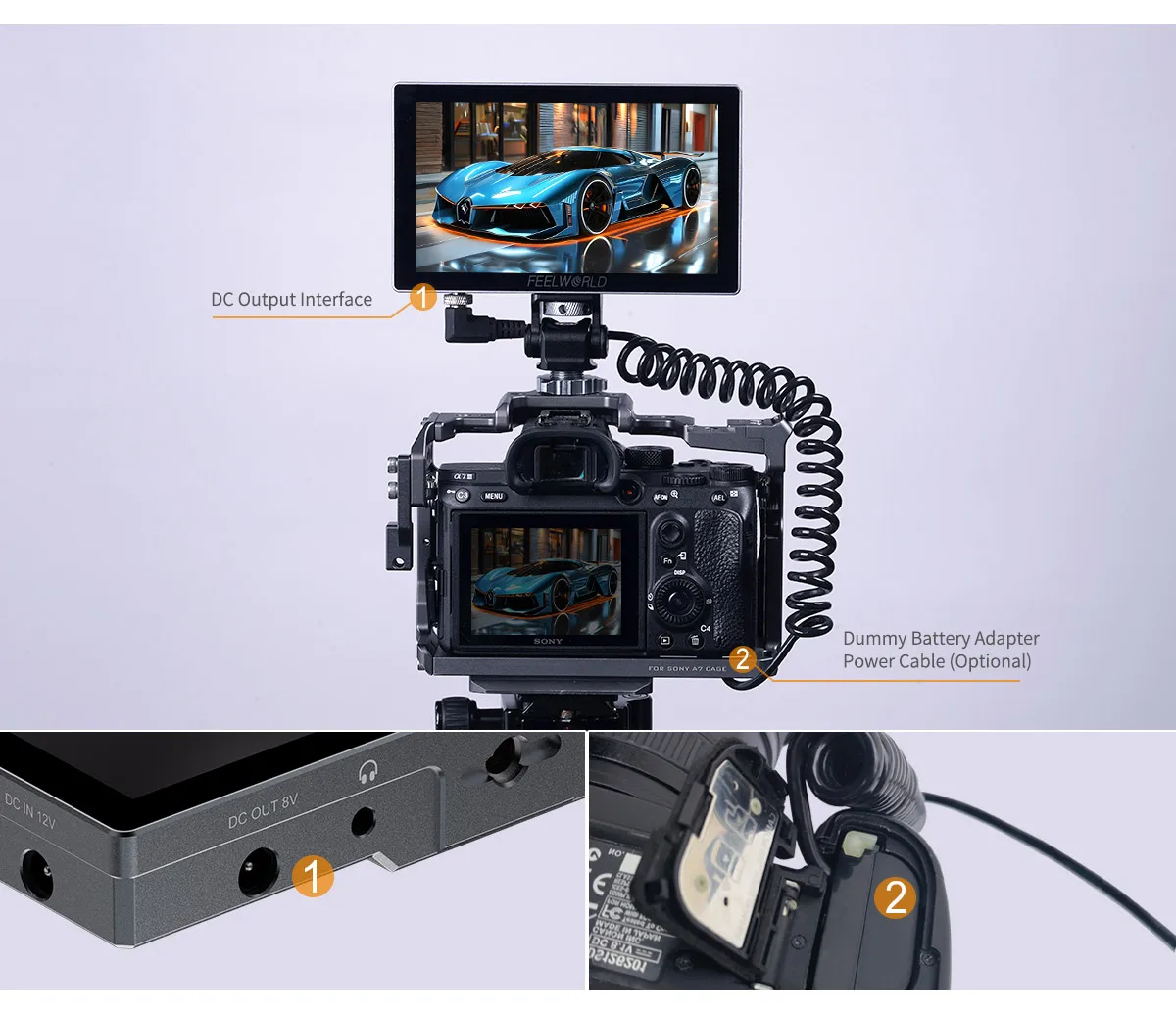

DC 8V OUT, Power Your DSLR or Mirrorless Camera
P6X provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the P6X extends camera run-time, while providing a more usable display

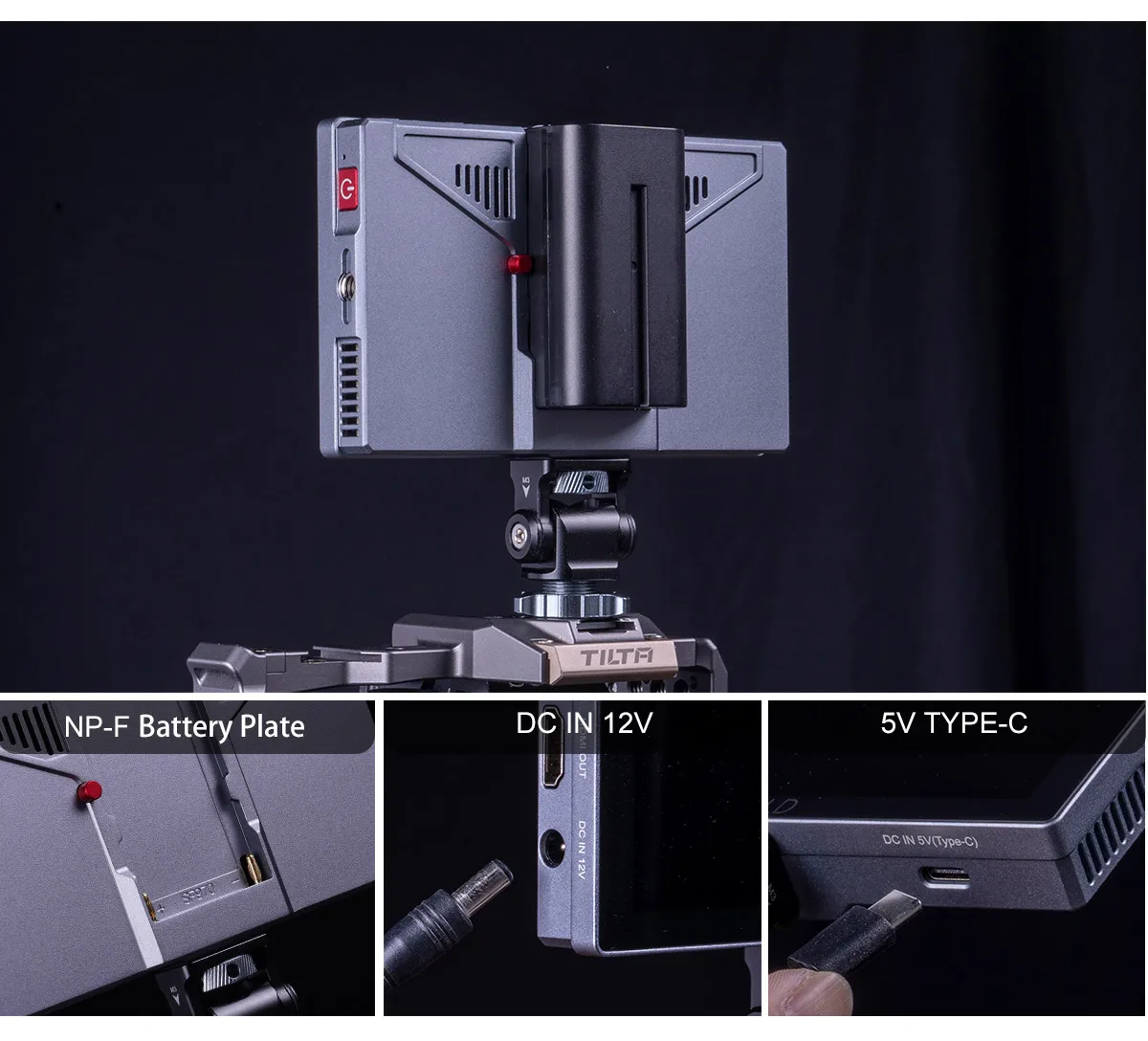

Multiple Power Supply,Long-lasting Power for Shooting
You can connect to DC power input to get continuous power （suitable for use 1.5A power adapter,DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).
Note:the battery excluding, please purchase separately.

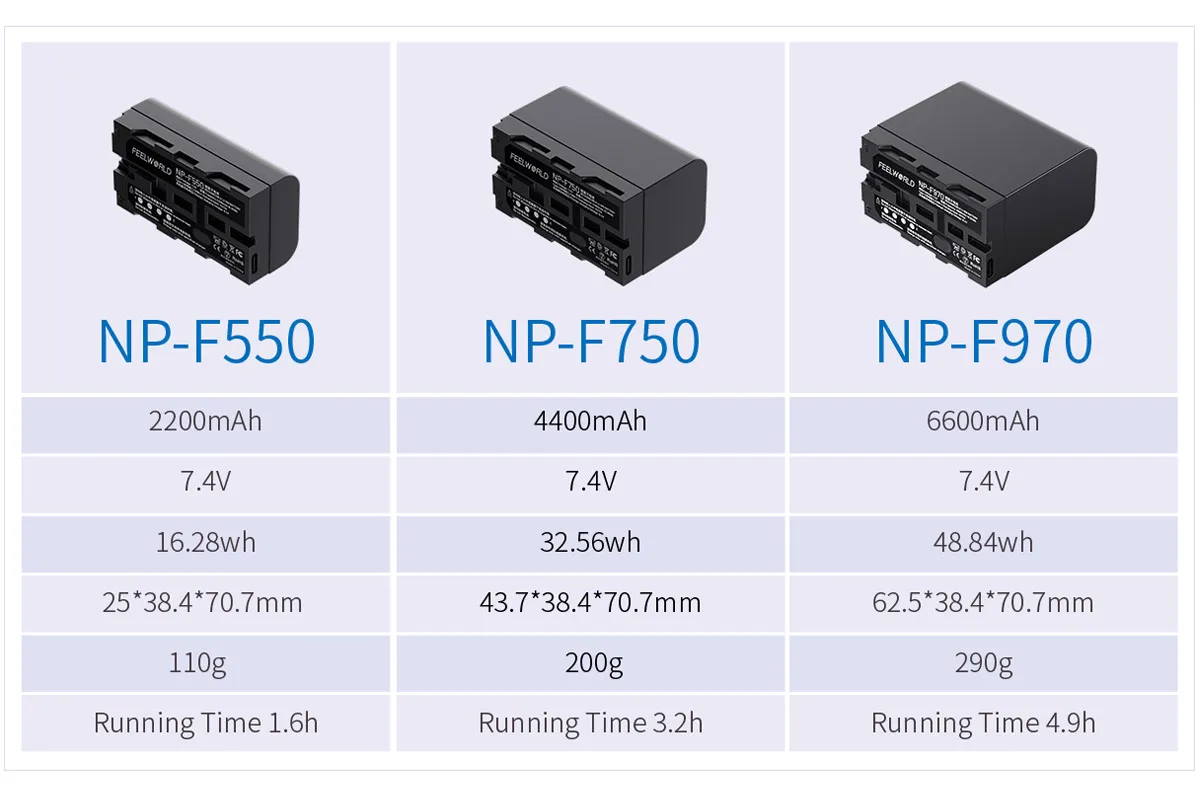

NP-F Battery Optional Recommendation
The power consumption of P6X is 10W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.
11 Languages SupportingP6X built-in up to 11 languages, that means P6X is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

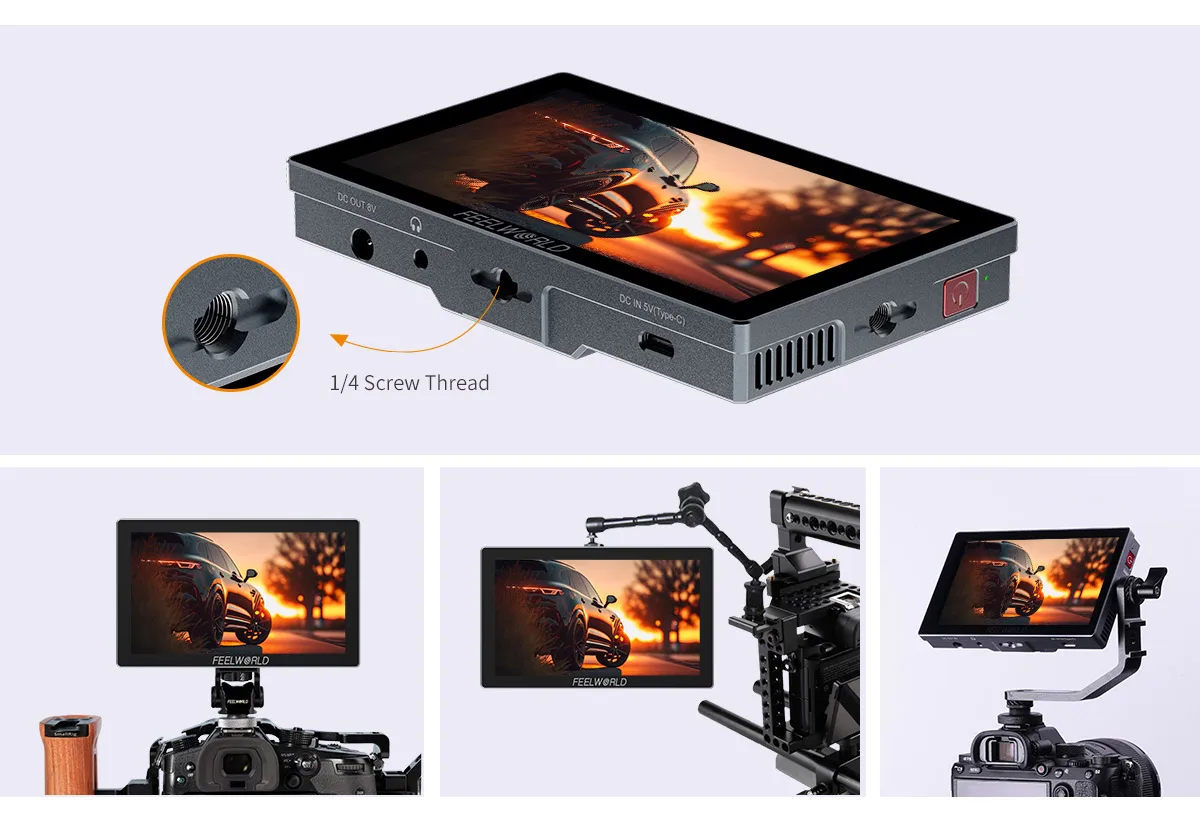

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

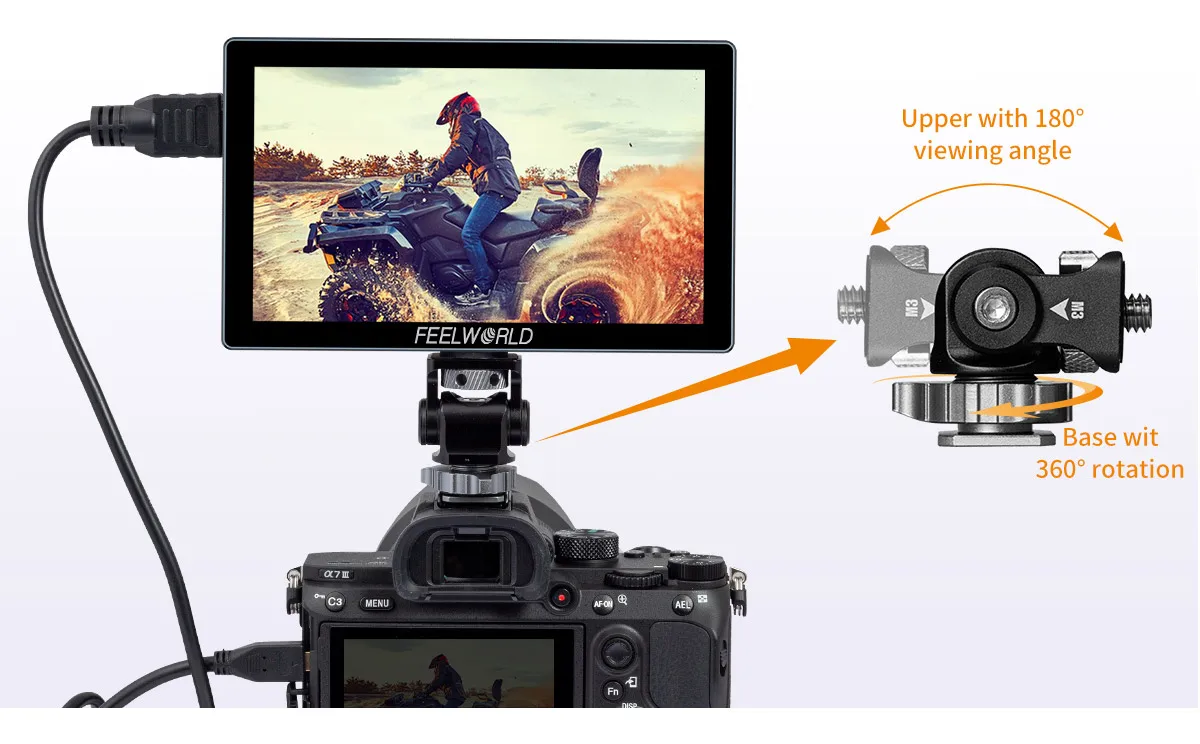

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
