Automatic Cable Winding Machine Tube Amplifier Winding Machine Tube Amplifier Tr

Product Description

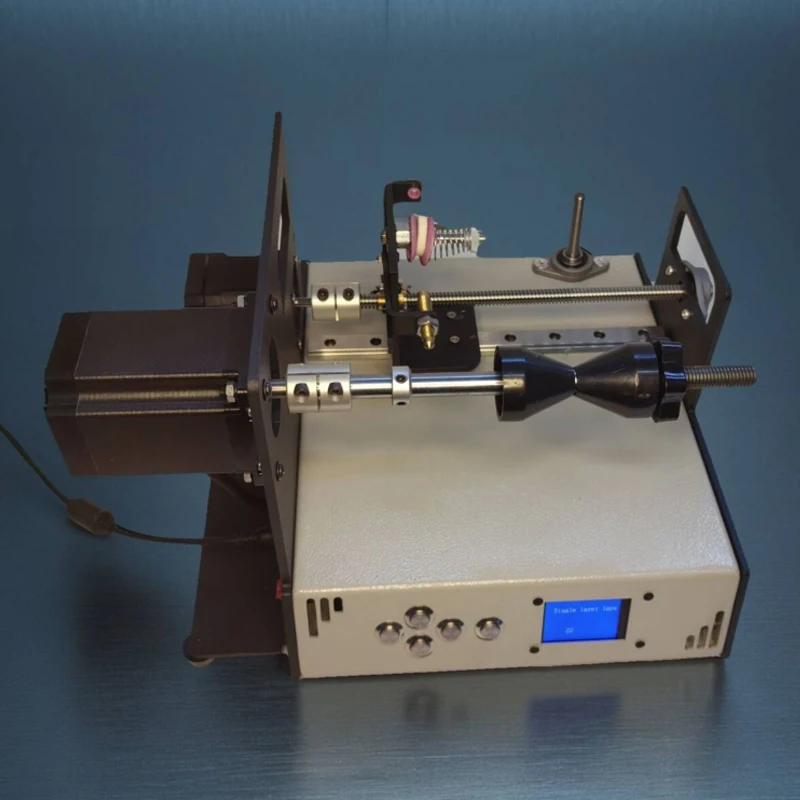

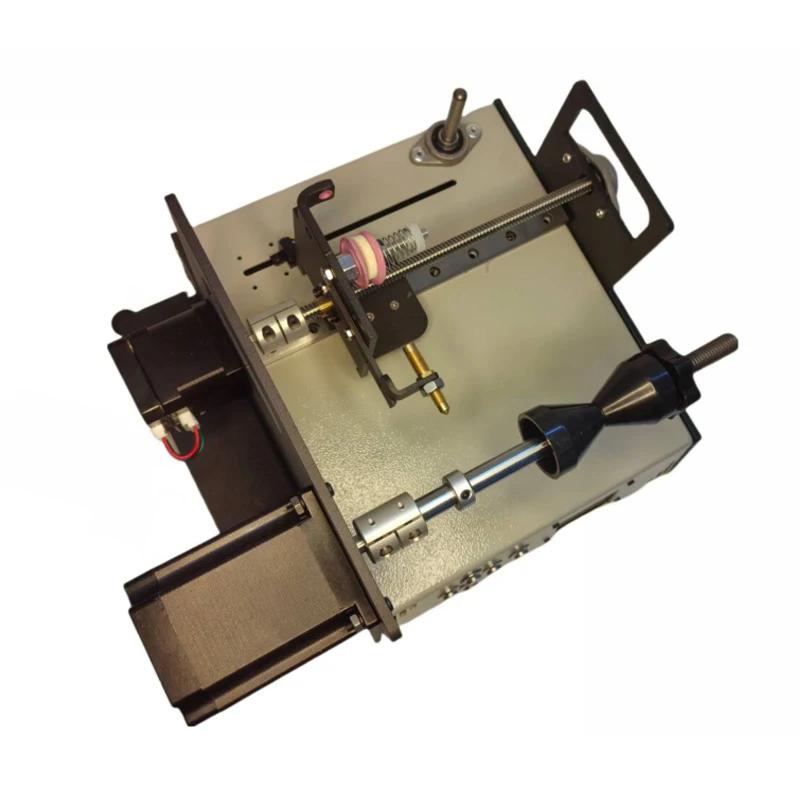

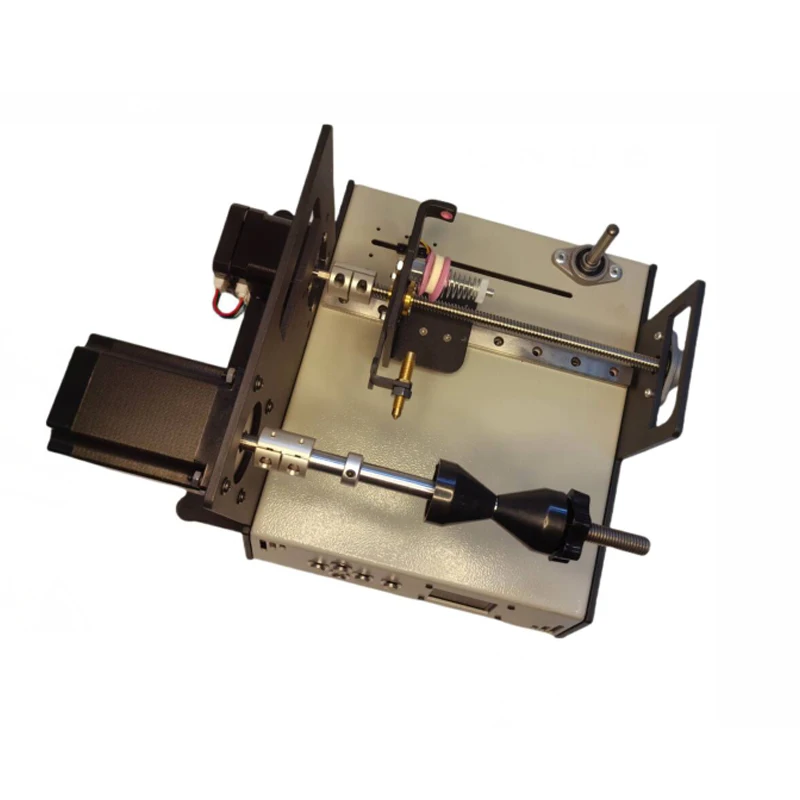

Automatic Cable Winding Machine Tube Amplifier Winding Machine Tube Amplifier Transformer English Display Panel

Item Description

Name: Winding machine
Voltage: 220V/50HZ
Power: 120W

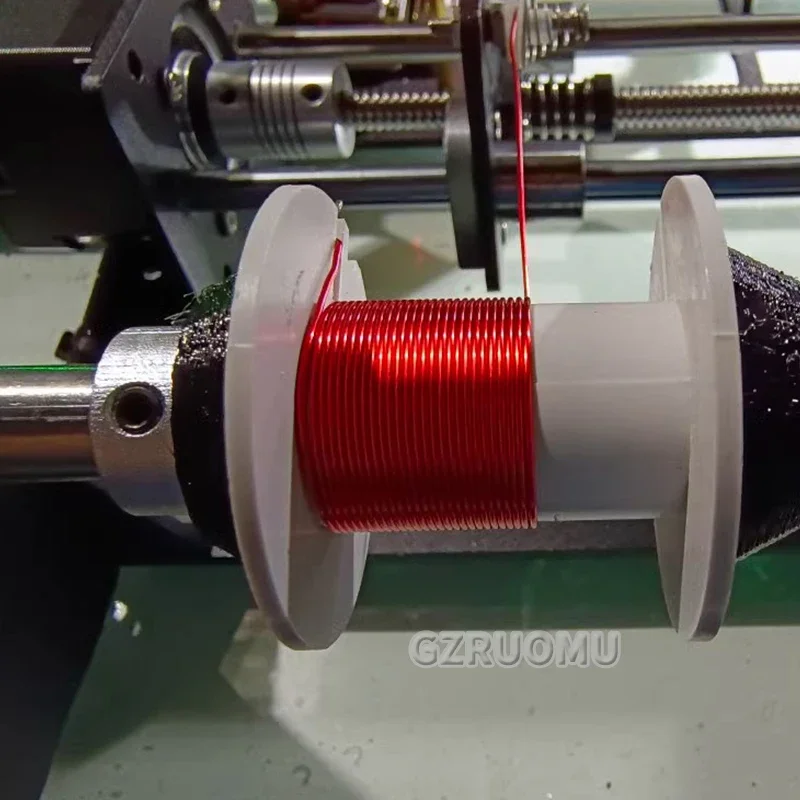

Automatic wiring, automatic winding machine, can be wound coil, tape, silk, fishing line
4mm thick steel base, ready for hand use.
The main motor torque is 2.3nm, the support spool diameter is 15cm, and the left and right line width is 10cm.
Input parameters, program intelligence to achieve coarse and fine adjustment, simple and intuitive Chinese display, adjustable speed
Winding direction, smooth start, winding can be paused at any time, winding parameters are automatically saved, accurate routing, high quality and low price.
The precision of sliding table is 0.01mm, and the diameter of winding line is 0.02mm-1.0mm.
Set as many turns as needed, and specify the number of turns per layer and the length of each layer. The rest is not to worry about, the program is well calculated, such as a total of 1000 laps, 100 laps per layer, 40mm per layer.
General purpose winding machine instruction manual
1. Key description:
You can switch pages to different function pages by pressing the left and right buttons. The up and down keys adjust the value of the corresponding function page. After the adjustment, the value is automatically saved in real time.
Press the start button again to pause, long press for 5 seconds to clear the value of the current - - group coil completion, and start again from 0.
2, positioning
Absolute zero and relative zero
After turning on, the machine wireline by default to the left to find the absolute zero, so the infrared locator must be placed on the left side of the wireline. Failure to do so will result in errors.
Relative zero: is the starting point of the coil winding, the machine automatically finds the absolute zero, will reach the relative zero, ready to start a group of winding process.
3. Parameter setting
1, the number of single-layer circles
The number of single-layer turns is the most critical parameter for winding a good coil, but can not simply use the width of the spool divided by the diameter of the line, and can only use this theoretical value as a reference, the actual value is far less than the theoretical value, the need for multiple tests. Press the left and right keys to turn to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding number.
2, line width
Generally speaking, the width of the line is the width of the inner part of the spool, but for 0.5 mm. For the thick line on the top, the width of the line is equal to the width of the inside of the spool minus the diameter of the root line. Press the left and right keys to turn to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding number.
3. Target number of laps
The total number of turns accumulated by multiple layers. Press the left and right keys to turn to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding number.
4. Winding speed
The speed of the spindle rotation is generally 3-10 revolutions per second. Press the left and right keys to turn to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding speed.
5. Rotation direction
The direction of rotation of the spindle can be set to counterclockwise or clockwise. Press the left and right keys to go to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding options.
6, starting point adjustment
Because the position of the coil fixed to the spindle is often random, the starting point needs to be adjusted and saved in real time. Press the left and right keys to turn to the starting point adjustment function page, and then press the up and down keys to adjust the corresponding position.
7. Single-layer stop
Some coils need to automatically pause each layer, convenient to add insulating paper, press the left and right keys to turn to the starting point to adjust the function page, and then press the up and down keys to adjust the corresponding parameters.
Fourth, the fixation of the line

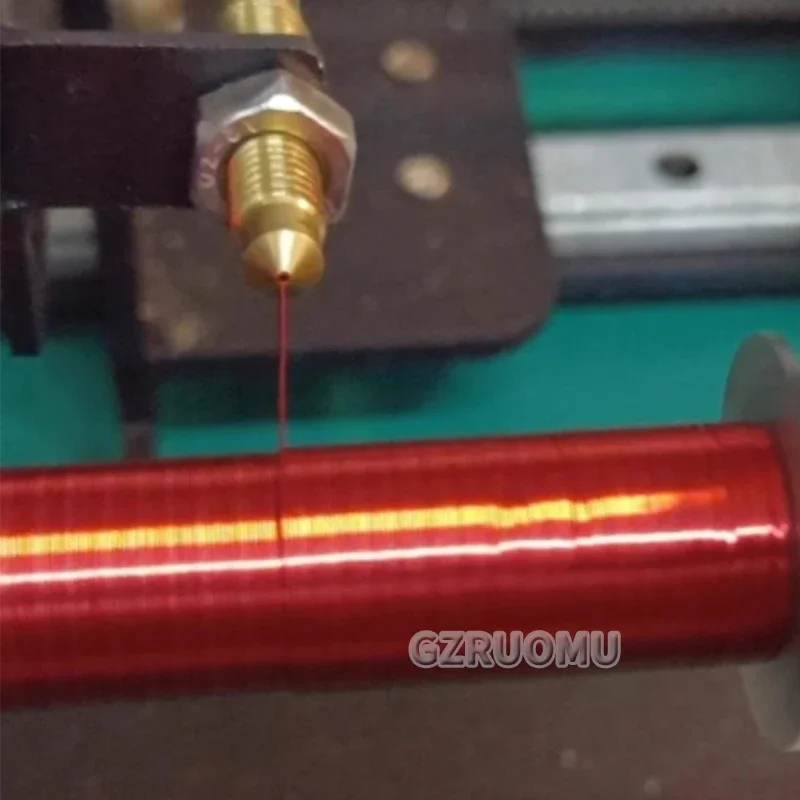

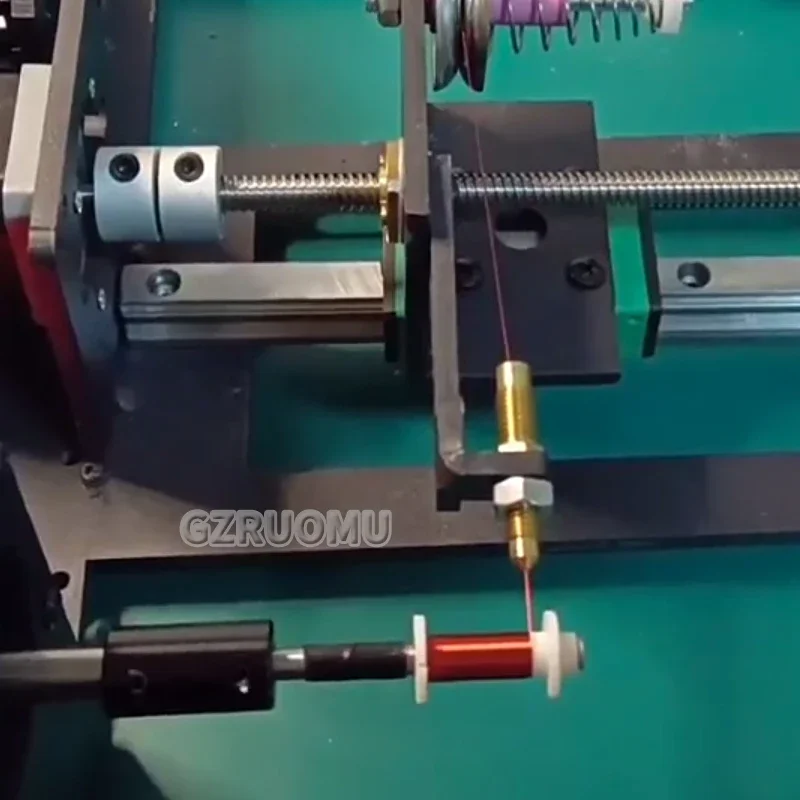

The thread is led from the small rotating shaft, through the guide hole, into the tensioner, sandwiched between the porcelain and the rubber washer, through the tensioner shaft _ hole, and then through the feed nozzle.
Five, how to wind a good coil
1, a good coil, often need a dozen times of testing, because the engineering value is often very different from the theoretical value, such as the number of single-layer laps, the theoretical value is 100 laps, the actual may be 88;
2, the line can bear the case, as far as possible to tighten the tensioner, when necessary to replace the thicker spring;
3, at any time, to ensure that the line is perpendicular to the spindle, if the position of the line is ahead, indicating that the number of single-layer laps is set too much, the line is pushed forward, if the winding is sparse, indicating that the number of single-layer laps is set low;
4, winding has a chaotic effect, the front layer of the convex and concave unevenness and error, will cumulatively affect the back layer, to wind a good coil, need very accurate parameters and a deep understanding of the winding technology.
5, Generally speaking, within ten thousand yuan of the machine, it is difficult to achieve more than 10 layers of one and one of the perfect effect, can only achieve the overall uniform winding.
