Product Description

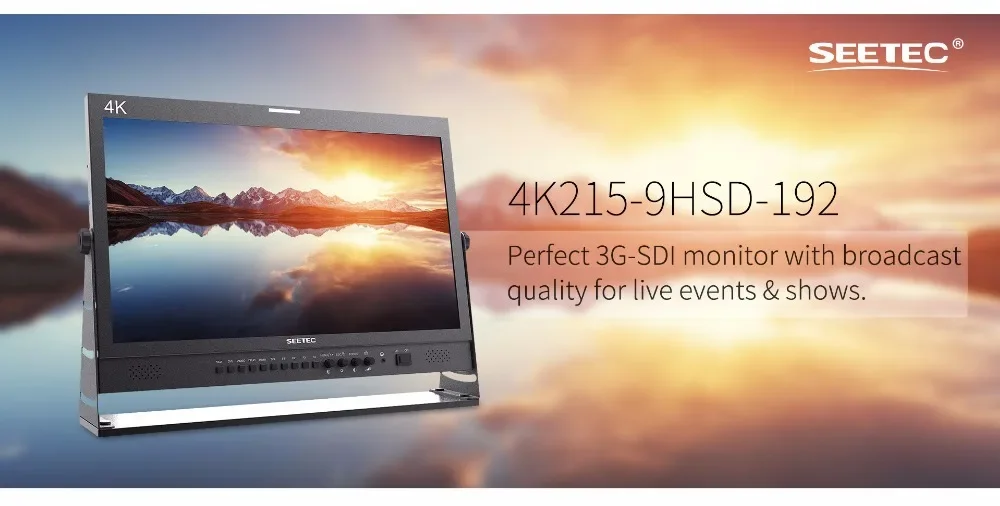

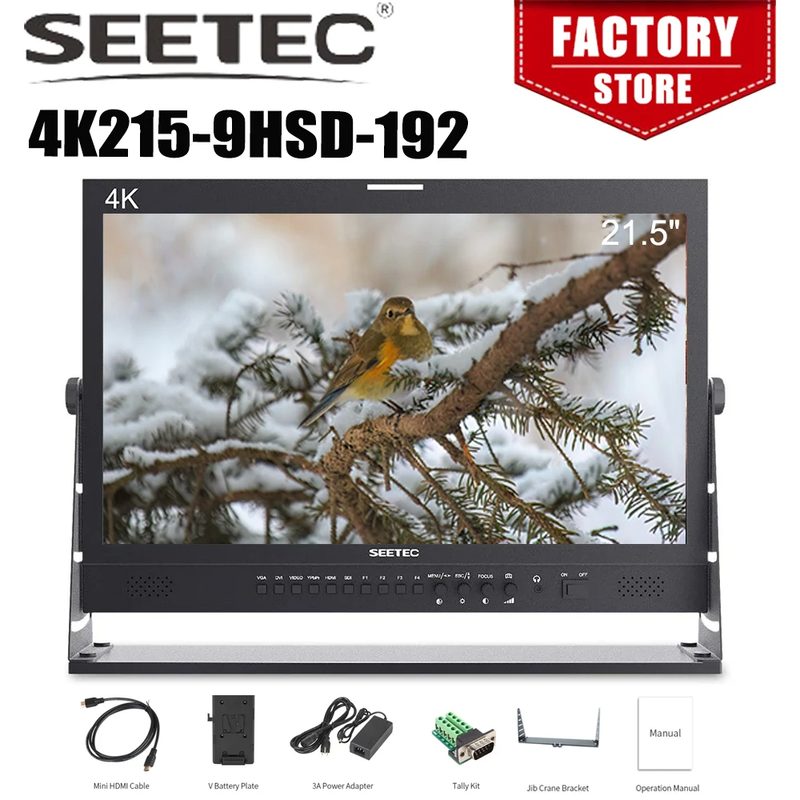

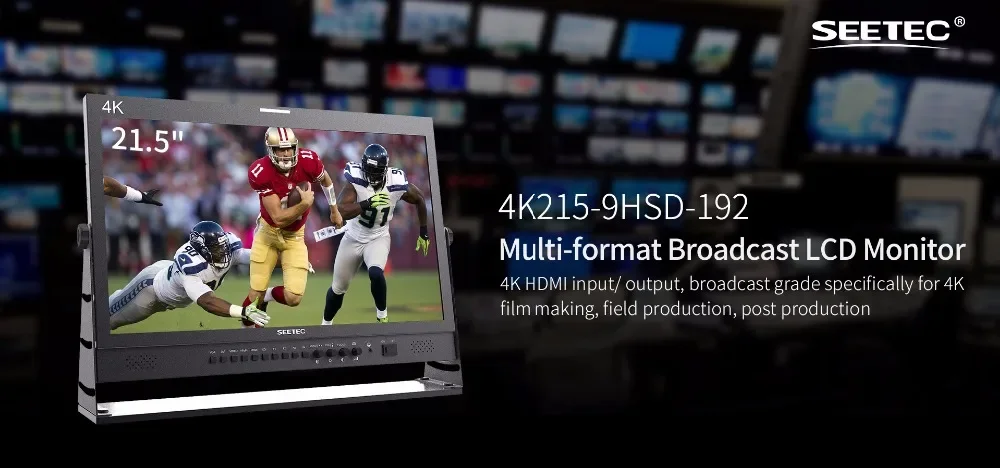

Seetec 4K215-9HSD-192 21.5 Inch Pro Broadcast Monitor IPS 1920x1080 3G-SDI 4K HDMI Full HD LCD Monitor Desktop
Seetec 4K215-9HSD-192 21.5 Inch Pro Broadcast Monitor IPS 1920x1080 3G-SDI 4K HDMI Full HD LCD Monitor Desktop
Input1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
3 X BNC | YPbPr |
1 X DVI-I | DVI-I |
1 X BNC | Video |
2 X RCA | Audio(L/R) |
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
3 X BNC | YPbPr |
1 X BNC | Video |
Audio | Stereo Headphone, Speaker |
480i/576i |
720p(60/59.94/50/30/29/25/24/23.98) |
1080i(60/59.94/50) |
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
Input Voltage | DC9～24V |
Power Consumption | ≤15W |
Working Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |
Unit Size | 511.6Lx355.5Hx41.87D (mm) (W/O Bracket) |
Unit Weight | 4.65kg (W/O Bracket) / 6.5kg (W/ Bracket) |
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
* Image Freeze |
* Image Flip (H, V, H/V) |
* Camera Mode |
* Pixel-to-Pixel |
* Check Field (Red,Green,Blue,Mono) |
* Zoom All (Nonsupport in 4K input) |
* U/D & L/R Zoom (Nonsupport in 4K input) |
* Aspect Ratio (Nonsupport in 4K input) |
* Custom Color Temperature |
* Built-in LED tally indicators |
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
Professional Auxiliary Shooting Functions

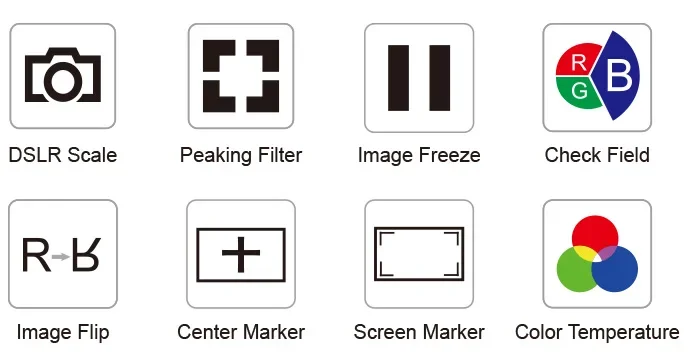

SEETEC monitor is idealfor high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.
1920X1080 Full HD Panel
With the 4K215-9HSD-192's 21.5-inch 1920×1080 IPS Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The 4K215-9HSD-192's Full HD Panel is the tool of choice for high quality color reproduction.
IPS 178° Wider View Angle
High Quality: no brightened dot, no streaking178° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

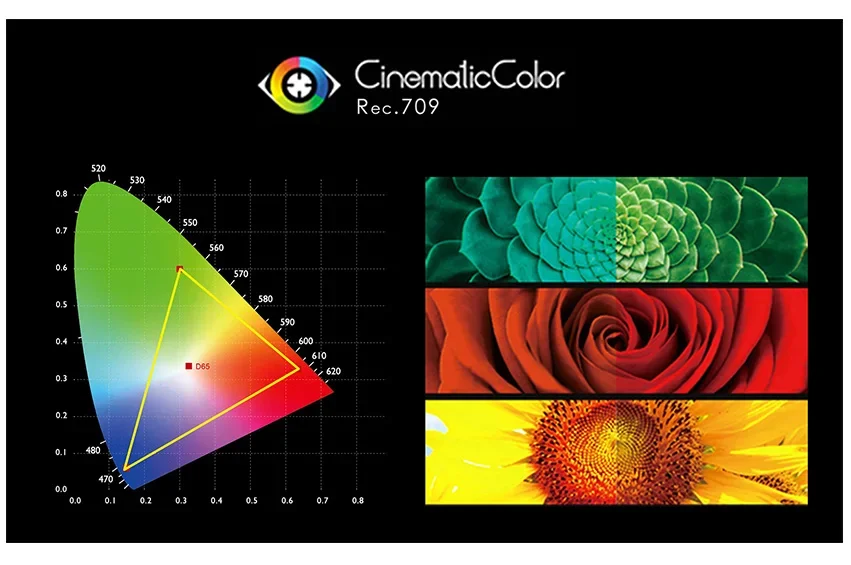

True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Innovation OSD Operation

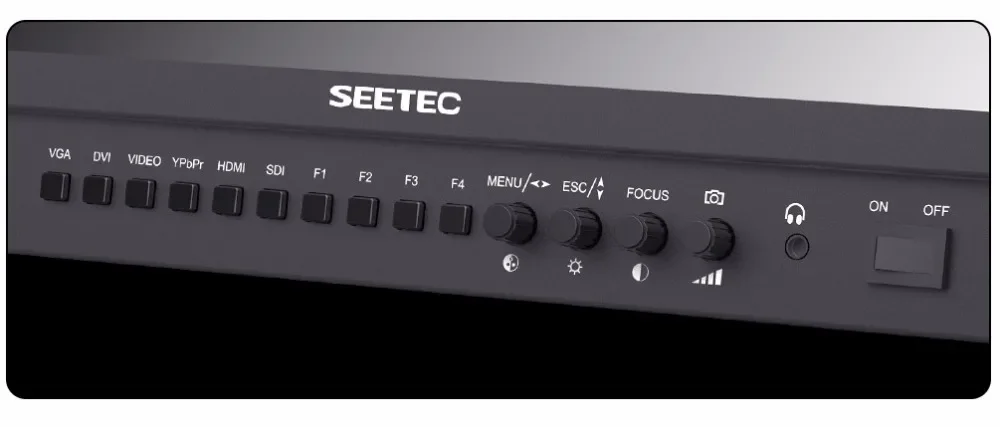

4K215-9HSD-192 not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
Professional Monitoring

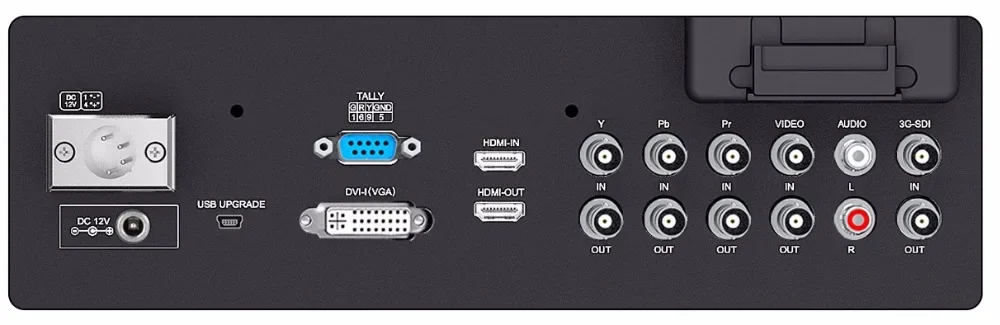

4K215-9HSD-192 is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.
3-color Tally Light
Both front and rear side

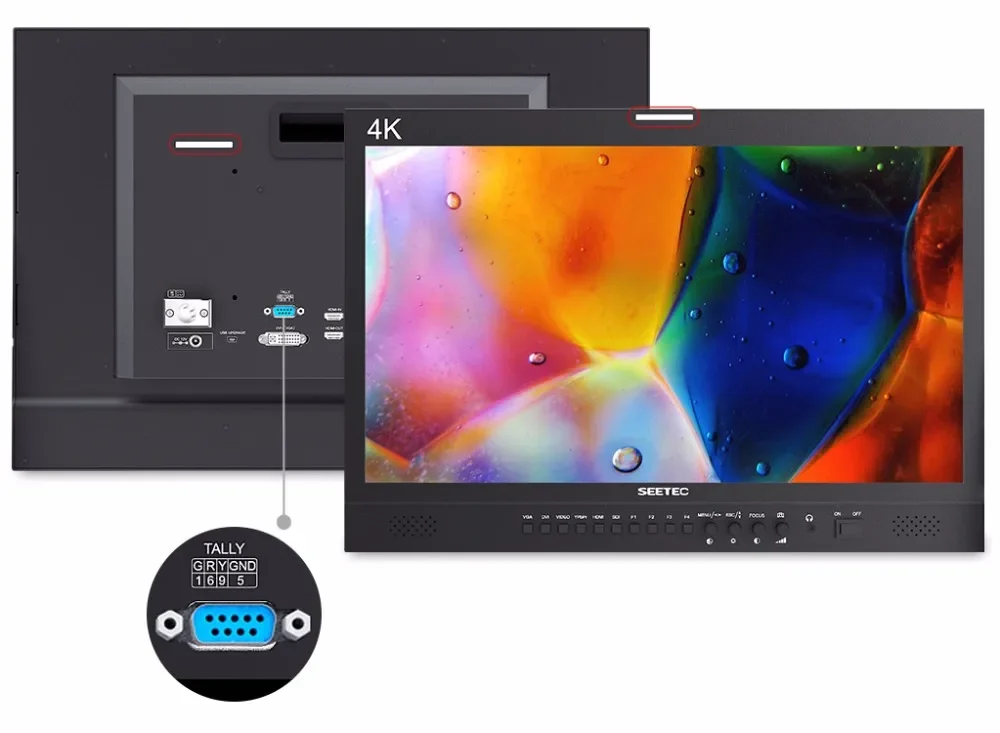

4K215-9HSD-192 monitors feature clear LCD screens with tally so it's the perfect solution for live broadcasts. Unlike a simple tally light, 4K215-9HSD-192 includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.
Hassle-free Power
Monitoring anywhere you need it!

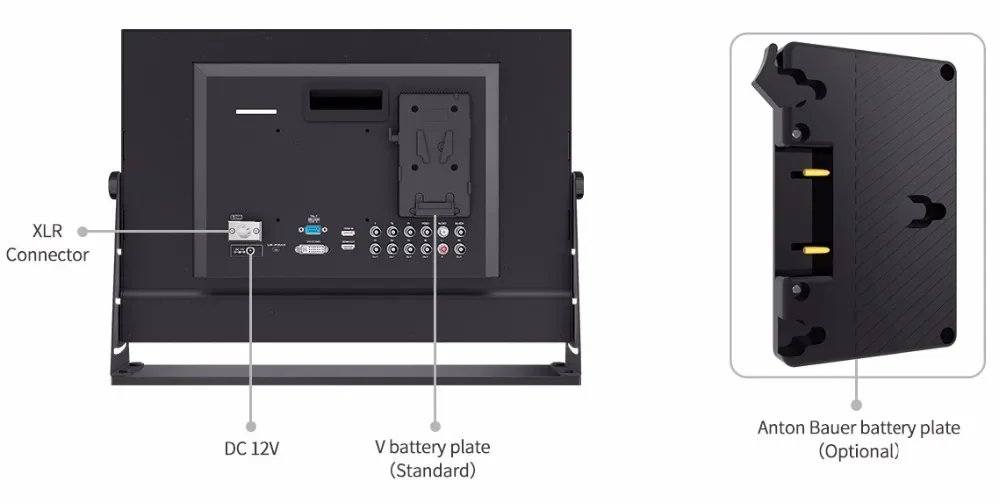

We've made it easy to power the monitor. 4K215-9HSD-192 can be powered in two ways: with an DC adapter or lithium batteries. The 4K215-9HSD-192 has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

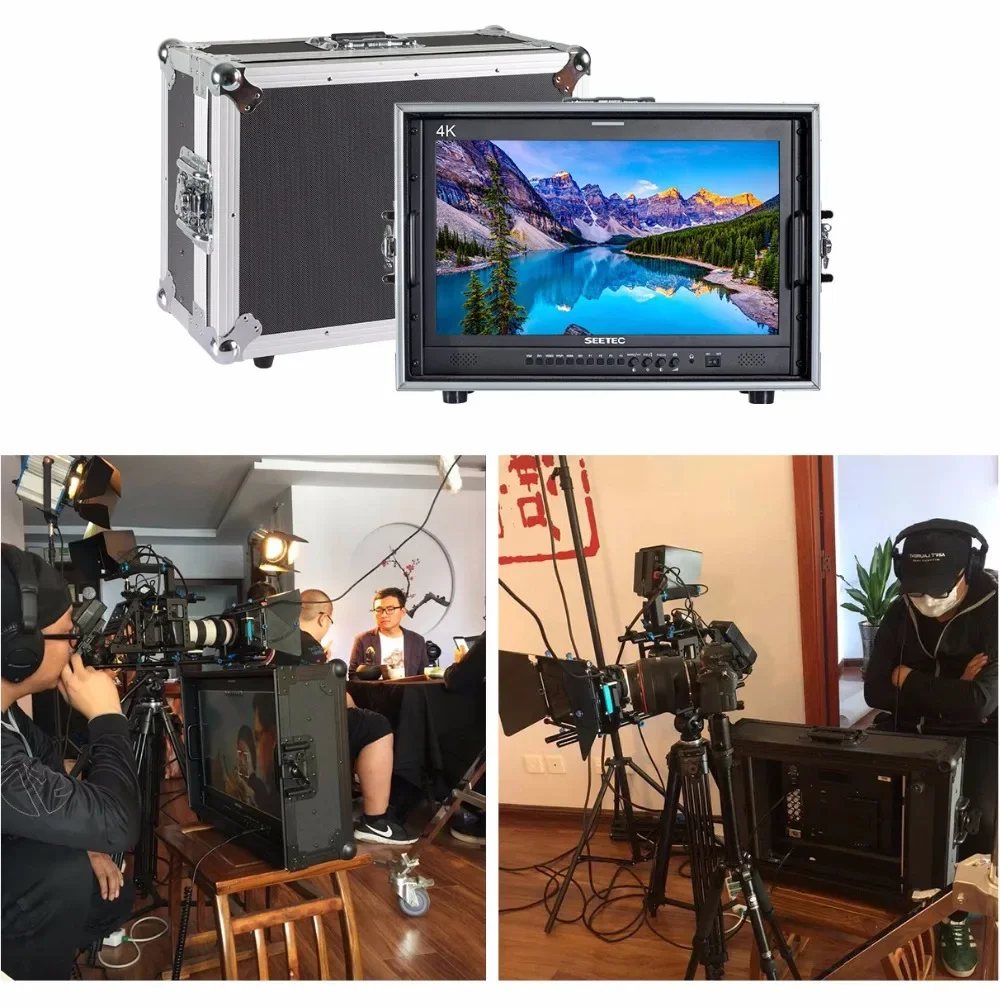

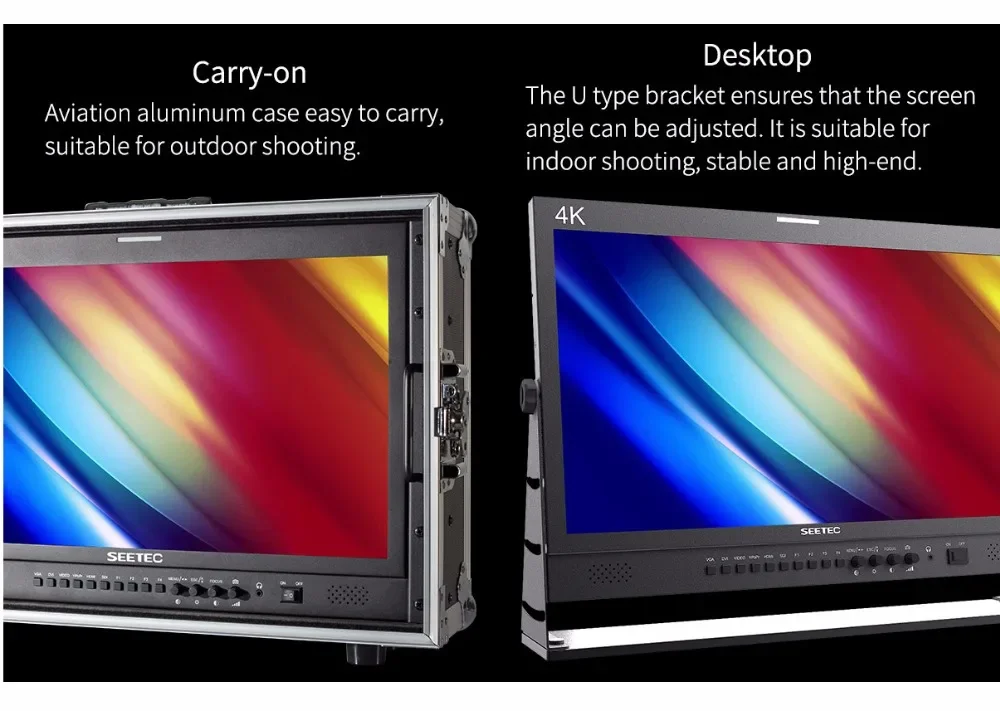

Two Types of Installation (Optional)
Application
