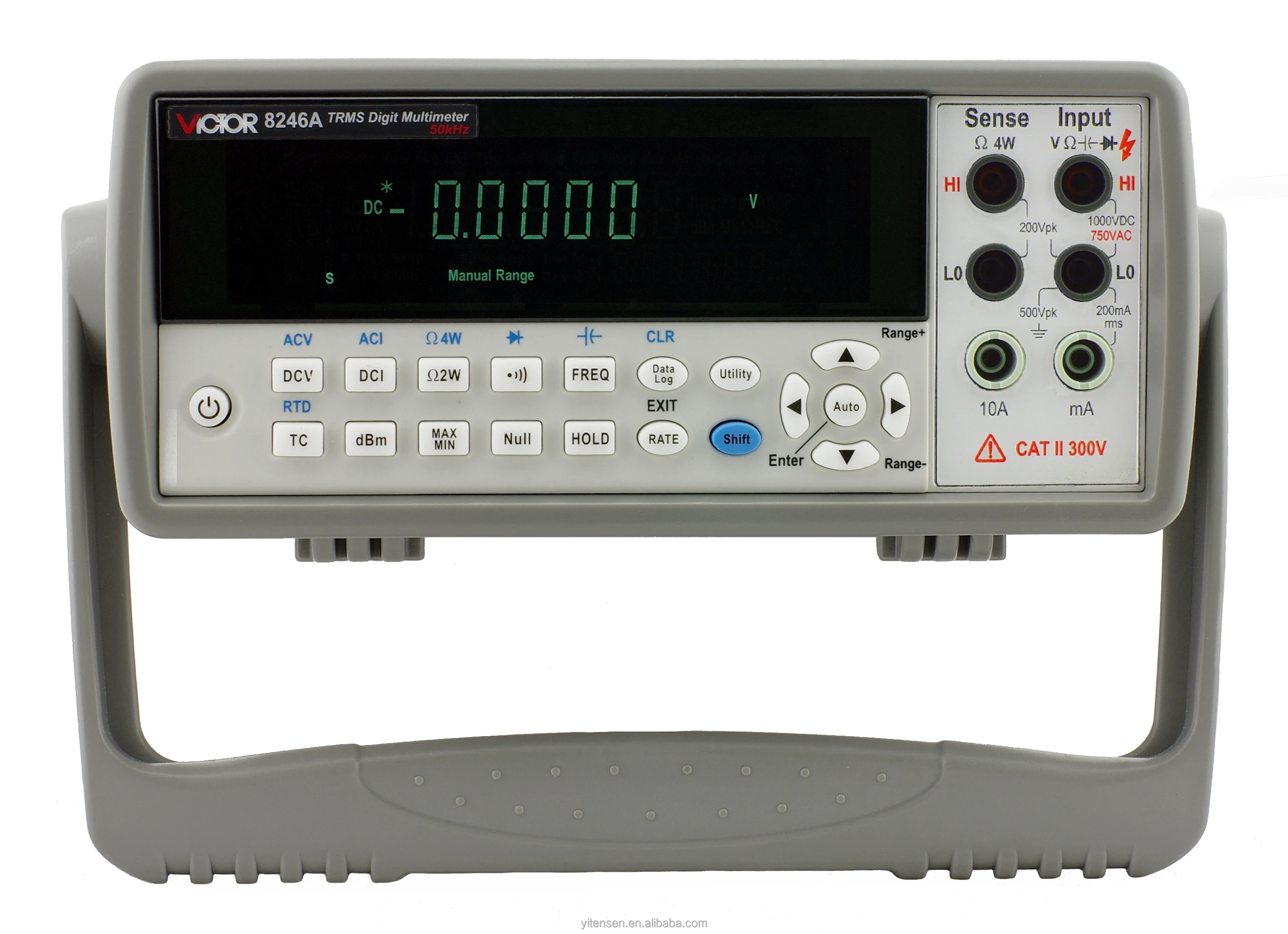

8246A VFD Bench Type Digital Multimeter Auto Range True RMS 220V DC/AC 20Hz - 50KHz Bandwidth Benchtop Digital Multimeter
8246A VFD Bench Type Digital Multimeter Auto Range True RMS 220V DC/AC 20Hz - 50KHz Bandwidth Benchtop Digital MultimeterHello, Dear friends, please contact customer service to ask for product details before you place an order!#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:18px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:274px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{display:none}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:127px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:204.588px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:206px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:430px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:217px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{width:750px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:543.9470822761871px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:543.9470822761871px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:502.06611570247935px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:502.06611570247935px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:668px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:668px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:621px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:621px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:636px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:636px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:755px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:755px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:984px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:984px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:673px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:673px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:67px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:67px}#detail_decorate_root .magic-36{padding:5px 10px;width:126px;box-sizing:content-box}#detail_decorate_root .magic-37{padding:5px 10px;width:127px;box-sizing:content-box}Products DescriptionVICTOR 8246A Bench Top Digital Multimeter Auto Range True RMS 55000 RS232 DC/AC Cap. Freq.Temperature Test 20Hz ~ 50KHz BandwidthGENERALIZATION
The instrument is a 5-digit portable multimeter powered by 220 V dc with high accuracy and performance. It has all the features of a digital millimeter and measures AC /DC voltage, AC/DC current, resistance, capacitance, dBm, TC, RTD, Diode Test, and Continuity
Check, frequency/duty cycle ratio. Besides, it has the following features:
* A VFD Display that allows two properties of an input signal to be displayed at the same time.
* Accurate true rms AC value, bandwidth for type A measurement: 20Hz锝�50kHz ; bandwidth for type B measurement: 20Hz锝�1kHz.
* 1uV sensitivity in volts DC.
* 2-wired and 4-wired resistance measurement.
* Measurable capacity higher than 100mF.
* Selectable 1锝�2400Ω reference impedance dBm measurement.
* Display hold, relative data measurement, maximum value, minimum value and average value measurement
* Selectable manual or auto-range.
* Display rate: 5 readings/ second (slow) and 20 readings/second (slow).
* TC measurement: K graduation degree, inner temperature transmitter, auto-cold compensation, and temperature display in 鈩� or鈩�.
* The built-in memory counter can store up to 50000 (group) independent measuring data.
* Panel calibration function (without open-case adjustment).
* Isolation of common Universal Serial Bus(USB) Port and RS232 serial port.

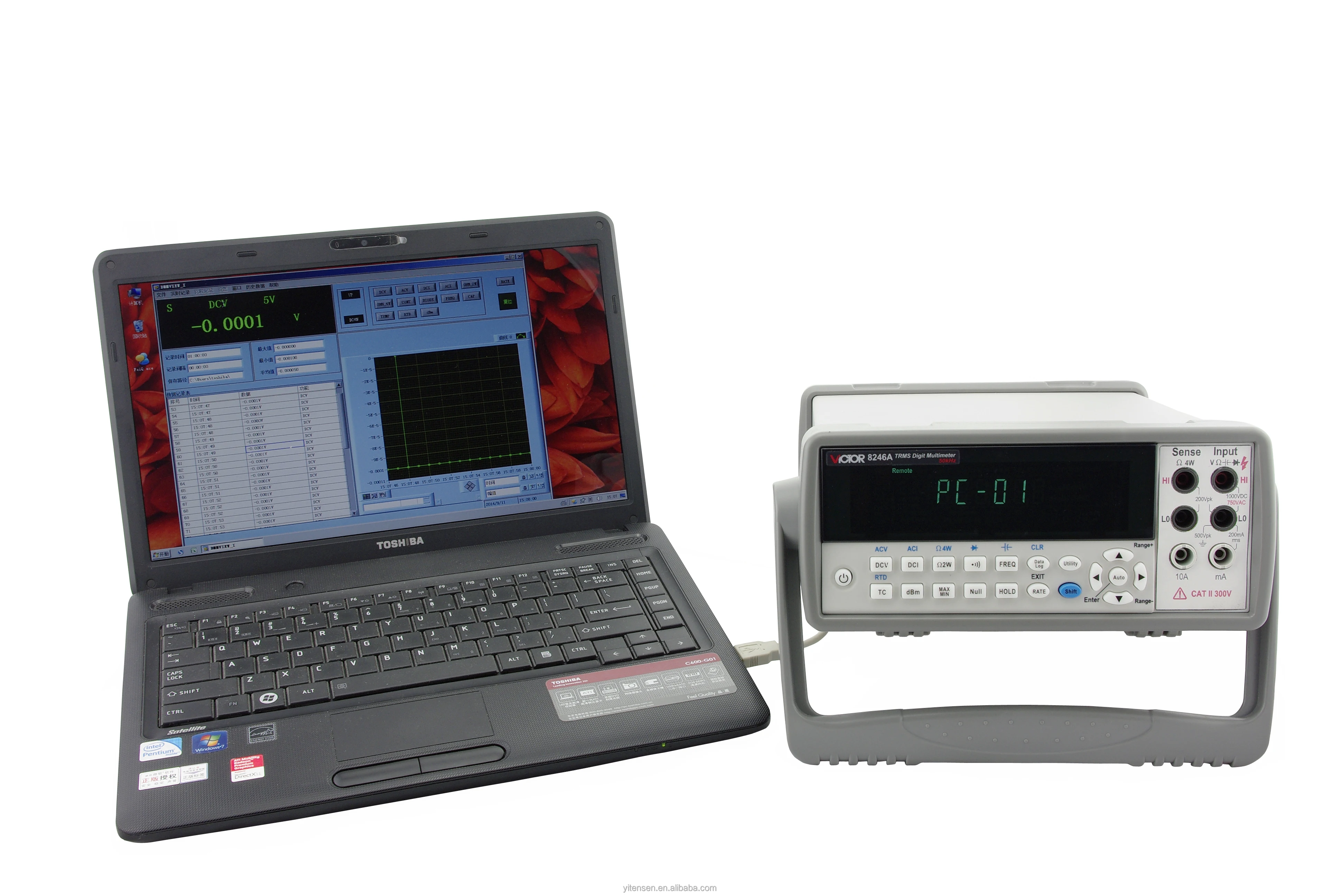

* Remote operation, surveillance and recording data with a computer. Standard SCPI command is supported, and remote control of
the meter can be realized by equipment software.
Specification
| Project | VICTOR 8246A | VICTOR 8246B | |
| DC voltage | Range | 50mV/500mV/5V/50V/500V/1000V | 50mV/500mV/5V/50V/500V/1000V |
| Basic accuracy | ±(0.025%+5dgt) | ±(0.025%+5dgt) | |
| AC voltage | Range | 50mV/500mV/5V/50V/500V/750V | 50mV/500mV/5V/50V/500V/750V |
| Basic accuracy | ±(0.7%+30dgt) | ±(0.7%+30dgt) | |
| DC current | Range | 500uA/5000uA/50mA/500mA/5A/10A | 500uA/5000uA/50mA/500mA/5A/10A |
| Basic accuracy | ±(0.15%+10dgt) | ±(0.15%+10dgt) | |
| AC current | Range | 500uA/5000uA/50mA/500mA/5A/10A | 500uA/5000uA/50mA/500mA/5A/10A |
| Basic accuracy | ±(0.8%+30dgt) | ±(0.8%+30dgt) | |
| Resistance | Range | 500Ω/5kΩ/50kΩ/500kΩ /5MΩ/50MΩ | 500Ω/5kΩ/50kΩ/500kΩ /5MΩ/50MΩ |
| Basic accuracy | ±(0.05%+5dgt) | ±(0.05%+5dgt) | |
| Capacitance | Range | 10nF/100nF/1000nF/10uF/100uF /1000uF/10mF/100mF | 10nF/100nF/1000nF/10uF/100uF /1000uF/10mF/100mF |
| Basic accuracy | ±(5%+5dgt) | ±(5%+5dgt) | |
| Frequency | Range | 10Hz锝�100kHz | 10Hz锝�100kHz |
| Basic accuracy | ±(0.02%+4dgt) | ±(0.02%+4dgt) | |
| Thermocouple | Range | K indexing:-200.0°C锝�1360.0°C | K indexing:-200.0°C锝�1360.0°C |
| Basic accuracy | ±(0.5%+0.5°C) | ±(0.5%+0.5°C) | |
| RTD | Range | Pt100:-200.0°C锝�850.0°C | Pt100:-200.0°C锝�850.0°C |
| Basic accuracy | ±(0.5%+0.5°C) | ±(0.5%+0.5°C) | |
| Display words | 55000 | 55000 | |
| The measurement rate | Quick: 20 times / sec Slow: 5 times / sec | Quick: 20 times / sec Slow: 5 times / sec | |
| Automatic / manual range | √ | √ | |
| True RMS | √ | √ | |
| Bandwidth | 50kHz | 1kHz | |
| The duty ratio | 0.1%锝�99% | 0.1%锝�99% | |
| Diode test | √ | √ | |
| Continuity beeper | √ | √ | |
| Four wire resistance measurements | √ | √ | |
| dBm | √ | √ | |
| MAX/MIN/AVG | √ | √ | |
| Relative value measurement | √ | √ | |
| Data Hold | √ | √ | |
| The reference junction compensation | √ | √ | |
| °C/ ° F conversion | √ | √ | |
| Change rate | √ | √ | |
| Input impedance | 10MΩ | 10MΩ | |
| Data recording | Work in 50000 groups were recorded | Work in 50000 groups were recorded | |
| Communication interface | Configurable isolation USB, isolated RS232 communication | ||
| Online communication | Support ASC鈪an realize remote control instrument by the device driver software. The powerful function, friendly man-machine interface, the user can conveniently obtain multiple data parameters of instrument, and the data storage, processing, management, access to data is displayed in the graphical or tabular form. | ||
| Auto power-off | √ | √ | |
| Display type | VFD | VFD | |
| Power Supply | 220V±10%AC or 110V±10%AC,50Hz or 60Hz | 220V±10%AC or 110V±10%AC,50Hz or 60Hz | |
| Power | About 3W | About 3W | |
| Safety | CAT II 300V | CAT II 300V | |
| Electromagnetic compatibility | IEC61326-1,Group1,Class B | IEC61326-1,Group1,Class B | |
| Size | 245 × 220 × 82(mmdgt) | 245 × 220 × 82(mmdgt) | |
| Weight | About 2kg | About 2kg | |
| Standard Quantity Per Carton | 4pcs | 4pcs | |
| Standard Carton Measurement | 650mm*390mm*370mm | 650mm*390mm*370mm | |
| Standard Carton Cross Weight | 21Kg | 21Kg |
