Product Description
I76 RTK Palm-Sized GNSS Visual Positioning International Version Rover Station IP68 Rated 1408 Channels Built-in Transceiver
I76 RTK Palm-Sized GNSS Visual Positioning International Version Rover Station IP68 Rated 1408 Channels Built-in TransceiverCHC I76 RTK Palm-Sized GNSS Visual Positioning International Version Rover Station IP68 Rated 1408 Channels Built-in Transceiver

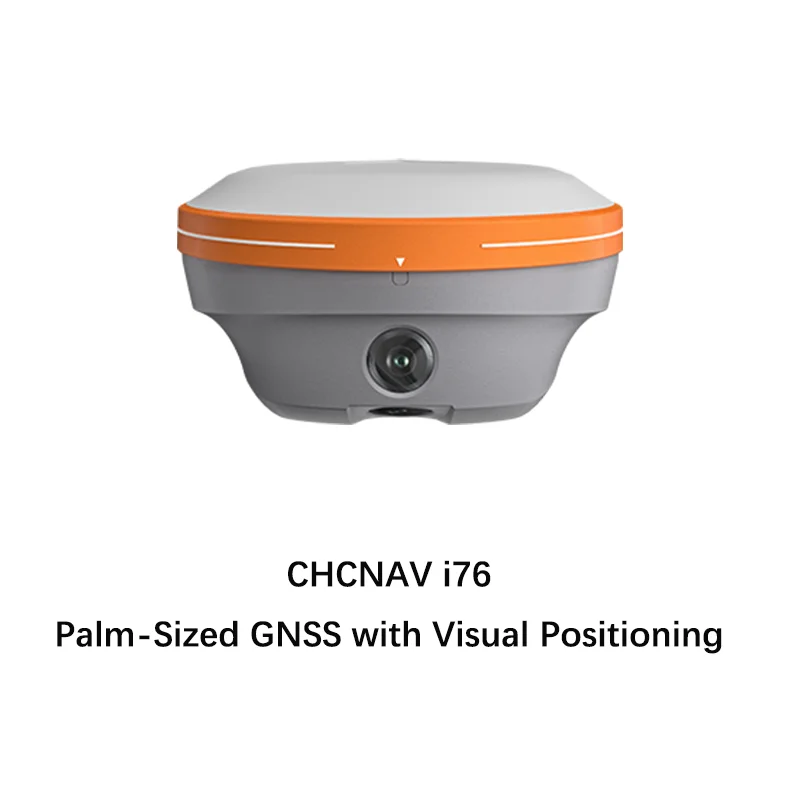

CHC i76 Rover station

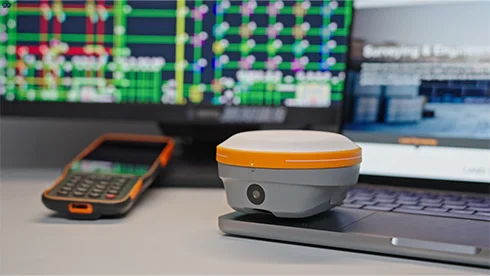

The i76 Visual RTK is a lightweight receiver that integrates GNSS, IMU, and dual cameras. Weighing only 450 grams, it features an IP68 protection rating, allowing it to adapt to various complex operating environments.Even during active ionospheric conditions, it maintains a high fix rate of 96%, ensuring stable all-weather measurement. It

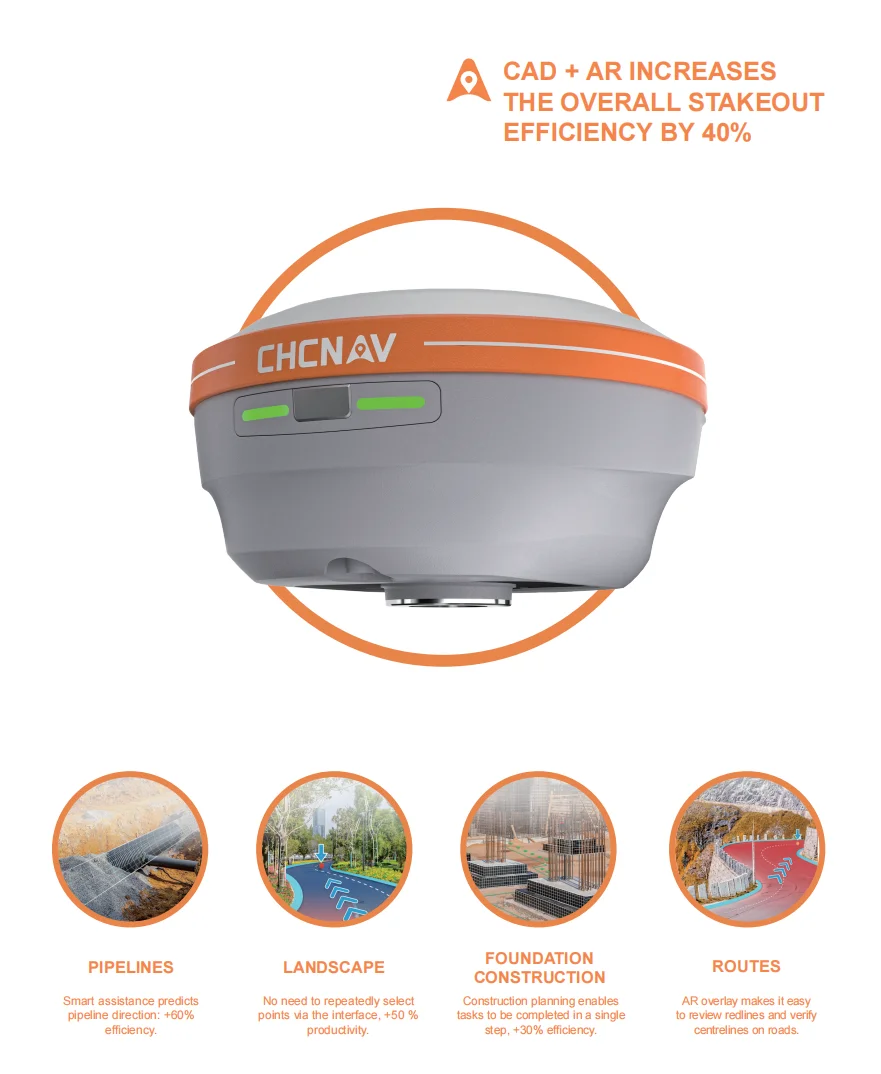

supports CAD AR visual real-scene stakeout, which boosts stakeout efficiency by 40%. Equipped with the 5th-generation Ultra-IMU, it enables 60° tilt measurement and improves accuracy by 30%.
With an ultra-long battery life of 17 hours, it meets the demands of a full day of high-intensity work. The i76 Visual RTK makes professional measurement easier and more efficient.
| GNSS Performance | |
| Channels | 1408 channels with iStar2.0 |
| GPS | L1C/A,L2C,L2P(Y).L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1,E5a, E5b,E6* |
| BeiDou | B11, B21. B31. B1C,B2a,B26* |
| QZSS | L1C/A L1C, L2C, L5 |
| NaVIC/ IRNSS | L5 |
| SBAS | L1,L5* |
| GNSS Accuracies | |
| Real time kinematics (RTK) | Horizontal:8mm+1ppm RMS Vertical:15mm+1ppm RMS Initialization time:<10s Initialization reliability:>99.9% |
| Post-processingkinematics (PPK) | Horizontal:3mm+1ppm RMS Vertical:5mm+1ppm RMS |
| PPP | Support PPP-B2b,E6B-HASH: 10 cm | v: 20 cm |
| High-precision static | Horizontal: 2.5 mm + 0.1 ppm RMSVertical: 3.5 mm + 0.4 ppm RMS |
| Static and rapid static | Horizontal: 2.5 mm + 0.5 ppm RMSVertical: 5 mm+ 0.5 ppm RMS |
| Code differential | Horizontal: 0.4 m RMS Vertical: 0.8mRMs |
| Autonomous | Horizontal: 1.5 m RMSVertical: 2.5m RMs |
| Visual stakeout | H: 8 mm + 1 ppm RMSV: 15 mm + 1 ppm RMS |
| Positioning rate | 1 Hz, 5 Hz and 10 Hz |
| Time to first fix | Cold start: < 45 sHot start:< 10 sSignal re-acquisition:< 1 s |
| lMU update rate | 200 HZ,AUTO-IMU |
| Tilt angle | 0-60° |
| RTK tilt - compensated | Additional horizontal pole-tilt uncertainty typically less than 8 mm+ 0.7 mmy° tilt down to 30° |
| Environments | |
| Temperature | Operating:-40°C to +65°C(-40°F to +149°F)Storage: -40'C to +85°C(-40'F to +185°F) |
| Humidity | 100% non-condensation |
| Ingress protection | IP686 (according to lEC 60529) |
| Impact protection | IK08 (according to lEC 62262:2002) |
| Drop | Survive a 2-meter pole-drop |
| Vibration | Compliant with lSO 9022-36-08and MIL-STD-810H |
| Waterproof and breathablemembrane | Prevent water from enteringunder harsh environments. |
| Electrical | |
| Charging time | Full charge in 4.5 hours |
| Operating time oninternal battery? | UHF/ 4G RTK Rover w/o camera:up to 17 hVisual Stakeout: up to 10 hStatic: up to 22 h |
| Charging spec | Type-C5V12A |
| Hardware | |
| Size (L x W x H) | Ф106 mm x 55.6 mm($ 4.17 in x 2.1 in) |
| Weight | 450 g (0.99 lb) |
| Front panel | 2 synchronized LED, 1 button |
| Tilt sensor | Calibration-free lMU for pole-tiltcompensation.Immune to magnetic disturbances. |
| Cameras | |
| Sensor pixels | Dual cameras with 2 MP each |
| Field of view | 95°± 3° |
| Video frame rate | 30 fps |
| Aperture | F2.4 |
| Features | LandStar software, supportVisual Navigation, CAD AR VisualStakeout |
| Communication | |
| WVireless connection | NFC for device touch pairing |
| Wi-Fi | Wi-Fi 2.4G 802.119Wi-Fi 5G 802.11ac (CH42 & 155) |
| Bluetooths | Bluetooth V5.4 BDR & EDR |
| Ports | 1 x USB Type-C port (externalpower, data download, OTGfirmware update)1 x UHF antenna port (SMAfemale) |
| UHF radio | Standard Internal Tx/Rx8: 410470 MHzTransmit Power: 0.5 W, 1 WProtocol: CHC, Transparent,TT450, Satel9Link rate: 9,600 bps to 19,200 bpsRange: Typical 3km, up to 5 kmwith optimal conditions |
| Data formats | RTCM 2.x, RTCM 3.x, CMR input /outputHCN, RINEX 2.11, 3.02NMEA 0183 outputNTRIP Client, NTRIP Caster |
| Data storage | 8 GB high-speed memory |
| Compliance with Laws and Regulations | |
| Intemnational standards | NGS Antenna Calibration.lGSAntenna Calibration,lEC62133-2:2017.EN IEC 62368-1:2020, UN Manual Section 38.3 |
FAQ
Q:Let's take a look at the company background first.A:With 20 years of deep expertise in the surveying instruments, meters and accessories industry, our business spans the R&D and sales of surveying instruments and meters, while providing engineering survey solution references for project parties.
We offer a comprehensive product portfolio, including Global Navigation Satellite System Real-Time Kinematic (GNSS RTK) systems, total stations, theodolites, automatic levels, rangefinders, Simultaneous Localization and Mapping (SLAM) laser scanners, and related accessories.
Q:How to guarantee the quality of your products?
A:1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Q:What is the delivery time for customers?
A:Upon receipt of payment, we will arrange delivery as soon as possible.
Q:Do you provide warranty and technical support?
A:Yes, we do! The hardware comes with a 1-3 year warranty. We provide remote technical support worldwide as well as long-term after-sales service.
Q:Can you add our company logo to the equipment?
A:Certainly! The minimum order quantity for OEM/ODM services is 10-30 units.
