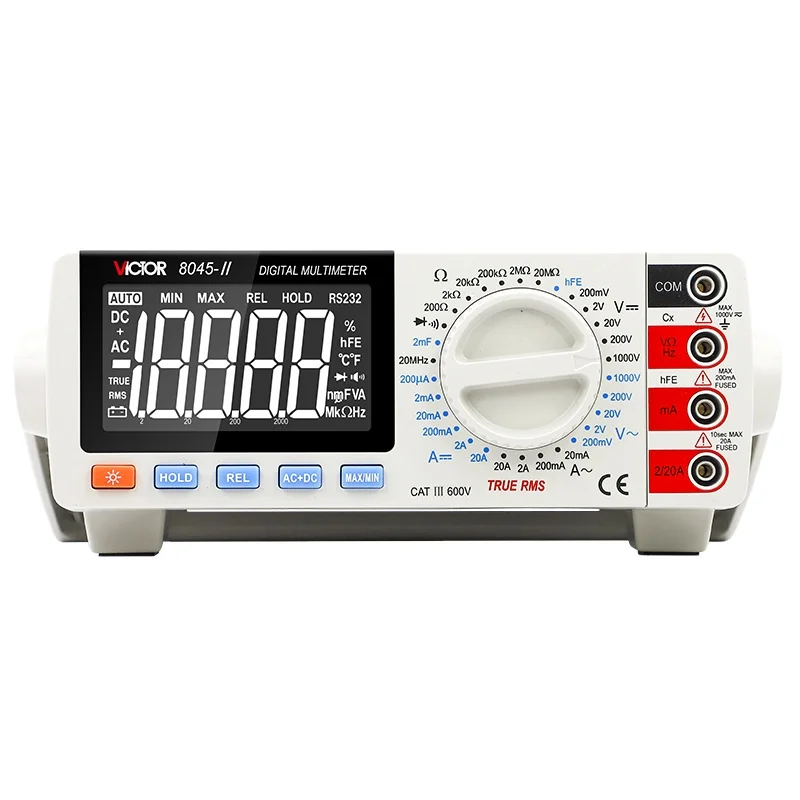

BRAND VC8045-II Bench Type True RMS DMM Digital Multimeter

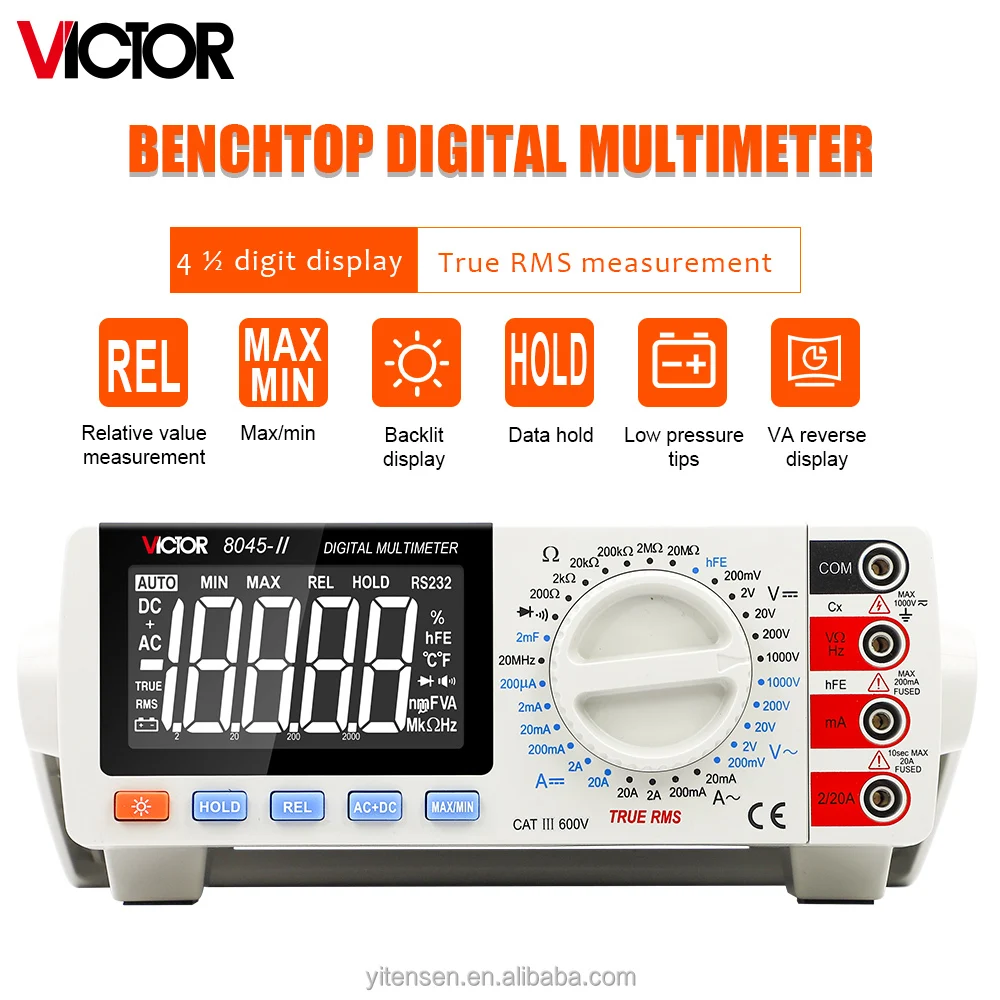

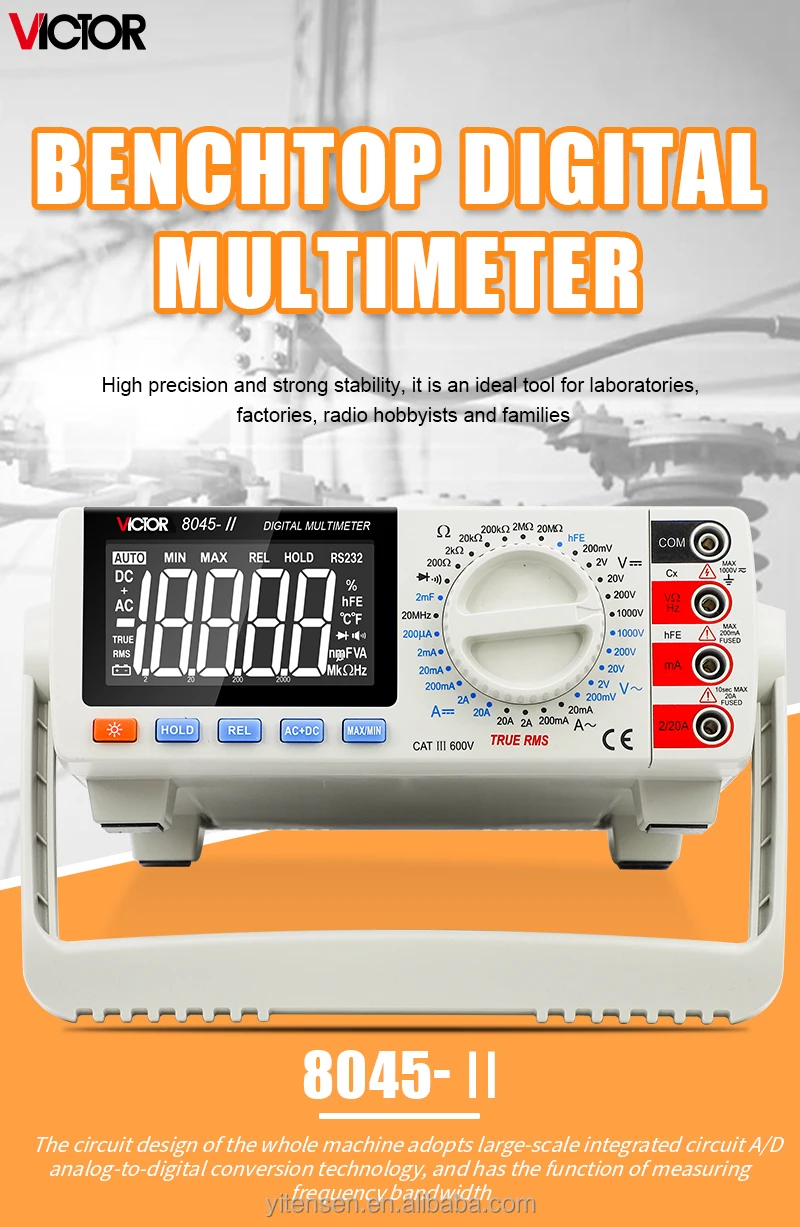

BRAND VC8045-II Bench Type True RMS DMM Digital MultimeterVICTOR BRAND VC8045-II Bench Type True RMS DMM Digital MultimeterProducts DescriptionVC8045-II Bench-Type Digital Multimeter ·4 2/1 high performance Bench-type DMM, Liquid crystal display. ·It can be used to measure AC and DC voltage, current, resistance, diode, continuity, frequency, capacitance, triode and other parameters,and has data hold, Max. or Min.value, backlight relative value and other functions. ·The max. voltage measuring can up to 1000V DC or AC peak value. Resolution can be 100mV, and current measuring can up to 20A, it also has the function of polarity auto-change, backlight displaying and directly reading. ·For AC measuring, it is performed by high accuracy TRUE RMS, can test the bandwidth of the frequency, and the TRUE RMS of any waveform can be accurately measured.Specification| Basic Function | Range | Basic accuracy | RESOLUTION |

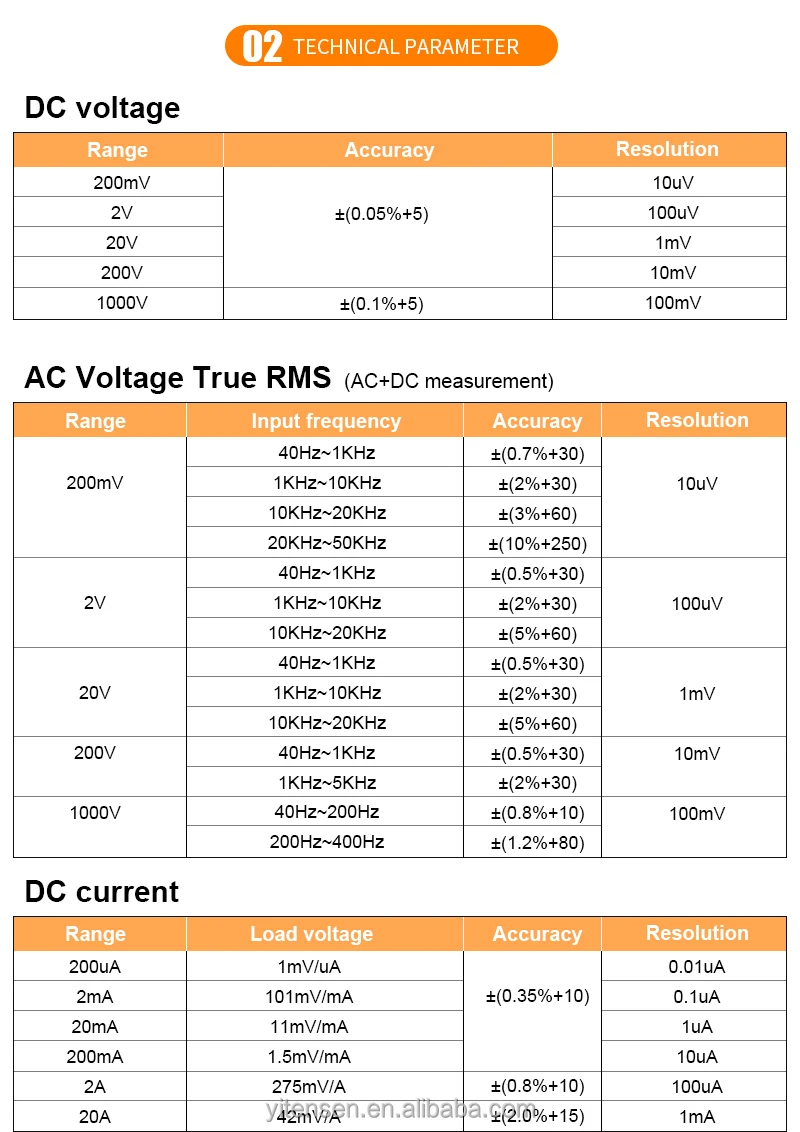

| DC Voltage | 200mV/2V/20V/200V | ±(0.05%+5) | 10uV/100uV/1mV/10mV |
| 1000V | ±(0.1%+5) | 100mV | |
| AC Voltage | 200mV | 40Hz–1kHz:±(0.7%+30) 1kHz–10kHz:±(2%+30) 10kHz–20kHz:±(3%+60) 20kHz-50kHz:±(10%+250) | 10uV |
| 2V | 40Hz–1kHz:±(0.5%+30) 1kHz–10kHz:±(2%+30) 10kHz–20kHz:±(5%+60) | 100uV | |
| 20V | 40Hz–1kHz:±(0.5%+30) 1kHz–10kHz:±(2%+30) 10kHz–20kHz:±(5%+60) | 1mV | |
| 200V | 40Hz–1kHz:±(0.5%+30) 1kHz–5kHz:±(2%+30) | 10mV | |
| 1000V | 40Hz–200Hz:±(0.8%+10) 200Hz–400Hz:±(1.2%+80) | 100mV | |
| DC Current | 200uA /2mA /20mA/200mA | ±(0.35%+10) | 0.01uA/0.1uA/1uA/10uA |
| 2A | ±(0.8%+10) | 100uA | |
| 20A | ±(2.0%+15) | 1mA | |

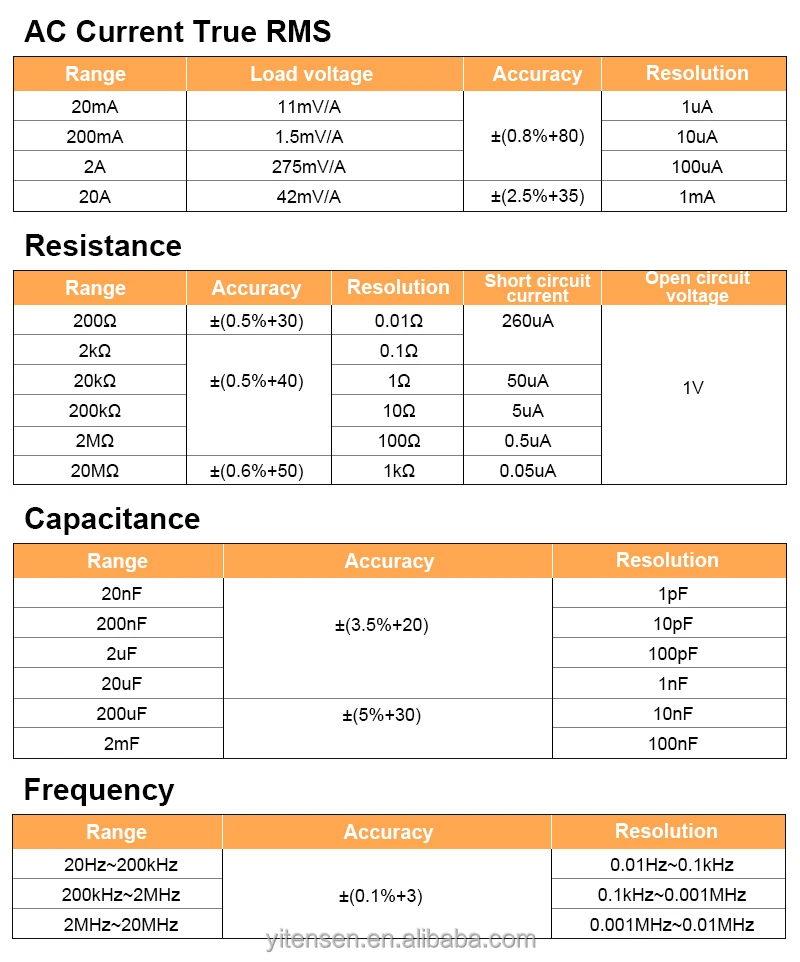

| AC Current | 20mA/200mA/2A | ±(0.8%+80) | 1uA/10uA/100uA |
| 20A | ±(2.5%+35) | 1mA | |
| Resistance | 200Ω | ±(0.5%+30) | 0.01Ω |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±(0.5%+40 | 0.1Ω/1Ω/10Ω/100Ω | |
| 20MΩ | ±(0.6%+50) | 1kΩ | |
| Frequency | 20Hz~200kHz/200kHz~2MHz/2MHz~20MHz | ±(0.1%+3) | 0.01Hz~0.1kHz/0.1kHz~0.001MHz/ 0.001MHz~0.01MHz |
| Capacitance | 20nF/200nF/2uF/20uF | ±(3.5%+20) | 1pF/10pF/100pF/1nF |
| 200uF/2000uF | ±(5%+30) | 10nF/100nF |
| Special Function | |
| Diode test | √ |
| Frequenc | √ |
| Resistance | √ |
| Triode test | √ |
| Continuity buzz er | √ |
| Overload protection | √ |
| ACV frequency response | 50kHz |
| Operation way | Manual range |

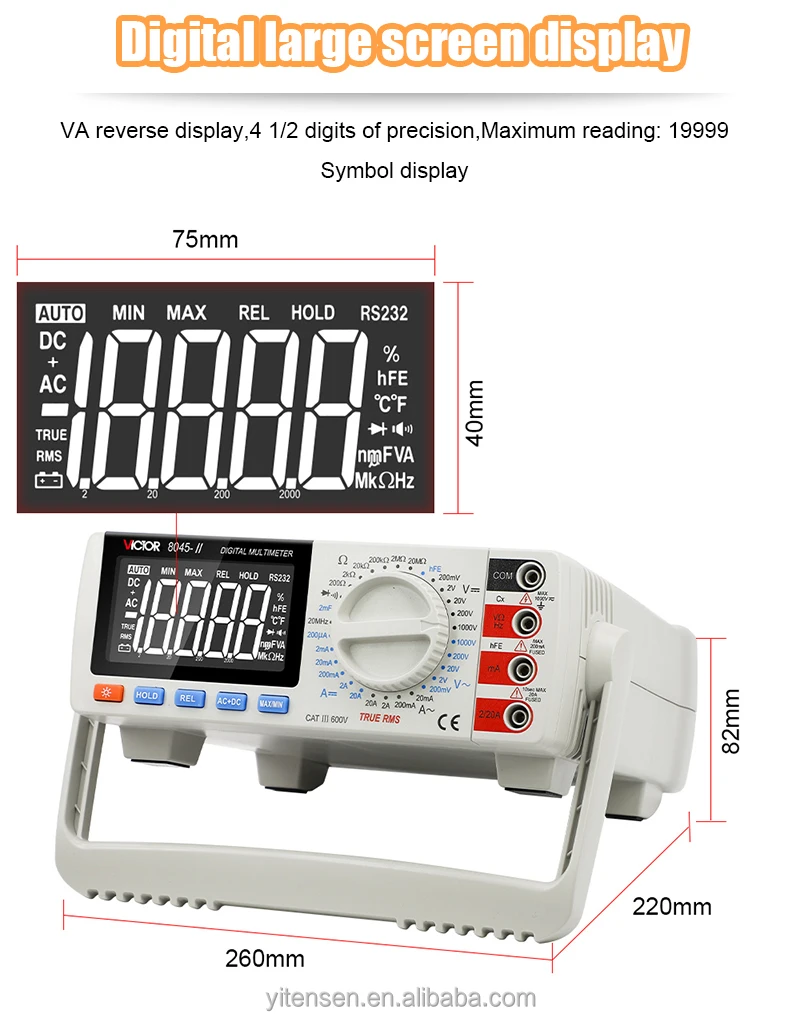

| Max. Display | 19999 |
| Dimension | 260mm*220mm*82mm |
| Weight | Approx:1Kg |
| Power | AC220V/110V 47Hz-62Hz |
