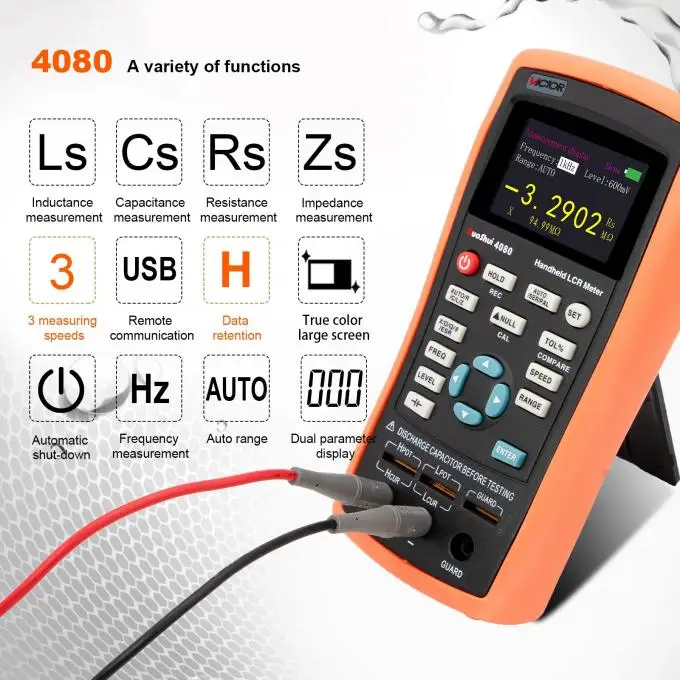

4080 Autoranging Mini USB 0.3/0.6Vrms Adjustable Handheld LCR Meter
4080 Autoranging Mini USB 0.3/0.6Vrms Adjustable Handheld LCR MeterHello, Dear friends, please contact customer service to ask for product details before you place an order!#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#f38108;font-family:Roboto;font-size:24px;color:#f38108;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{width:750px;border-collapse:collapse}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:279px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:280px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:580px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{display:none}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:281px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-13{margin-bottom:0}#detail_decorate_root .magic-14{position:relative;width:100%}#detail_decorate_root .magic-15{width:750px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:51px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:51px}#detail_decorate_root .magic-18{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:870.1986754966888px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:870.1986754966888px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:534.8684210526316px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:749.9999999999999px;height:534.8684210526316px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:285.7142857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:285.7142857142857px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:842.983651226158px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:842.983651226158px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:432.61964735516375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:432.61964735516375px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:67px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:67px}Products Description4080 Handheld LCR meter High Precision Multifunction Capacitance Inductance Resistance Meter With USB tester1. Introduction
This LCR Meterhandheld LCR is a portable hand-held measuring instrument for measuring the parameters of inductors, capacitors,resistors and other components. It is small with a 5V lithium battery, suitable for table-type application. It is also portable and mobile..
This LCR Meterprovides a resolution of four and a half digits for main parameters and a resolution of 0.0001 for secondary
parameter. Its highest measurement frequency is 100kHz, and can measure the level of 0.6Vrms, and 0.3Vrms. Its automatic range can display the results in the fast, medium, or slow mode.
It can automatically select the appropriate measurement parameters according to the characteristics of the component. Its measurement accuracy can reach 0.2%. It combines the convenience of a handheld instrument and good performance of a table-type one.

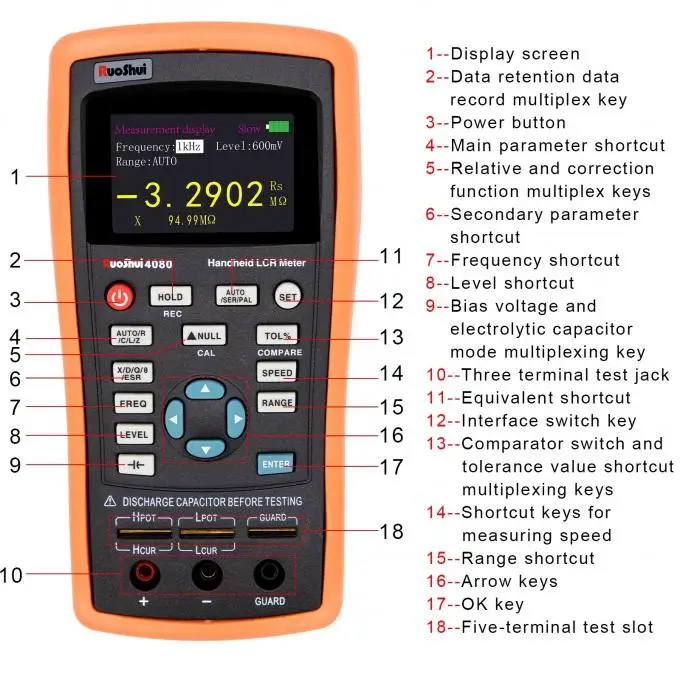

The operation is simple, and users can see the test frequency, parameters, and speed by pressing the corresponding key; it also has the recording mode to take readings; the convenient operation of open and short circuit correction function helps improve the measurement accuracy.
The buzzer, automatic power off and languages can be set on the configuration menu
The standard instrument is equipped with remote communication function. The remote control and data acquisition are achieved by connecting it to the PC through Mini-USB cable.
2. Technical Data
| Handheld LCR meter | 4080 | 4082 |
| Testing frequency | 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz | 100Hz-100KHz adjustable, step from 1Hz |
| Basic accuracy | 0.3% | 0.2% |
| Electrolytic capacitor mode | √ | √ |
| DCR mode | × | √ |
| Bias Voltage | × | 0-500mV can be adjustable, step from 1mV |
| Electric level | 0.6Vrms | 0-0.7 adjustable |
| Screen | 2.8 inches TET LCD | |
| Digits display | Main parameter: 5 digits; auxiliary parameter: 5 digits | |
| Measuring parameters | ||
| Main parameter | L/C/R/Z | |
| Auxiliary parameter | X/D/Q/ESR | X/D/Q/θ/ESR |
| Measuring Range | (L) 0-2000H | |
| Measuring Range | (C) 0-20mF | |
| Measuring Range | (R) 0-20MΩ | |
| Measuring speed | 1 time/s (slow), 2 times/s (moderate), 4 times/s (fast) | |
| Calibration function | Open circuit calibration, short circuit calibration | |
| Filtering function | Limit scope 1%~50% can be set; 1%, 5%, 10%, 20% are the fix points | |
| errors measurement | is use for comparing the percent errors between components and nominal value, meanwhile display | |
| others | Backlight luminance can be adjustable; USB device and auto power off can be set | |

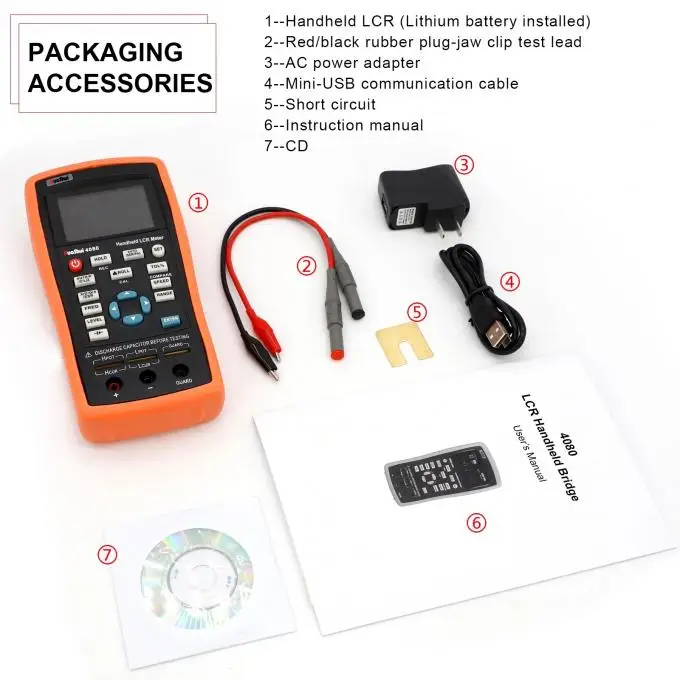

| Standard Accessories | Mini-USB cable; power adapter; short-circuit plate; plug made of red and black rubber; Lithium battery with large capacity |

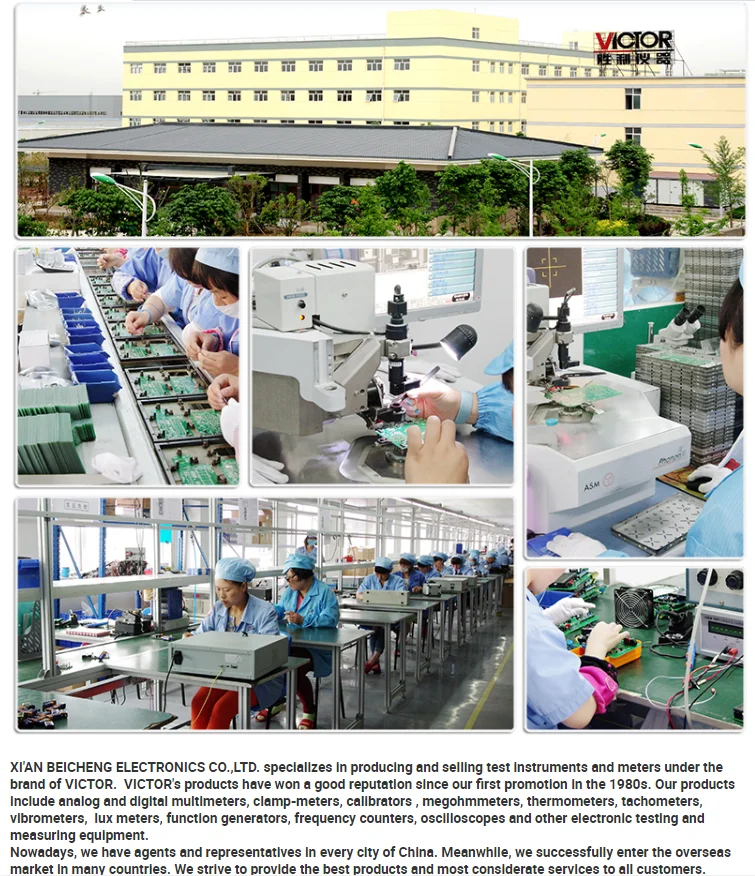

Company Profile
Certifications
Buyer Feedback

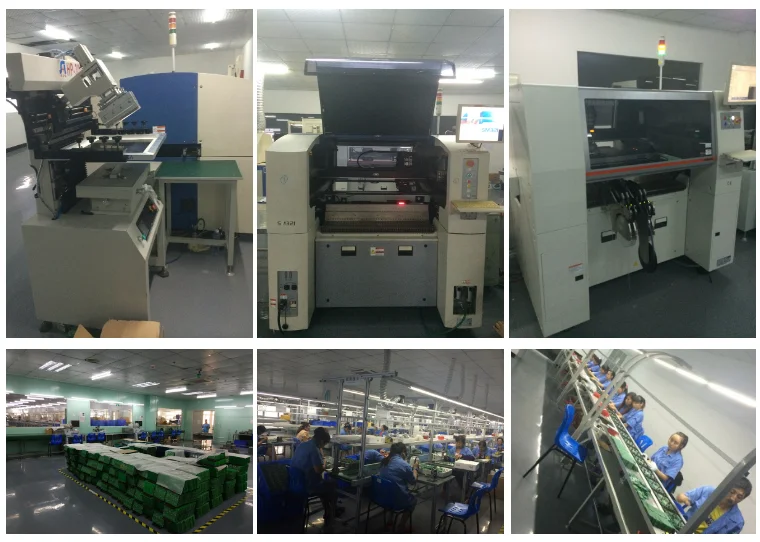

Production Process
