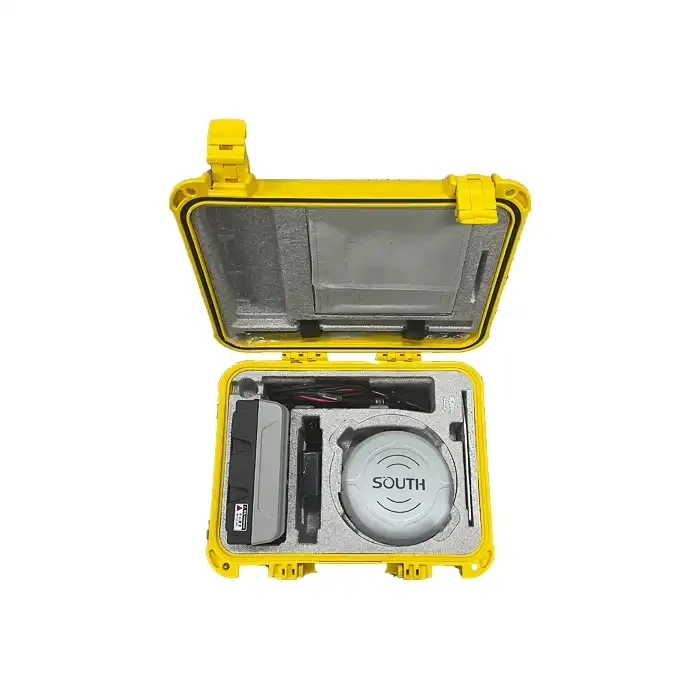

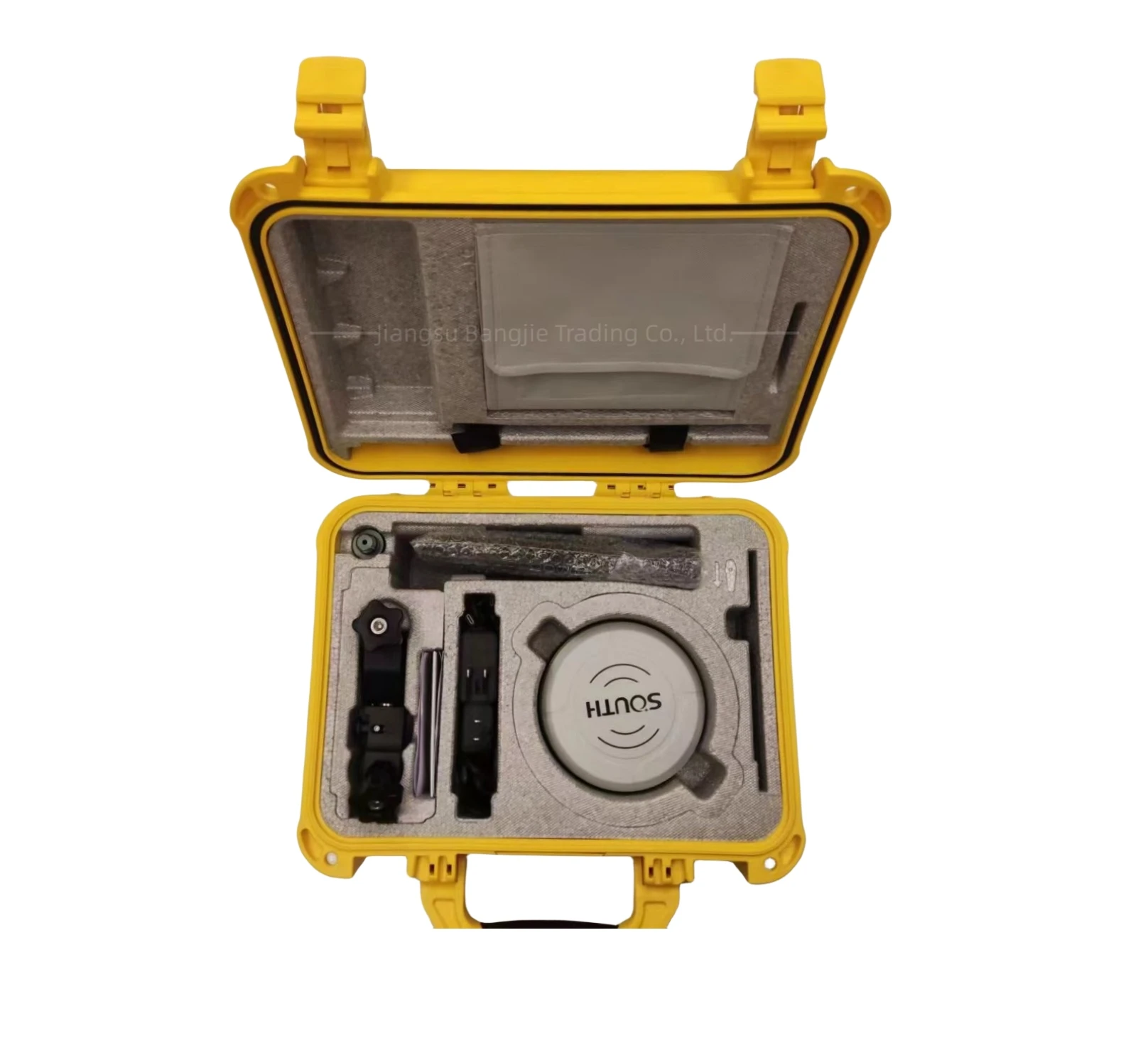

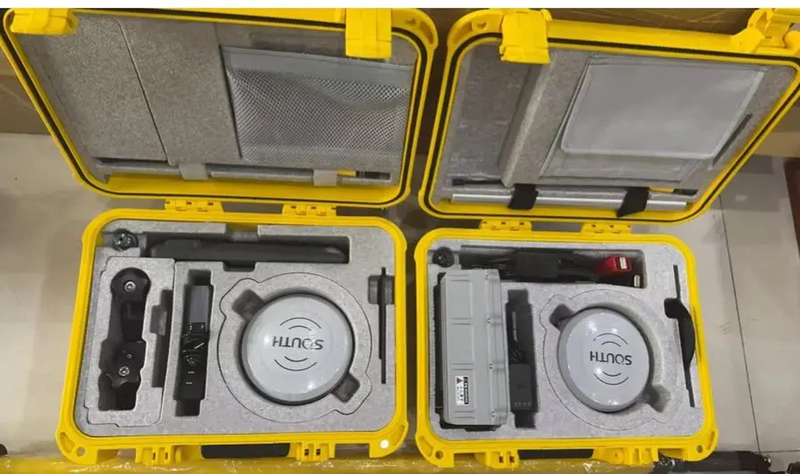

New Product Supercharged Pocket RTK Galaxy G3 Surveying Instrument GNSS RTK Receiver
New Product Supercharged Pocket RTK Galaxy G3 Surveying Instrument GNSS RTK ReceiverSOUTH New product Supercharged Pocket RTK Galaxy G3 Surveying Instrument GNSS RTK receiver

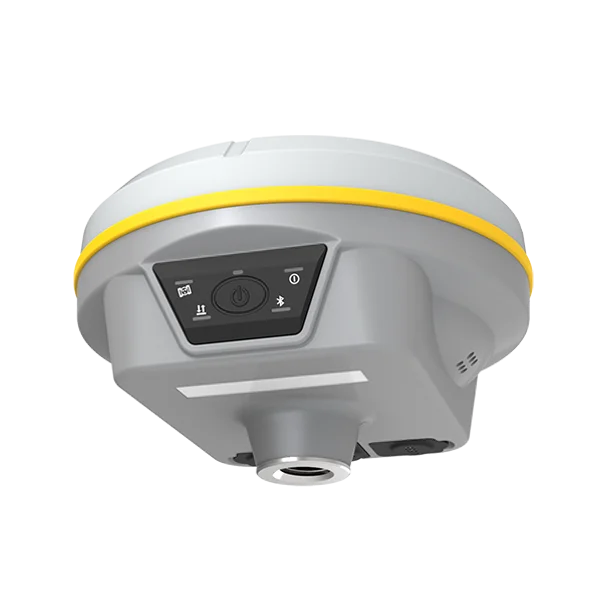

G3 GNSS RTK-----Lighter and FasterOnly 790g in weight, G3 is still packaged with the magnesium alloy shell. Highly intergrated design, smaller and lighter, easy to use in the field.
Specification| Model | G3 | |
| GNSS performance | Channels | 1598 |
| GPS | L1, L1C, L2C, L2P, L5 | |
| GLONASS | L1 C/A, L1P, L2C/A, L2P, L3 | |
| BDS | BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b | |
| GALILEO | E1, E5A, E5B, E6C, AltBOC | |
| SBAS | L1 WAAS/MSAS/EGNOS/GAGAN | |
| IRNSS | L5 | |
| QZSS | L1, L2C, L5 | |
| MSS L-Band | BDS-PPP | |
| Positioning output rate | 1Hz~20Hz | |
| Initialization time | <10s | |
| Initialization reliability | >99.99% | |
| Positioning precision | Code differential GNSS | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| Static(long observations) | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS | |
| Rapid static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |
| PPK | Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS | |
| RTK(UHF) | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS | |
| RTK(NTRIP) | Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS | |
| RTK initialization time | 2-8s | |
| SBAS positioning | Typically < 5m 3DRMS | |
| SBAS positioning | Typically<1m 3DRMS | |
| BANDA-L | Horizontal: 5-10cm (5-30min) Vertical: 10-30cm (5-30min) | |
| IMU | Less than 10mm + 0.7 mm/° tilt to 30° | |
| IMU tilt angle | 0° ~ 60° | |
| User interaction | Operaing system | Linux |
| Buttons | Single button operation | |
| Indicators | 5 LED indicatorss (Satellite , Charging , Power, Datalink , Bluetooth) | |
| Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely | |
| Voice guide | It provides status and operation voice guidance, and supports Chinese/English/ Korean/Spanish/Portuguese/Russian/Turkish | |
| Secondary development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
| Data cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc. | |
| Hardware performance | Dimension | 130mm (W) ×130mm (L) × 80mm (H) |
| Weight | 790g (battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating temperature | -45°C ~ +75°C | |
| Storag temperature | -55°C ~ +85°C | |
| Humidity | 100% Non-condensing | |
| Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust | |
| Shock and vibration | Withstand 2 meters drop onto the cement ground naturally MIL-STD 810G | |
| Power Supply | 6-28V DC, overvoltage protection | |
| Battery | Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery | |
| Battery life | Single battery: 15h (Rover Bluetooth mode) | |
| Communications | I/O port | 5PIN LEMO external power port + Rs232 Type-C interface (charge , OTG to USB disk, data transfer with PC or phone , Ethernet )1 UHF antenna interface |
| Internal UHF | 2W radio, receive and transmit, radio router and radio repeater | |
| Frequency Range | 410 - 470MHz | |
| Communication Protocol | Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel | |
| Communication range | Typically 8km with Farlink protocol | |
| Bluetooth | Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR | |
| NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else) | |
| WIFI | Modem | 802.11 b/g standard |
| WIFI Hotspot | AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals | |
| WIFI data link | Client mode, Receiver can transmit and receive correction data stream via WiFi datalink | |
| Data storage/ Transmission | Data Storage | 4GB SSD Automatic cycle storage e(The earliest data files will be removed automatically while the memory is not enough) Support external USB storage |
| Data Transmission | Plug and play mode of USB data transmission Supports FTP/HTTP data download | |
| Data Format | Static data format: STH, Rinex2.01, Rinex3.02 and etc. Differential data format: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA-0813, PJK plane coordinate , SOUTH Binary codeNetwork model support: VRS, FKP, MAC, fully support NTRIP protocol | |
| Sensors | Electronic bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time |
| IMU | Built-in IMU module, calibration-free and immue to magnetic interference | |
| Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature |
