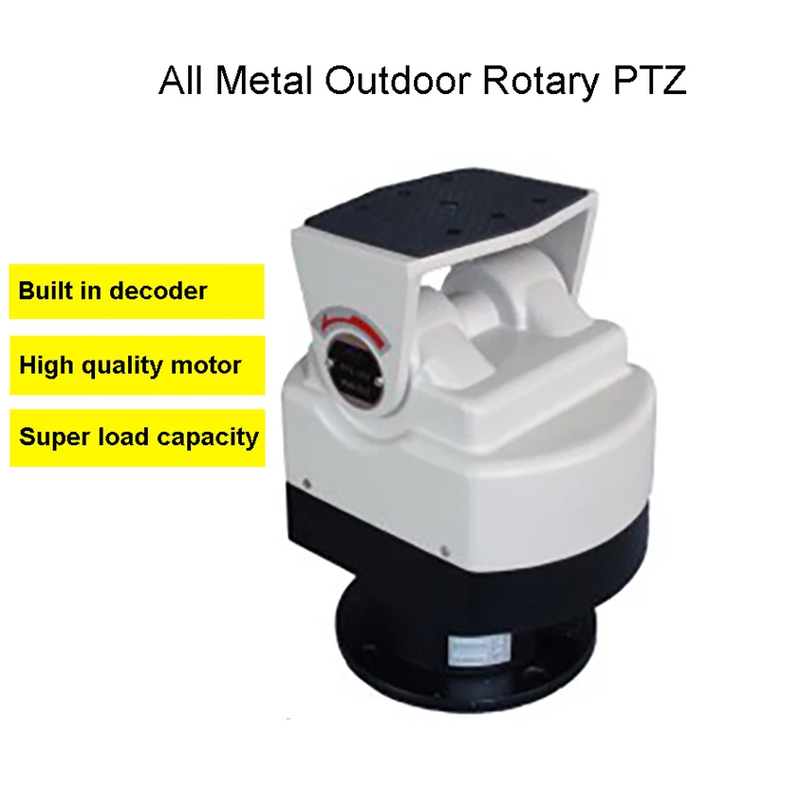

Metal Load RS485 Motorized Pan Tilt Scanner Decoder Preset PTZ Horizontal Vertical Rotate for Outdoor CCTV Camera SupportNotice :
when the parcel arrived to your customs ,please pay the tax and pick up the parcel ,we are not responsible for any customs duty or import tax
if your place is remote ,then need to pay 48usd .
Specifications:
Name: Camera monitoring outdoor turning pan/tilt
RS485 DC12V 5A or RS485 AC24V 3A Parameter:
Communication control mode with 485 interface: RS-485 half-duplex bus
Ambient temperature: -25℃~+50℃
Ambient humidity: ≤95% without condensation
Protocol: PWLCOD-D/PELCOD-P adaptive
Baud rate: 1200/2400/4800/9600bps
Address code range: 0~64
Rotation angle: horizontal: 0°~350°; vertical: ±35°
Rotation speed: horizontal: 10°/S; vertical: 3°/S
Two-point line sweep: a set of angles can be set
Two-point line scan speed: 4~10°/S
Preset point cruise: two groups of programmable automatic cruise trajectories, each group includes 16 points
Data power-off memory function: When the omni-directional gimbal is in the running line scan or track cruising state, and the power is turned on again after a sudden power failure, the omni-directional gimbal will automatically re-run to maintain the state before the power failure.
Matching wire: >0.5mm2 wire (connection distance 5m)
AC220V or AC24V Parameter:
Material: aluminum alloy die casting
Rotation Angle: Horizontal: 0°~350°, Vertical: ± 35°
Rotation Speed: Horizontal 9°/S, Vertical 1°/S
Rotation Limit: External Limit Post Adjustable
Load: 5kg
Function control: 1. automatic, 2. left turn, 3. right turn, 4. up, 5. down, 6. public
Ambient Temperature: -25℃~+55℃
Overall Dimension: Ф201mm×260mm
Recommended mounting bracket: PTS-ZZ012T Wall mounting bracket
Type:
Without 485 interface: AC220V/ AC24V (Two choose one voltage)
With 485 interface: DC12V 5A/ AC24V 3A (Two choose one voltage)
Note :
1. The voltage with 485 interface is to choose one voltage of DC12V and AC24V; the interface without 485 is to choose one voltage of AC220V and AC24v
2. The products are all without power supply, only a single gimbal; the ones without 485 turn on when powered on, and the ones with 485 need to be controlled to turn
Product show:
