Product Description

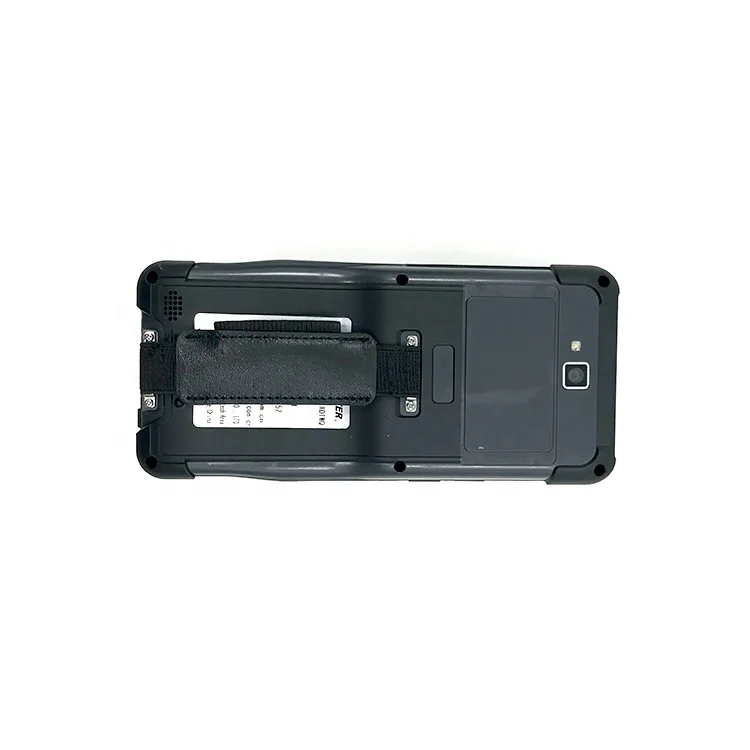

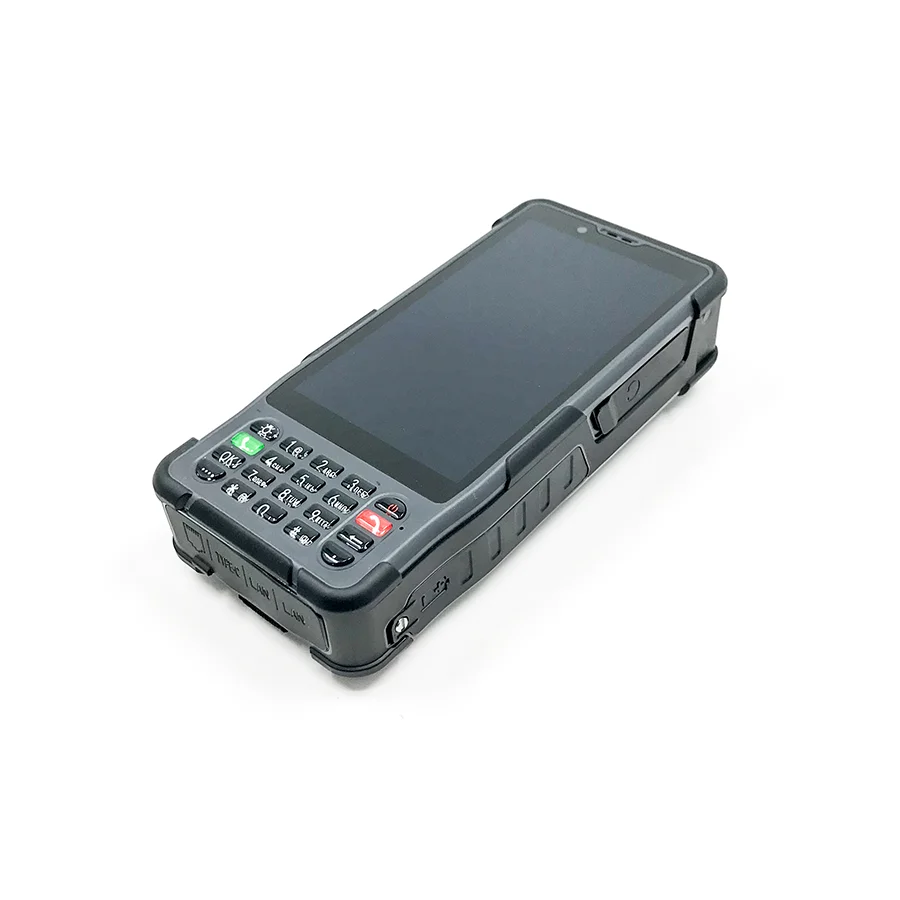

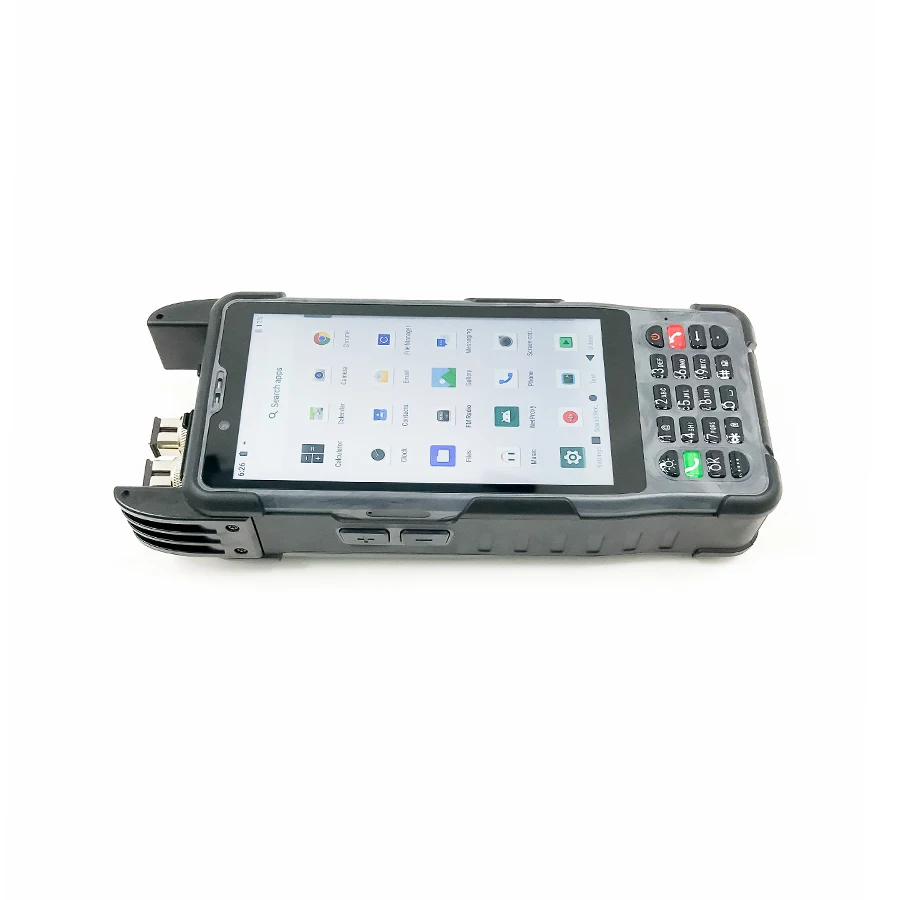

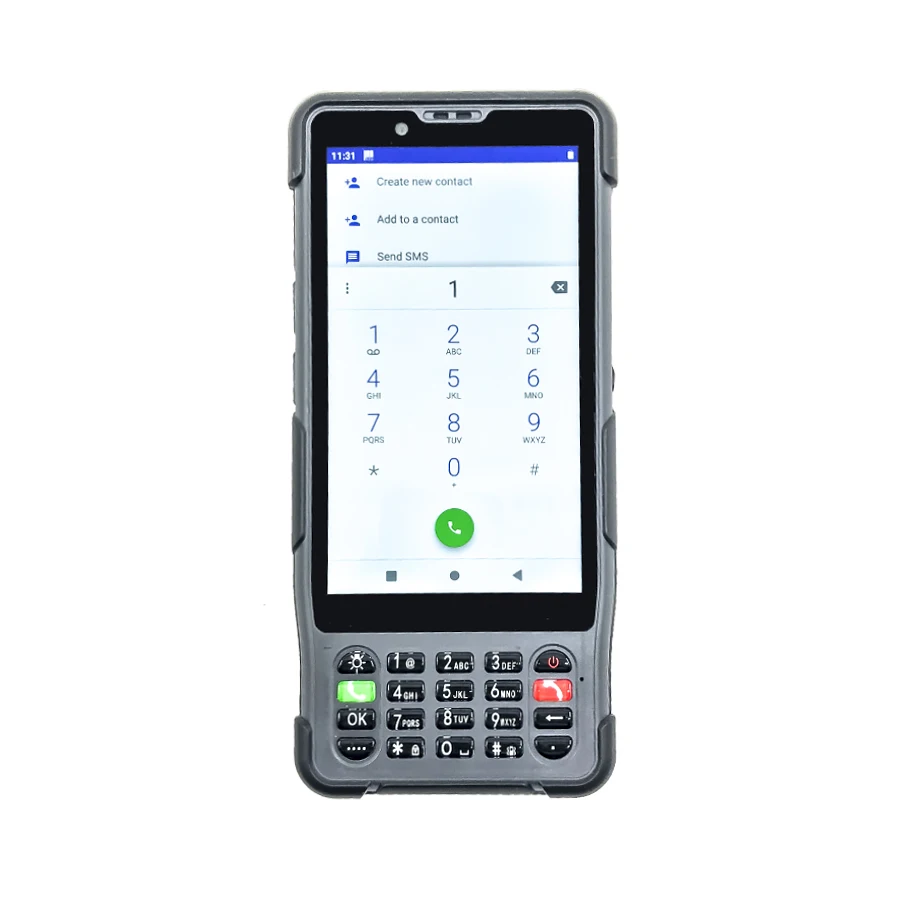

ST327 V5 FTTX Telecom Test Pda Cable Tracker Network Tester
ST327 V5 FTTX Telecom Test Pda Cable Tracker Network TesterHello, Dear friends, please contact customer service to ask for product details before you place an order!#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:281.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:281.25px}#detail_decorate_root .magic-3{border-bottom-style:dashed;border-bottom-color:#fe0000;font-family:Times New Roman;font-size:32px;color:#fe0000;text-align:center;font-style:italic;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:220px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{font-size:16px}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:486px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:86.00641539695269px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750.0000000000001px;height:86.00641539695269px}#detail_decorate_root .magic-10{width:446px}#detail_decorate_root .magic-11{overflow:hidden;width:446px;height:451.94666666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:474px;height:474px}#detail_decorate_root .magic-13{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-14{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:-34.04588394062079px;margin-left:-28.037786774628884px;width:298px;height:298px}#detail_decorate_root .magic-16{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-17{margin-top:-38.05128205128206px;margin-left:-30.04048582995952px;width:312px;height:312px}#detail_decorate_root .magic-18{margin-top:-14.018893387314442px;margin-left:-28.037786774628884px;width:312px;height:312px}#detail_decorate_root .magic-19{margin-top:-26.03508771929825px;margin-left:-28.037786774628884px;width:312px;height:312px}#detail_decorate_root .magic-20{margin-top:-24.032388663967616px;margin-left:-26.03508771929825px;width:298px;height:298px}#detail_decorate_root .magic-21{margin-top:-32.04318488529015px;margin-left:-20.026990553306344px;width:298px;height:298px}#detail_decorate_root .magic-22{vertical-align:top}#detail_decorate_root .magic-23{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-24{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-25{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-26{font-size:18px}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:705px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{display:none}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:510px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:176px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:509px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:18px;padding:5px 10px;width:510.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:18px;padding:5px 10px;width:508px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:18px;padding:5px 10px;width:704px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:18px;padding:5px 10px;width:509.4px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:18px;padding:5px 10px;width:716px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:18px;padding:5px 10px;width:122px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:18px;padding:5px 10px;width:154px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:18px;padding:5px 10px;width:64px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:18px;padding:5px 10px;width:127px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:18px;padding:5px 10px;width:167px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:18px;padding:5px 10px;width:210px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-43{min-height:18px;padding:5px 10px;width:209px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:18px;padding:5px 10px;width:717.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:18px;padding:5px 10px;width:487px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:18px;padding:5px 10px;width:487.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:18px;padding:5px 10px;width:210.2px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:18px;padding:5px 10px;width:723px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:18px;padding:5px 10px;width:202px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:18px;padding:5px 10px;width:265px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:18px;padding:5px 10px;width:216px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:18px;padding:5px 10px;width:264px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-53{min-height:18px;padding:5px 10px;width:253px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-54{min-height:18px;padding:5px 10px;width:440px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-55{min-height:18px;padding:5px 10px;width:91px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-56{min-height:18px;padding:5px 10px;width:132px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-57{min-height:18px;padding:5px 10px;width:715px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-58{min-height:18px;padding:5px 10px;width:175px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-59{min-height:18px;padding:5px 10px;width:252px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-60{min-height:18px;padding:5px 10px;width:287px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-61{min-height:18px;padding:5px 10px;width:252.8px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-62{min-height:18px;padding:5px 10px;width:561px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-63{min-height:18px;padding:5px 10px;width:175.4px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-64{overflow:hidden;width:373px;height:209.8125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-65{margin-top:0;margin-left:0;width:373px;height:209.8125px}#detail_decorate_root .magic-66{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-67{margin-top:0;margin-left:0;width:440.6794657762938px;height:209px}#detail_decorate_root .magic-68{text-align:center}#detail_decorate_root .magic-69{font-size:32px}#detail_decorate_root .magic-70{overflow:hidden;width:184.5px;height:259.79342327150084px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-71{margin-top:0;margin-left:0;width:184px;height:259px}#detail_decorate_root .magic-72{overflow:hidden;width:184.5px;height:259.7038043478261px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-73{margin-top:0;margin-left:0;width:195px;height:259px}#detail_decorate_root .magic-74{margin-top:0;margin-left:0;width:188px;height:259px}#detail_decorate_root .magic-75{margin-top:-180px;margin-left:-2px;width:373px;height:663.1111111111111px}#detail_decorate_root .magic-76{overflow:hidden;width:373px;height:210.54647676161918px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-77{margin-top:0;margin-left:0;width:373px;height:210.54647676161918px}#detail_decorate_root .magic-78{overflow:hidden;width:373px;height:210px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-79{margin-top:0;margin-left:0;width:375.1223491027733px;height:210px}#detail_decorate_root .magic-80{font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-82{overflow:hidden;width:750px;height:595px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-83{margin-top:0;margin-left:0;width:750px;height:595px}#detail_decorate_root .magic-84{overflow:hidden;width:750px;height:711px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-85{margin-top:0;margin-left:0;width:750px;height:711px}
Product Description| Place of origin | China |
| Province | Shandong |
| Model Number | ST327 V5.0 |
| Communication network | 4G/3G/WIFI 5G |
| ONU/ONT | YES |
| LCD | 5.5 inch |
| VFL/OPM | YES |
| SYSTEM | Android 9.0 |
| Cable tracking | YES |
| ADSL/VDSL/DMM | YES |
| PON power meter | YES |
Wifi 5G Android 9.0 OS Smart Phone + 1D/2D Barcode Scan+ ADSL/VDSL2/G.FAST+ DMM Test + TDR + OPM+ PON Power Meter +VFL + PON Network Resource Verification & ONU Status Detect+ Cable Tracing+ Check Line Sequence+ Landline +1 Gbps Download Speed+ Fiber Ranger+ ONU
Features1. 1.8 GHZ CPU and fast processor 2. Strong protection for bad environment 3. Visible 5.5 inch LCD in the sunlight 4. The storage capacity is big and extensible 5. Advanced battery installation design and strong endurance 6. Support Google Play 7. Support DMM, VLAN,HLOG,QLN 8. Can install Work Force Management System 9. Mobile phone + Telecom test function 10. CE certificate 11. Gigabit Ethernet port 12. Support VLC to view channel 13. Support 1Gbps downloads speed 14. Support WIFI 5G 15. Support VDSL2 Vectoring. Support G.FAST 16. Support Fiber RangerSpecifications| General Specifications | |
| Display screen | 1080X1920TFT, true color 5.5 inch Capacitance touch screen |
| Operation system | Built-in Android 9.0 operation system |
| System | CPU is Qualcomm450,1.8GHZ 8Core RAM 2G bytes Flash 2+16G bytes ,3G+32G /4G+64G optional Supports TF memory card (The biggest capacity is 64G) |
| Bluetooth | Support 4.0 |
| WIFI | Support IEEE 802.11b/g/n/ac |
| 4G | CDMA: 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA:B1/B2/B5/B8 TD-SCDMA:B34/B39 FDD-LTE :B1/B2/B3/B4/B5/B7/B8 TD-LTE:B38/B39/B40/B41 |
| Power supply | Rechargeable 2pcs 3.8V 4100mAh or 2pcs 3.8V 6800mAh polymer battery |
| Camera | 8/5 million pixel front camera and 16/13 million pixel rear camera ,support auto and flash function.(High and low configuration optional) |
| Dimension | 181*87*45mm |
| XDSL Index | |
| xDSL test main functions | Physical Layer Info PPPoP Dial FTP Client, Fixative IP Network Layer Test Modem Emulation PING Support VLAN, HLOG,QLN Error Code Statistics Bit Graph Display BPT /SNR Data Modem Parameter Setting(VPI/VCI) |
| ADSL Index | |
| Standards | ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL. |
| Attenuation: | 0~63.5dB |
| Noise margin | 0~32dB |
| Upstream Channel Rate (interweaved / fast mode) | 0~1.2Mbps |
| Downstream Channel Rate (interweaved / fast mode) | 0~24Mbps |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels' frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
| Other Parameters | The output power of DSL It can display every condition of the DSL line: lost signal and shutdown of link |
| VDSL2 Index | |
| Standards | ITU G.993.2(VDSL2). Be compatible with ADSL2+, ADSL standard. |
| Upstream Channel Rate (interweaved / fast mode) | VDSL2 : 0-100M (35b max 100M,G,fast max 200M) |
| Downstream Channel Rate (interweaved / fast mode) | VDSL2: 0-100M (35b max 300M, G.fast max 800M) |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels' frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
| Other Parameters | The output power of DSL It can display every condition of the DSL line: lost signal and shutdown of link DSLAM information Error seconds INP pulse protection SNR channel figure Channel noise margin figure |
| Support profiles: | Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a (30a,35b optional/,g.fast optional) |
| DMM Test Index | |
| DC Voltage | -400 to 400 V;Resolution: 0.1V |
| AC Voltage | 0 to 290 V |
| Capacitance | 0 to 1000nF;Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF |
| Loop Resistance | 0 to 20KΩ;Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2% |
| Insulation Resistance | 0 to 50MΩ;Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ |
| Cable fault locator (TDR) Index | |
| General specifications | Check line mix and break fault. Auto and manual distance test |
| Test Range | 4km |
| Highest resolution | 1m |
| Dead Zone | 0m |
| Power consumption | 1W |
| VOP Adjusting range | 100-300 m/us |
| Distance test accuracy | ≤1m |
| Pulse test voltage range | ≥30V |
| Optical Power Index | |
| Wavelength range(nm) | 800~1700 |
| Photo sensing material | InGaAs |
| Power test range(dBm) | -70~+10 or -50~+26 |
| Error range | ±5% |
| Display distinguishability | Linear display: 0.1%; logarithmic display: 0.01 dBm |
| Adapters | 2.5mm universal adapter |
| PON Power Meter Index | |||
| Stand wavelength | 1310(upstream) | 1490(downstream) | 1550(downstream) |
| Pass zone (nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Range (dBm) | -40~+10 | -45~+10 | -45~+23 |
| Isolation@1310nm(dB) | >40 | >40 | |
| Isolation@1490nm(dB) | >40 | >40 | |
| Isolation@1550nm(dB) | >40 | >40 |
| Uncertainty(dB) | ±0.5 |
| Linearity(dB) | ±0.1 |
| Unit | dBm/xW |

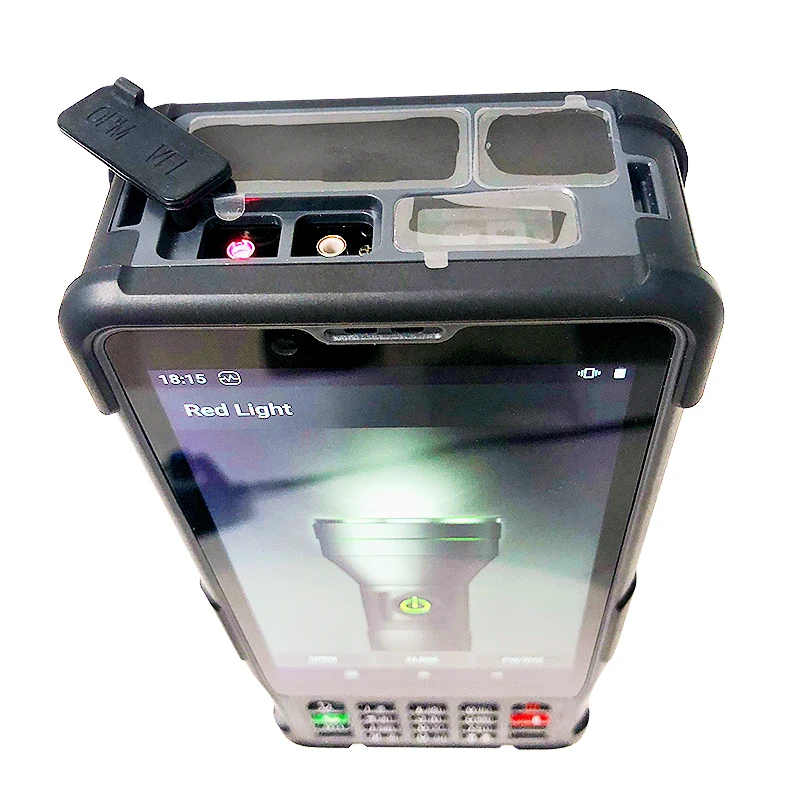

| VFL Index | |
| VFL | FP-LD |
| Wavelength | 650nm±20nm |
| Output power | 1mw/3mw/5mw/10mw (optional) |
| Connector | 2.5mm universal adapter (SC, FC, ST) |
| Working mode | CW or 2Hz modulation |
| Applicable fiber | SM / MM |
| Pon network resource verification& ONU status detect Index | |
| Verification | ONU info: SN\PASSWORD\LOID |
| ONU status detect | Online, offline, drop, long light, OLT break, ONU break |
| Cable Tracking Index | |
| Test cable type | Network cable, twisted pair cable, USB cable, coaxial cable. |
| Line status test | Determine open or short circuit |
| Voltage polarity detection | Positive and negative of DC voltage |
| Distance of signal transmission | No less than 3km |
| DC Voltage | No more than 48V |
| Check Line Sequence Index | |
| Function | Support generate network line signal to view the network check line sequence with the receiver. |
| Feature | Easy to operate: determine the line sequence by receiving side lights order |
| Function | Connector can be used as landline |
| Transmit Quality | |
| Curt rate(kbps) | Transfer rate of the service packages |
| IP num(is) | Statistics of IP package gathered in the sampling period |
| Lostednum | Data statistics of RTP package loss number gathered in the sampling period |
| IP Jitter | Reflect levels of IP packet transmission quality |
| Net Configuration (Support any net encapsulation format, include TS, TCP, UDP, RTP, RTSP, PPPoE etc.) | |
| MDI DF | Delay in MDI test regulated by RFC4445 |
| Tos TTL | IP Protocol information |
| Dst Port | STB IP |
| Dest Port | STB Port |
| Rtp type | RTP Protocol information |
| Statistics | |
| MLR-15 | Statistical value of MLR in 15 minutes |
| Losted total | RTP packet loss total number in test cycle |
| Rate | Current test cycle rate, including maximum, minimum and average statistics |
| Fiber Ranger Index | |
| Optical fiber interface | FC/PC |
| Wavelength | 1550nm |
| Test distance | 0.01~10km(If over measuring range, the error is large) |
| Error | ±(2m+2*0.0001*distance) |
| Dead zone distance | ≤10m |
| Loss threshold | ≥0.6Db (Detect loss range in intermediate fault point) |
| Working temperature | -5鈩儈40鈩� |
| Working duration | ≥8hrs(Continuous working) |
| Charge power supply | 5V/1.5A |
| ONU Index | ||
| ONU Test | ||
| GPON | ||
| Registration State | none | O5 Operation |
| Authentication State | Registered, authenticated | Success |
| Output Power | +0.5~5dbm | +0.5~5dbm |
| Input Power | -27dbm~-8dbm | -27dbm~-8dbm |
| Supply Voltage | 3100~3500mV | 3100~3500mV |
| Bias Current | 0~90mA | 0~90mA |
| ONU (ONT) Emulation | ||
| To emulate user’s ONU(ONT) to exclude the faulty of user’s ONU(ONT) |
| Ordering Information | Module Code | ||
| Standard / Basic Part | |||
| CDMA: 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA:B1/B2/B5/B8 TD-SCDMA锛欱34/B39 FDD-LTE :B1/B2/B3锛坰upport in future锛�/B4/B5/B7/B8 TD-LTE:B38/B39/B40/B41 Support WIFI 5G speed test Speedtest by PDA platform max to 1G | S337 V2.0 | ||
| Optional Module | |||
| Xdsl (choose one ) | ADSL2+ Module | A | A |
| VDSL2 Module | V | V | |
| VDSL2 Annex Q Vplus/35b | 3 | 3 | |
| G.FAST module | F | g | |
| 1D/2D Bar Code Scanning Module for goods management (symbol SE2100) | B | B | |
| Optical Power Meter Module | G | G | |
| VFL Module | H | H | |
| Cable Tracing | X | X | |
| Check line sequence | W | W | |
| I | |||
| Only choose one item from function item 1 to 5 | 1 (you can choose only D or only 8,only T or all, they are in one board) | DMM Function | D |
| Cable fault locator (TDR) | 8 | ||
| 2 | PON power meter | 1(1G PON) 2(10G PON) | |
| 3 | ONU status detect | L | |
| 4 | Fiber Ranger | R | |
| 5 | Field Strength Meter | F |

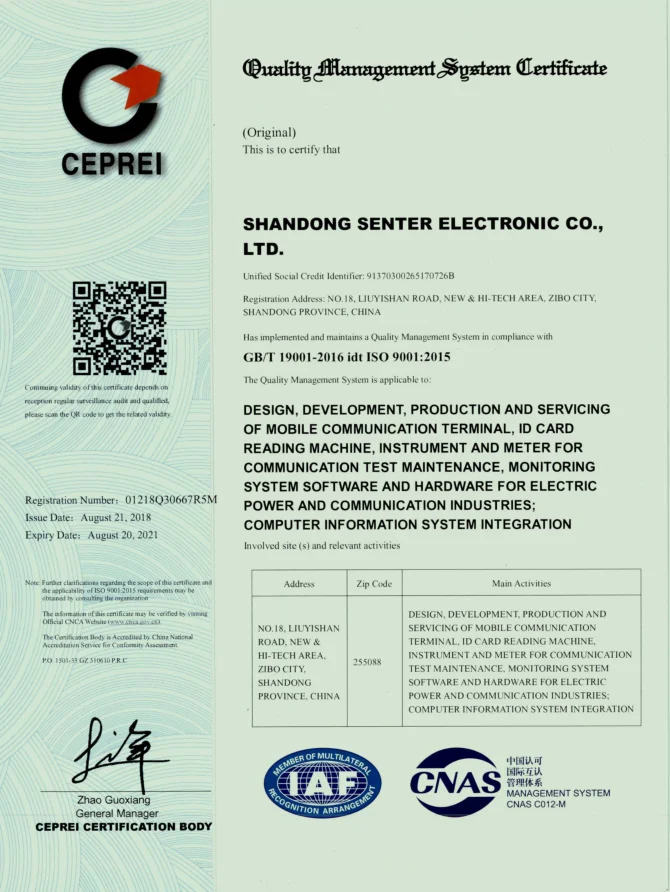

Our certificate

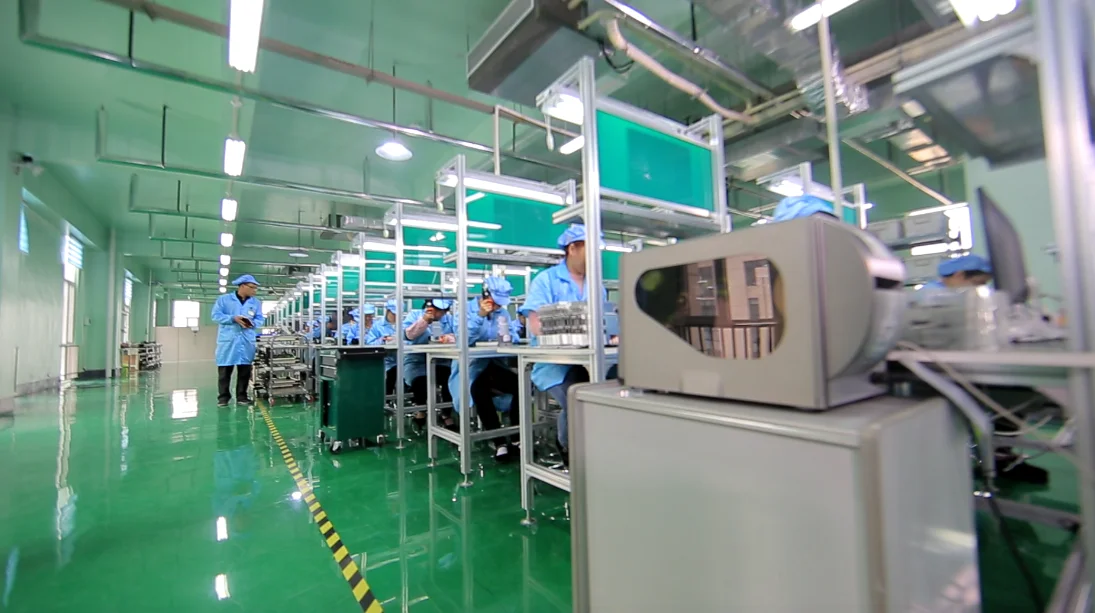

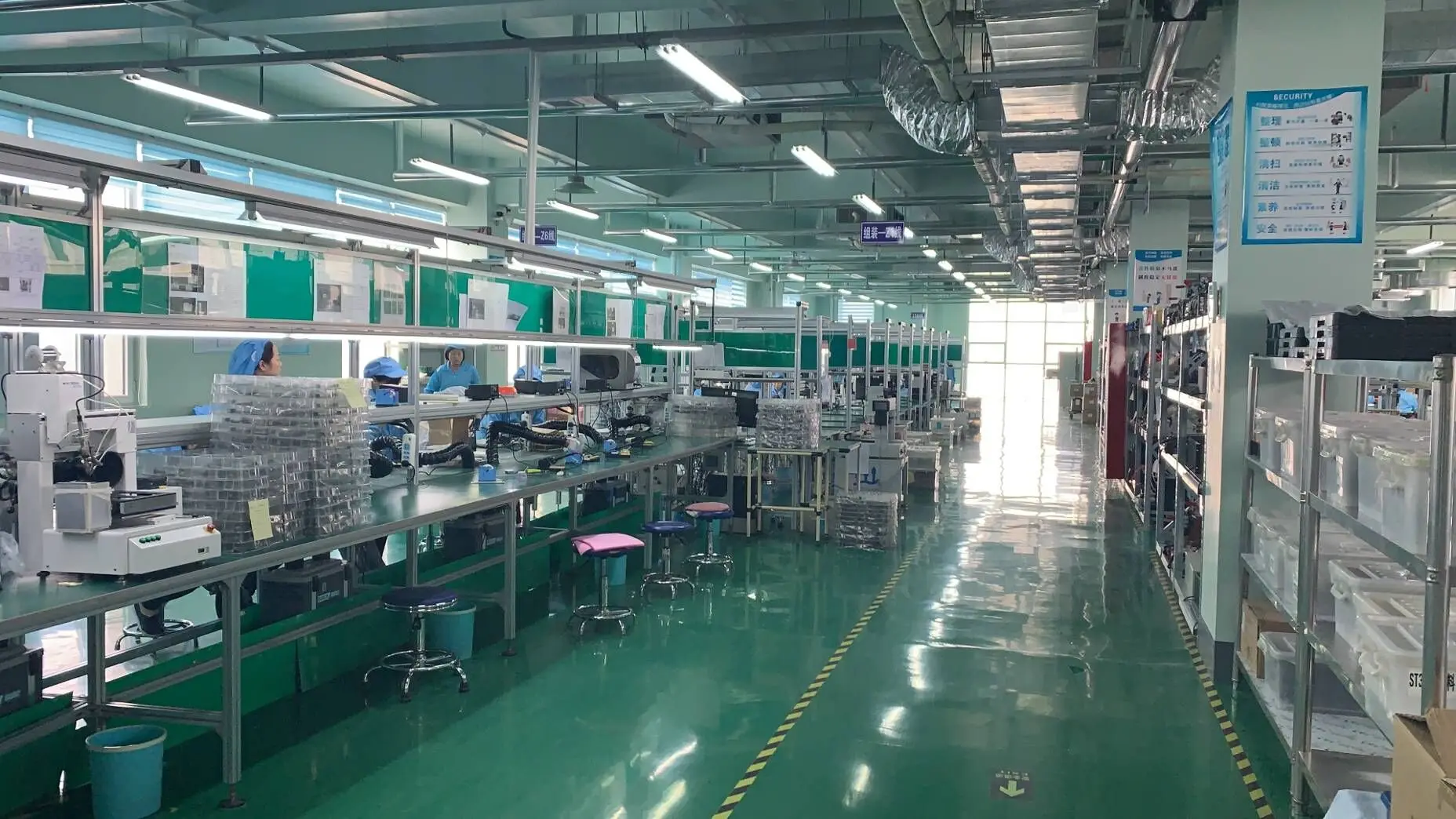

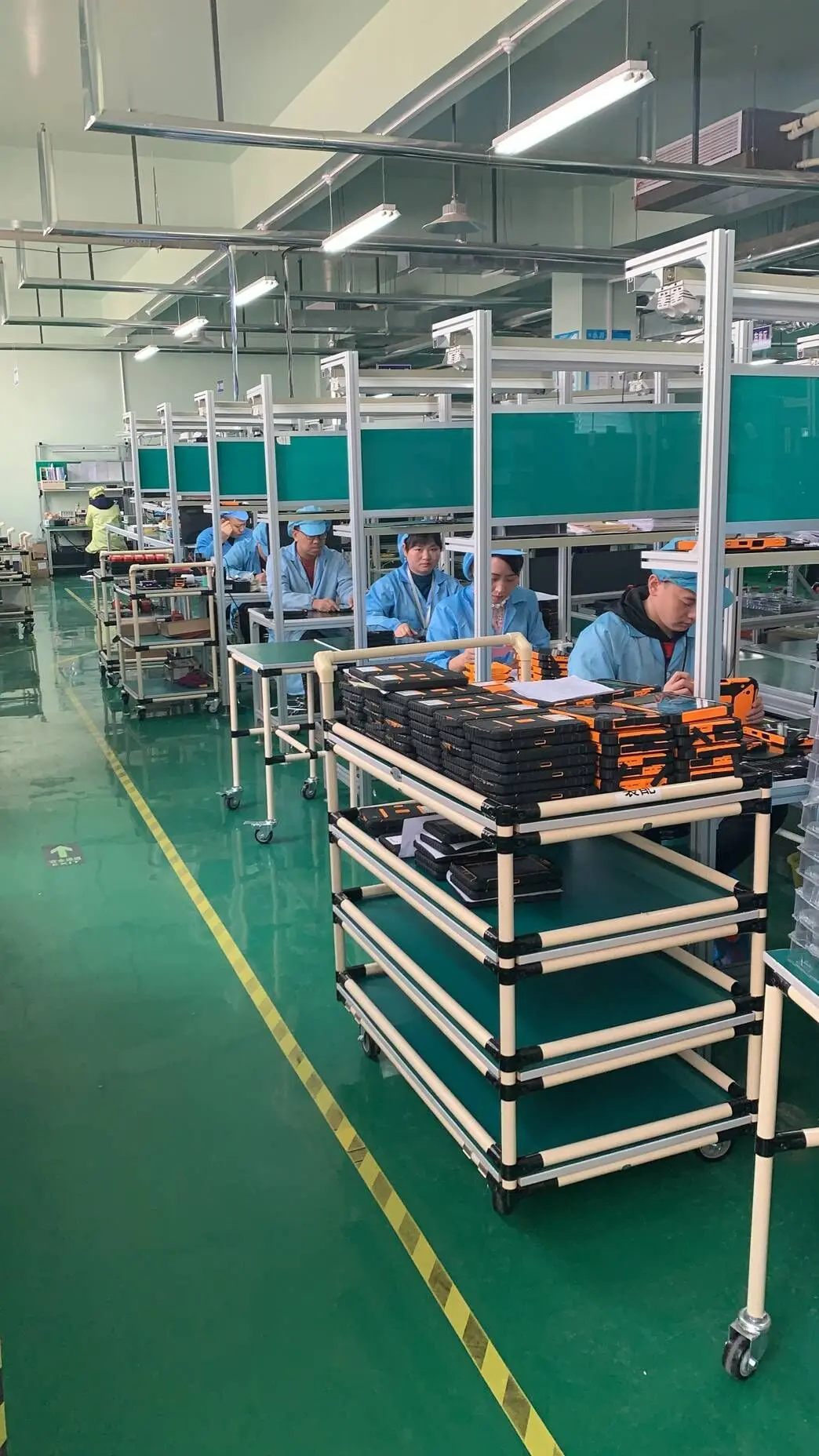

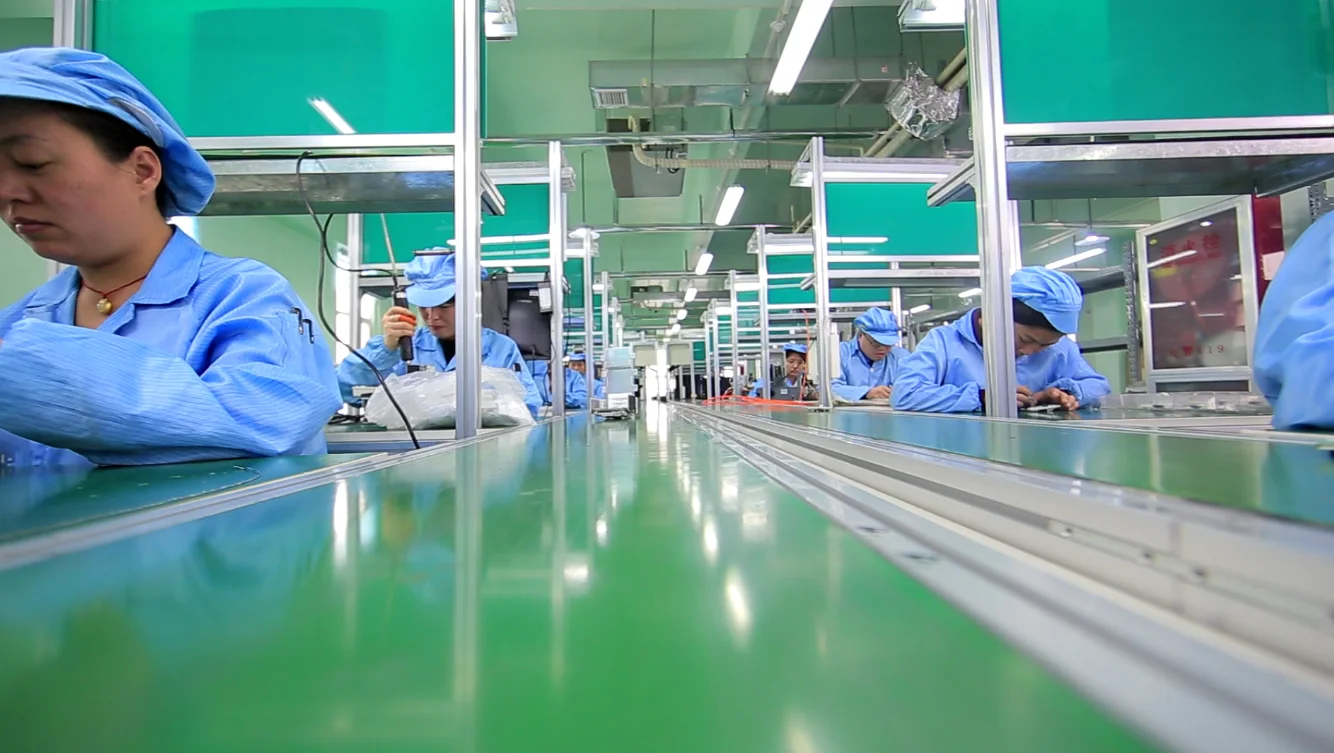

Our AdvantagesFactory advantage:Headquartered at no. 18 Liuyishan road, national Zibo high-tech industrial development zone, Senter electronics has subsidiaries and R&D centers in Jinan and Qingdao.Founded in 1996, the company has more than 400 employees, registered capital of 97.5 million Yuan, and covers an area of 20,000 square meters.Market advantage:In the communications industry, the business mainly covers the operation and maintenance scenario in major communication operators, provides innovative and competitive communications test and measurement products and solutions, the main products include communication maintenance test instruments and meters, integrated maintenance terminal , communication test software and systems, etc.Technology advantage:In the field of communications, electric power industries, we have formed our own core technology and have a wide variety of independent intellectual property products, and have gradually became a pacemaker of niche market of industry such as communication and electric power technology. Factory Show
