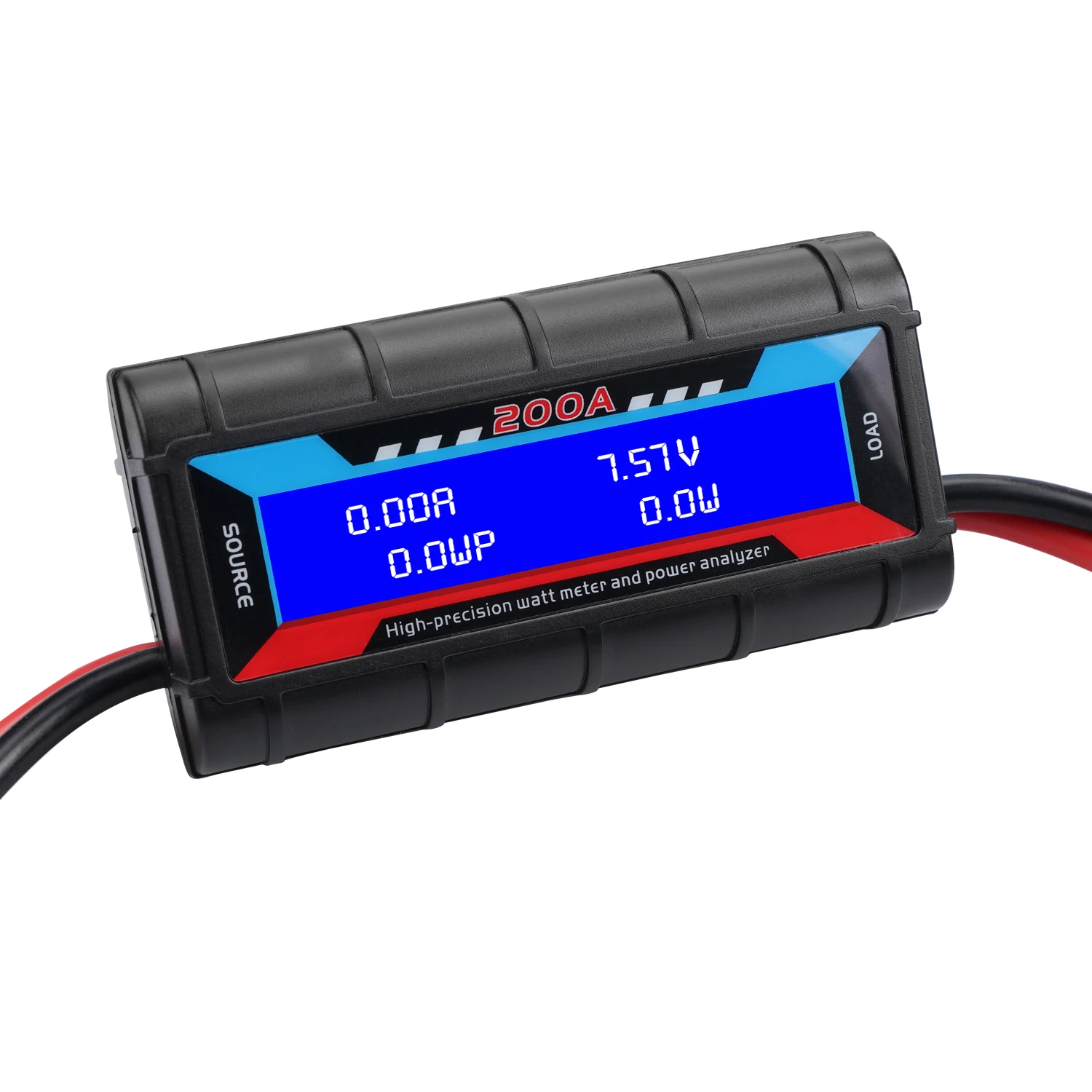

200A High Precision Watt Meter and Power Analyzer Backlight LCD Rc Drone Voltage

Product Description

Description:
HTRC 200A watt meter and power analyser isn't just a watt meter,it's the All-In-One Meter.
A power meter, a volt meter, an amp-hour meter, ammeter and energy meter.
It is indispensable for analyzing, testing and troubleshooting any DIY DC power project.
Very accurate in giving DC volt, ampere and wattage.
This Watt Meter only requires a tiny 7mA draw to operate, there will be no significant reduction in your power
production during usage.
Fetures:
* Predict model airplane flight time
* Evaluate R/C battery charging efficiency
* Choose the best propeller/most efficient motor
* Check for wiring and connector power loss
* Measure power and energy consumption of any battery powered device
* Ensure peak currents are safe for motor, ESC & Battery as well as wiring and connectors

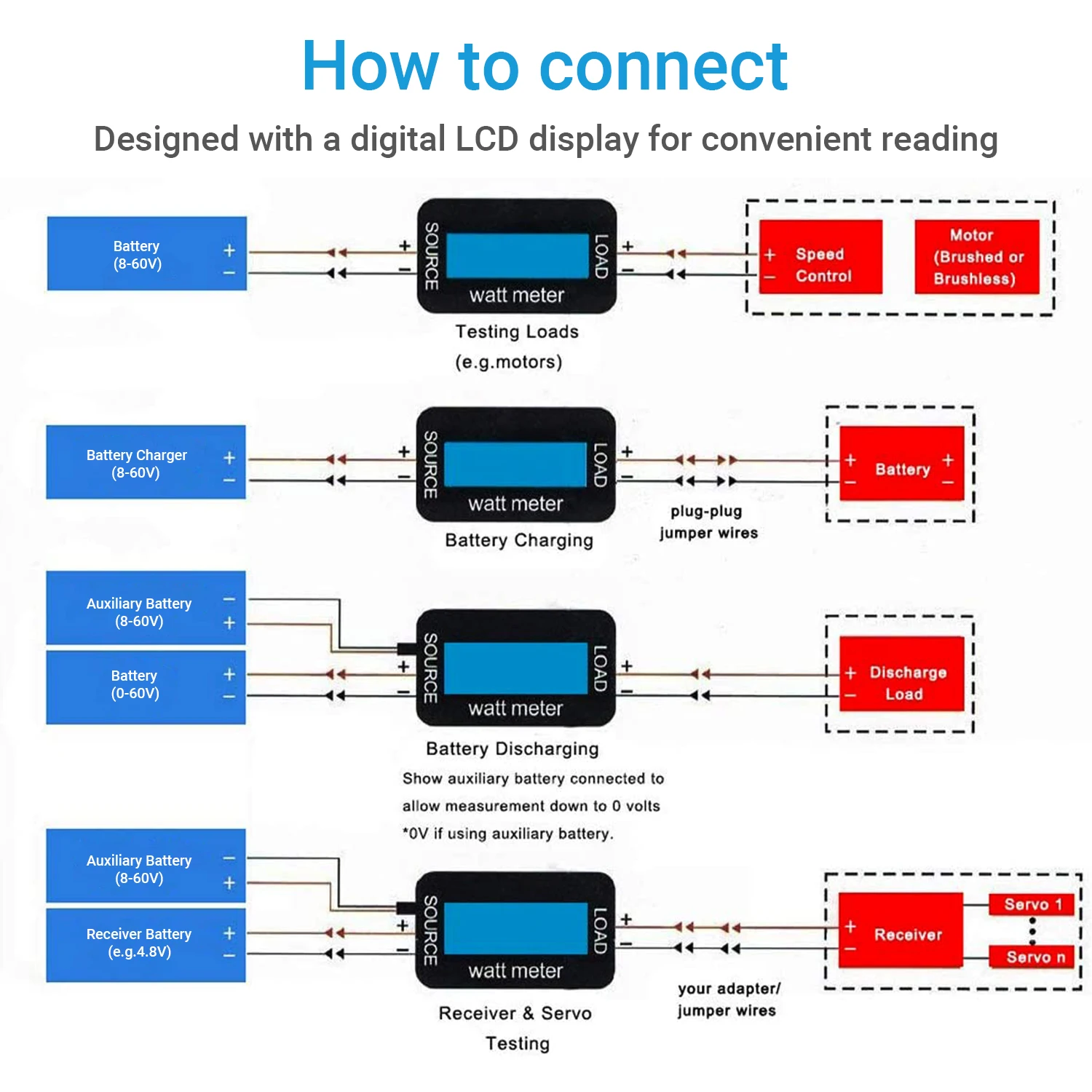

Conection:
Connect "SOURCE" Red wire to positive(+) and Black to Negative of battery or any DC electricity source.
Similarly,"LOAD" wires should be connected to any DC electricity based load.
Once there is power flowing through, the device will initialise and show you a full range of ratings including:
Current (Amps/A) at the present moment
Voltage (Volts/V) at the present moment
Power (Watts/W) at the present moment
Total Amps (Amp hours/Ah) since device initialised
Total Power (Watt hours/Wh) since device initialised
Highest Voltage Maximum (Vm) since device initialised
Highest Power Peak (Watt Peak/Wp) since device initialised
Highest Current Peak (Amp Peak/Ap) since device initialised

Specification:
Operates from 4.8v to 60v or 0V to 60V with optional auxiliary battery..
Measures 0 to 200A with a resolution of 0.01A
Measures 0 to 60V with a resolution of 0.01V
Measures 0 to 6554W with a resolution of 0.1W
Measures 0 to 650KWh with a resolution of 0.1Wh
Measures 0 to 6554Ah with a resolution of 0.01Ah
Cable:8AWG

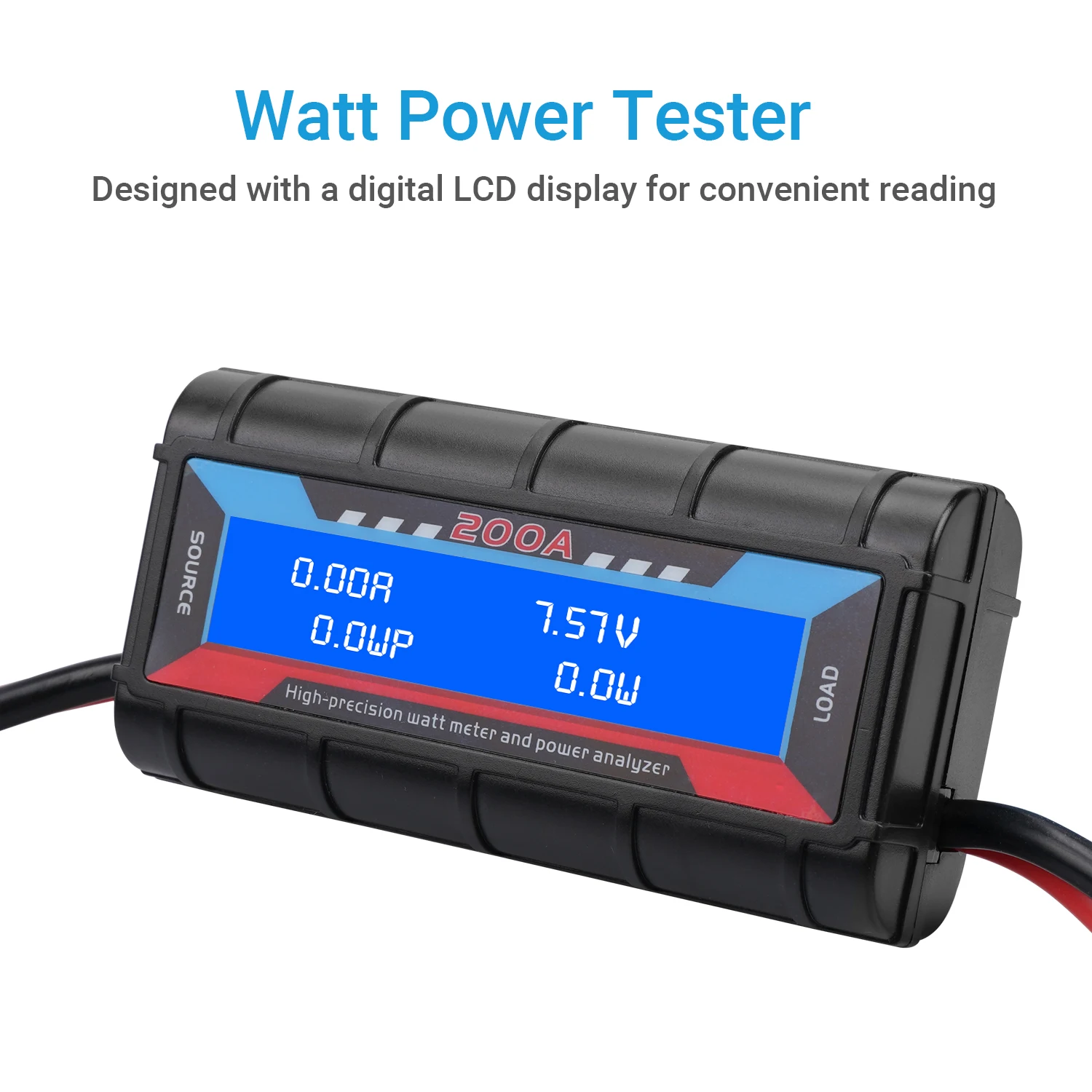

Display:16 x 2 backlit LCD display
Color: Black
Size: 110 x 45 x 26mm
Package size:135 x74x35mm
Gross weight 180g
Package list:

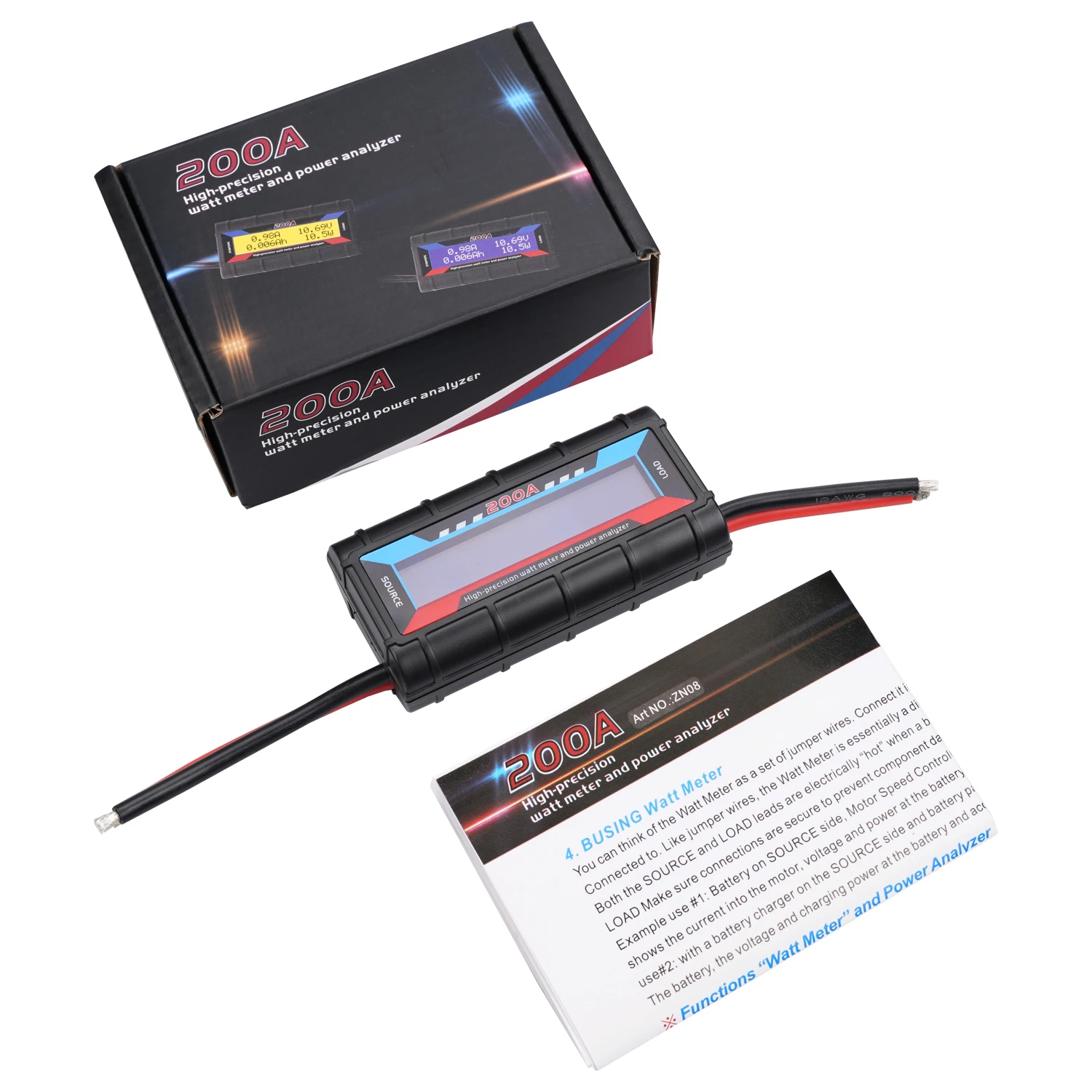

1 x 200A watt meter and power analyser
1 x Manual
