Product Description

NanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X Development Board Supports OpenMediaVault OpenWrtNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X Development Board Supports OpenMediaVault OpenWrtNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X Development Board Supports OpenMediaVault OpenWrt

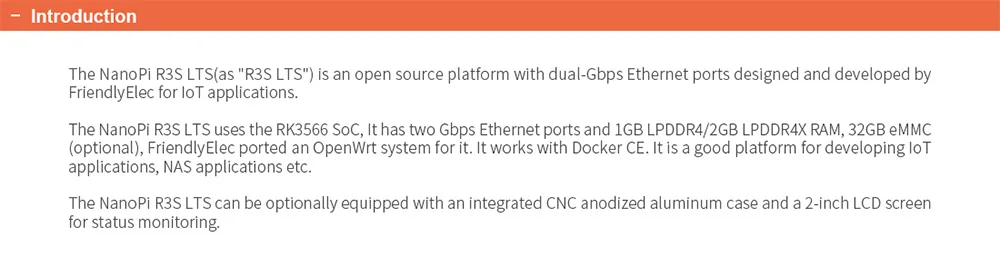

Introduction

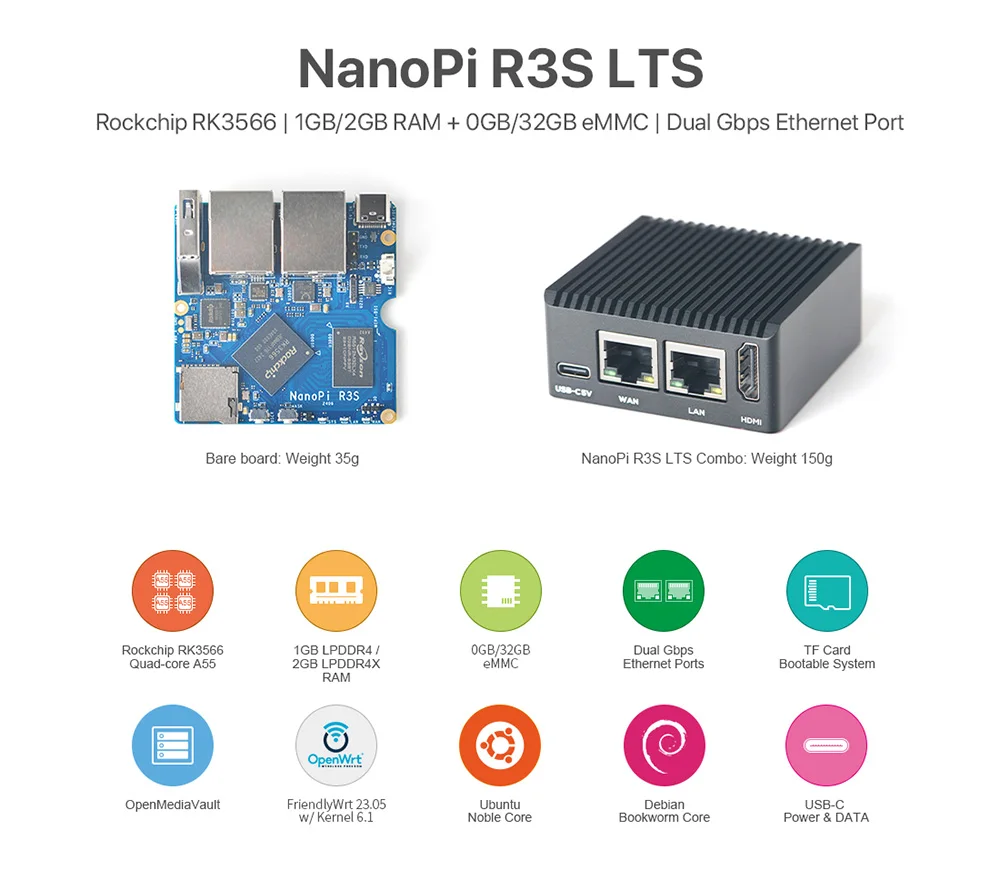

  • The NanoPi R3S (as "R3S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

  • The NanoPi R3S uses the RK3566 SoC, It has two Gbps Ethernet ports and 2G LPDDR4X RAM, 32GB eMMC (optional), FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.

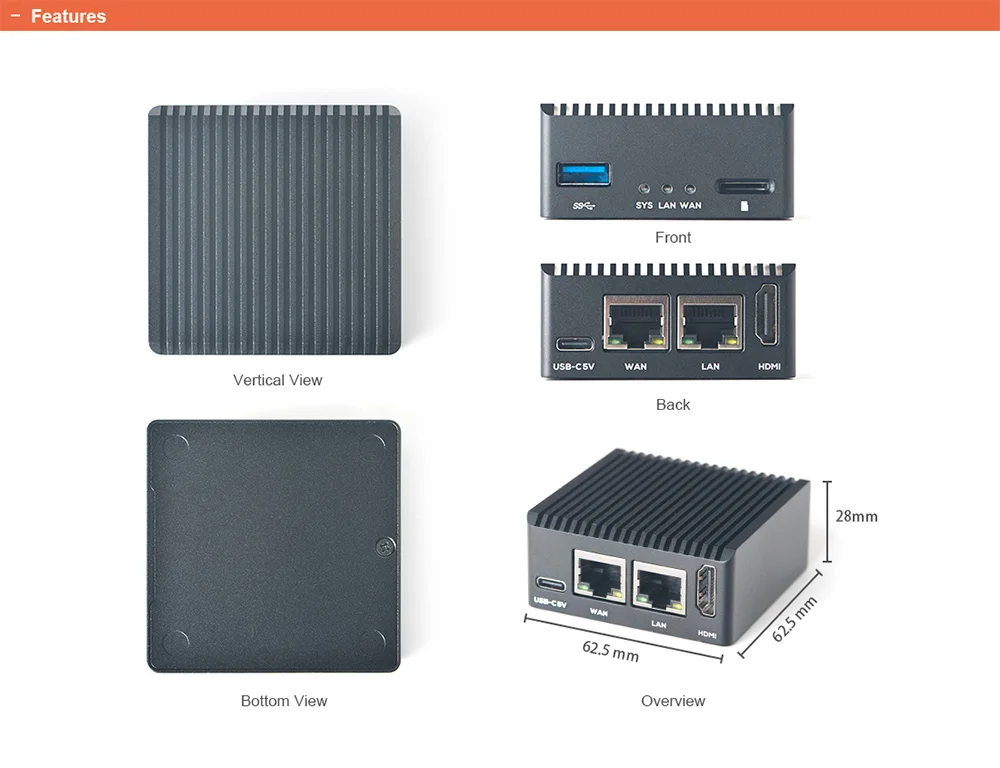

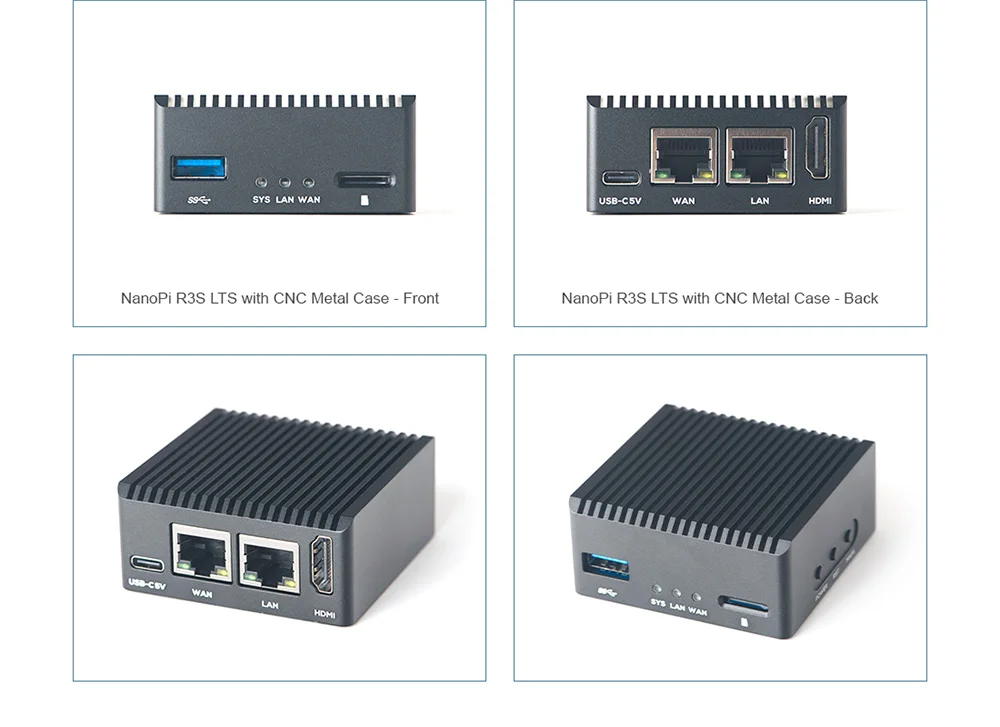

  • The NanoPi R3S can be optionally equipped with an integrated CNC anodized aluminum case.

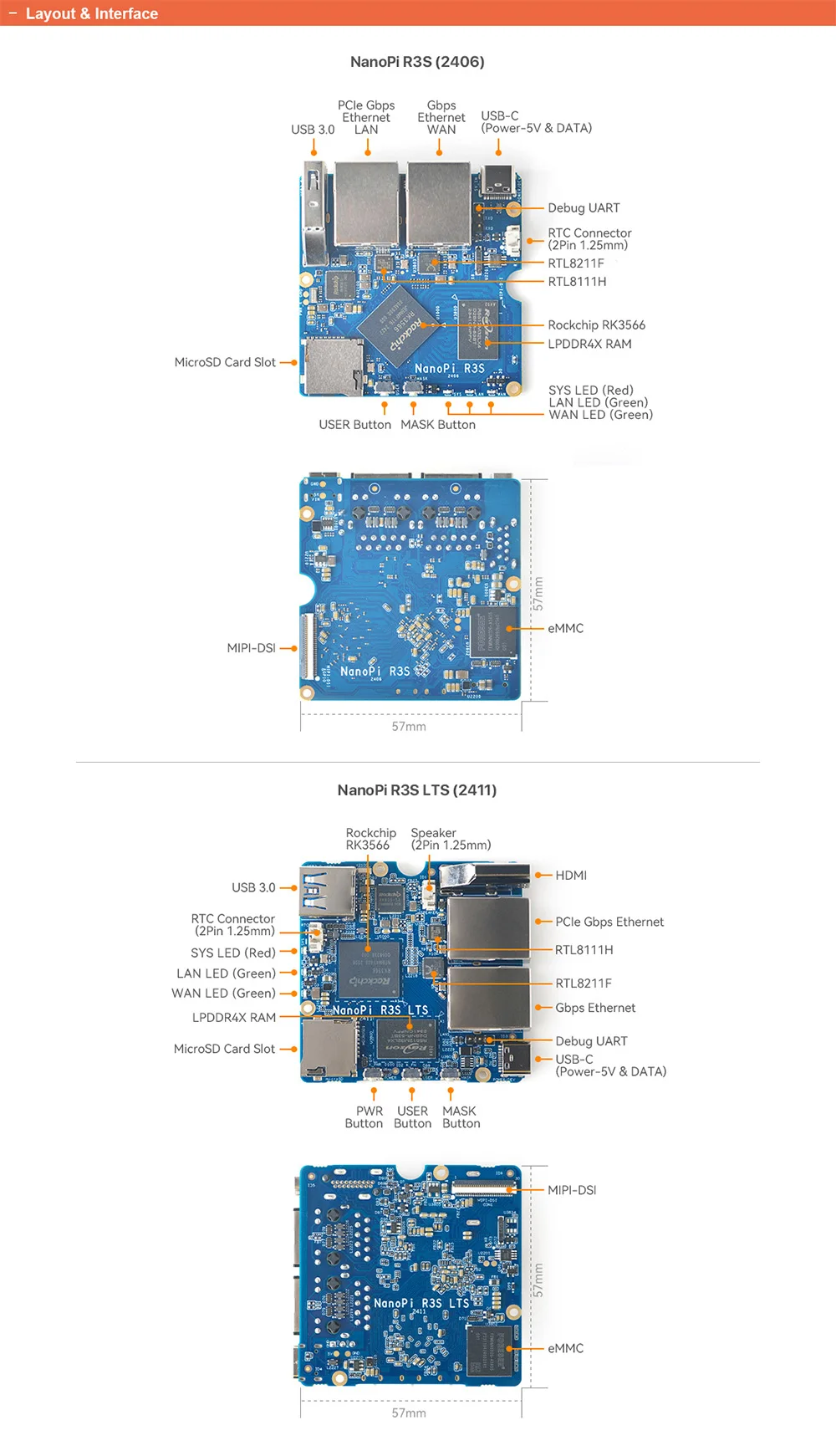

Hardware Spec

  • CPU: Rockchip RK3566, Quad-core Cortex-A55

  • RAM: 1GB/2GB LPDDR4X

  • Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet

  • USB3.0 Host: Type-A x1

  • Storage: MicroSD Slot x 1, and on-board 32GB eMMC

  • Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds

  • LED: LED x 3

  • RTC: One low-power RTC, support backup battery input

  • Buttons: 1x User Button, 1x Power Button, 1x MASK button for eMMC

  • flashing via USB-C

  • Display:

    1x MIPI-DSI 30-Pin FPC connector

    1x HDMI Type-A output

  • Audio: 1x Speaker connector

  • PCB Size: 57*57*1.6mm

  • Power supply: USB-C 5V/2A input

  • Temperature measuring range: 0℃ to 80℃

  • OS/Software: U-boot，Ubuntu-Core，Debian-Core，OpenMediaVault, OpenWrt

NanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X DNanoPi R3S-LTS Router Dual-Gbps Ethernet Ports Rockchip RK3566 SoC 2GB LPDDR4X D

Hardware Spec

CPU:

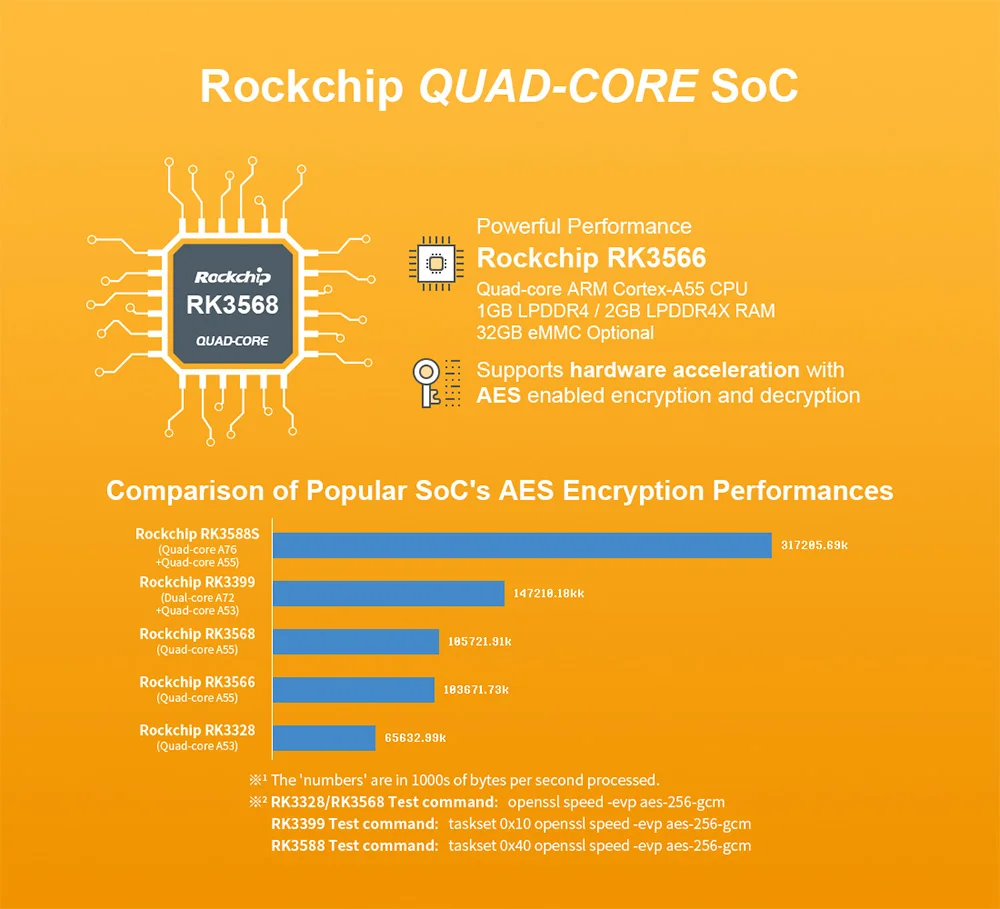

Model: Rockchip RK3566
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 1.8GHz

NPU

Support 1T

RAM

1GB/2GB LPDDR4/LPDDR4X

Connectivity:

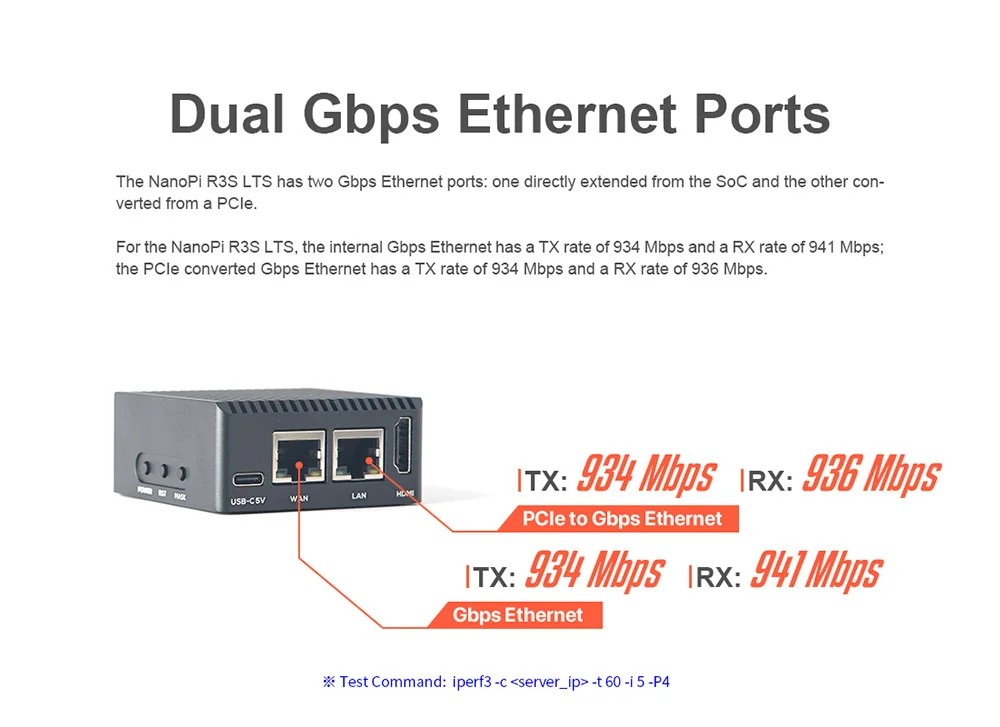

Ethernet: Native Gigabit Ethernet, RTL8211F chip
PCle Gigabit Ethernet, RTL8111H chip

Storage:

Flash: 0GB/32GB eMMC
MicroSD Slot: support UHS-I(SDR104)

USB Host:

USB 3.0: USB 3.2 Gen 1 Type-A
USB-C: Power(5V) & DATA

Audio input/output Port

Speaker connector

Debug Serial Port/UART0:

Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

Video output:

MIPI-DSl: 30-Pin FPC connector
HDMI 2.0 Type-A

Button:

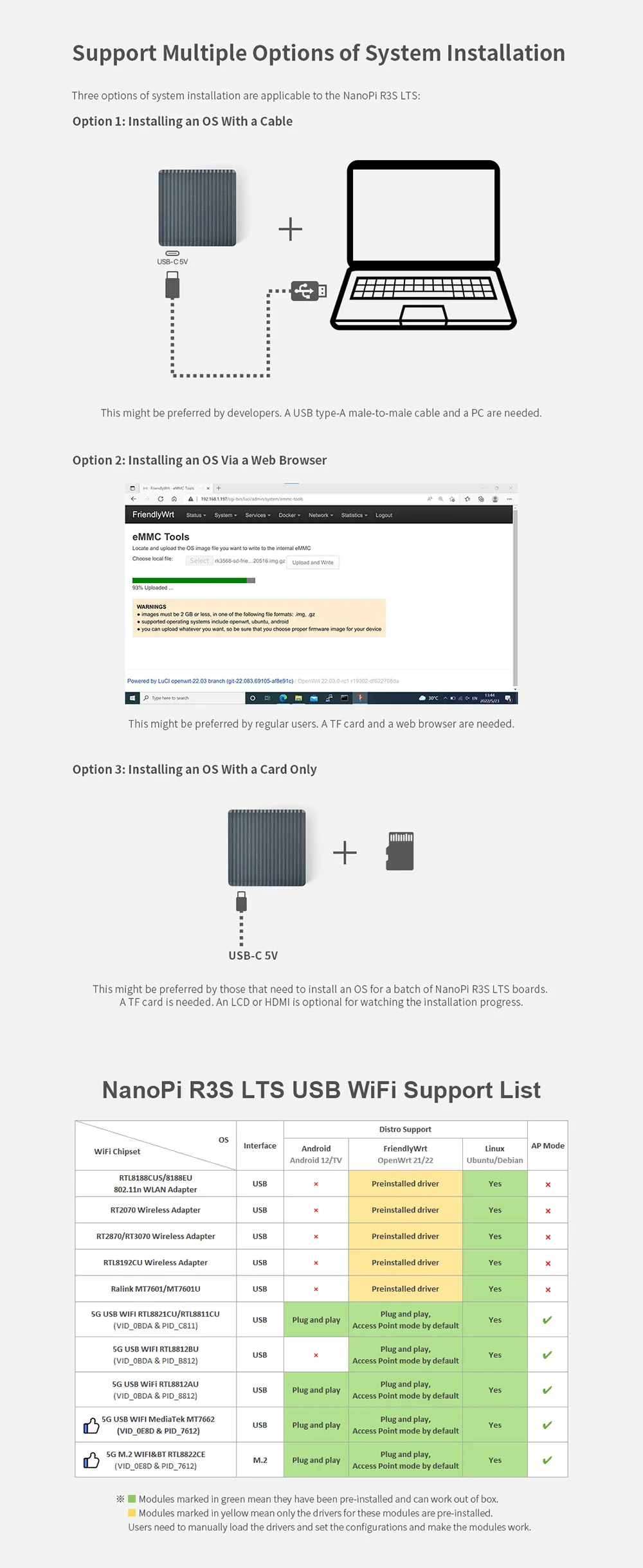

MASK Button for eMMC flashing via USB-C
User Button
Power Button

LED:

SYS LED(Red)
WAN LED(Green)
LAN LED(Green)

RTC:

RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

Power:

USB-C, 5V/2A input

Working temperature:

0 °C to 70°c

Software Features

Kernel version

Linux-6.1-LTS
U-boot-2017.09

OS Support

Alpine Linux
Buildroot
Debian 12 Core
Debian 11 Desktop
FriendlyCore 20.04
Friendlywrt 21.02
FriendlyWrt 23.05
FriendlyWrt 24.10
OpenMediaVault
Proxmox VE
Ubuntu 20.04 Desktop
Ubuntu 24.04 Core
