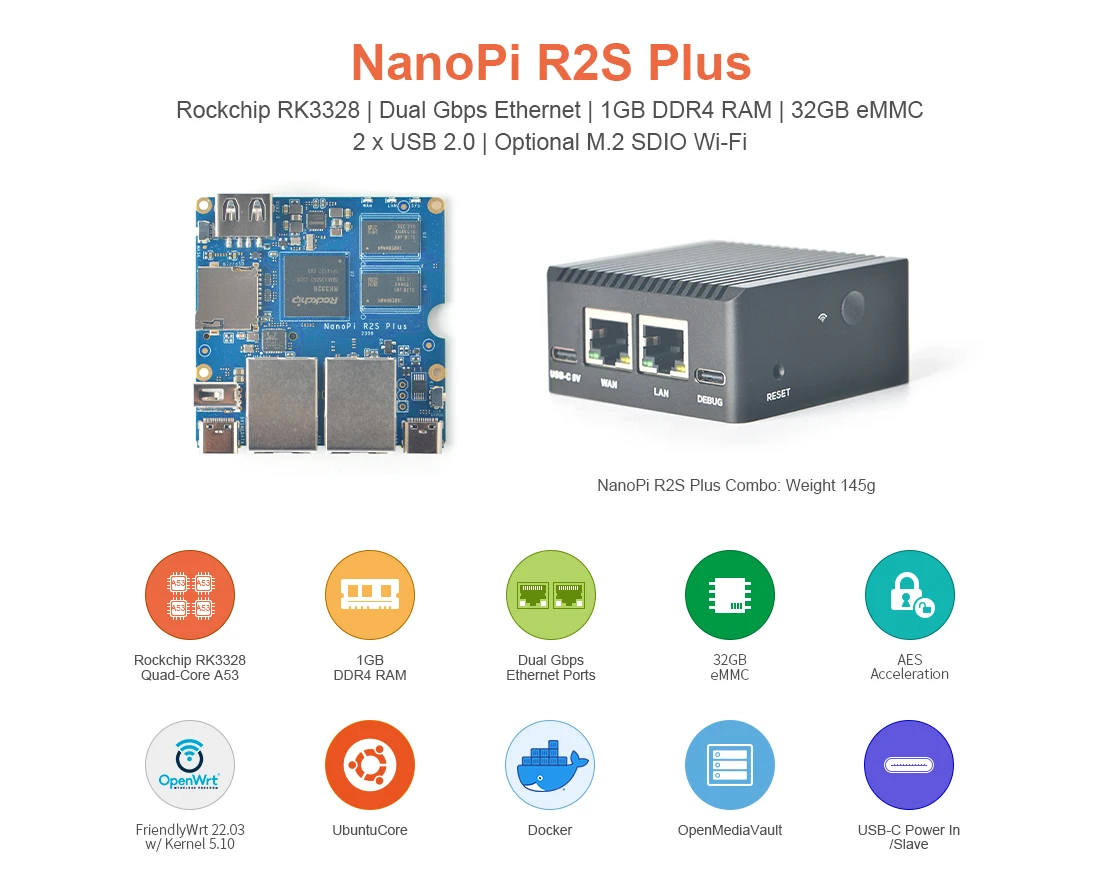

NanoPi R2S plus Development Board Rockchip RK3328 Quad-core A53 SoC 1GB RAM 32GB eMMC Compatible with U-boot Ubuntu-Core OpenWrt

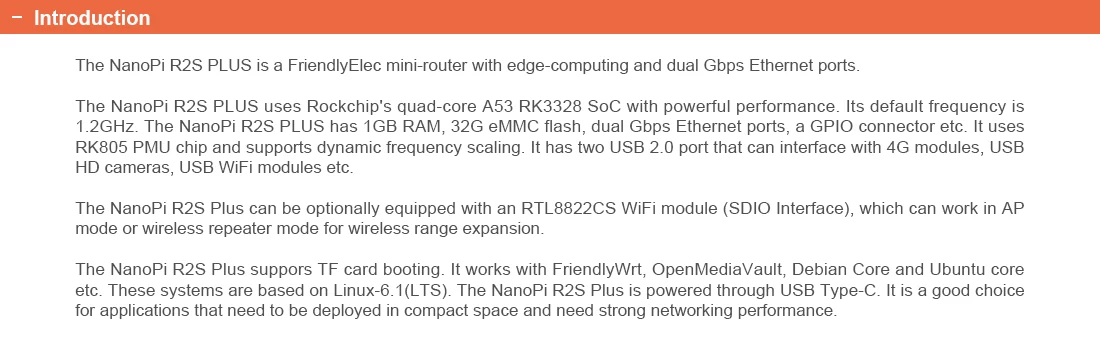

NanoPi R2S plus Development Board Rockchip RK3328 Quad-core A53 SoC 1GB RAM 32GB eMMC Compatible with U-boot Ubuntu-Core OpenWrtIntroduction

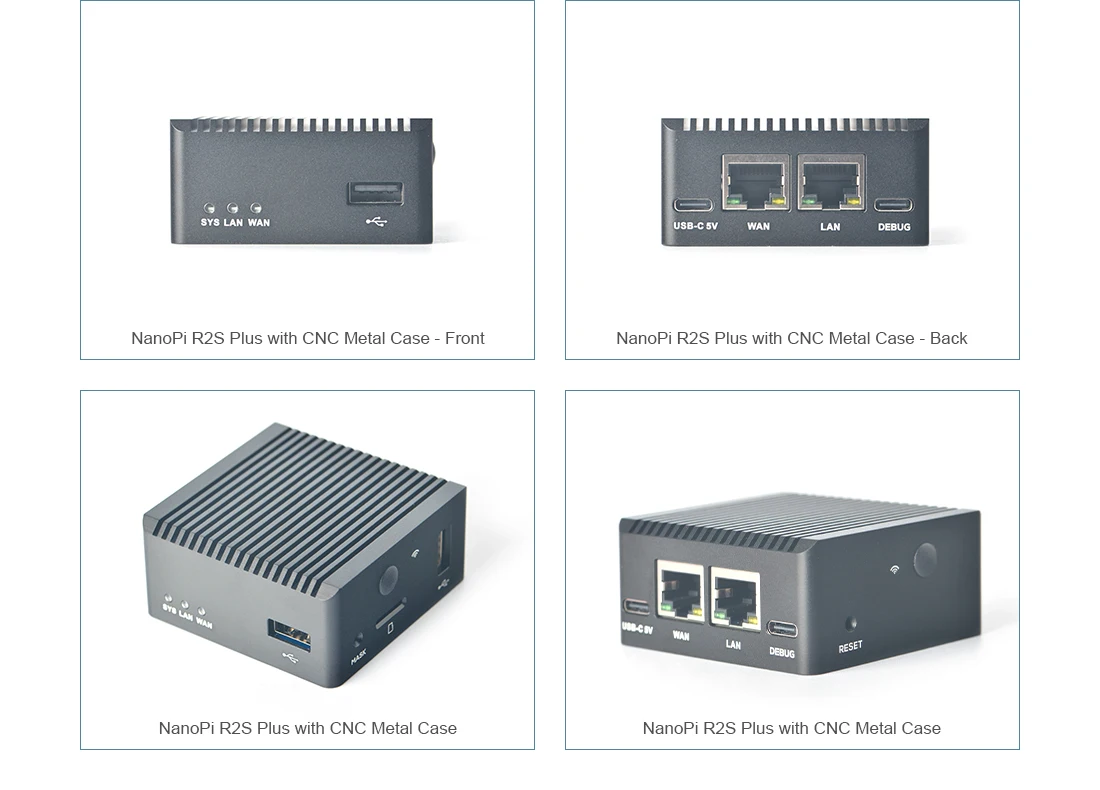

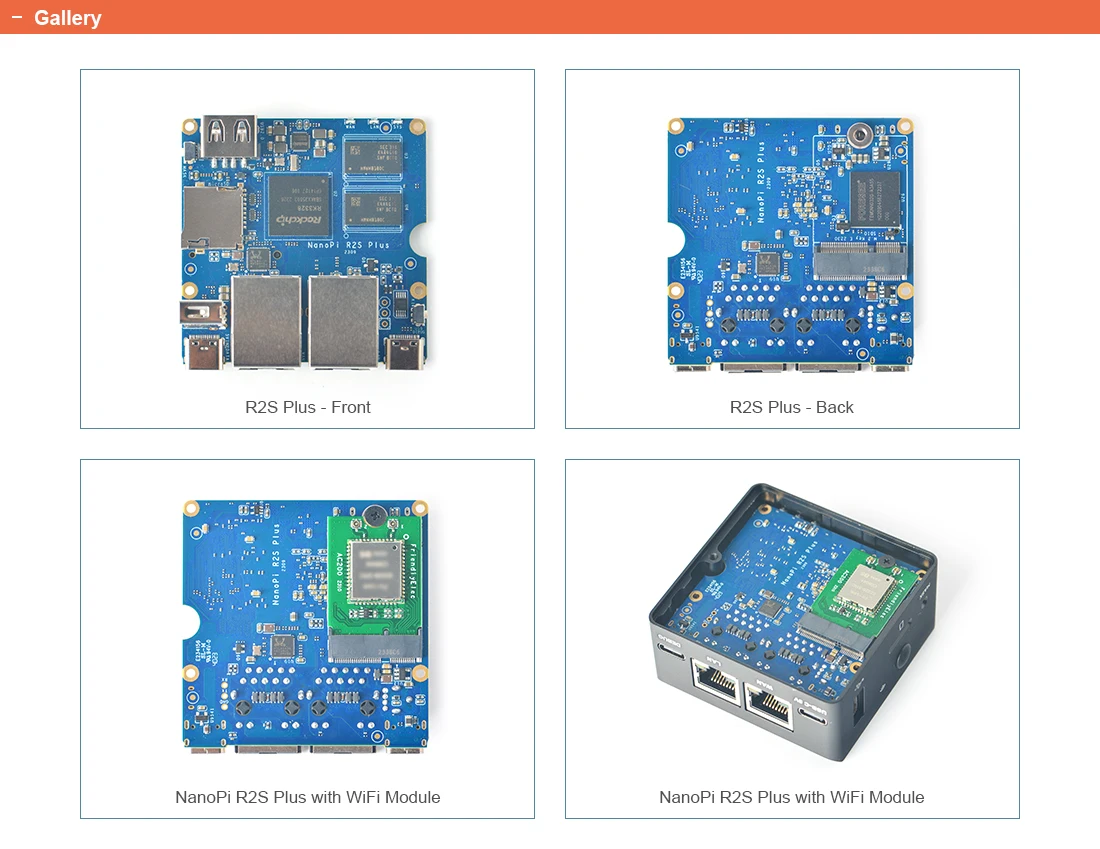

The NanoPi R2S PLUS is a FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports.

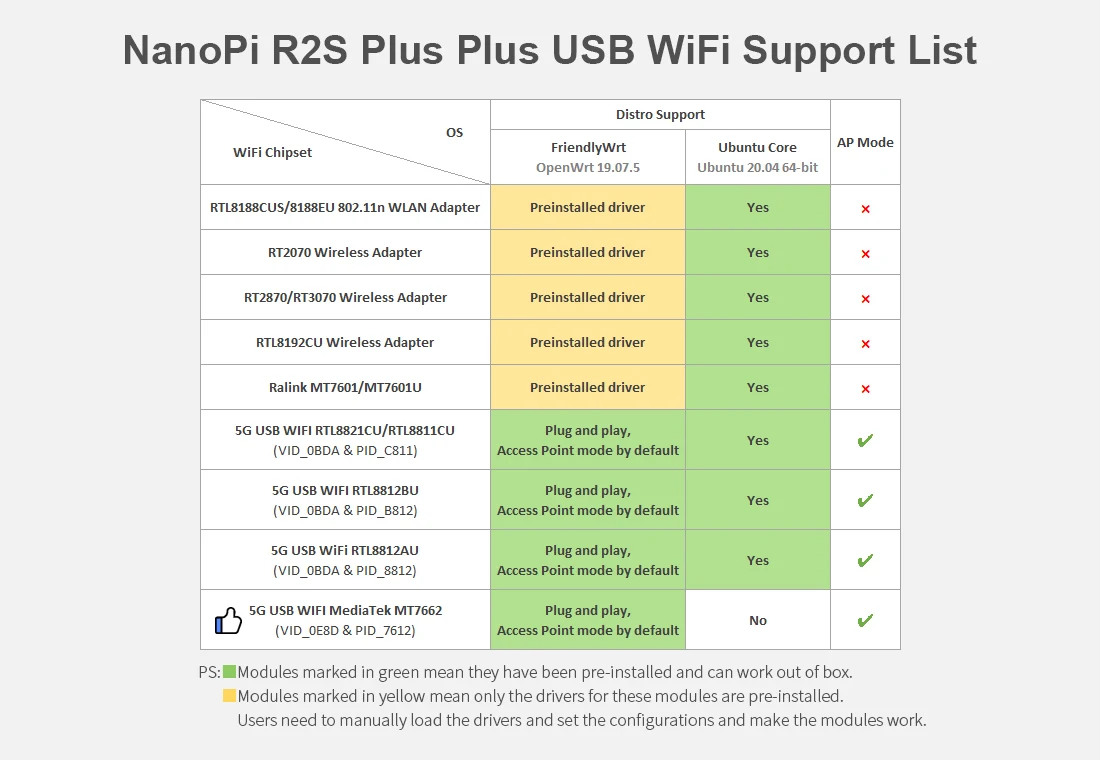

The NanoPi R2S PLUS uses Rockchip's quad-core A53 RK3328 SoC with powerful performance. Its default frequency is 1.2GHz. The NanoPi R2S PLUS has 1GB RAM, 32G eMMC flash, dual Gbps Ethernet ports, a GPIO connector etc. It uses RK805 PMU chip and supports dynamic frequency scaling. It has two USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.

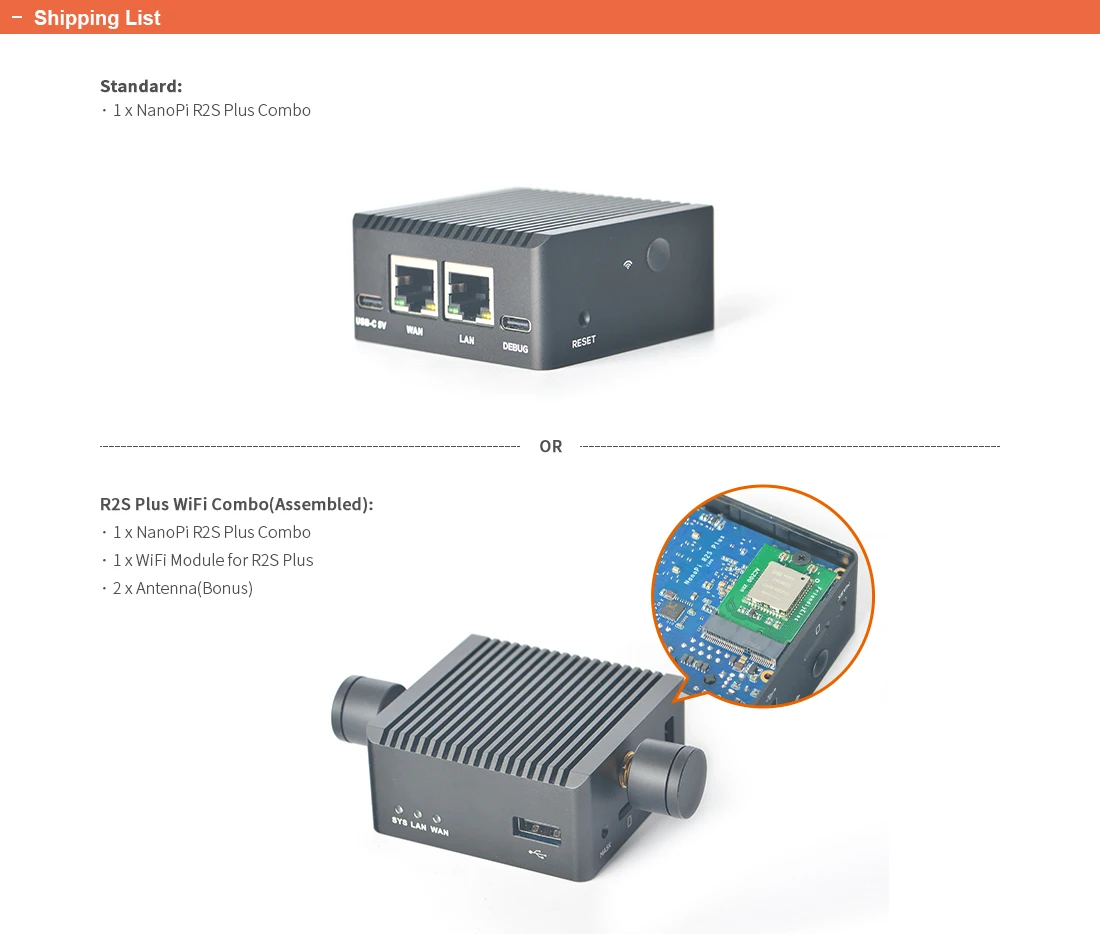

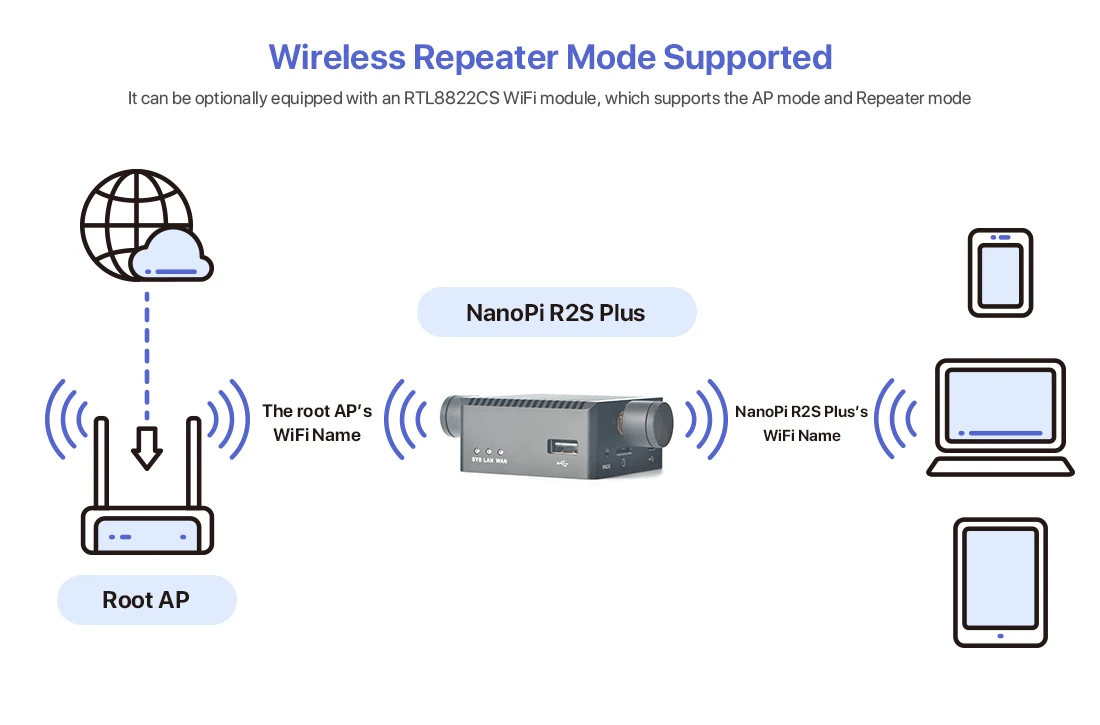

The NanoPi R2S Plus can be optionally equipped with an RTL8822CS WiFi module (SDIO Interface), which can work in AP mode or wireless repeater mode for wireless range expansion.
The NanoPi R2S Plus suppors TF card booting. It works with FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core etc. These systems are based on Linux-6.1(LTS). The NanoPi R2S Plus is powered through USB Type-C. It is a good choice for applications that need to be deployed in compact space and need strong networking performance.
Hardware Spec

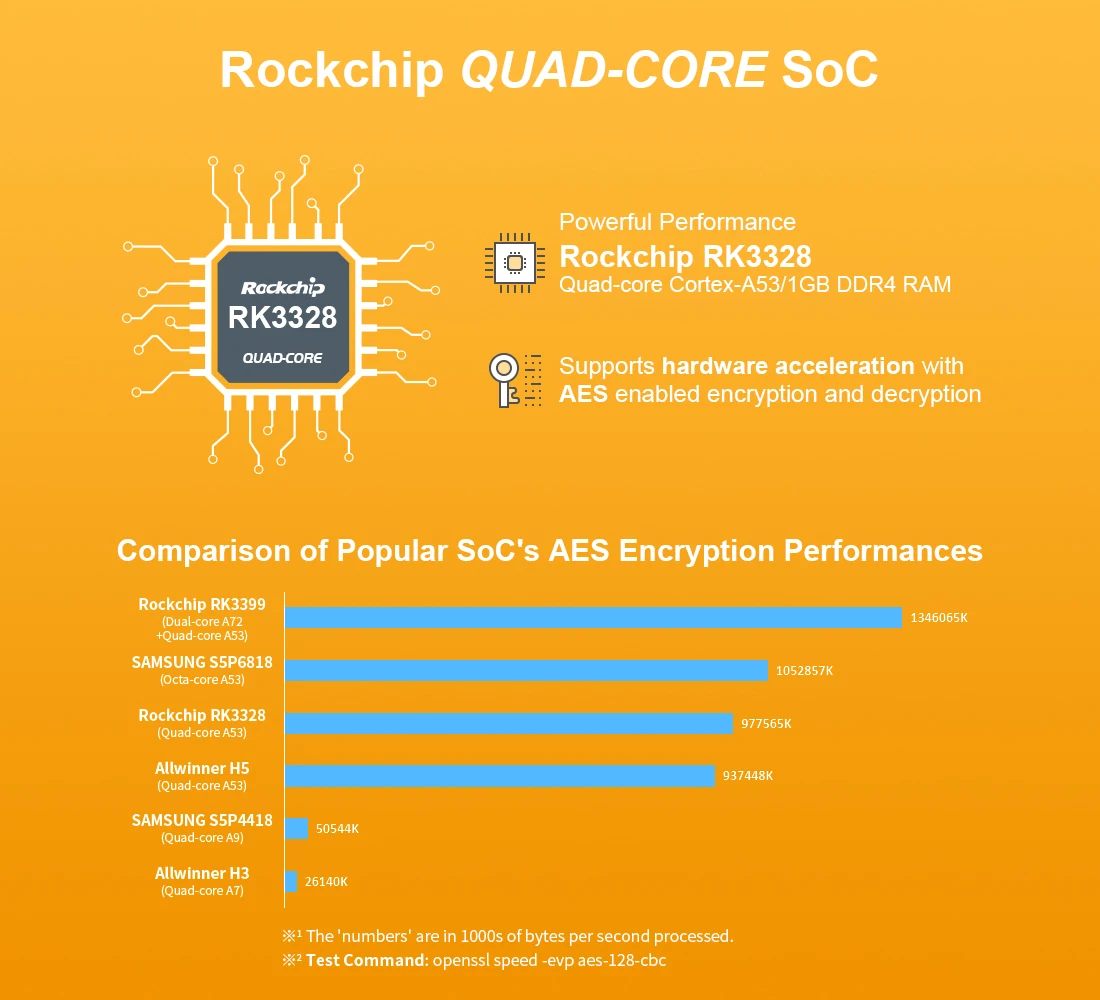

CPU: Rockchip RK3328, Quad-core Cortex-A53
DDR4 RAM: 1GB
Flash: 32GB eMMC 5.1 Flash
Network：

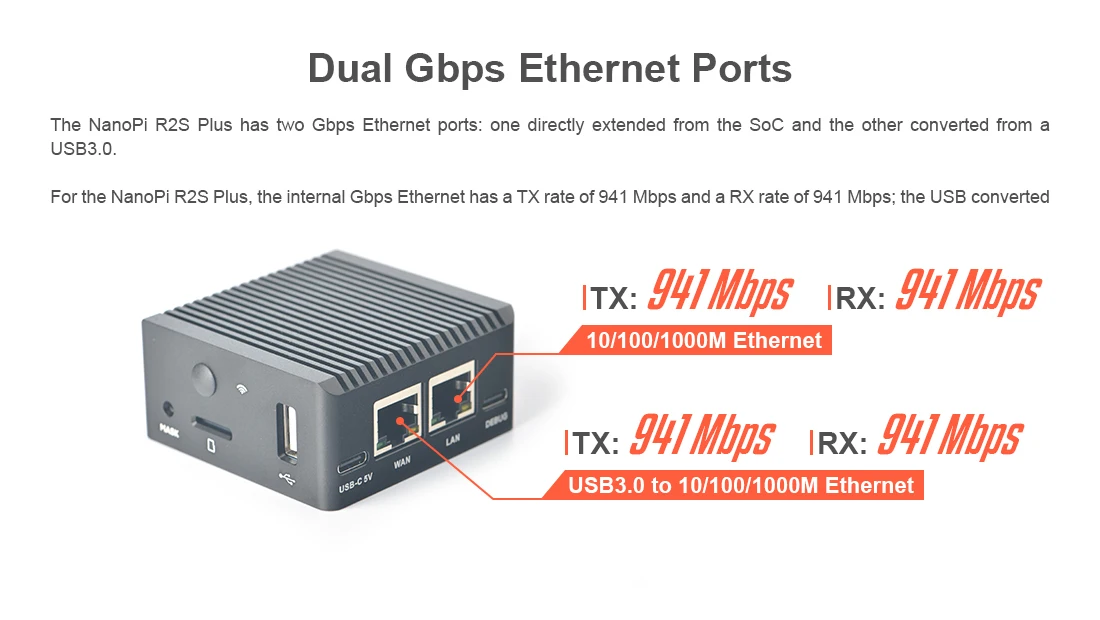

1 x Internal 10/100/1000M Ethernet
1 x USB 3.0 converted 10/100/1000M Ethernet
Optional M.2 SDIO Wi-Fi
2 x USB 2.0 Host Type-A
1 x microSD Slot
USB-C Power: 5V power input and USB update in maskrom mode
USB-C Bebug: onboard USB to Debug UART converter, 1500000bps bauds
3 x LED, for WAN, LAN and SYSTEM
1 x GPIO Button, 1 x Maskrom mode button
PCB Size: 58*58*1.6mm
Power Supply: DC 5V/2A
Temperature measuring range: 0℃ to 70℃
OS/Software: U-boot，Ubuntu-Core，OpenWrt

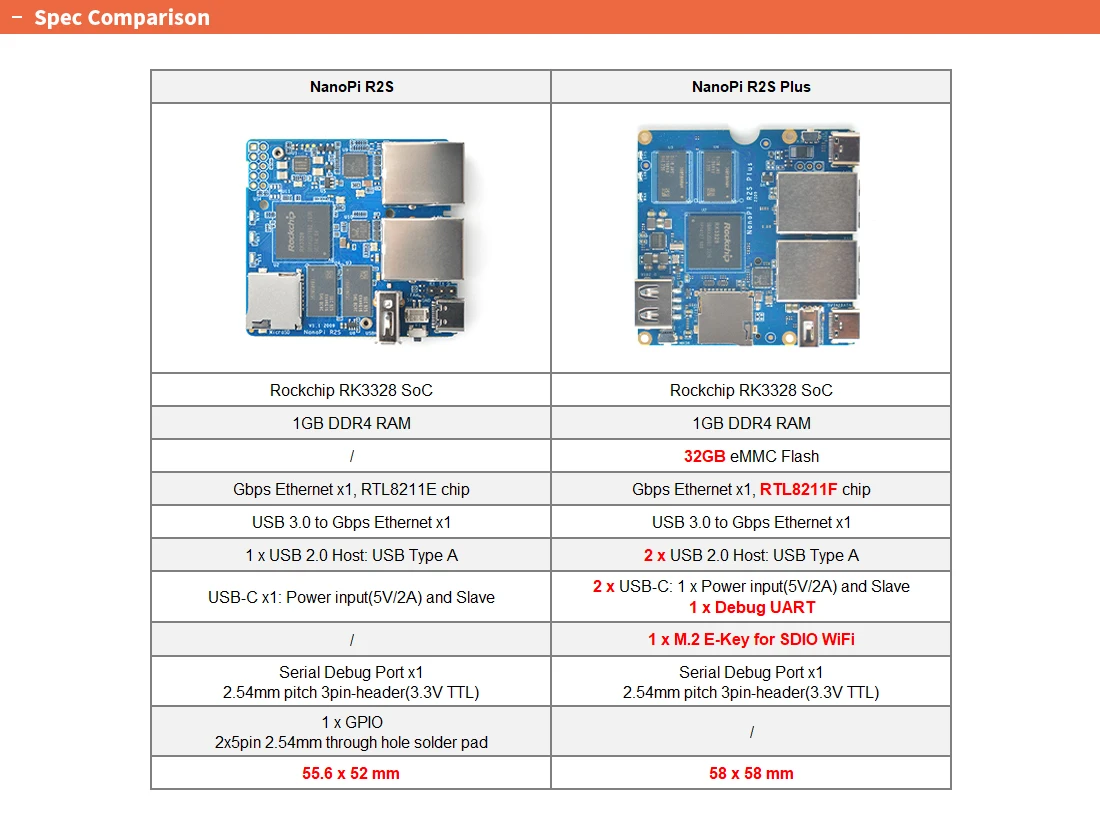

CPU | Model: Rockchip RK3328 |
Memory | RAM: 1GB DDR4 |
Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB |
Connectivity | Ethernet: 1 x Internal Gbps Ethernet x 1，RTL8211F chip 1 x USB3.0 converted Gbps Ethernet.RTL8153B chip |
USB | USB 2.0 Host x 1: USB Type A |
Pin-header | Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL) |
LED | 1 x SYS LED(Red) |
Button | 1 x GPIO Button |
Working Temperature | 0℃ to 70℃ |
Power | DC 5V/2A |
OS Support | FriendlyWrt 21.02 |
Kernel version | Linux-6.1-LTS |
PCB | 6 Layer |
Weight | 145g（With Case) |

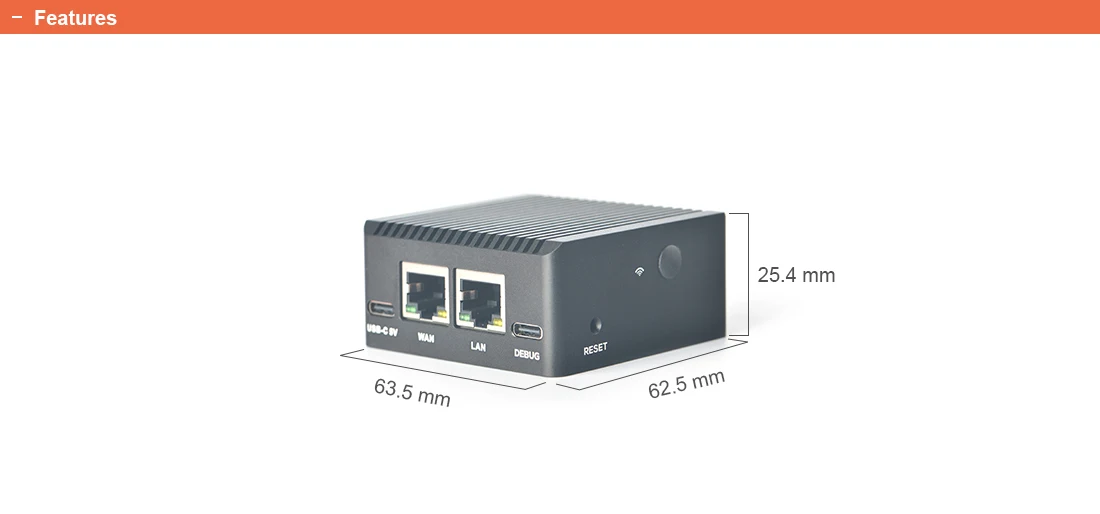

Dimension | 62.5x63.5x30 mm(with Case) |
