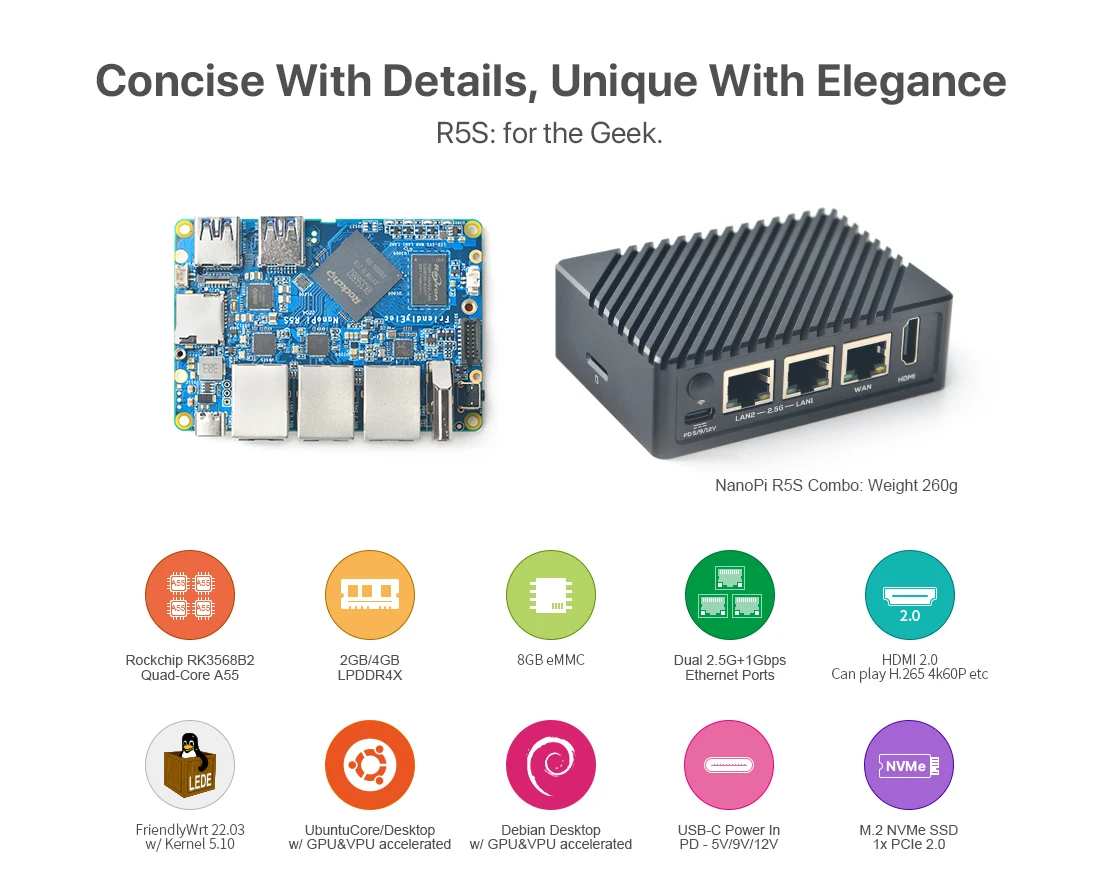

Nanopi R5S LTS Rockchip RK3568B2 4GB RAM 32GB eMMC Development Board Quad-Cortex

Product Description

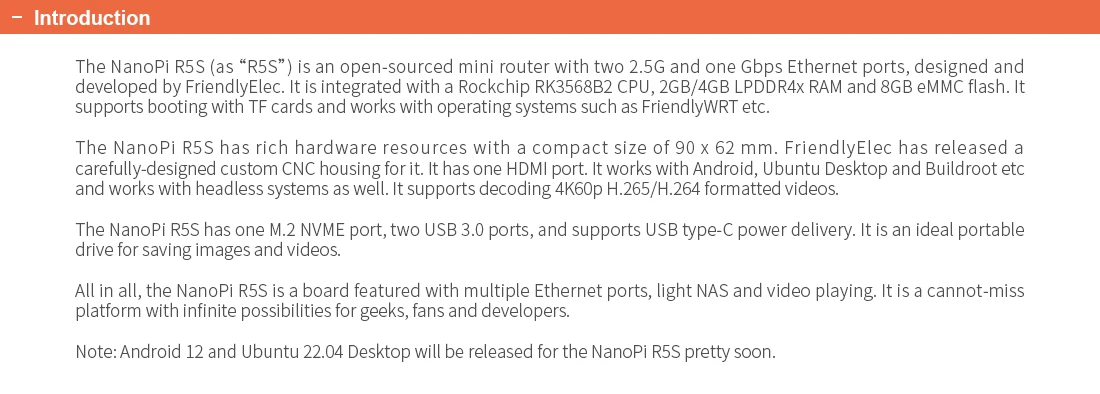

Introduction

The NanoPi R5S (as “R5S”) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3568B2 CPU, 2GB/4GB LPDDR4x RAM and 8GB/16GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

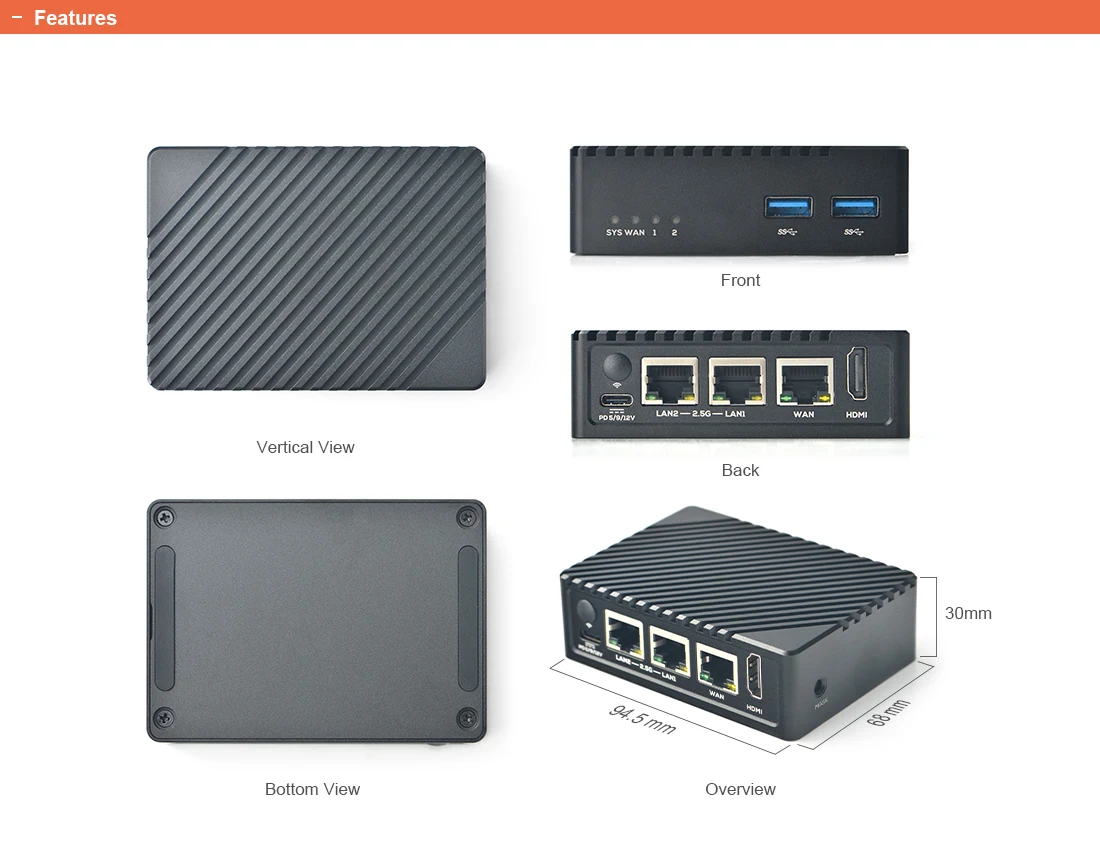

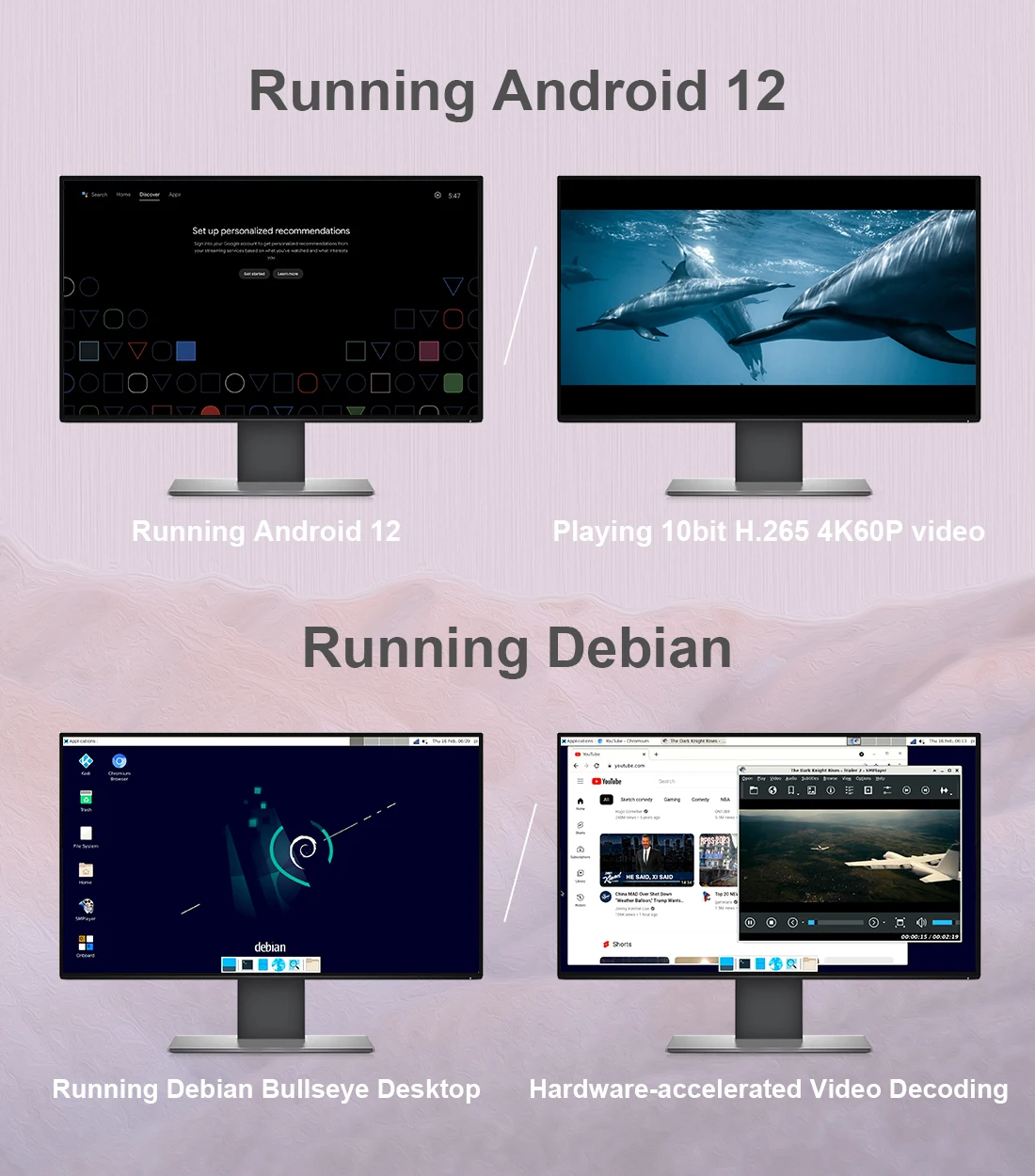

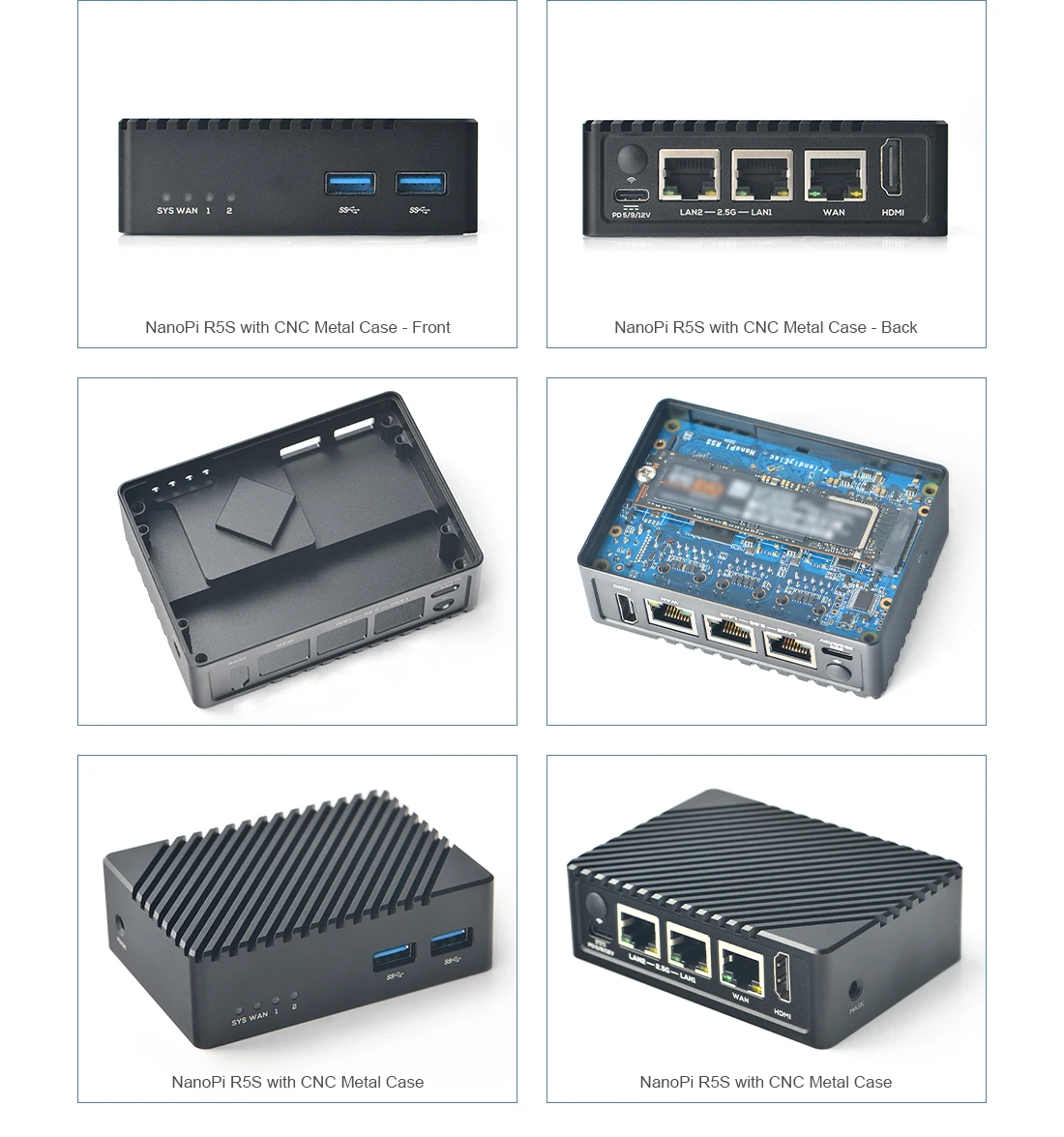

The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5S has one M.2 NVME port, two USB 3.2 Gen 1 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

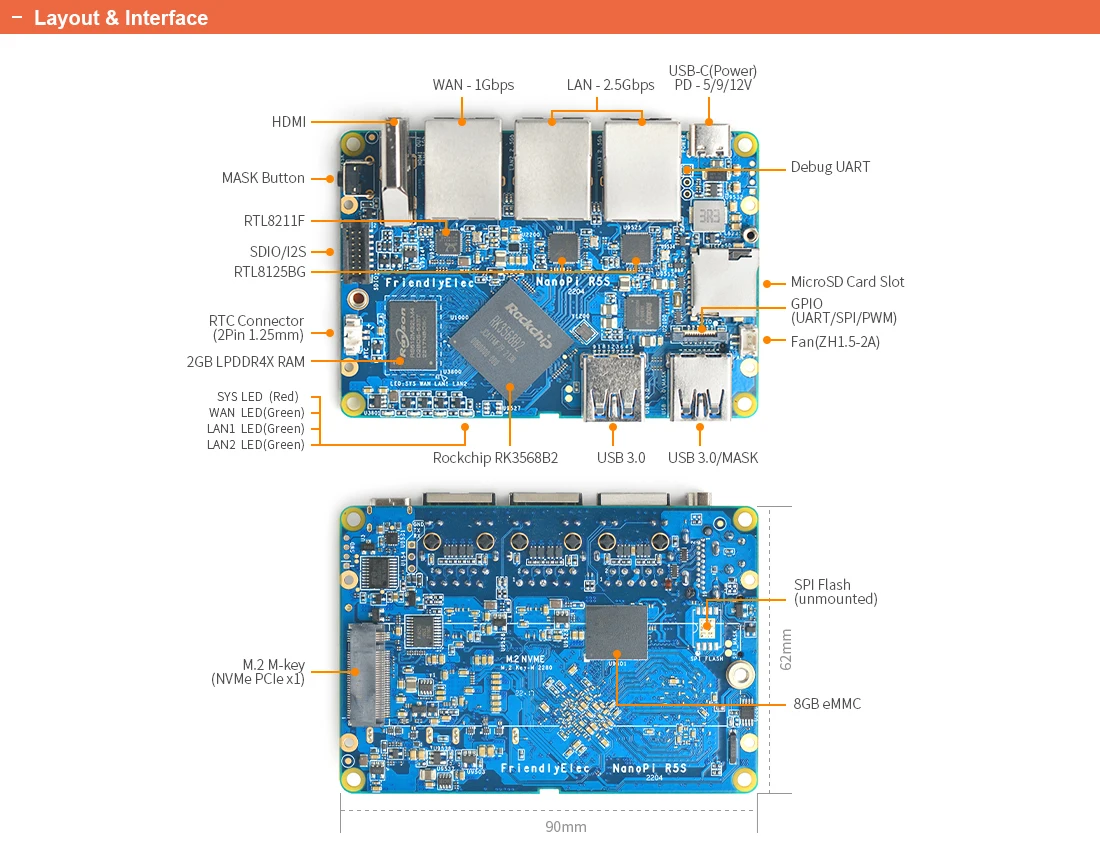

Hardware Spec

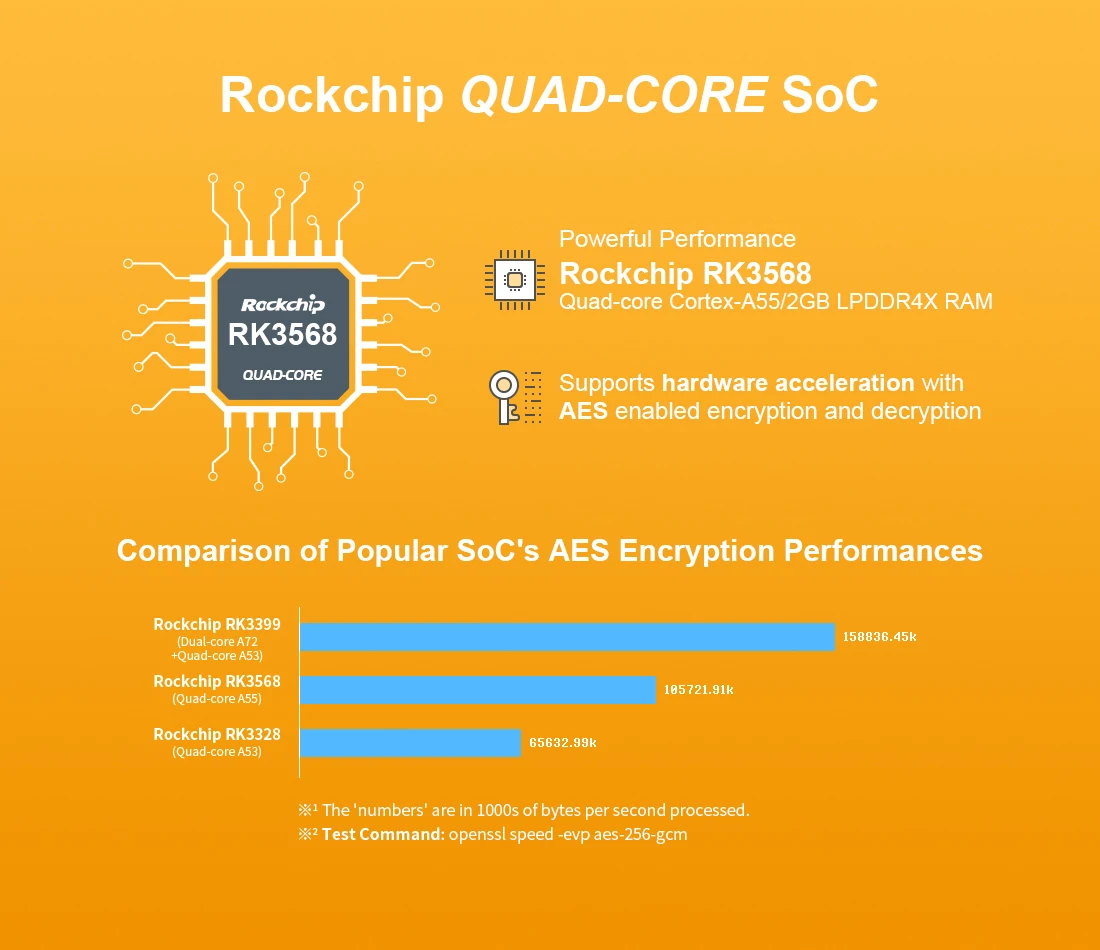

• SoC: Rockchip RK3568B2

  • CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz

  • GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile

  • VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder

  • NPU: Support 0.8T

• RAM: 2GB / 4GB LPDDR4X

• Flash: 8GB/32GB eMMC

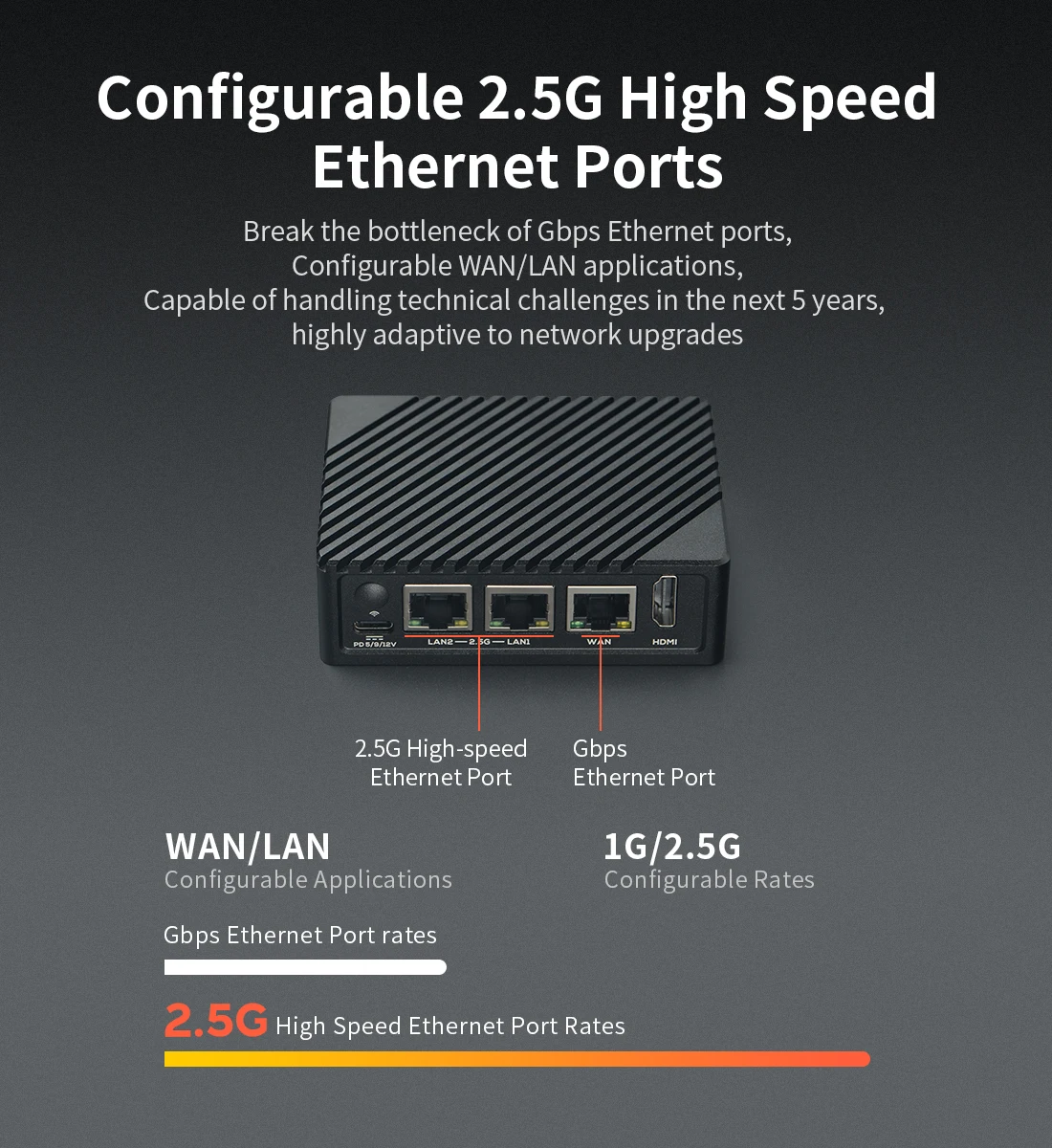

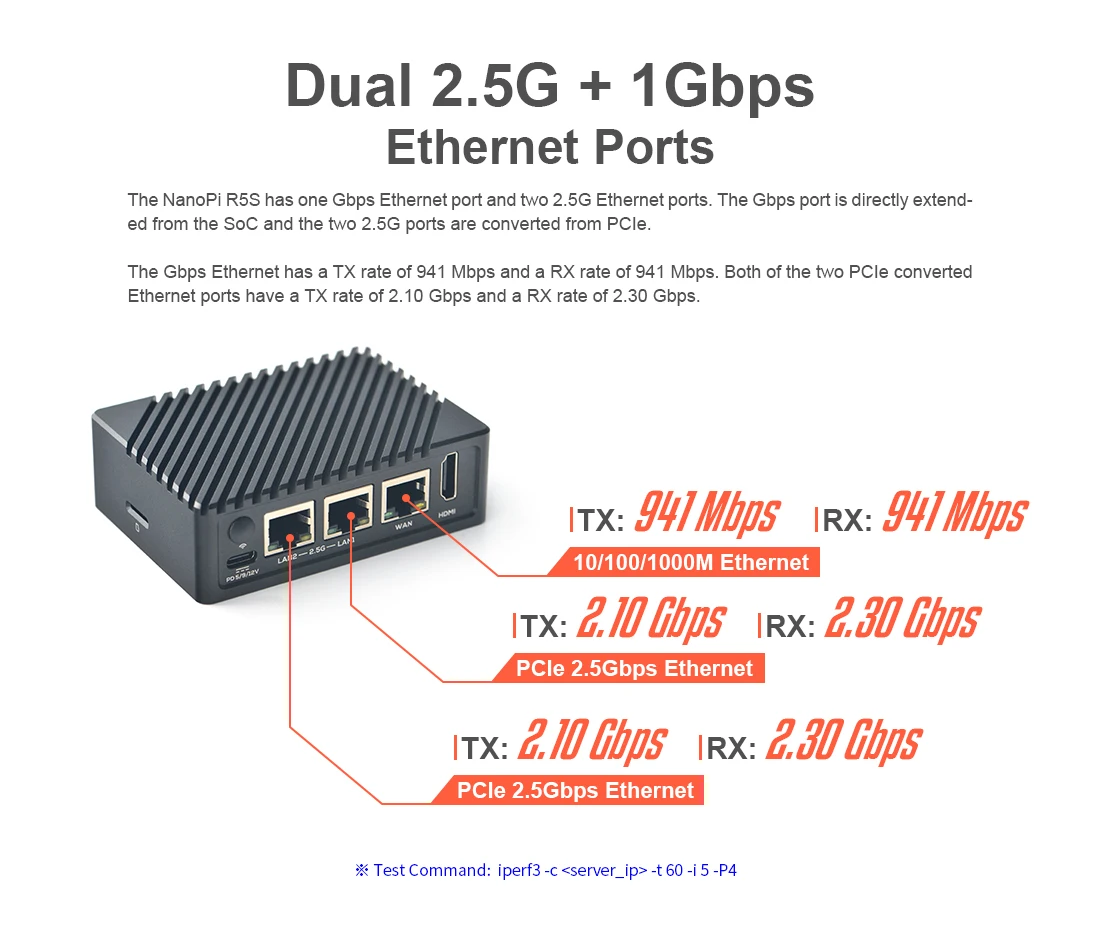

• Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet

• USB: two USB 3.0 Type-A ports

• HDMI:

  • support HDMI1.4 and HDMI2.0 operation

  • support up to 10 bits Deep Color modes

  • support up to 1080p@120Hz and 4096x2304@60Hz

  • support 3-D video formats

• PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc

• microSD: support UHS-I

• GPIO:

  • 12-pin 0.5mm FPC connector

  • up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs

• SD/MMC/SDIO/I2S:

  • 2x8-pin 1.27mm connector

  • Compatible with SDIO3.0 protocol

  • Compatible with SD3.0, MMC ver4.51

  • 4bits data bus widths

  • 1x I2S with 2x SDO and 3x SDI

• Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

• LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)

• others:

  • 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

  • MASK button for eMMC update

  • one 5V Fan connector

• Power supply: USB-C, support PD, 5V/9V/12V input

• PCB: 8 Layer, 62x90x1.6mm

• Ambient Operating Temperature: 0℃ to 70℃
