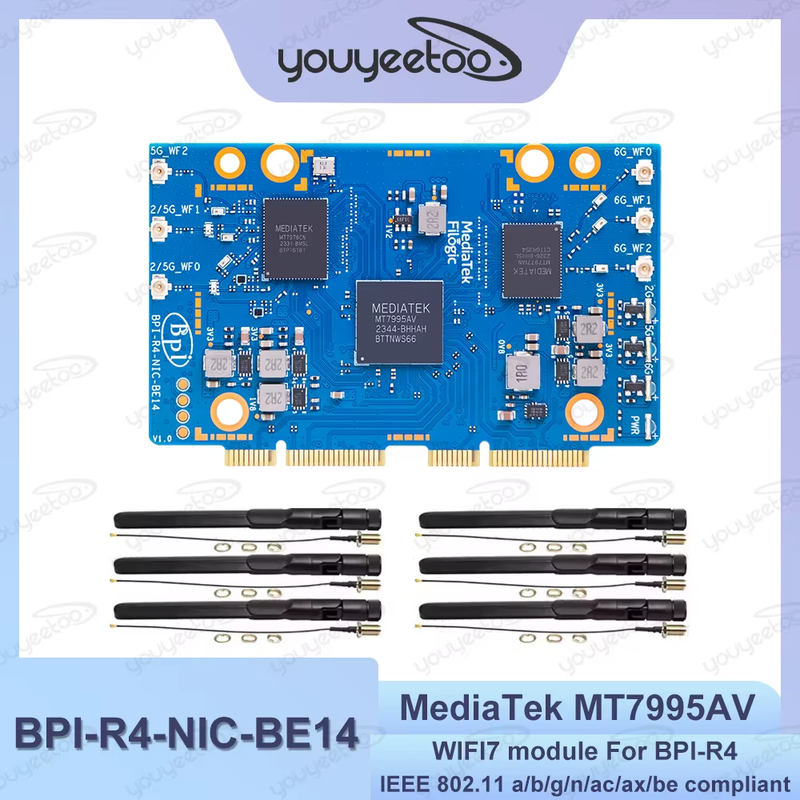

Banana Pi BPI-R4-NIC-BE14 WiFi 7 Module MediaTek MT7995AV Chipset RISC-V MCU 2 P

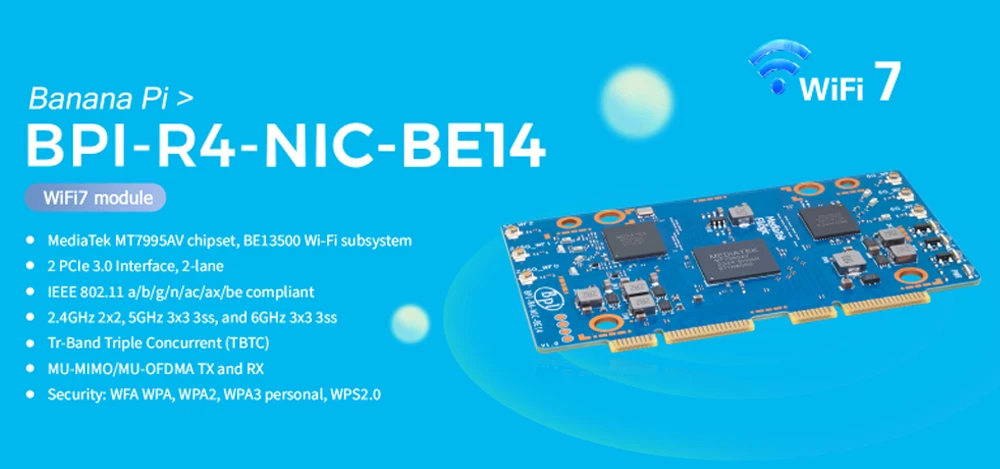

Product Description

Description

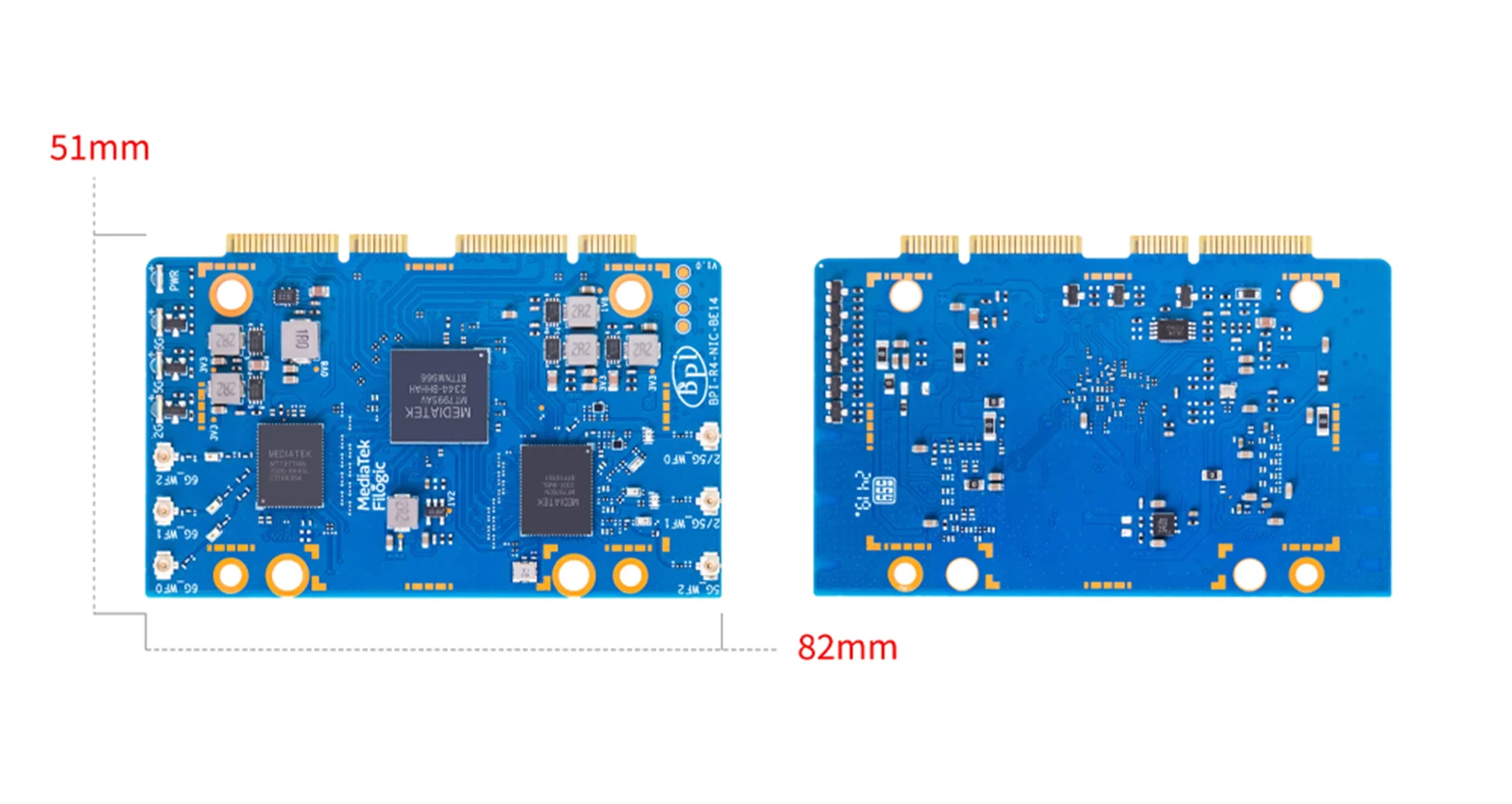

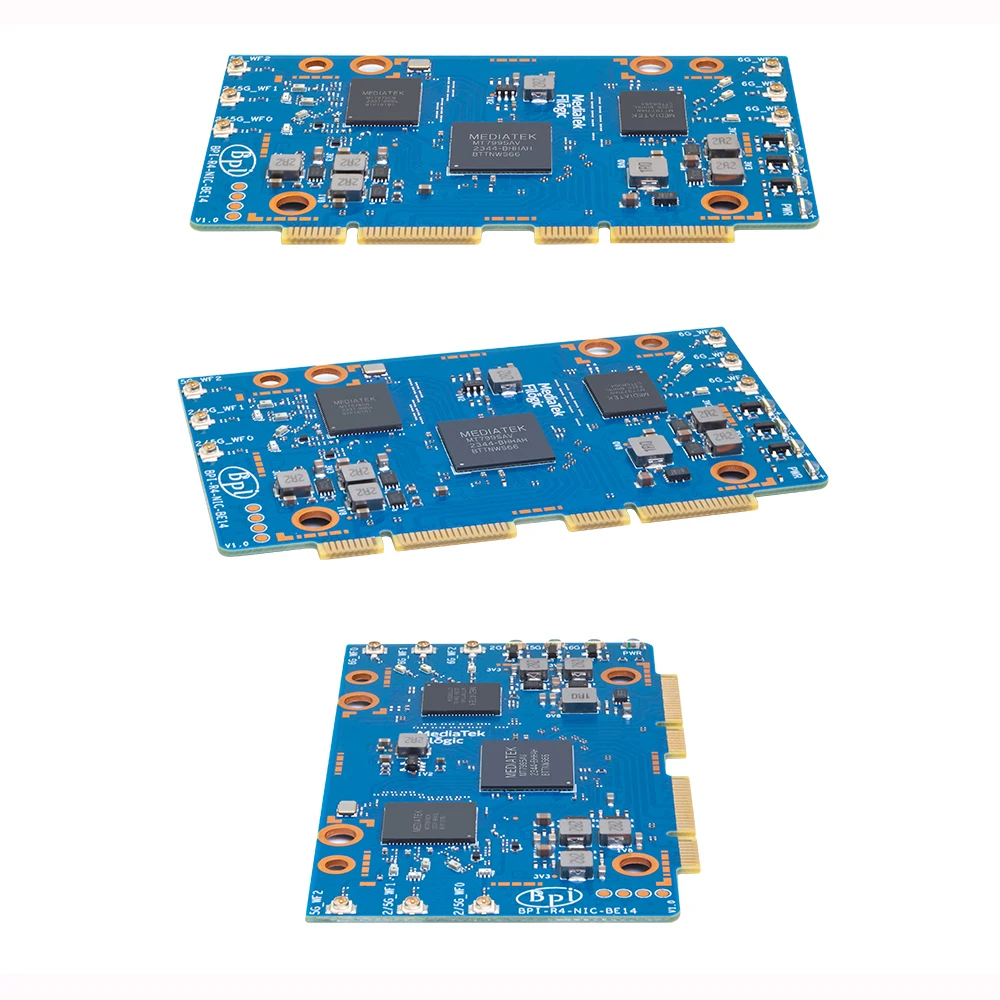

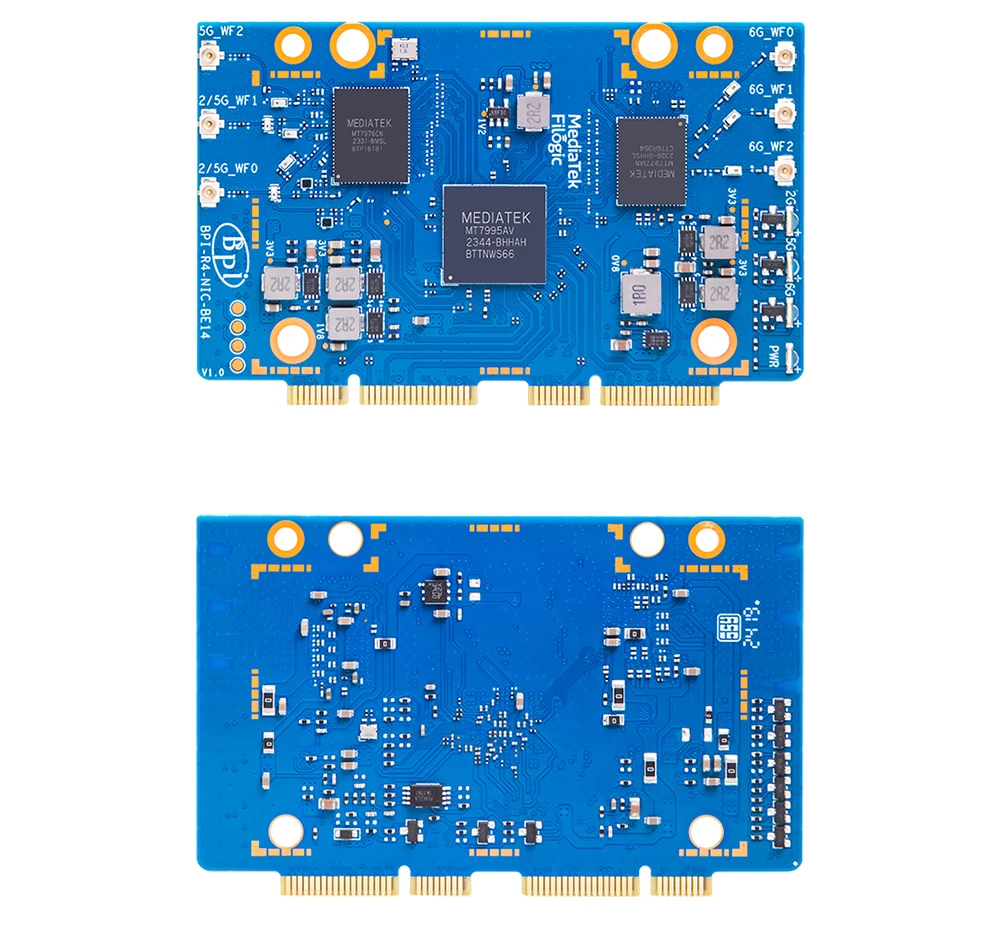

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.

The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.

Features

Platform

• MediaTek MT7995AV chipset

• 32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload

• Embedded SRAM and ROM

• UART interface with hardware flow control

• 2 PCIe 3.0 Interface, 2-lane

WLAN

• IEEE 802.11 a/b/g/n/ac/ax/be compliant

• Frequency band 2.4GHz

->Bandwidth: 20 and 40MHz

->2T2R

• Frequency band 5GHz

->Bandwidth: 20, 40,80, and 160MHz

->3T3R 3ss

• Frequency band 6GHz

->Bandwidth: 20, 40,80,160 and 320MHz

->3T3R 3ss

• Tr-Band Triple Concurrent (TBTC)

• PHY rate :up to 13700 Mbps/9500 Mbps

• MU-MIMO TX and RX

• MU-OFDMA TX and RX

• STBC, LDPC, TX beamformer and RX beamformee

• Greenfield mode, mixed mode, and legacy mode

• Security: WFA WPA, WPA2, WPA3 personal, WPS2.0

• QoS: WFA WMM and WMM-PS

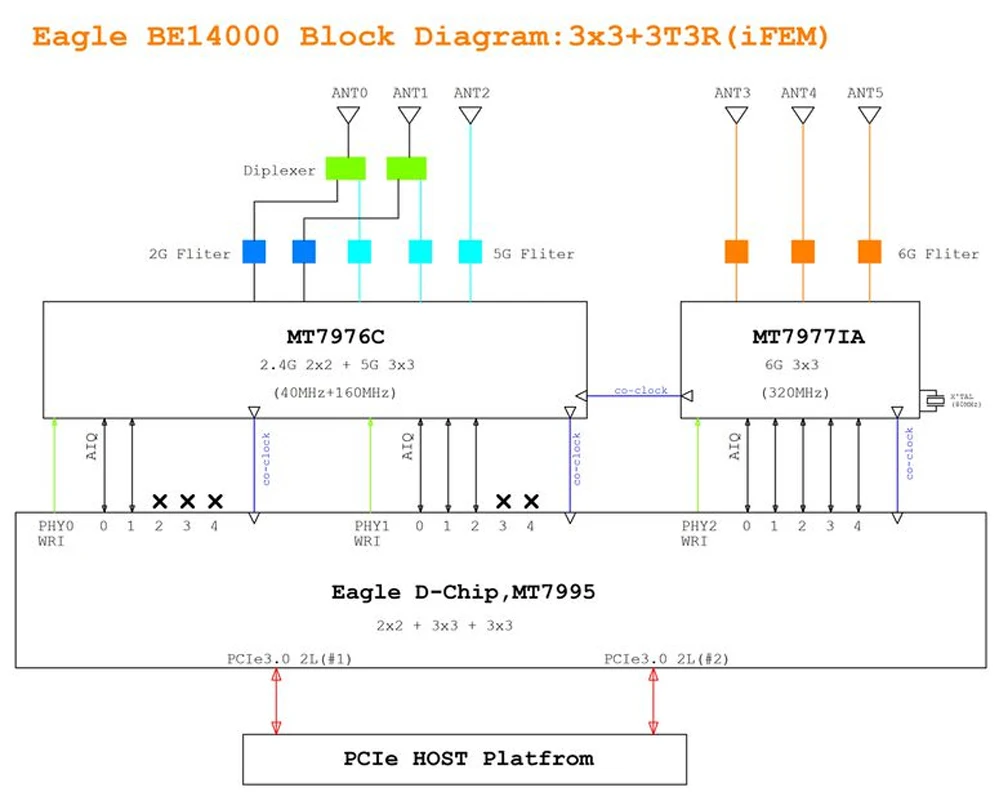

Block Diagram

How to use

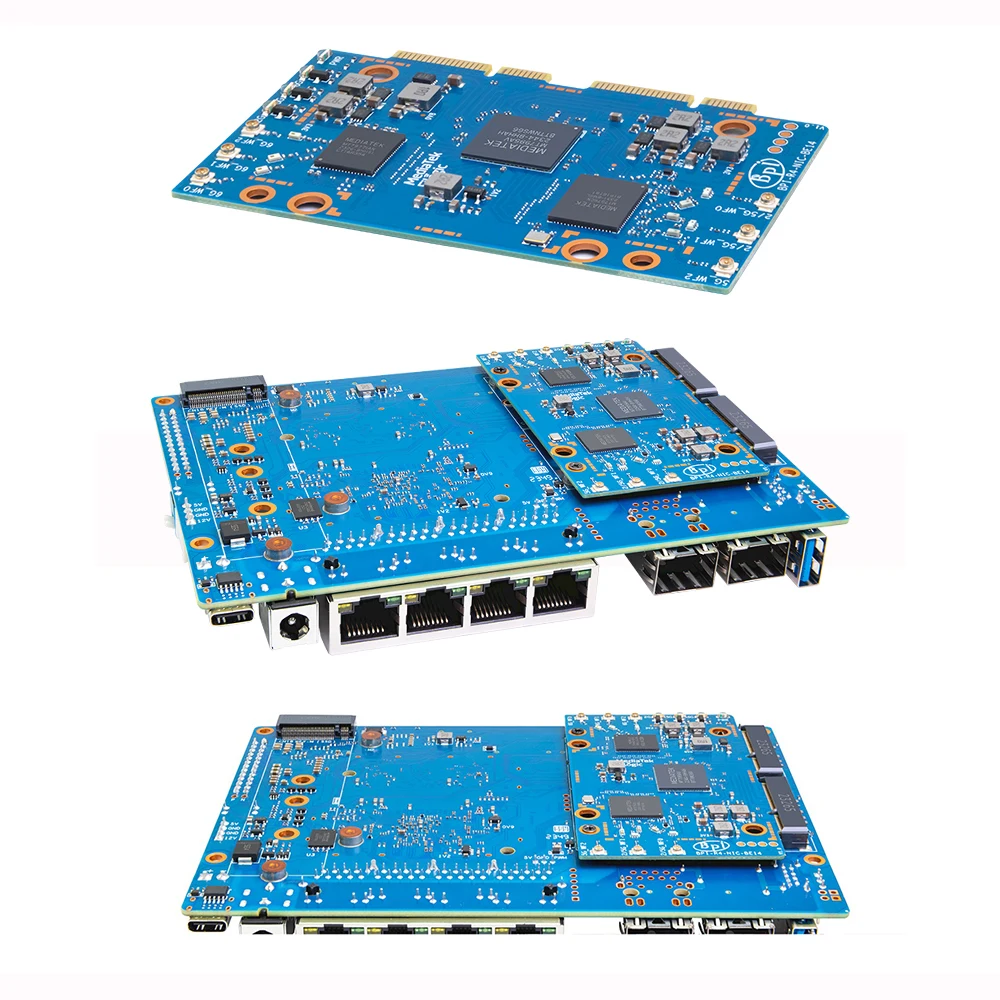

You can insert the BPI-R4-NIC into CN12 and CN14 at the bottom of BPI-R4-Main, and then fix it with two M2 screws.

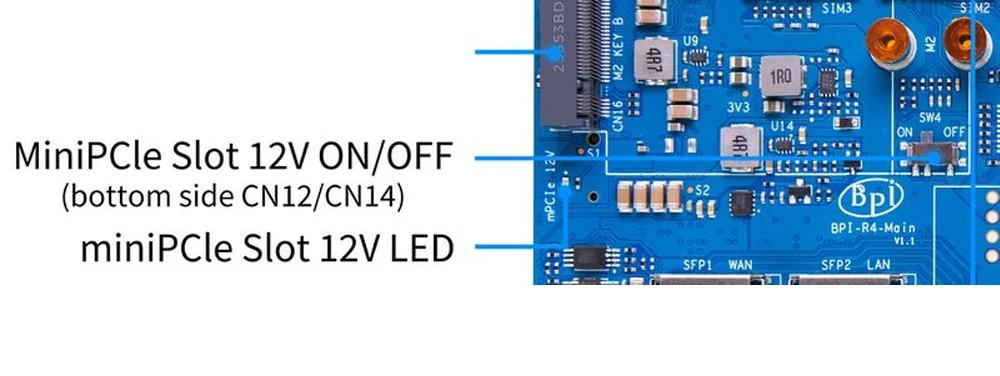

The BPI-R4-NIC module requires 12V power supply, so the power supply on the BPI-R4-Main must be turned on before powering on (SW4 is turned to the "ON" position, and the 12V LED will lights up when power on)

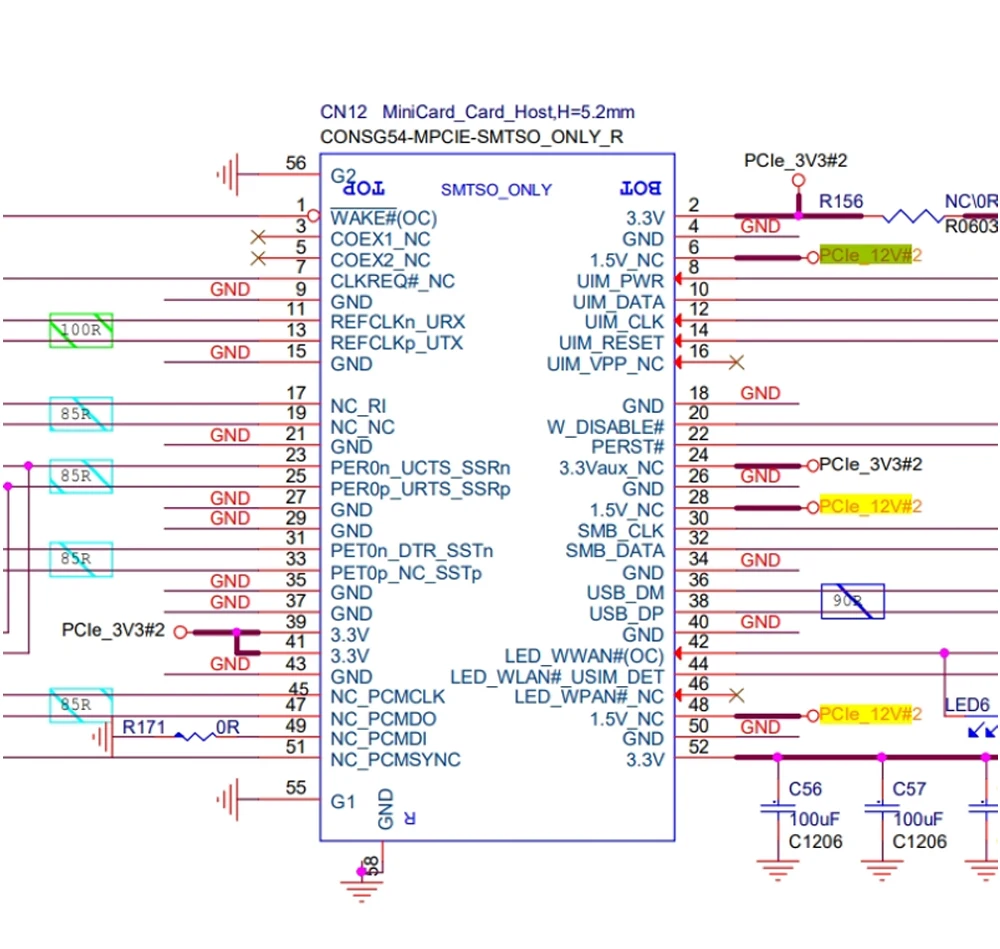

Tips:The 12V power supply will be supplied to the BPI-R4-NIC through PIN6/28/48 of the miniPCI socket. When plugging in other modules, be sure to turn off SW4 if you cannot confirm whether the module can withstand 12V.
