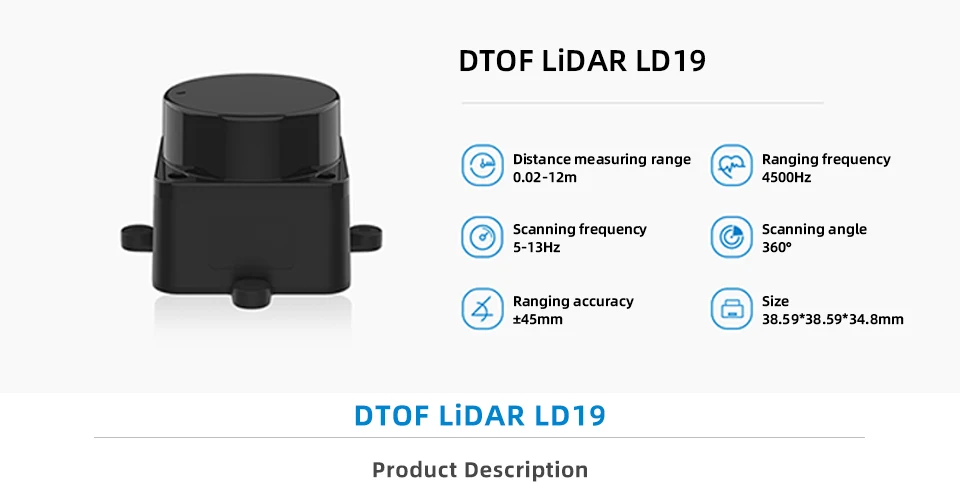

D300 DTOF LiDAR LD19P laser Radar Lidar Scanner 360° Ranging frequency 4500Hz Re

Product Description

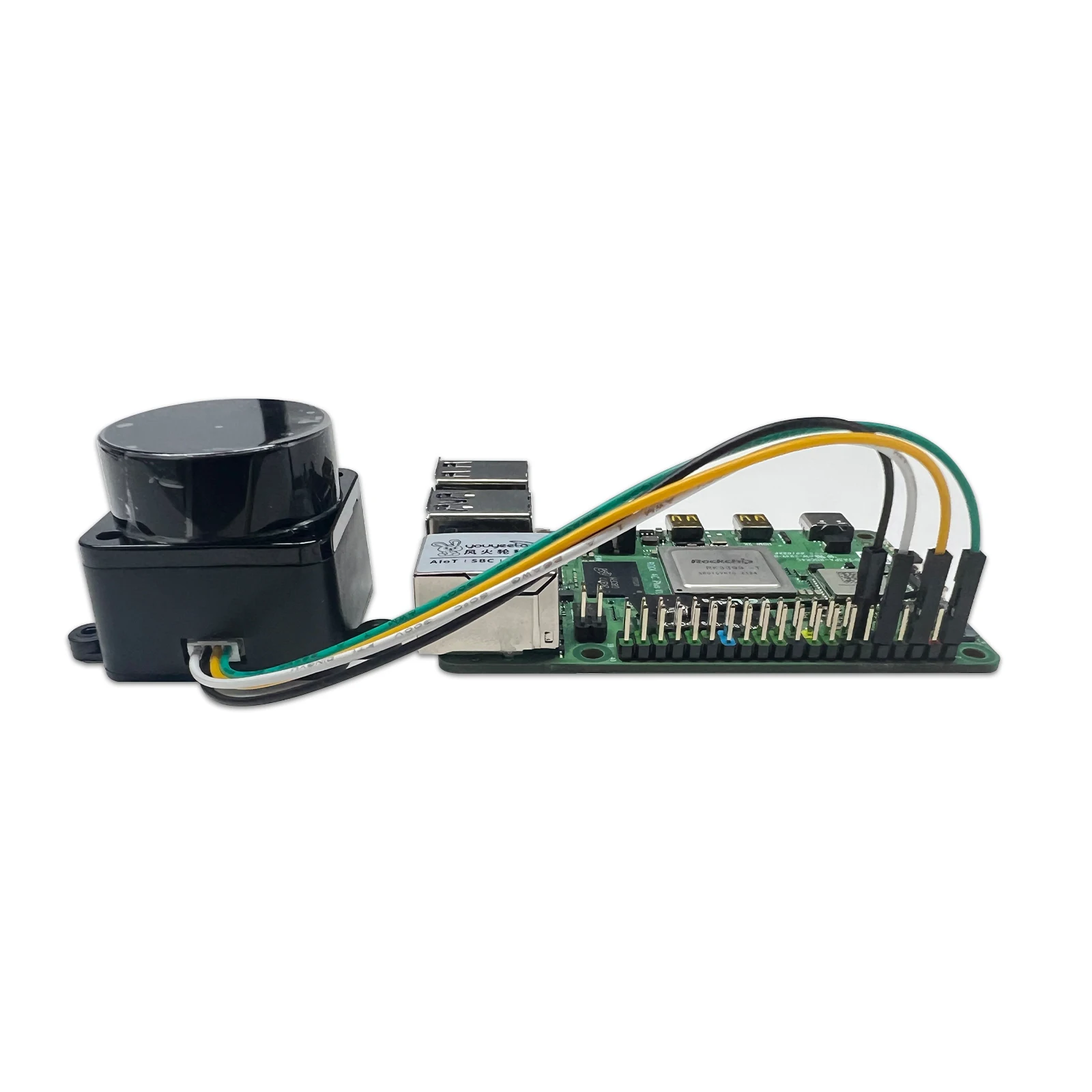

Hardware cable connection and description

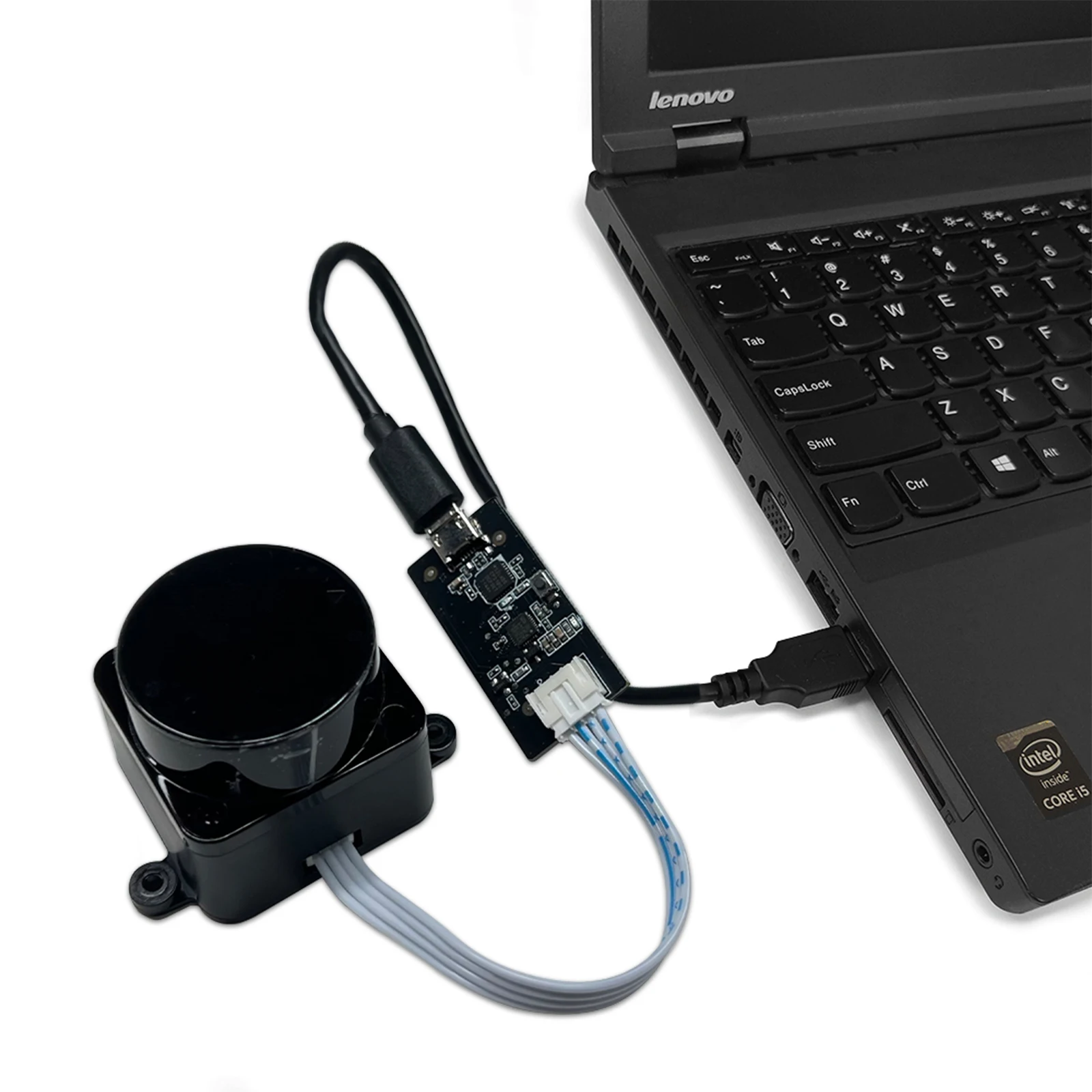

LiDAR, wire, USB adapter board, as shown in the following figure:

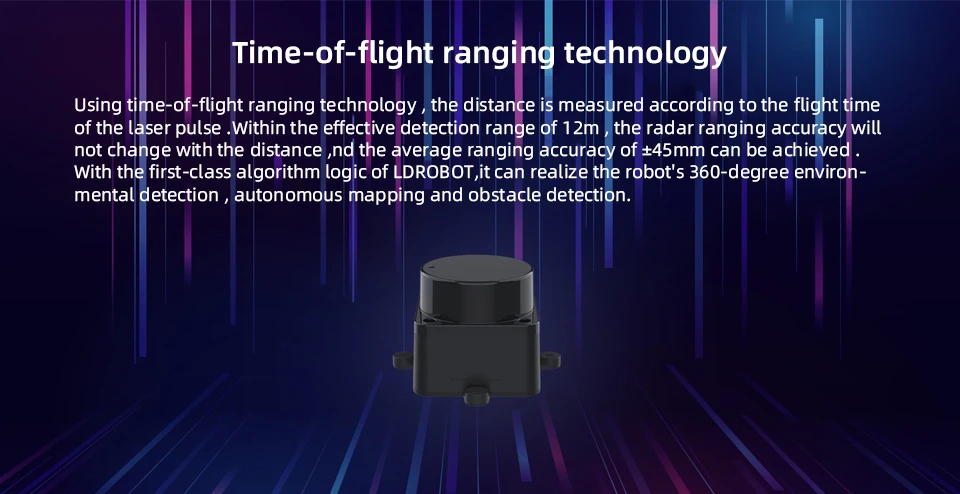

Time-of-flight ranging technology

Using time-of-flight ranging technology, the distance is measured according to the flight time of the laser pulse,within the effective detection range of 12m, the radar ranging accuracy will not change with the distance,and the average ranging accuracy of ±45mm can be achieved. With the first-class algorithm logic of LDROBOT,it can realize the robot's 360-degree environmental detection, autonomous mapping and obstacle detection.

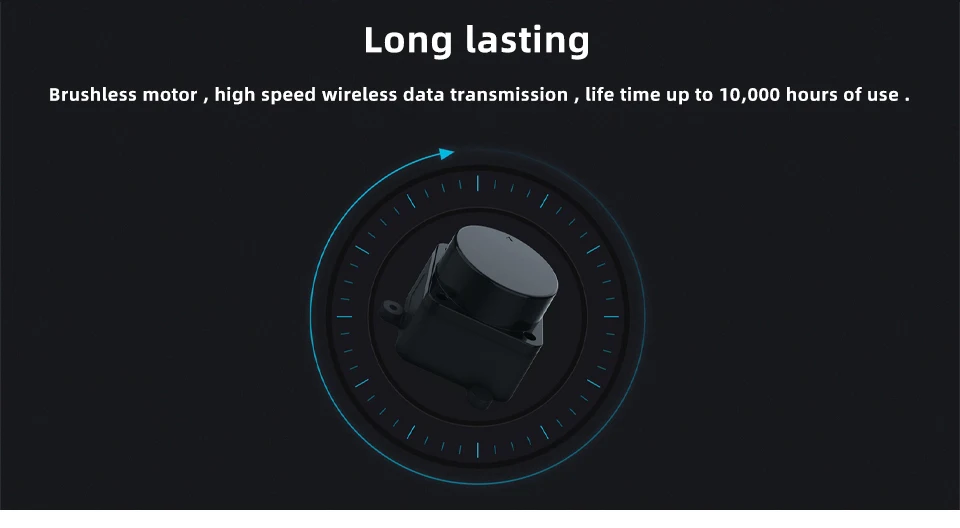

Long lasting

Brushless motor, high speed wireless data transmission, life time up to 10,000 hours of use.

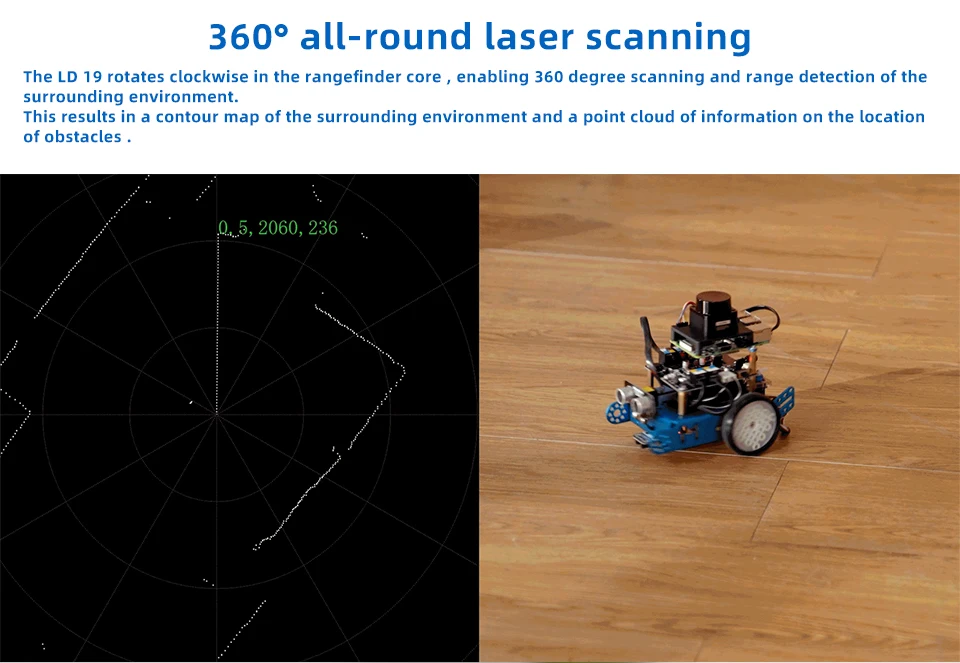

360°all-round laser scanning

The LD 19 rotates clockwise in the rangefinder core, enabling 360 degree scanning and range detectionof the surrounding environment.This results in a contour map of the surrounding environment and a point cloud of information on the location of obstacles.

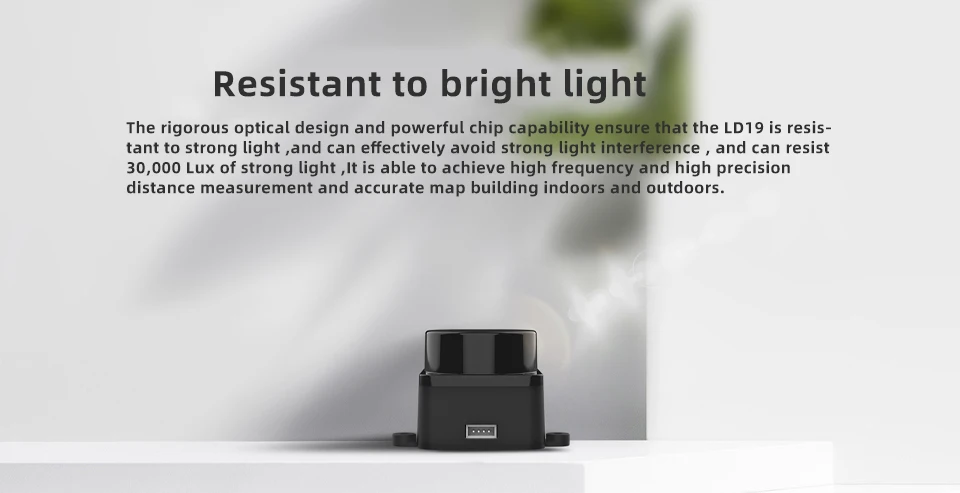

Resistant to bright light

The rigorous optical design and powerful chip capability ensure that the LD19 is resistant to strong light,and can effectively avoid strong light interference, and can resist 30,000 Lux of strong light,lt is able to achieve high frequency and high precision distance measurement and accurate map building indoors and outdoors.

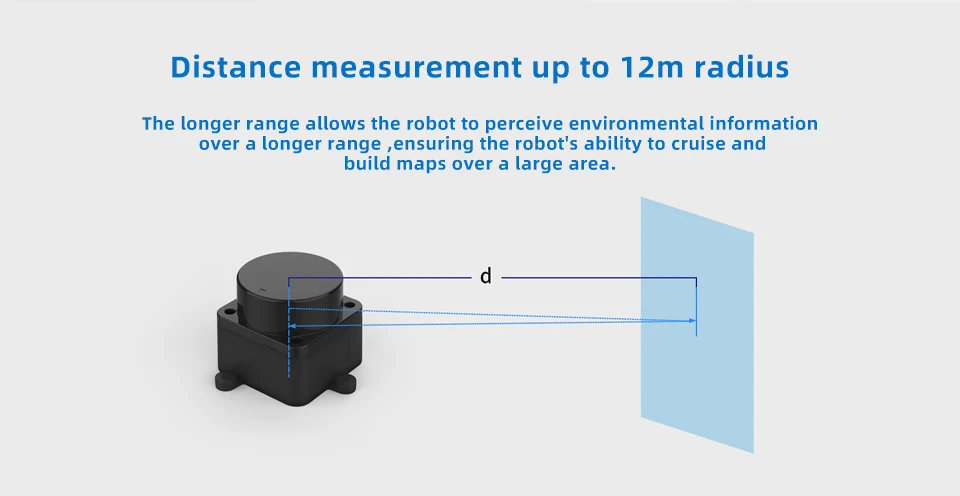

Distance measurement up to 12m radius

The longer range allows the robot to perceive environmental information over a longer range,ensuring the robot's ability to cruise and build maps over a large area.

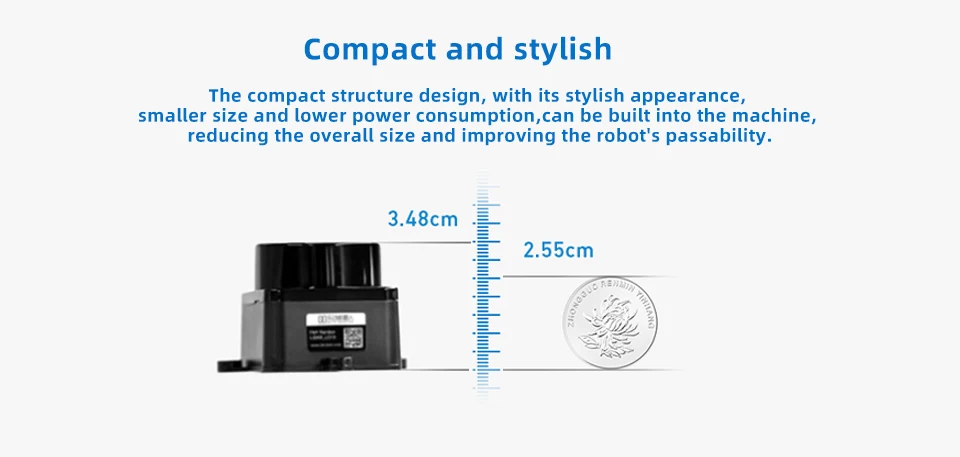

Compact and stylish

The compact structure design, with its stylish appearance, smaller size and lower power consumption,can be built into the machine, reducing the overall size and improving the robot's passability.

Laser Safety FdaClass l

To safely ensure the productis safe for humans and pet,alow power infrared laseremitterisused as the emittig lght source and is driven by modulated pulses The laser only emits in a very short time and meets the FdaClass l human eye safety rating.

Application field
