Product Description
SLAMTEC RPLIDAR C1 Lidar Sensor TOF 12M Ranging 360 ° Scanning For Robot Positioning, Mapping, Navigation And Obstacle Avoidance
SLAMTEC RPLIDAR C1 Lidar Sensor TOF 12M Ranging 360 ° Scanning For Robot Positioning, Mapping, Navigation And Obstacle Avoidance

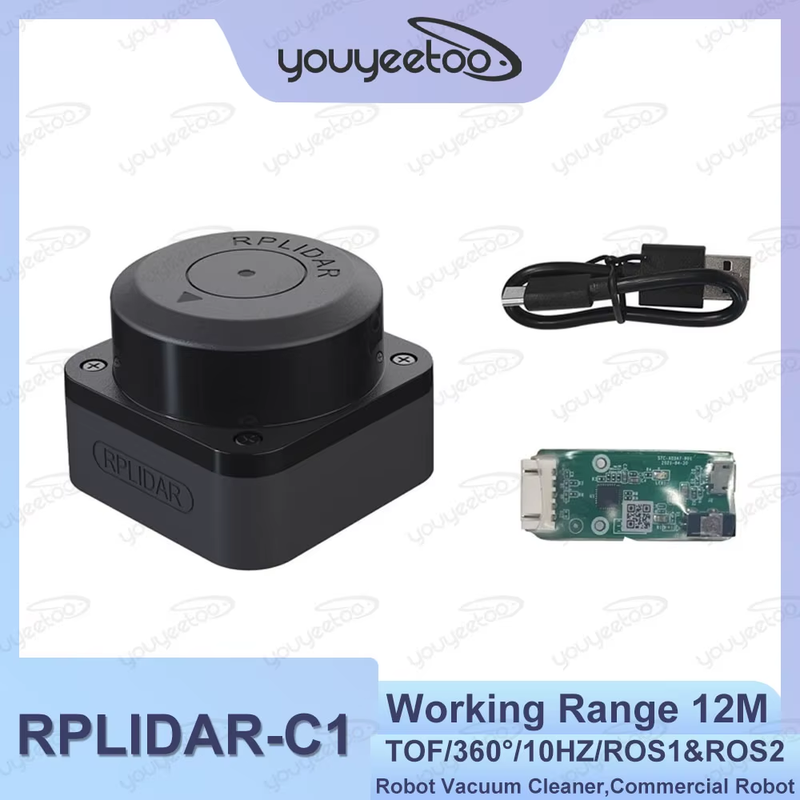

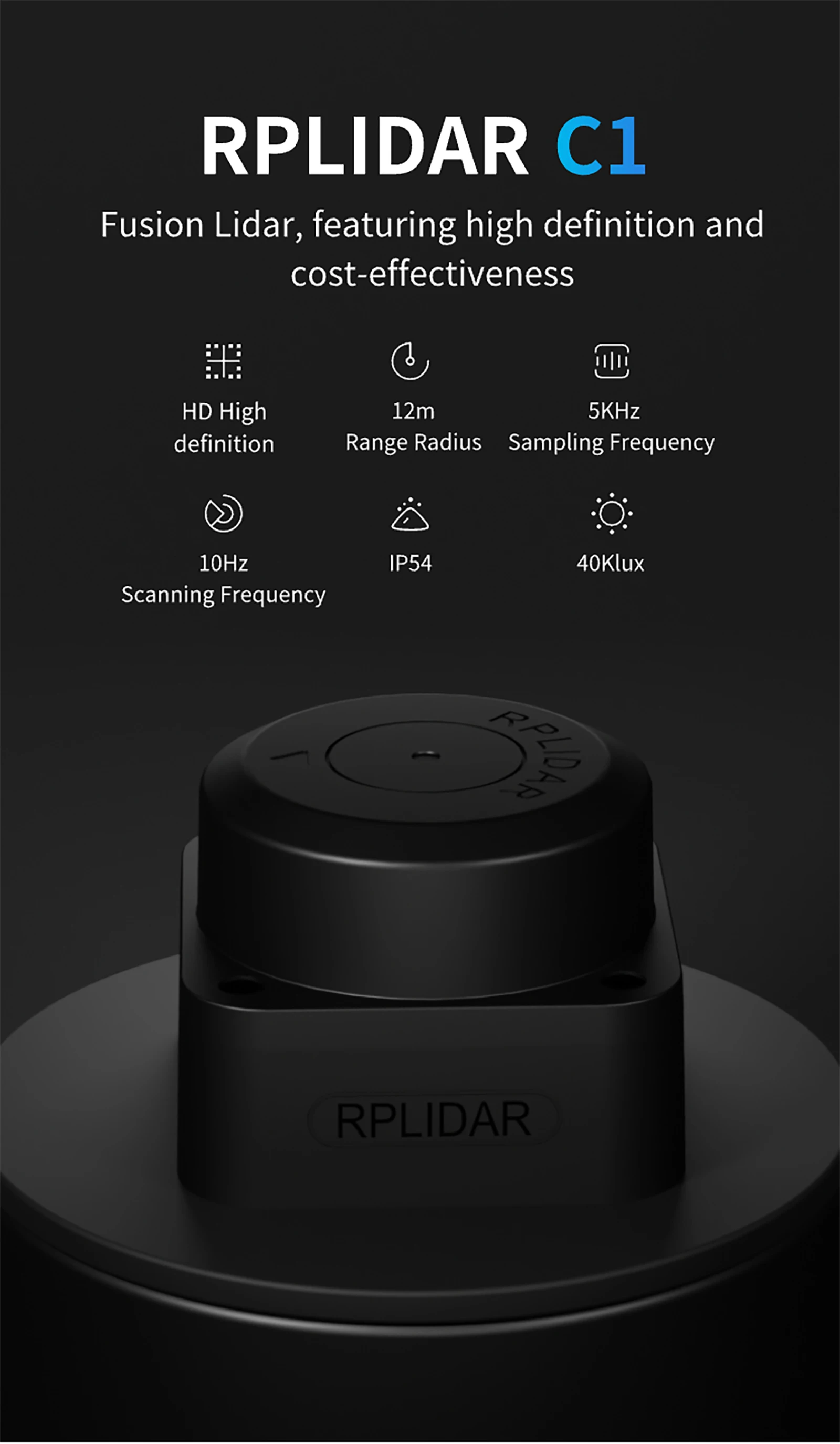

The RPLIDAR C1 is a next-generation 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 5000 samples of laser ranging per second with high rotation speed. Equipped with contactless power and signal transmission technology, it breaks the life limitation of traditional LIDAR systems to work stably for a long time.

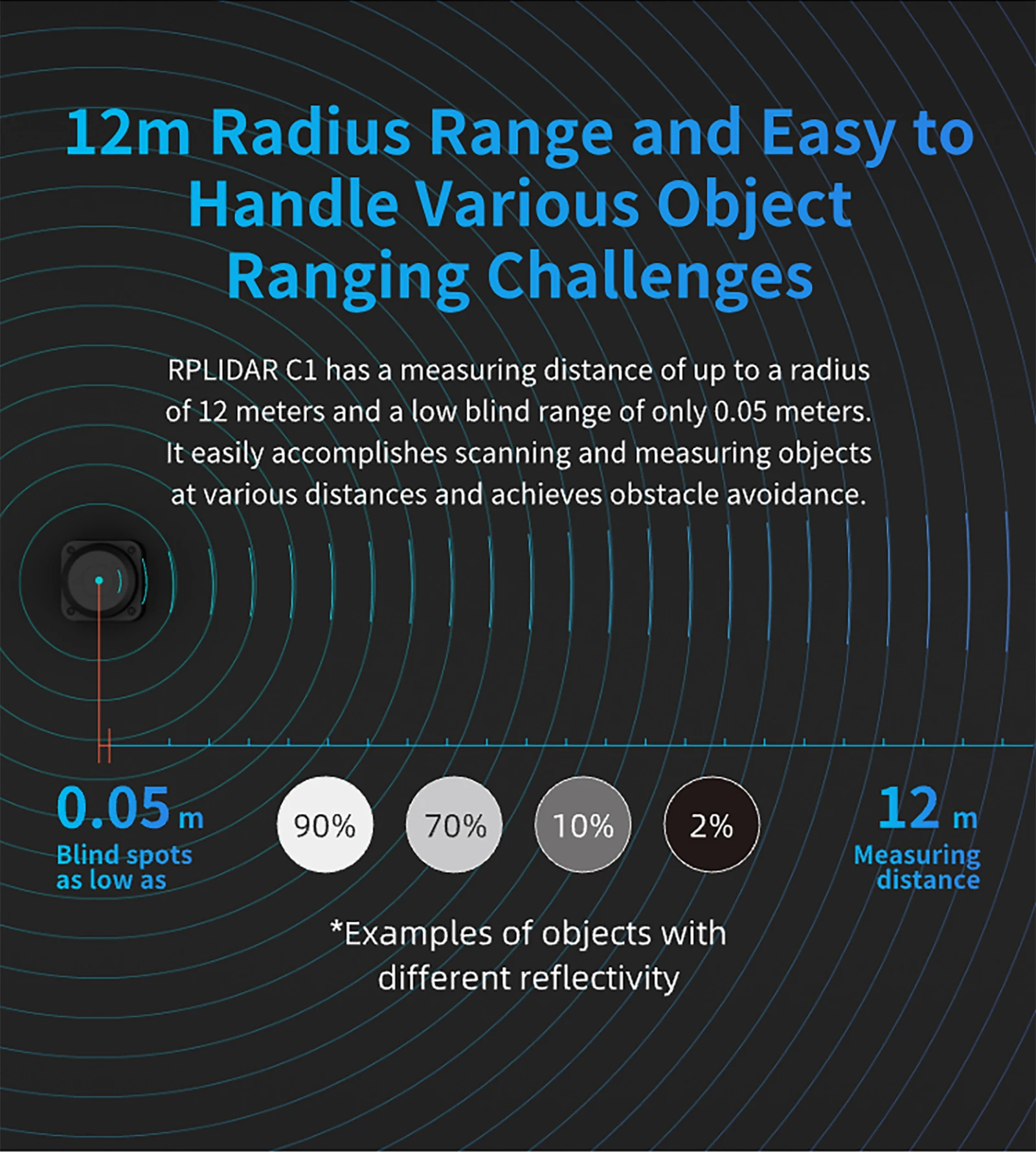

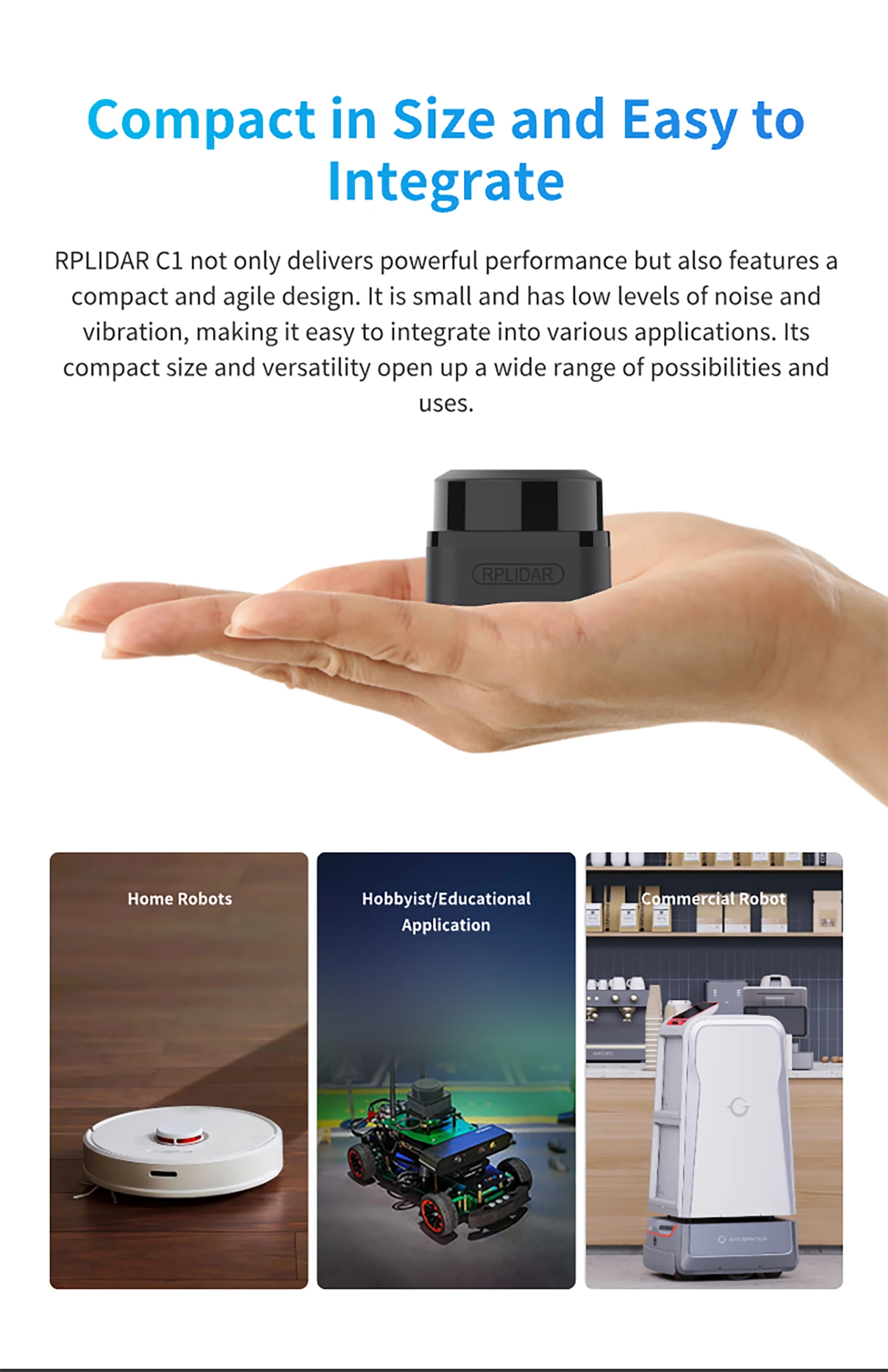

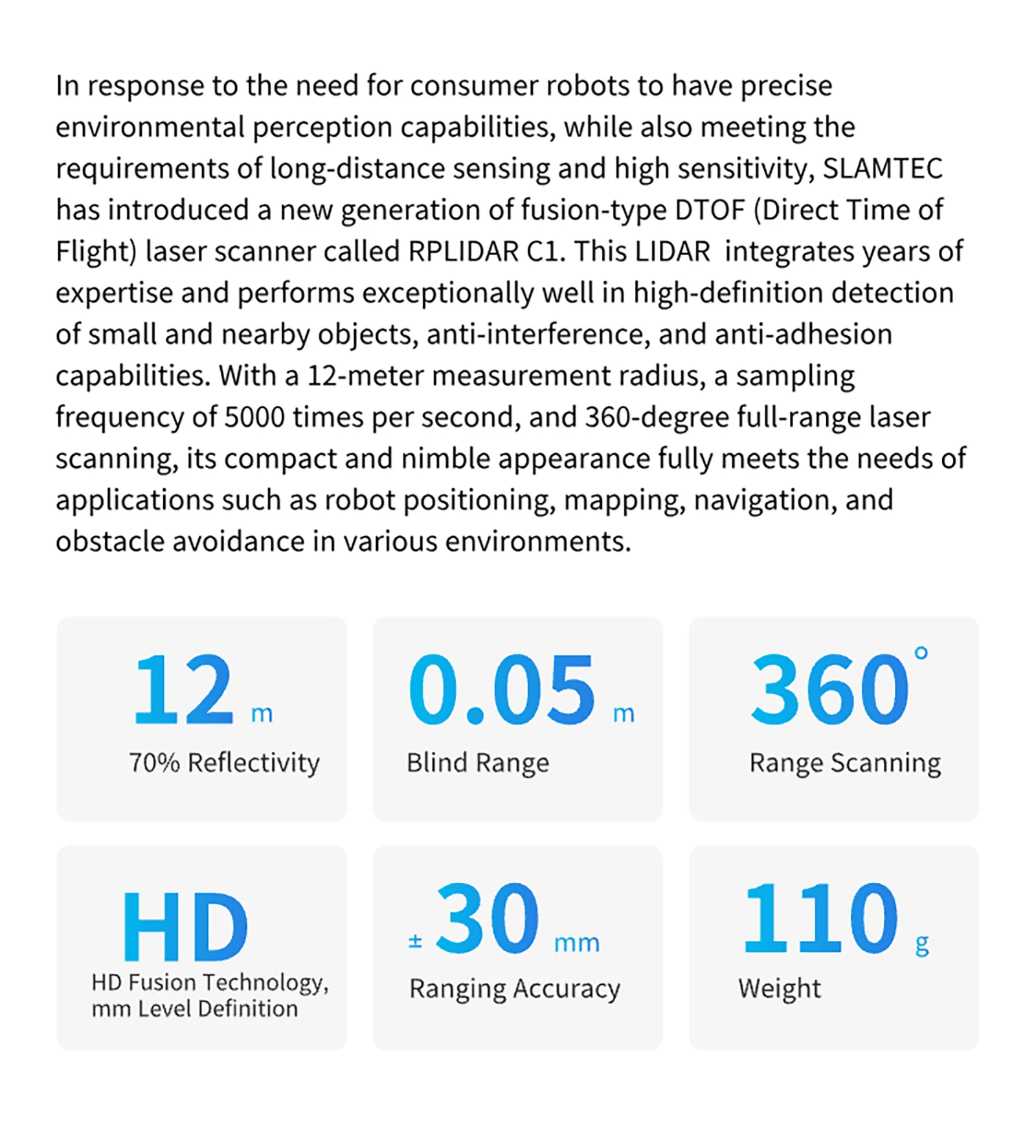

RPLIDAR C1 has a measuring distance of up to a radius of 12 meters and a low blind range of only 0.05 meters. It easily accomplishes scanning and measuring objects at various distances and achieves obstacle avoidance. RPLIDAR C1 not only delivers powerful performance but also features a compact and agile design. It is small and has low levels of noise and vibration, making it easy to integrate into various applications.Its compact size and versatility open up a wide range of possibilities and uses.RPLIDAR C1 can be used in home robot, educational ROS car, commercial robot,autonomous vehicles in low-speed parks, and parking lot space monitoring. Therefore,it can be widely applied in many consumer-oriented business scenarios.
The typical scanning frequency of RPLIDAR C1 is 10Hz (600rpm). With the 10Hz scanning frequency, the sample rate is 5KHz, and the angular resolution is 0.72°.

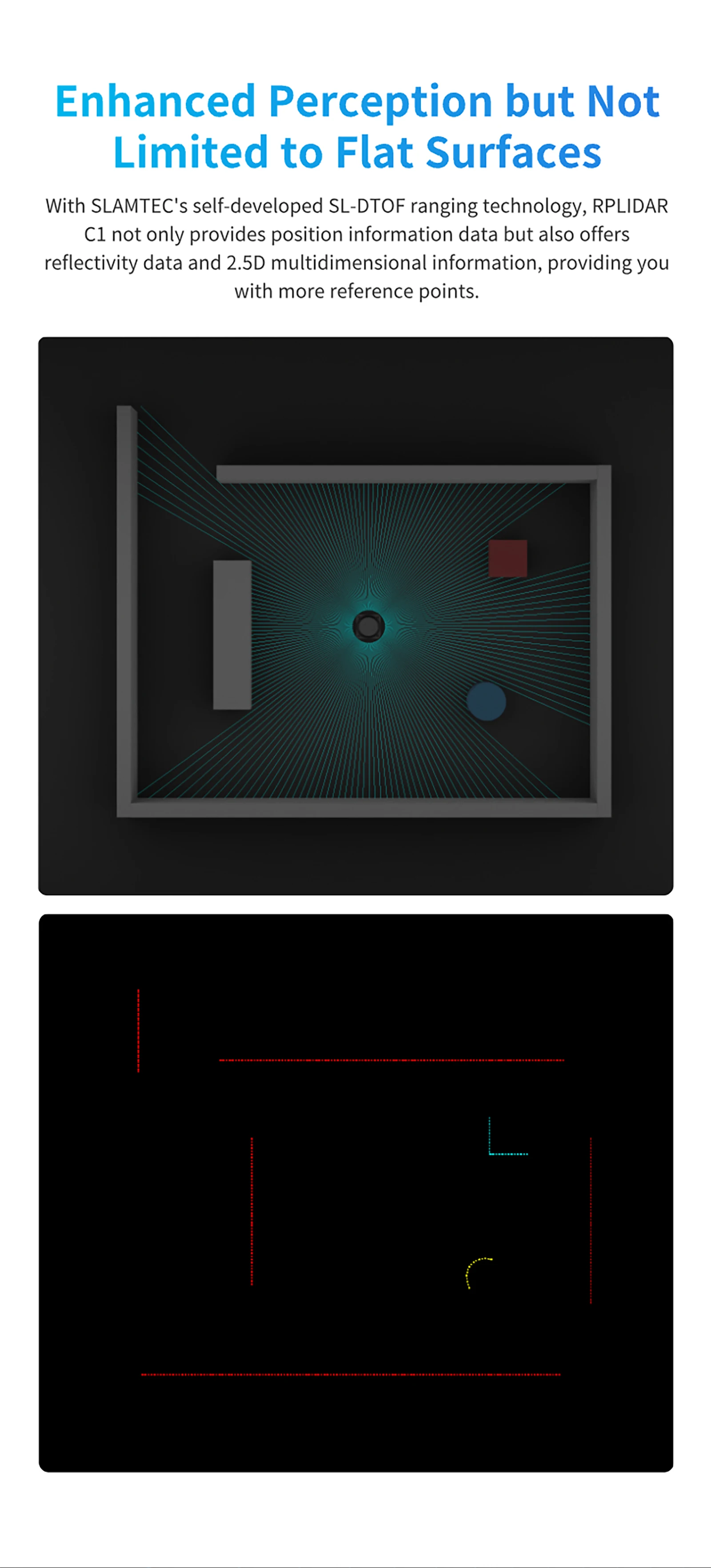

With SLAMTEC’s self-developed fusion ranging technology, RPLIDAR C1 can provide 2.5D multidimensional information, including position information data and reflectivity data. Meanwhile, before leaving the factory, every RPLIDAR C1 has passed strict testing to ensure the laser output power meets the eye-safety standard of IEC-60825 Class 1.
Measurement Performance
Applications Scenarios | Robot Vacuum Cleaner, Hobbyist/Educational Application, Commercial Robot |
Distance Range | White：0.05~12m (70% Reflectivity) |
Black：0.05~6m (10% Reflectivity) | |
Sample Rate | 5KHz |
Sample Frequency | 8~12Hz, 10Hz (Typical) |
Angle Resolution | 0.72° |
Pitch Angle | 0°-1.5° |
Communication Interface | TTL UART |
Communication Speed | 460800 |
Ranging Resolution | ±30mm |
Range Accuracy | 15mm |
Proof Level | IP54 |
Anti-Ambient Light Ability | 40,000lux |
