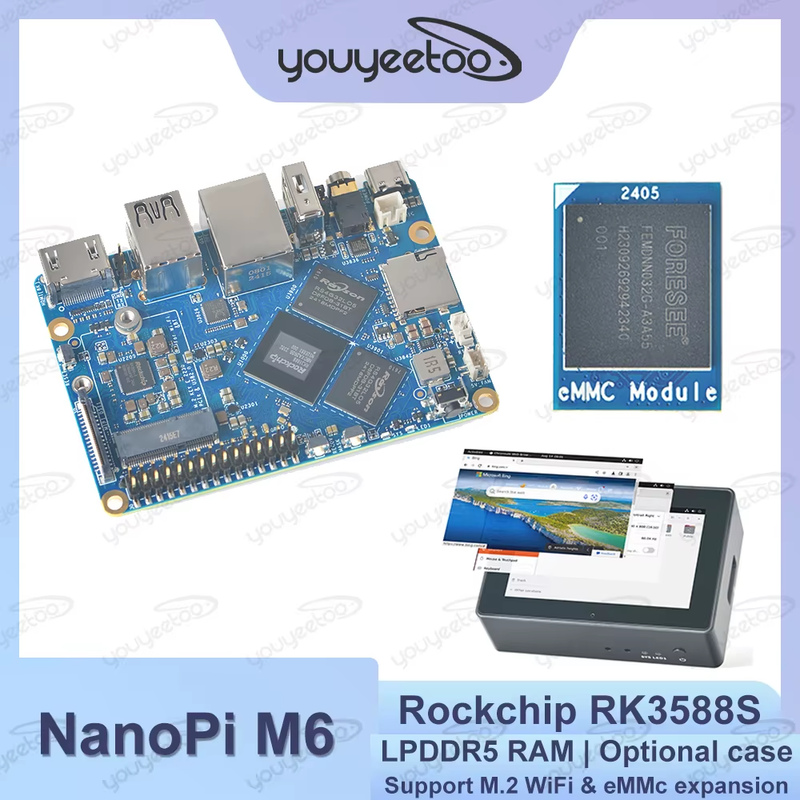

NanoPi M6 Development Board Open-Sourced 64bit RK3588S Mini SBC LPDDR5 RAM Nati

Product Description

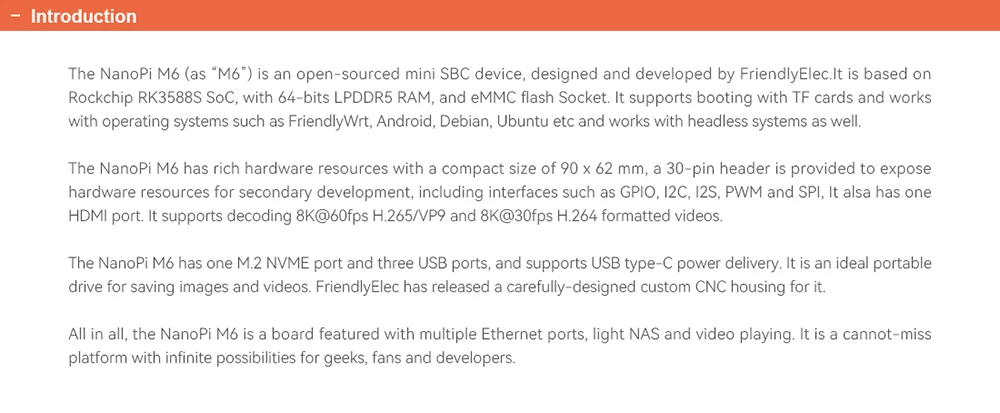

Introduction

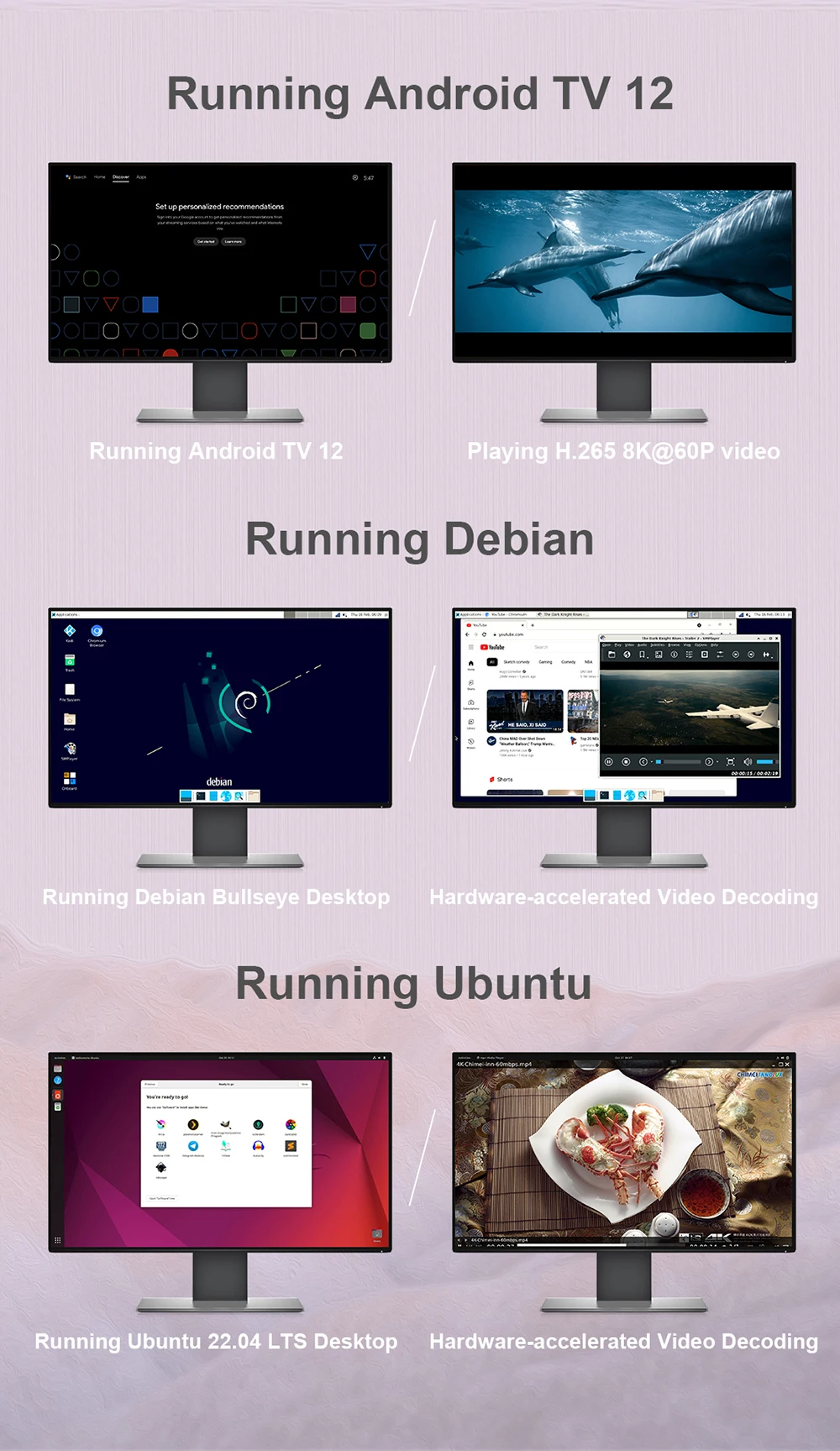

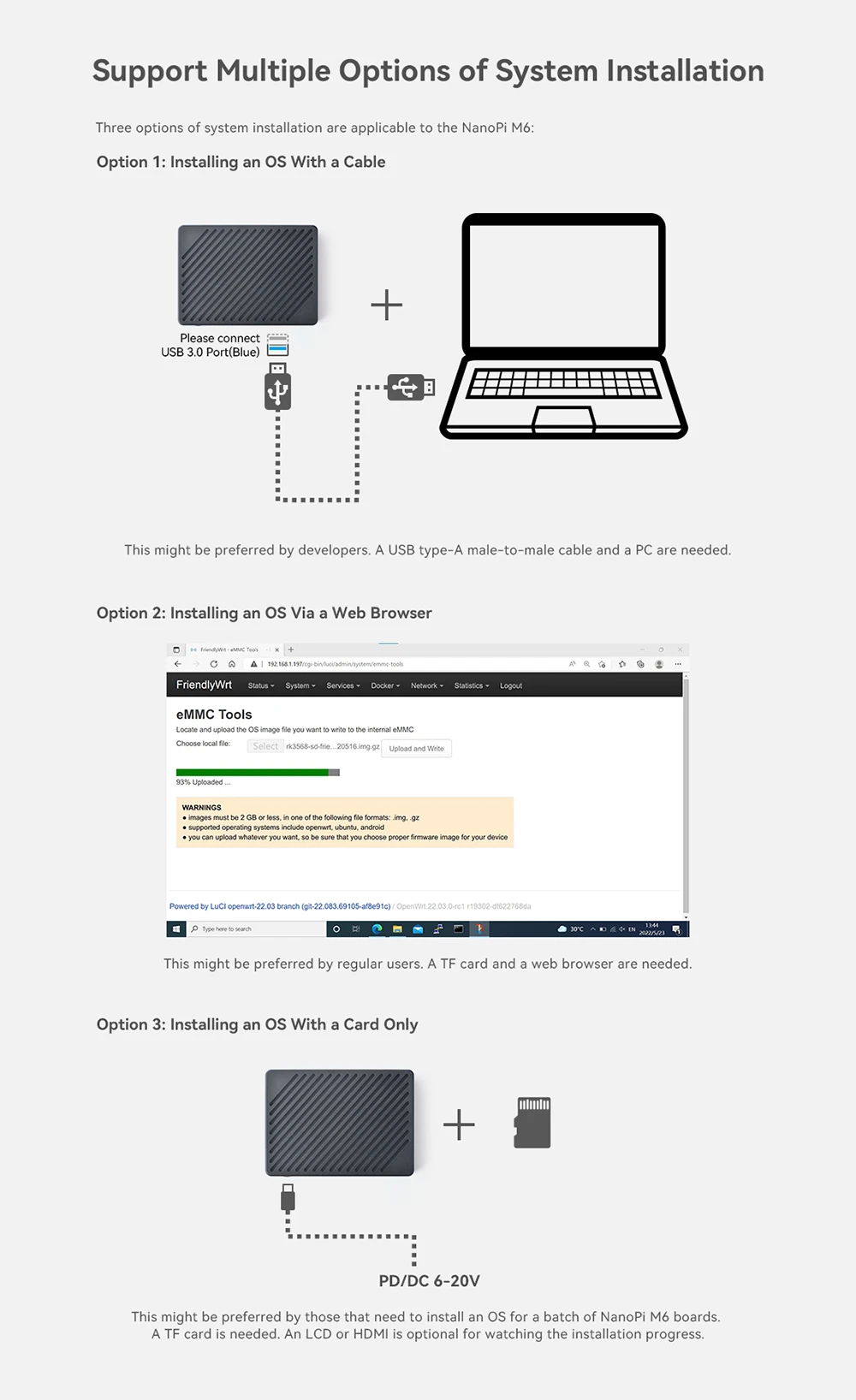

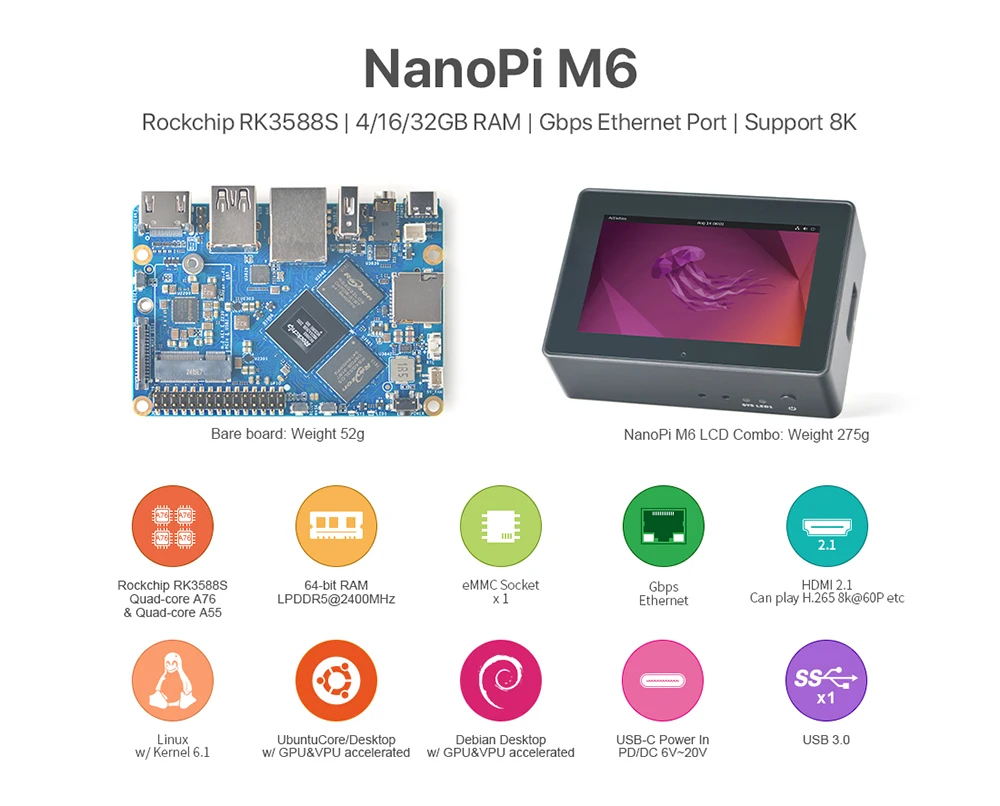

The NanoPi M6 (as “M6”) is an open-sourced mini SBC device, designed and developed by FriendlyElec.It is based on Rockchip RK3588S SoC, with 64-bits LPDDR5 RAM, and eMMC flash Socket. It supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.

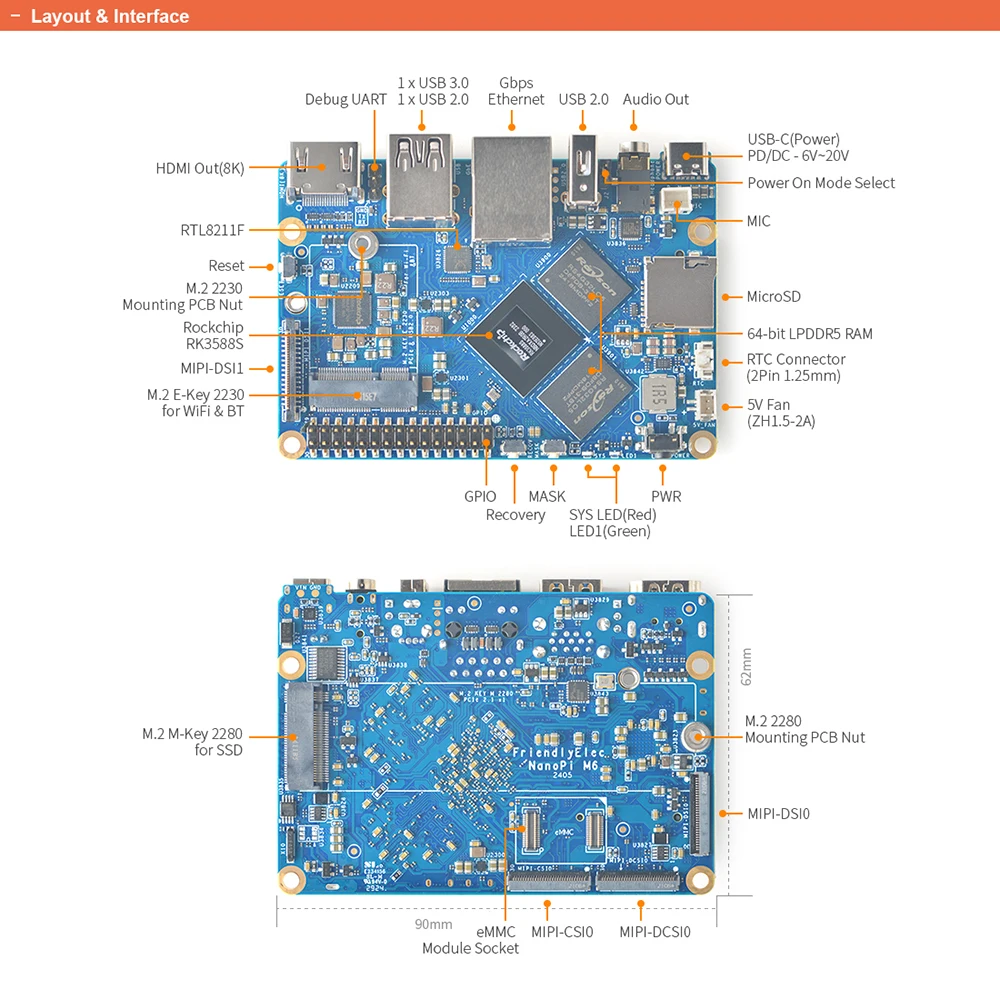

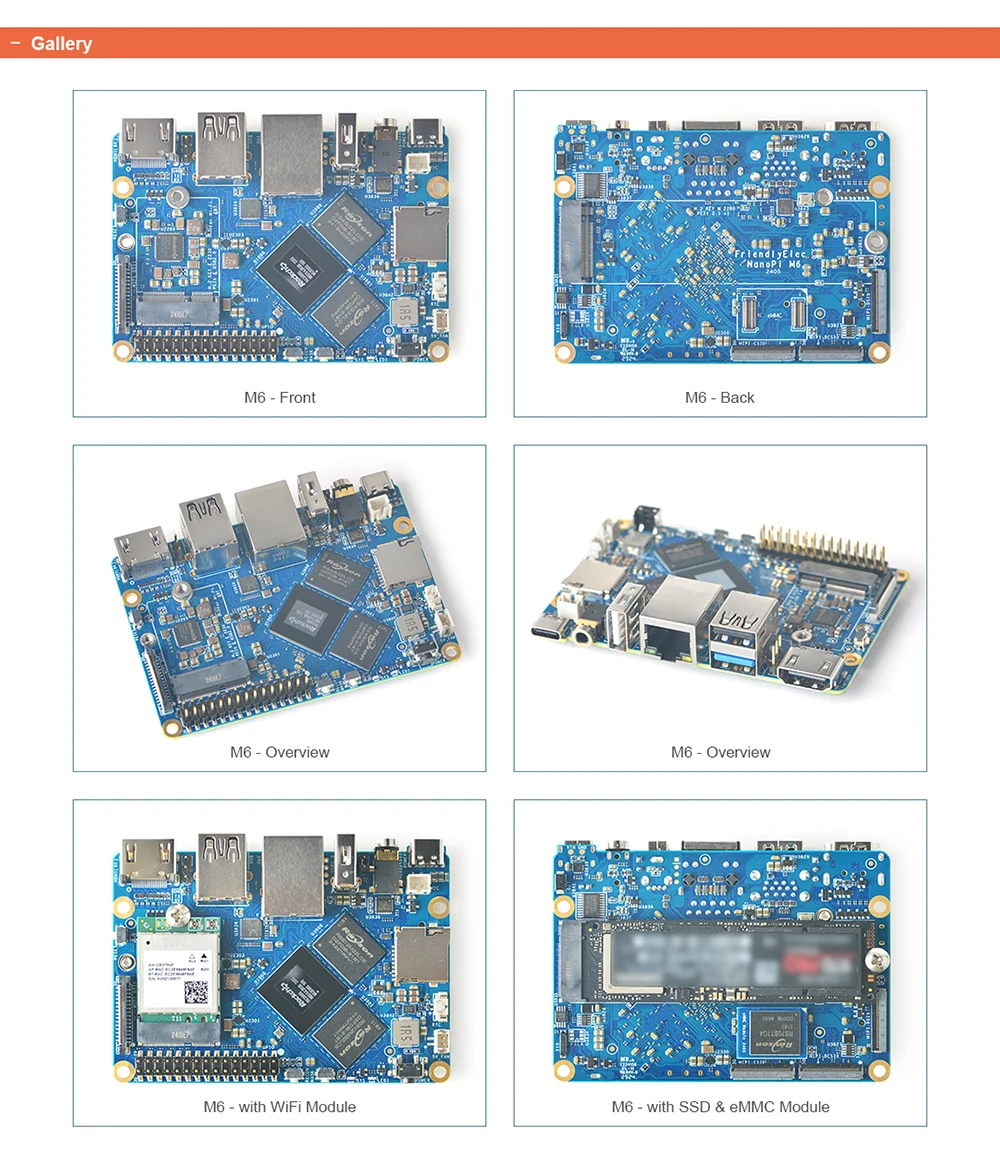

The NanoPi M6 has rich hardware resources with a compact size of 90 x 62 mm, a 30-pin header is provided to expose hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM and SPI, It alsa has one HDMI port. It supports decoding 8K@60fps H.265/VP9 and 8K@30fps H.264 formatted videos.

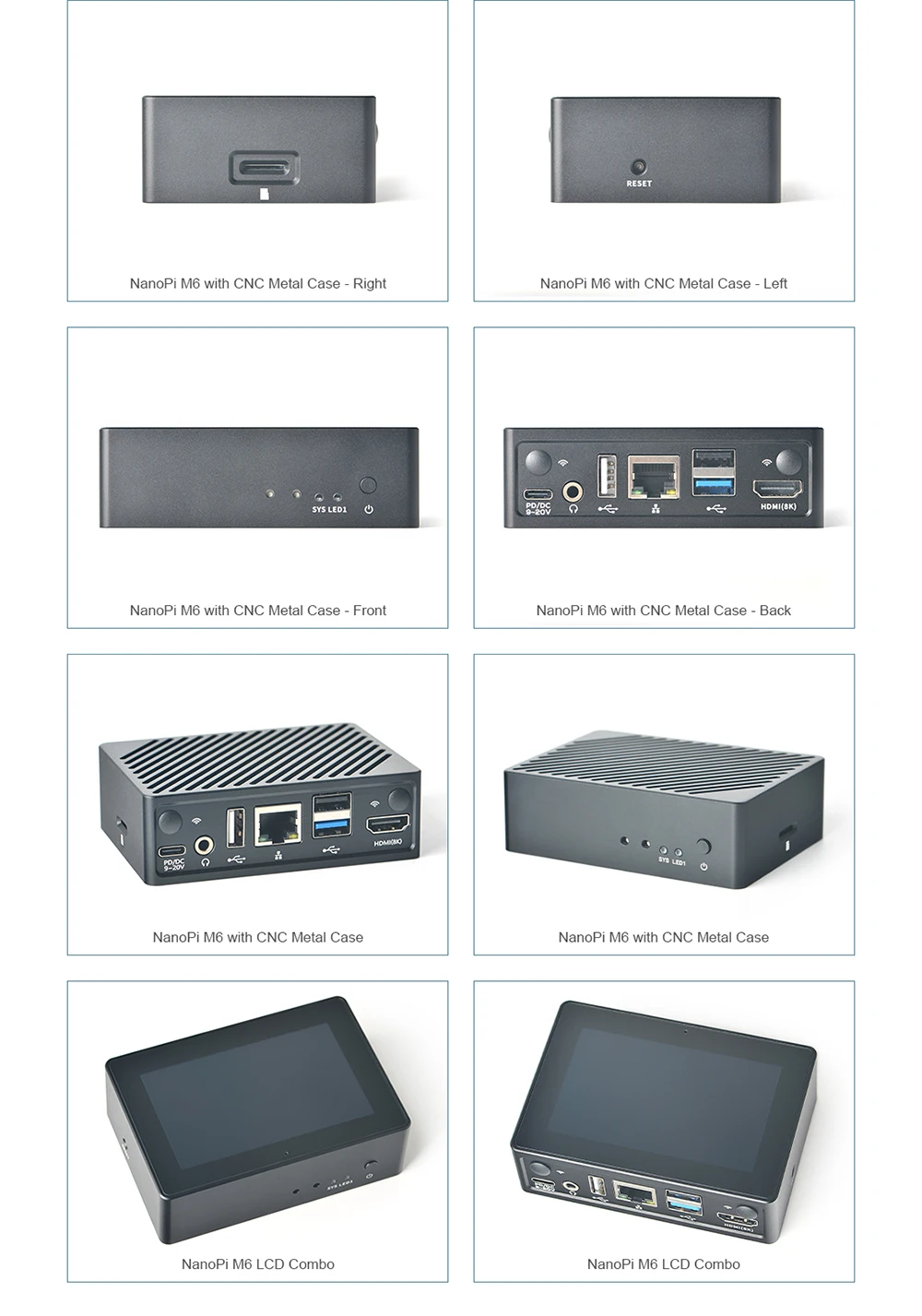

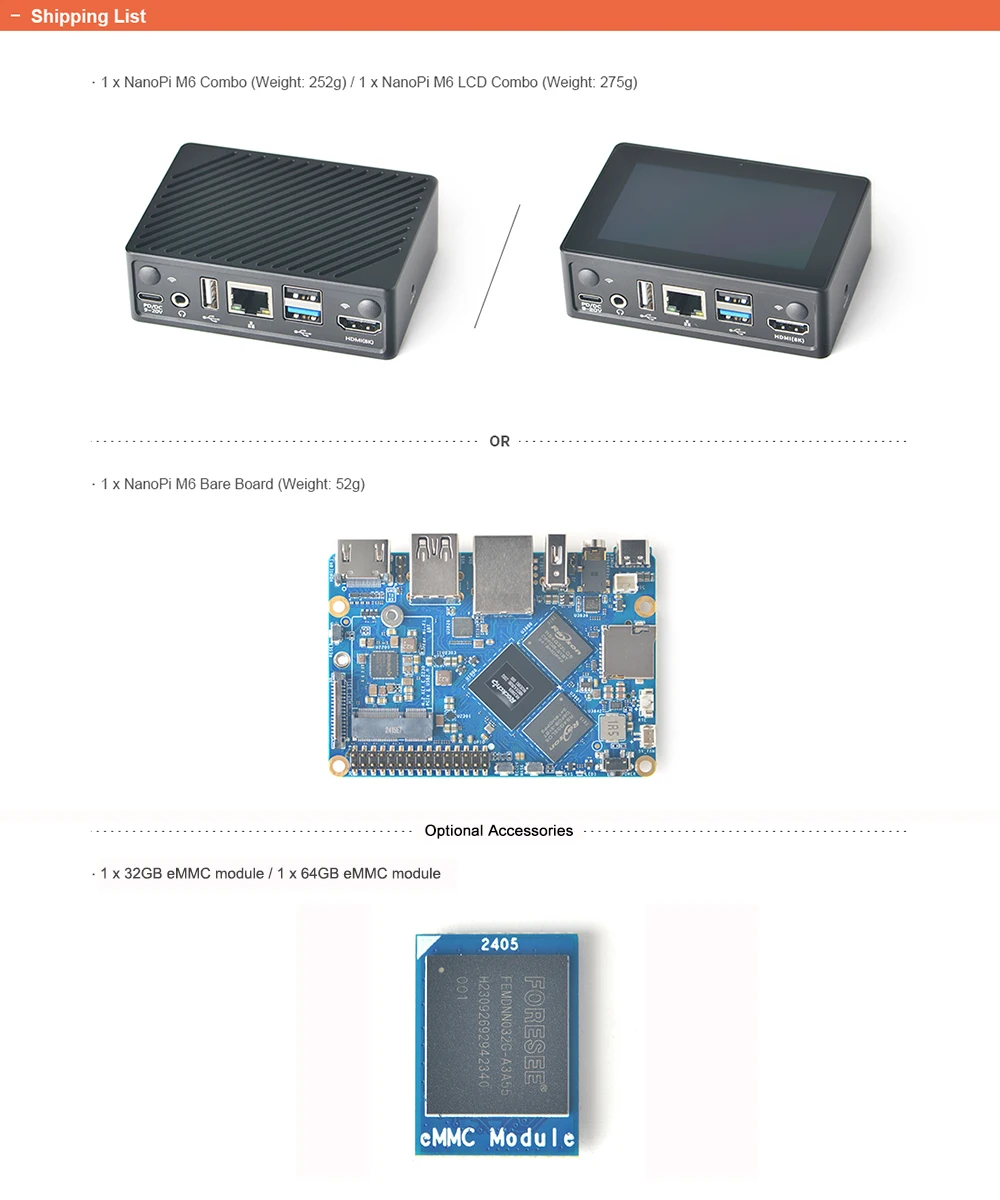

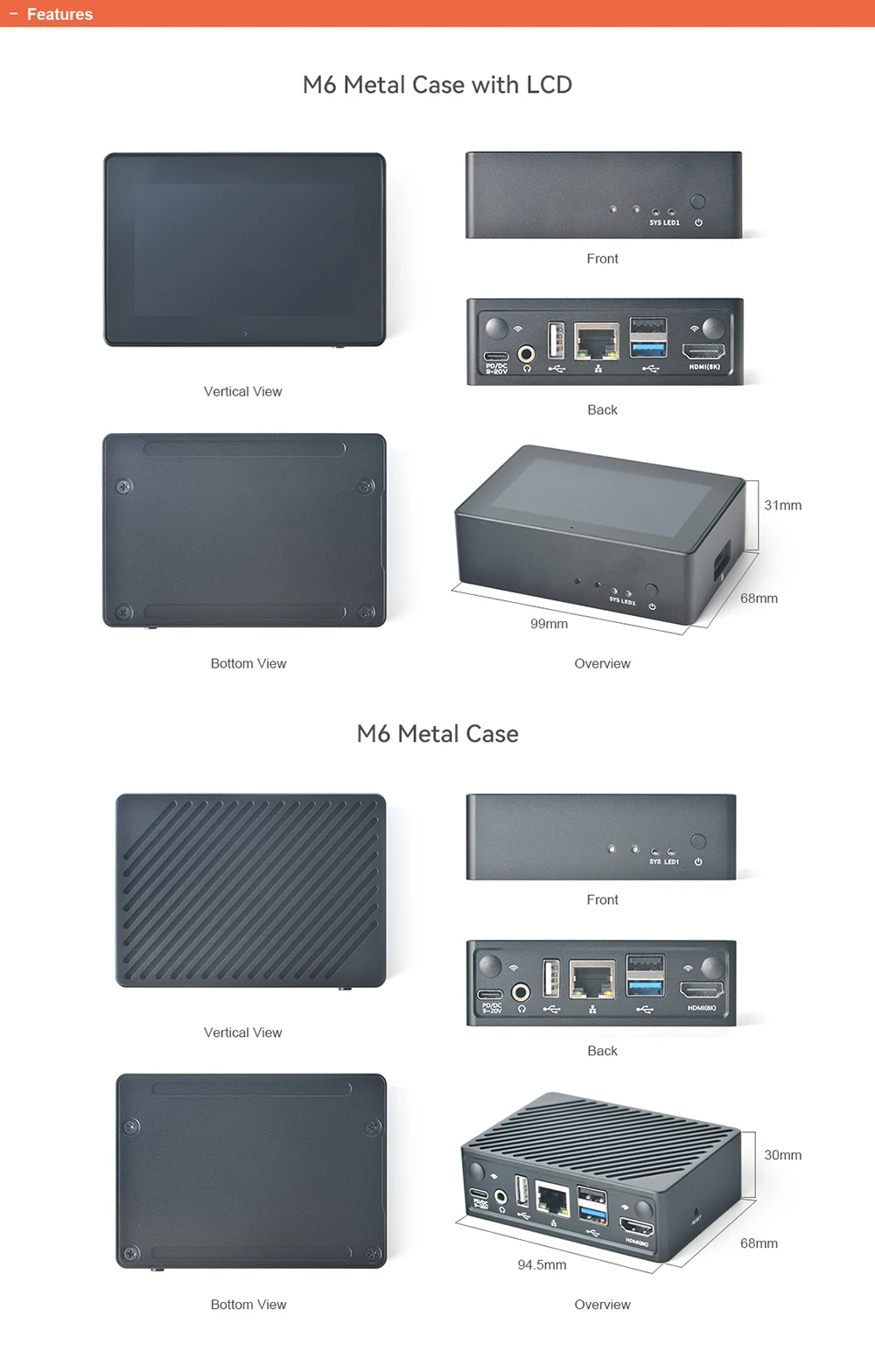

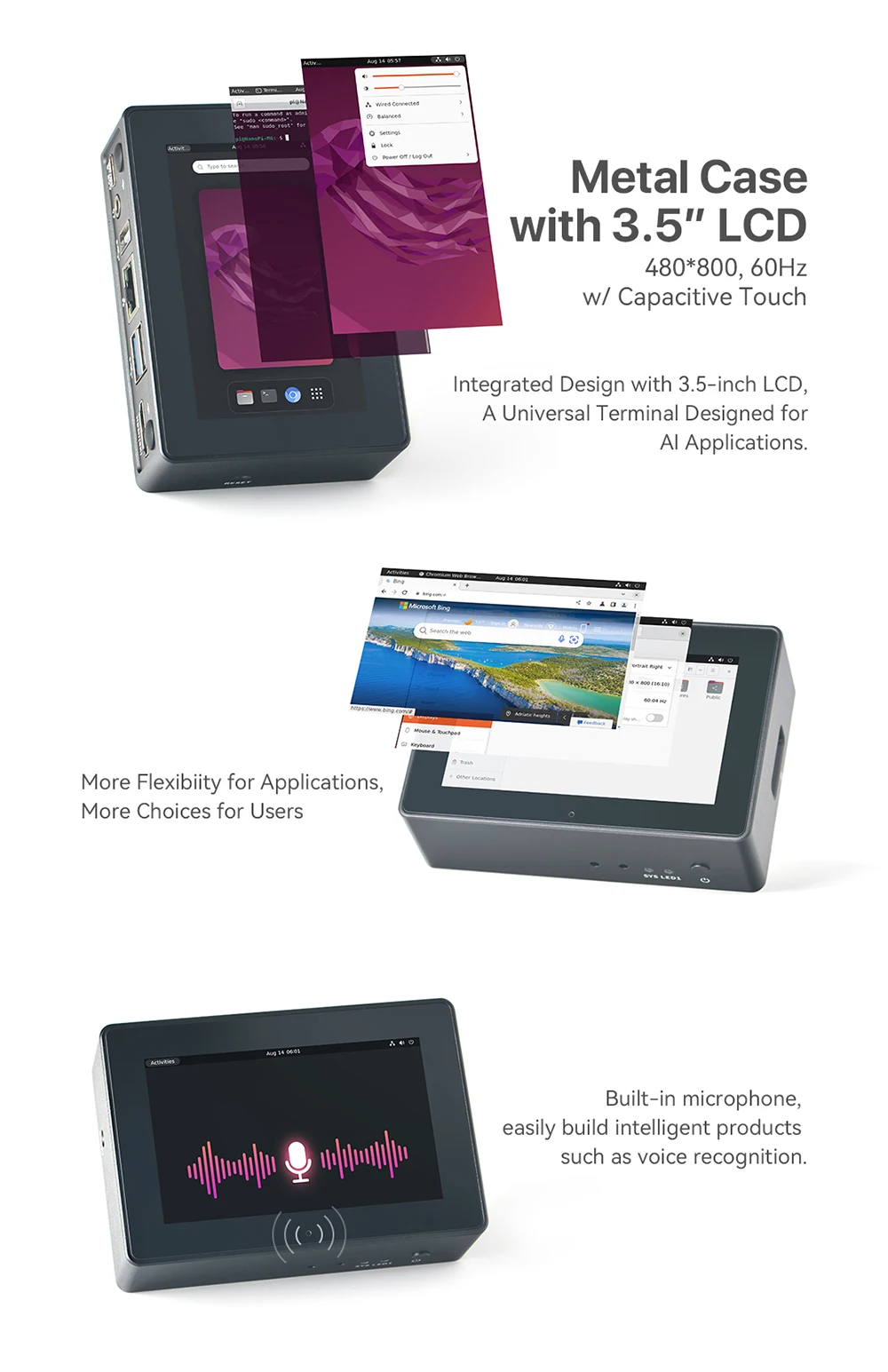

The NanoPi M6 has one M.2 NVME port and three USB ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos. FriendlyElec has released a carefully-designed custom CNC housing for it.

All in all, the NanoPi M6 is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

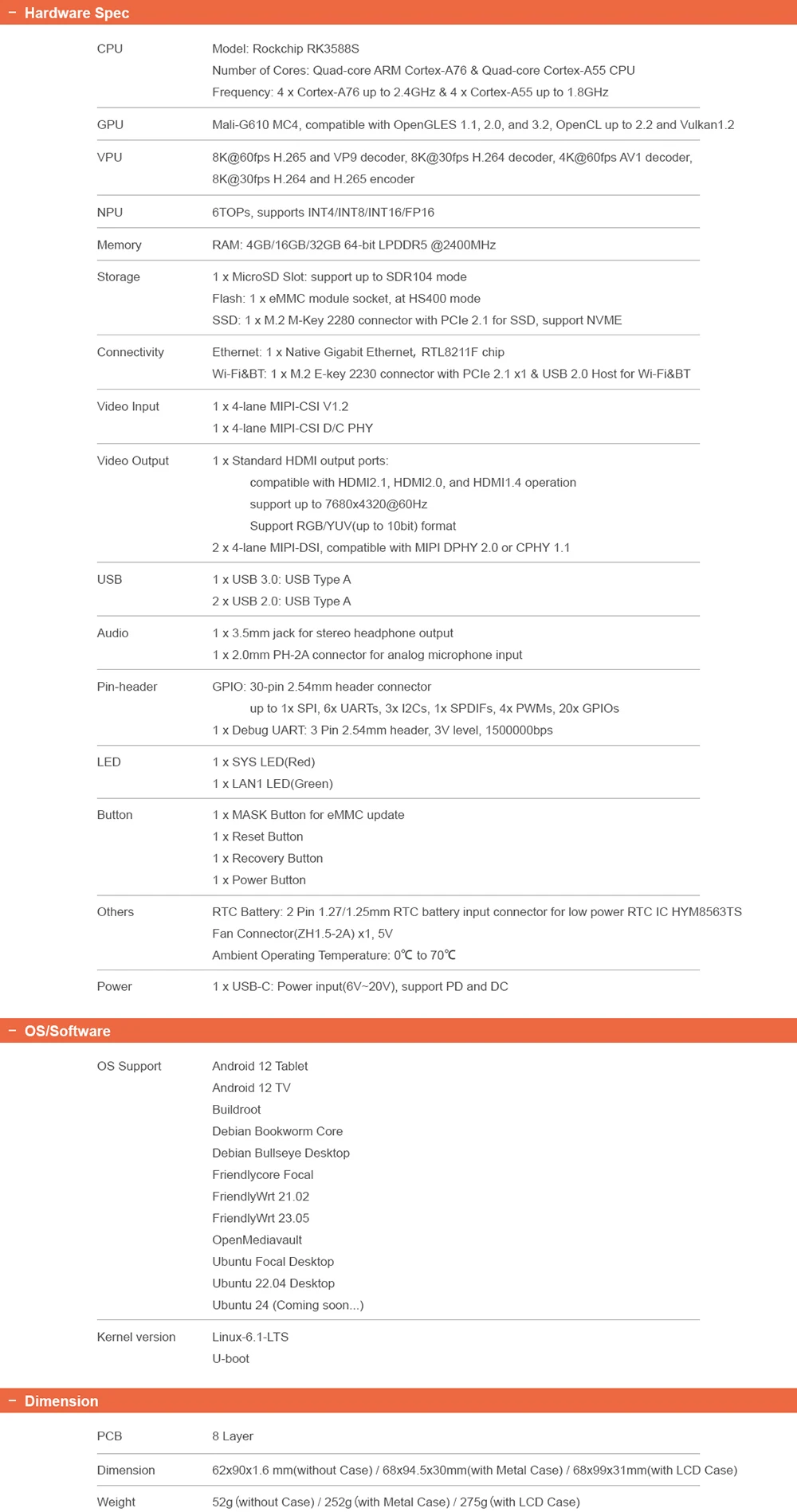

Hardware Spec

• SoC: Rockchip RK3588S

  • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)

  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2

  • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder

  • NPU: 6TOPs, supports INT4/INT8/INT16/FP16

• RAM: 64-bit LPDDR5 at 2400MHz

• Flash: eMMC module socket, at HS400 mode

• Ethernet: 1x Native Gigabit Ethernet

• USB: 1x USB 3.0 Type-A and 2x USB 2.0 Type-A

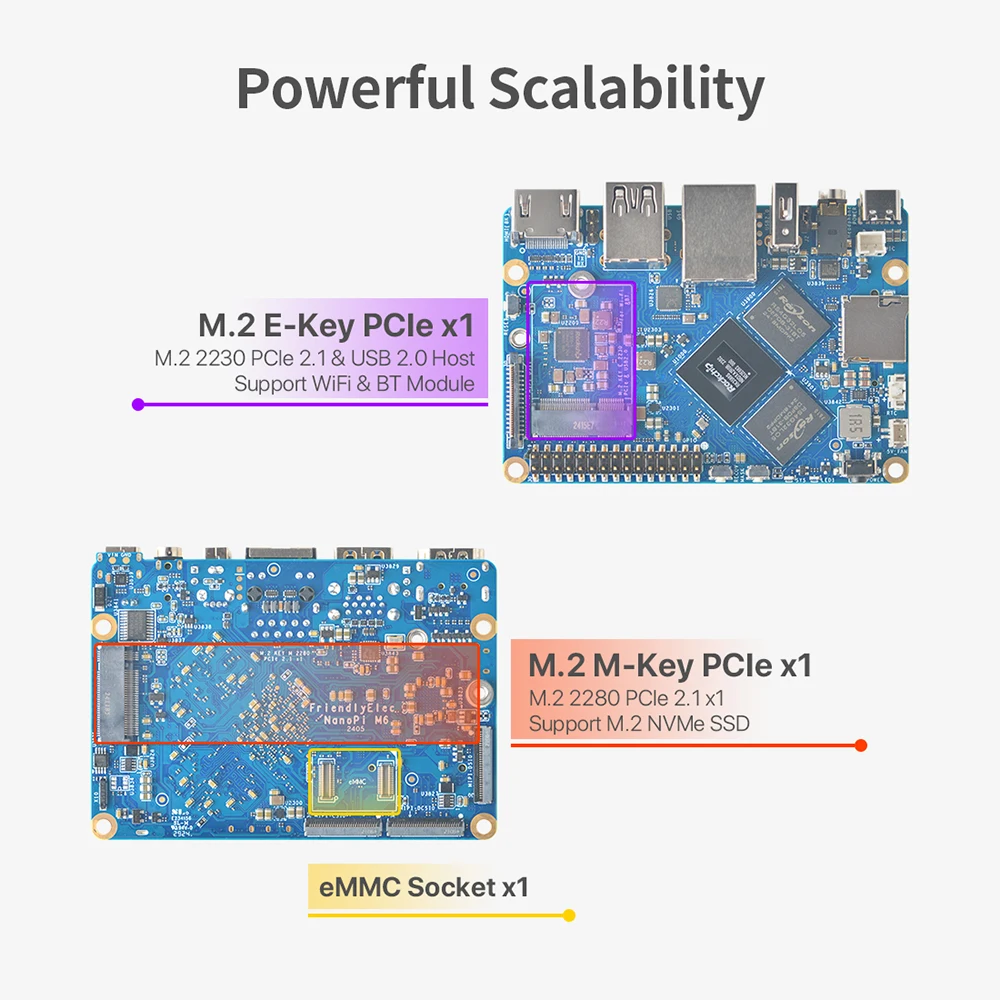

• M.2 Connectors

  • one M.2 M-Key connector with PCIe 2.1 x1 for SSDs

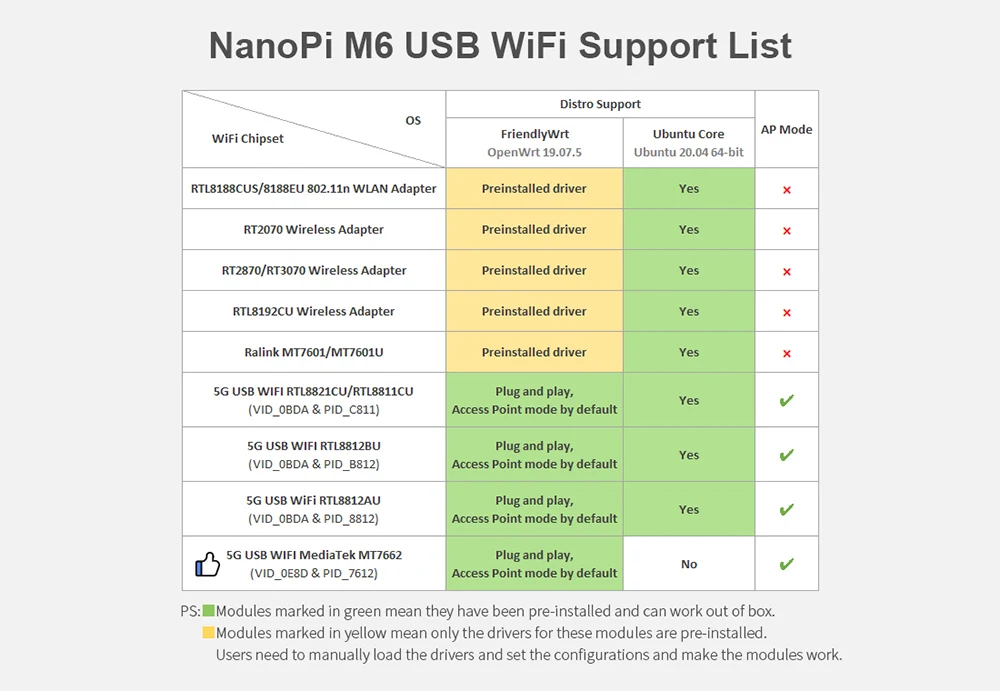

  • one M.2 E-key connector with PCIe 2.1 x1 and USB2.0 Host for Wi-Fi&BT

• microSD: support up to SDR104 mode

• Video input:

  • 1x 4-lane MIPI-CSI V1.2

  • 1x 4-lane MIPI-CSI D/C PHY

• Video output:
  • 1x Standard HDMI output ports

    • compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation

    • support displays up to 7680x4320@60Hz

    • Support RGB/YUV(up to 10bit) format

  • 2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1

• Audio:

  • 1x 3.5mm jack for stereo headphone output

  • 1x 2.0mm PH-2A connector for analog microphone input

• GPIO:

  • 30-pin 2.54mm header connector

  • up to 1x SPI, 6x UARTs, 3x I2Cs, 1x SPDIFs, 4x PWMs, 20x GPIOs

• Debug: UART via 3-Pin 2.54mm header

• LEDs: 2 x GPIO Controlled LED (SYS, LED1)

• others:

  • 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

  • Buttons: MASK, Reset, Recovery, Power

  • one 5V Fan connector

• Power supply: USB-C, support PD and DC, 6V~20V input

• PCB: 8 Layer, 62x90x1.6mm

• Ambient Operating Temperature: 0℃ to 70℃
