8GB RAM Banana Pi BPI-R4 Router Board with WiFi7 MediaTek MT7988A Internet Servi

Product Description

Introduction

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design ,8GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high performance open source router development board.

MediaTek MT7988(Filogic 880)

Mediatek Filogic 880. the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience.

The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2 US下GMII interfaces. 4 PCIe Interfaces,and 2 USB 3.2 en1 Ports.

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC.

To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Application direction

• Internet service Router

• Wifi 7 Wireless Router

• 4G/5G Wireless Router

• Wireless Repeater

• Home security Gateway

• Home Automation

• Nas device

• Network and communication applications

Key Features

• MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor

• 8GB DDR4

• 8GB eMMC flash

• 128MB SPI-NAND Flash

• Micro SD card slot

• 2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)

• 4x Gbe network port

• 1x USB3.2 slot

• 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G

• 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD

• 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)

• 26 PIN GPIO Header for expanding application

• POE function customizable (present version not support POE function)

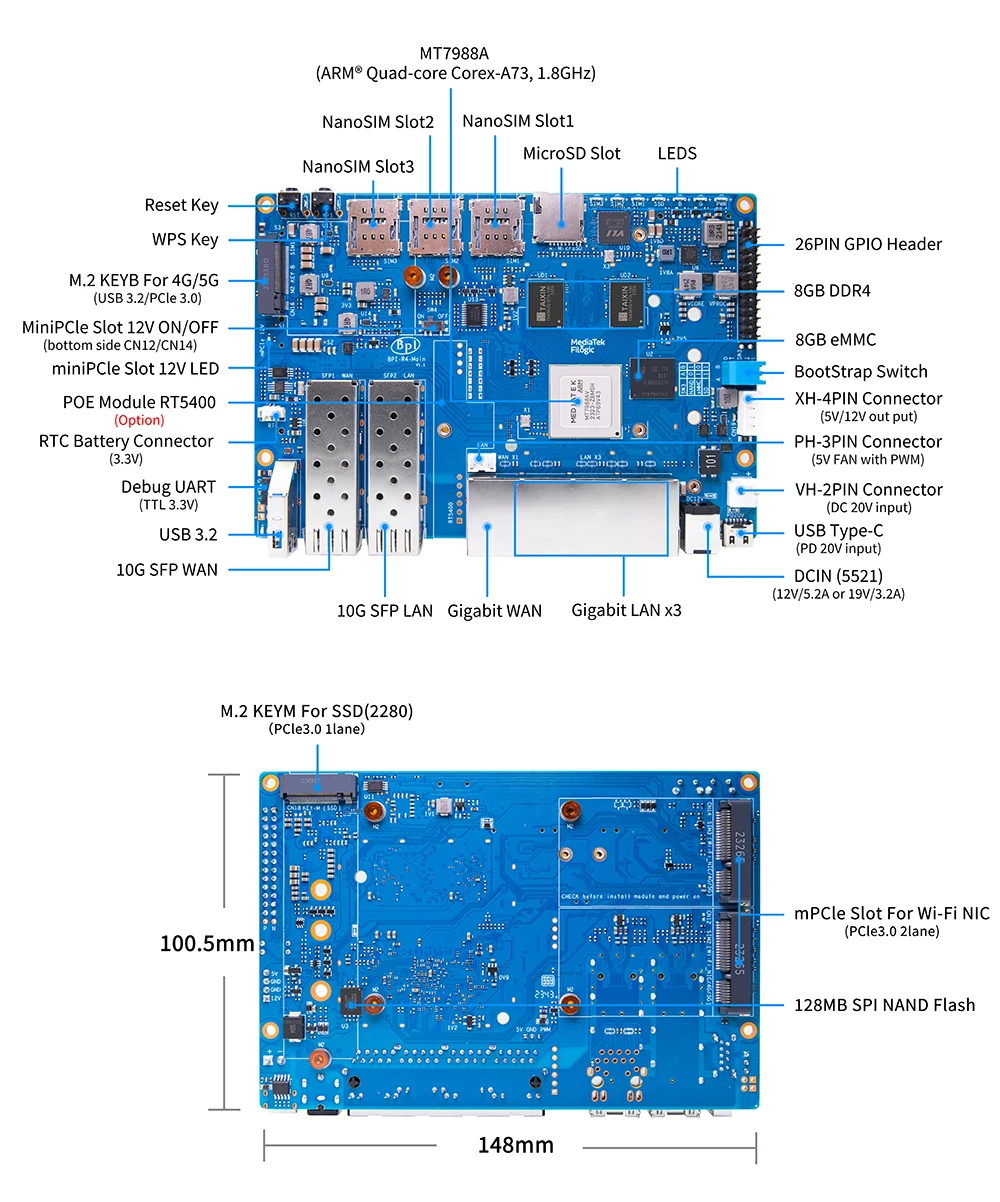

Hardware interface

WiFi7 iPA NIC Module support

BPI-R4 wifi 7 modue use MediaTek MT7996+MT7995+MT7977A+MT7977B chip design.

Note: BPI-R4 motherboard does not include WIFI7 module!

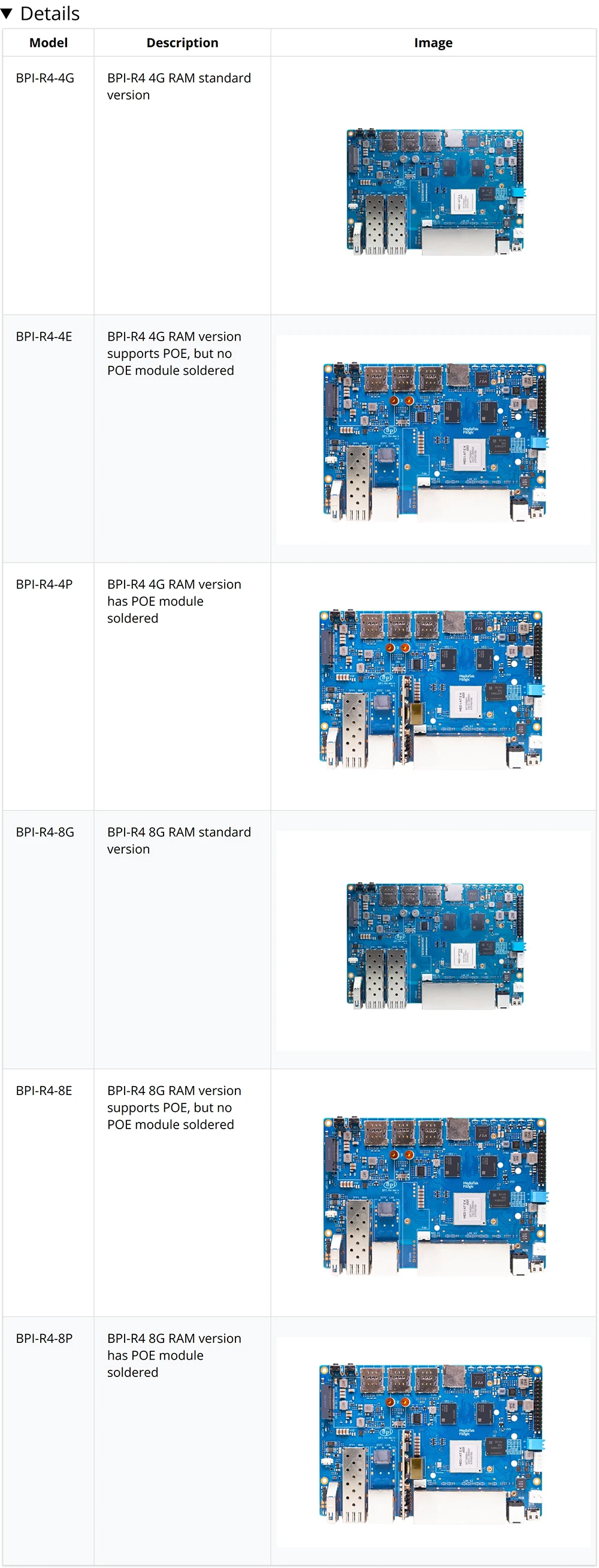

BPI-R4 Model Comparison

Hardware spec
