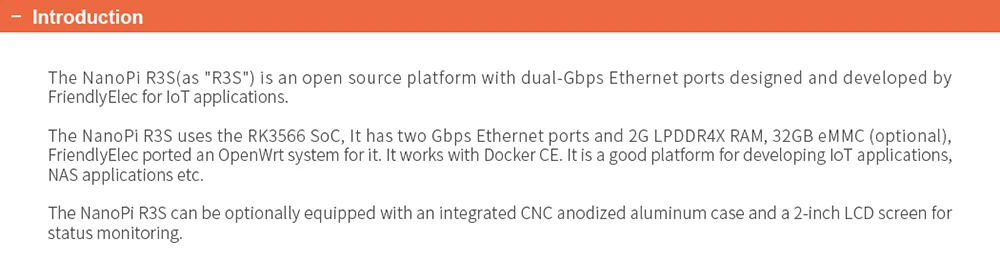

Introduction

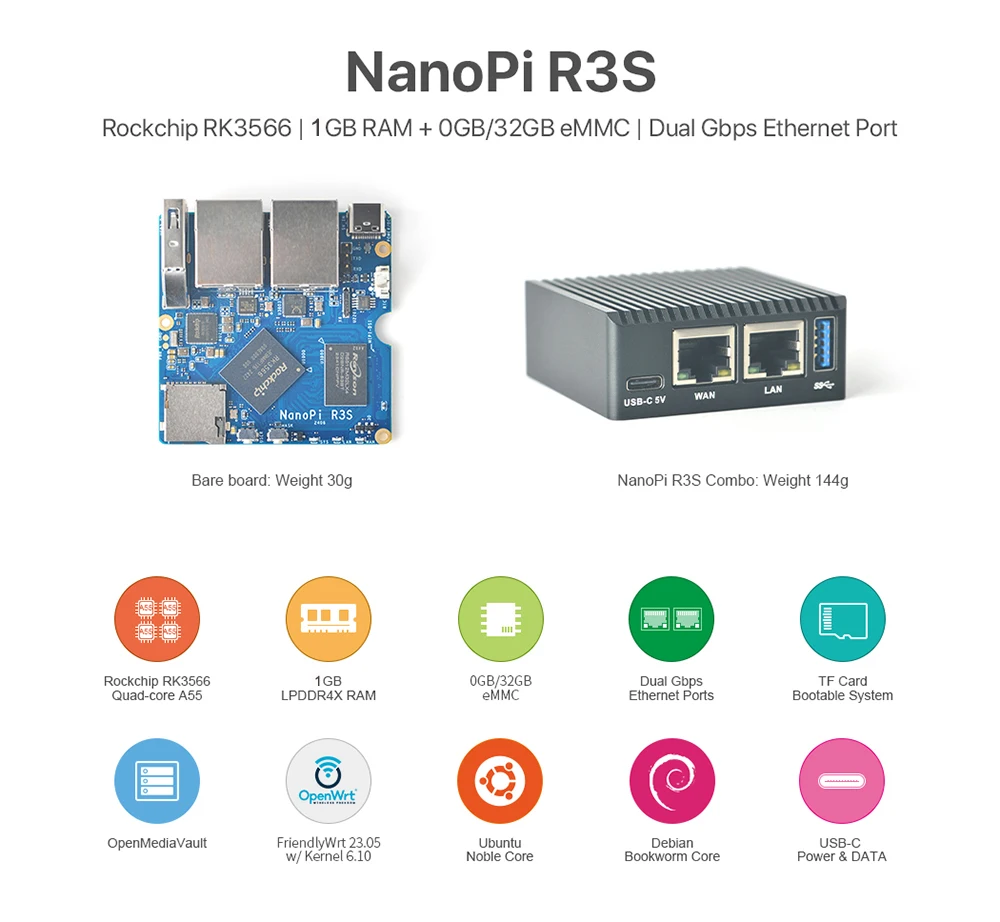

  • The NanoPi R3S(as "R3S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

  • The NanoPi R3S uses the RK3566 SoC, It has two Gbps Ethernet ports and 2G LPDDR4X RAM, 32GB eMMC (optional), FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.

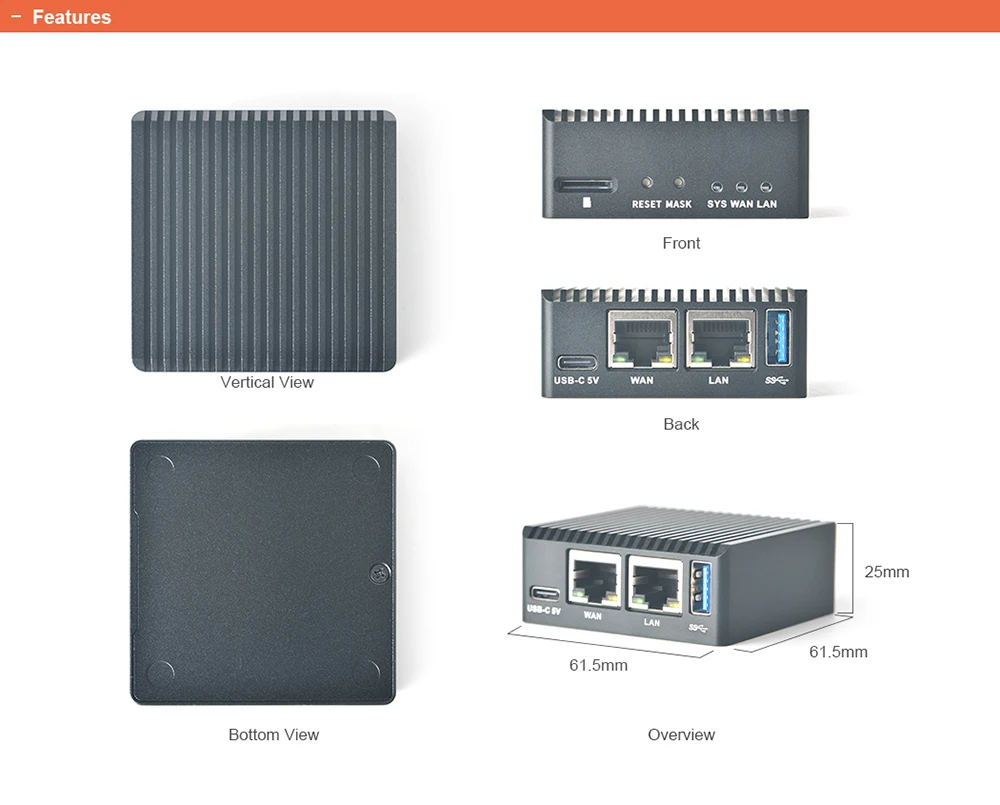

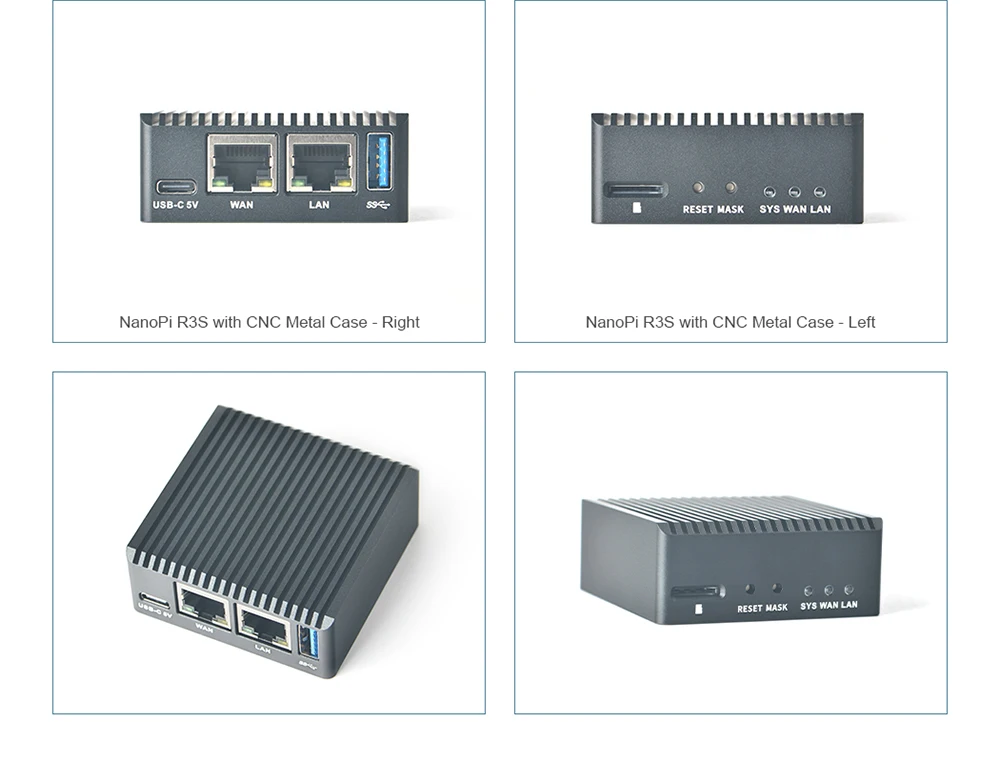

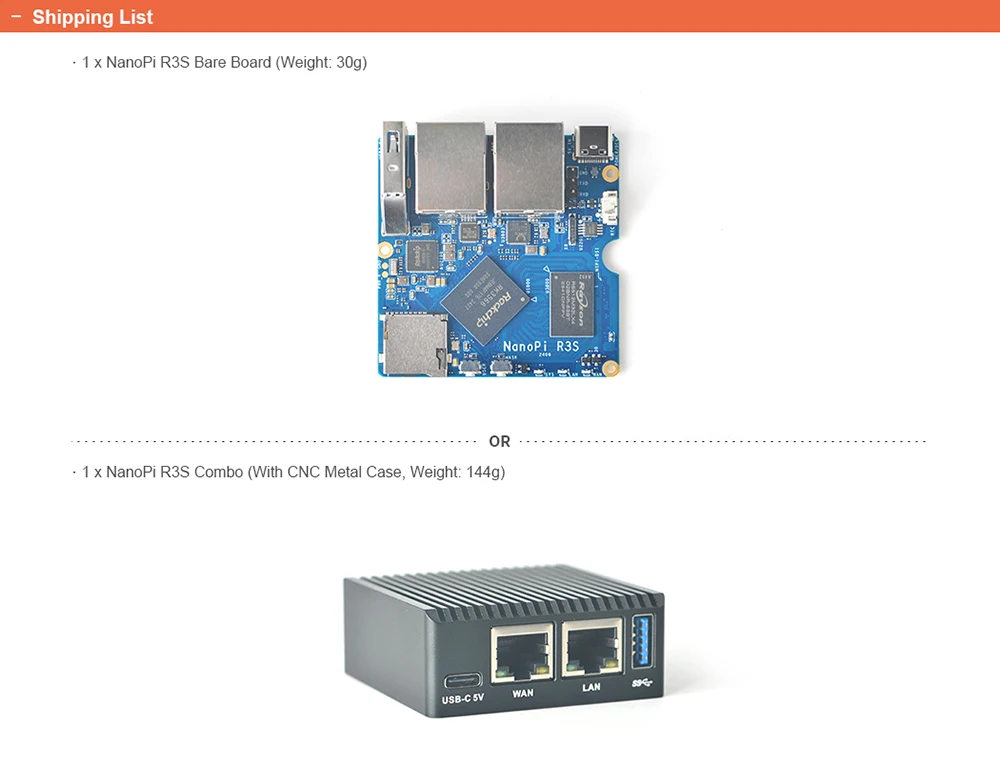

  • The NanoPi R3S can be optionally equipped with an integrated CNC anodized aluminum case and a 2-inch LCD screen for status monitoring.

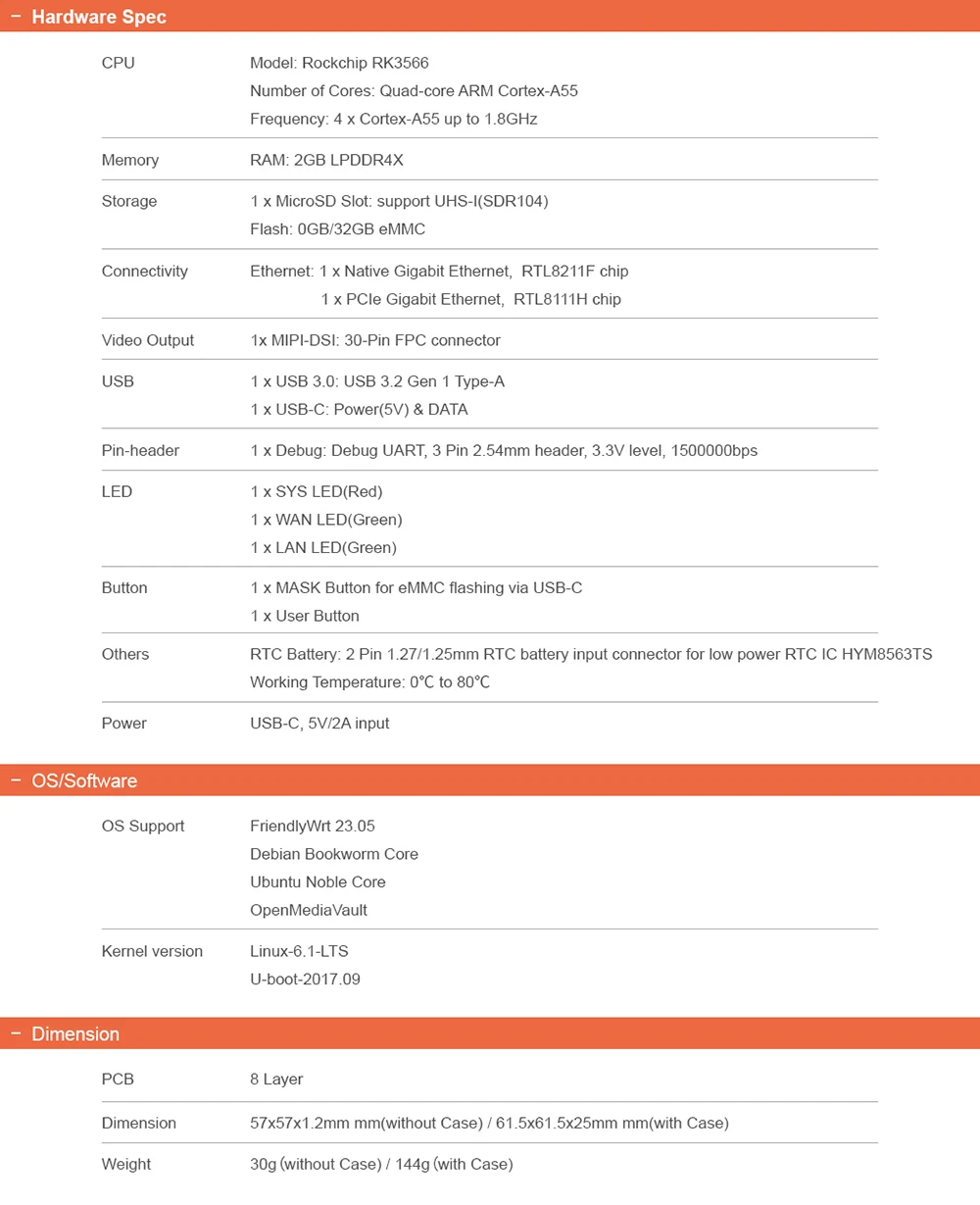

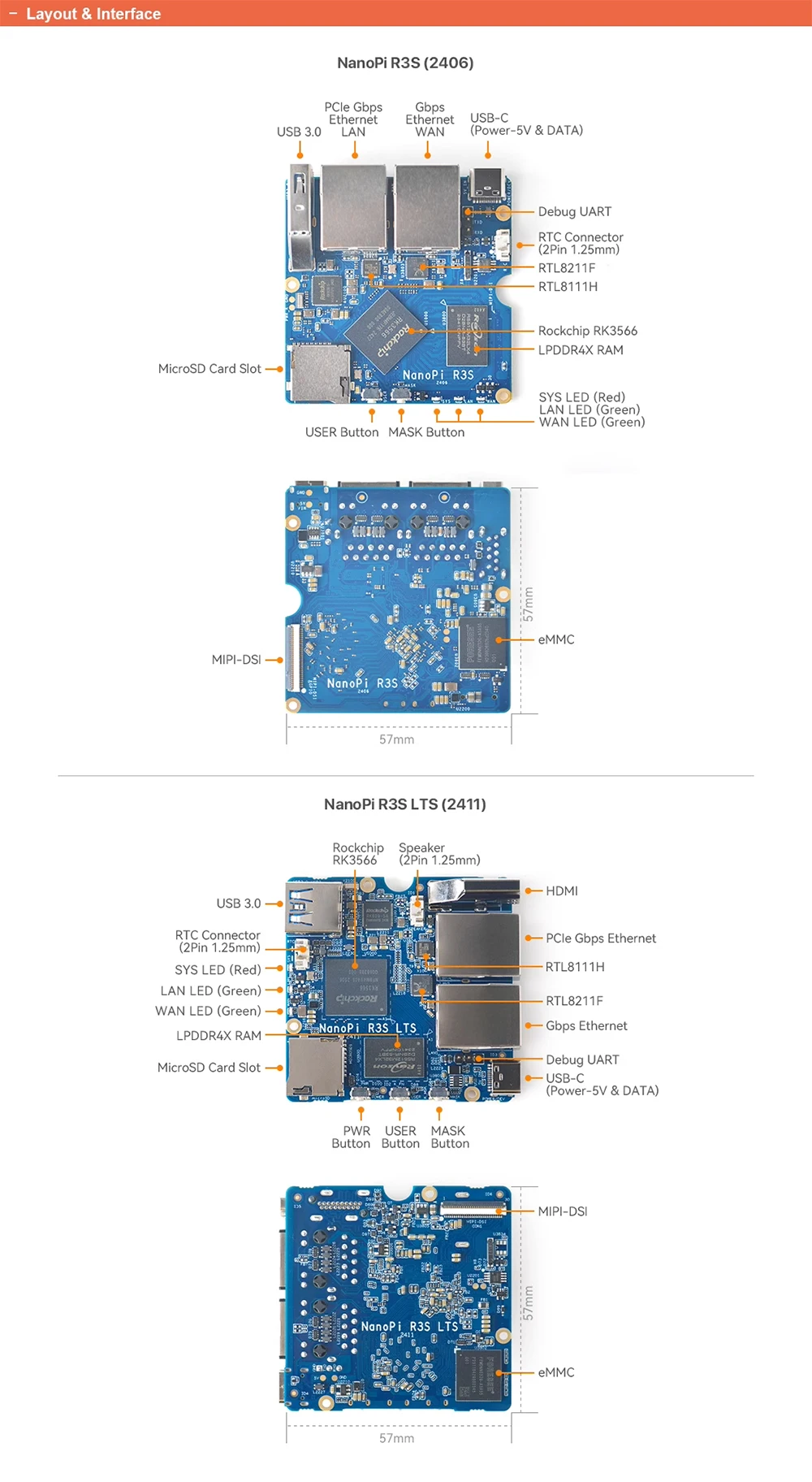

Hardware Spec

  • CPU: Rockchip RK3566, Quad-core Cortex-A55

  • RAM: 2GB LPDDR4X

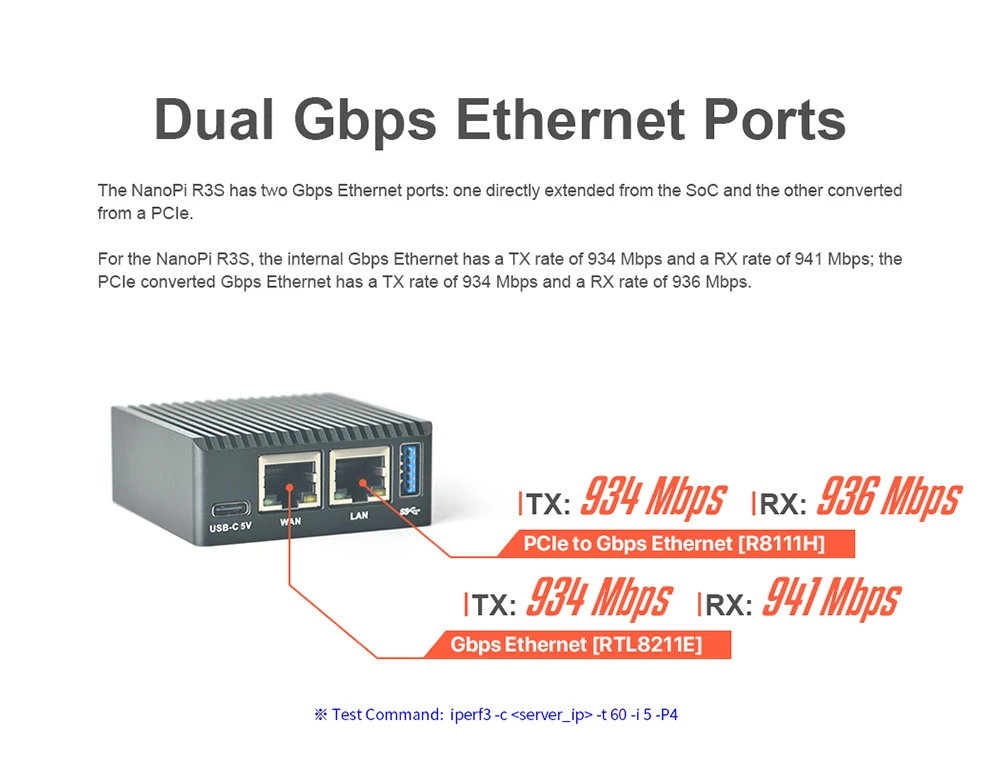

  • Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet

  • USB3.0 Host: Type-A x1

  • Storage: MicroSD Slot x 1, and on-board 32GB eMMC

  • Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds

  • LED: LED x 3

  • RTC: One low-power RTC, support backup battery input

  • Buttons: 1x User BUtton, 1x MASK button for eMMC flashing via USB-C

  • Display: 1x MIPI-DSI 30-Pin FPC connector

  • PCB Size: 57*57*1.2mm

  • Power supply: USB-C 5V/2A input

  • Temperature measuring range: 0℃ to 80℃

  • OS/Software: U-boot，Ubuntu-Core，Debian-Core，OpenMediaVault, OpenWrt
