CM3588 NAS Kit Computing Module Rockchip RK3588 SoC Development Board On-board P

Product Description

Introduction

• The CM3588 is a high performance ARM module designed and developed by FriendlyElec. It is based on Rockchip’s RK3588 SoC. The regular version has 4/8/16GB LPDDR4x RAM, 64GB eMMC Flash(optional), The CM3588 have four 100-pin connectors, exposing nearly all IO resources.

• The CM3588 computing module boasts a variety of peripherals and expansion interfaces. It can connect to a carrier borad supporting 4 NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1 HDMI-In interface, 2 USB3.0 ports, 1 USB2.0 port, a 2.5G Ethernet interface, and more.

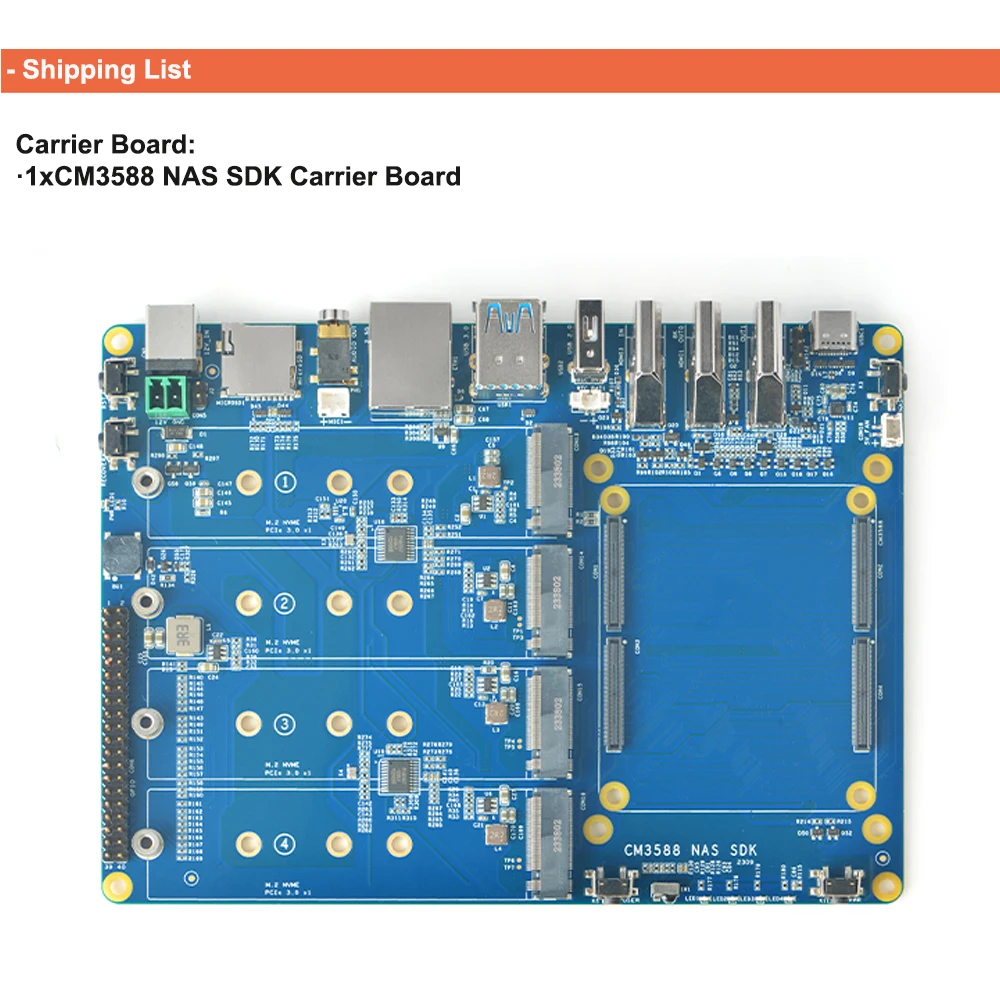

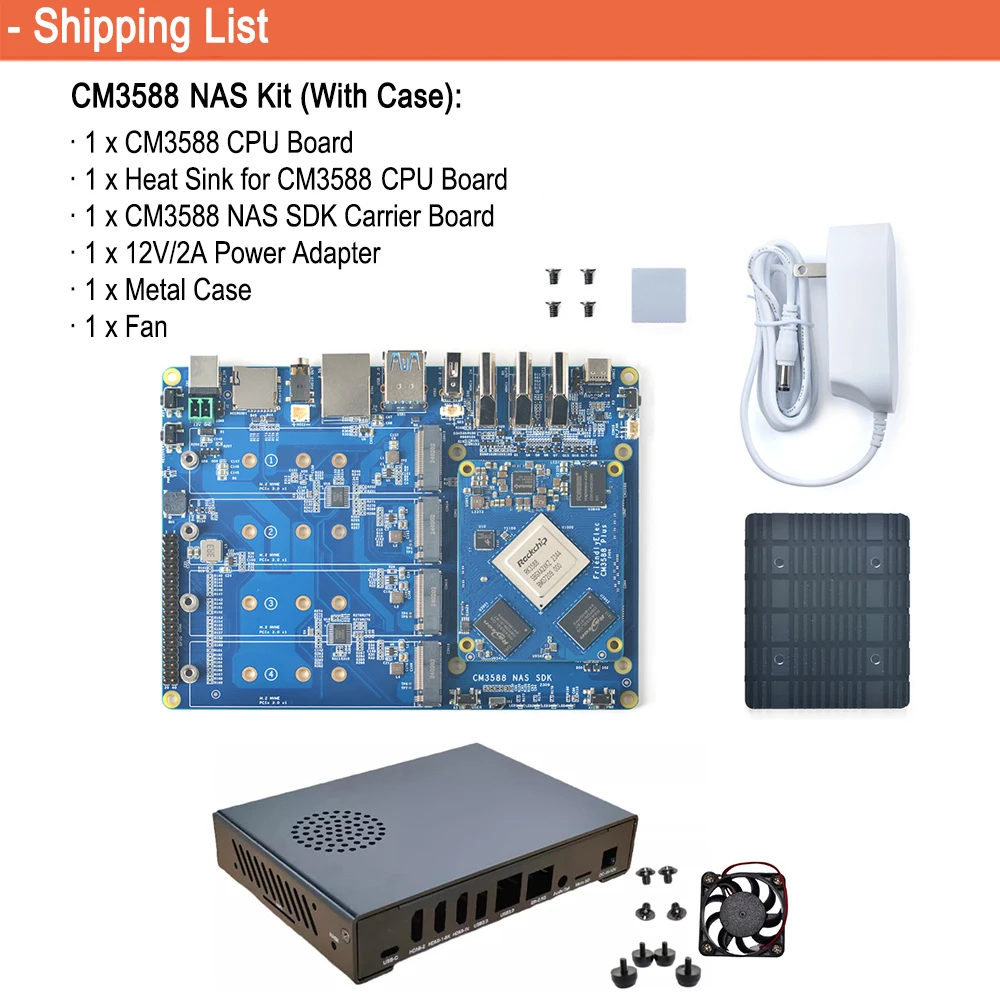

• The carrier borad (CM3588 NAS Kit) have 2 HDMI output interfaces and 1 HDMI In interface can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.

• The CM3588 offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous-driving, deep learning, AI and etc.

Hardware Spec

SoC: Rockchip RK3588

• CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)

• GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2

• VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder

• NPU: 6TOPs, supports INT4/INT8/INT16/FP16

RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz

Flash: 0GB/64GB eMMC, at HS400 mode

1 x microSD interface, support up to SDR104 mode

1 x On-board PCIe 2.5G ethernet controller (RTL8125B)

USB:

• 2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）

• 1 x USB 3.1 Gen1 Host

• 2 x USB 2.0 Host

up to 4 x PCIe interfaces

• 2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2

• or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4

• or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1

• or 4 x PCIe 3.0 x1

HDMI output:

• 2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation

• one support displays up to 7680x4320@60Hz, another one support up to 4Kp60

• Support RGB/YUV(up to 10bit) format

HDMI input: 1 x HDMI input, up to 4Kp60

MIPI RX:

• 2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2

• 2 x 4lane MIPI_D/CPHY_RX

MIPI TX:

• 2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1

Codec:

• On-board ALC5616 Codec

• 1 x stereo headphone output ( 20mW/CH, THD+N <= -80dB, 16Ohm Load )

• 1 x single-end microphone input

GPIO:

• up to 3 x SPIs, 7 x UARTs, 6 x I2Cs, 15 x PWMs, 3 x I2Ss, 1 x SDIO, 81 x GPIOs

others:

• low power RTC (HYM8563TS) with backup battery input

• Support 38Khz IR input

• MASK button for eMMC update, reset button, Power button, and recovery mode button

• Debug UART,3.3V level, 1500000bps

• 2 x GPIO Controlled LED (SYS, LED1)

Power supply: 5~20VDC input, 15W max

PCB: 8 Layers, 55x65x1.6mm

Stacking height: 6.6mm

Connector: 4 x DF40C-100DP-0.4V(51), the mating connector is DF40HC(3.0)-100DS-0.4V(51)

Ambient Operating Temperature: 0℃ to 70℃
