Sipeed NanoKVM-Pro ATX/Desk 4K IP-KVM GbE WiFi6 PoE Mini Remote Control HomeLab

Product Description

Introduction

• NanoKVM Pro is a continuation of NanoKVM. As an IP-KVM product, it inherits the NanoKVM series' ultra-small size and powerful expandability, achieving a qualitative leap in performance and making it more suitable for remote office scenarios.

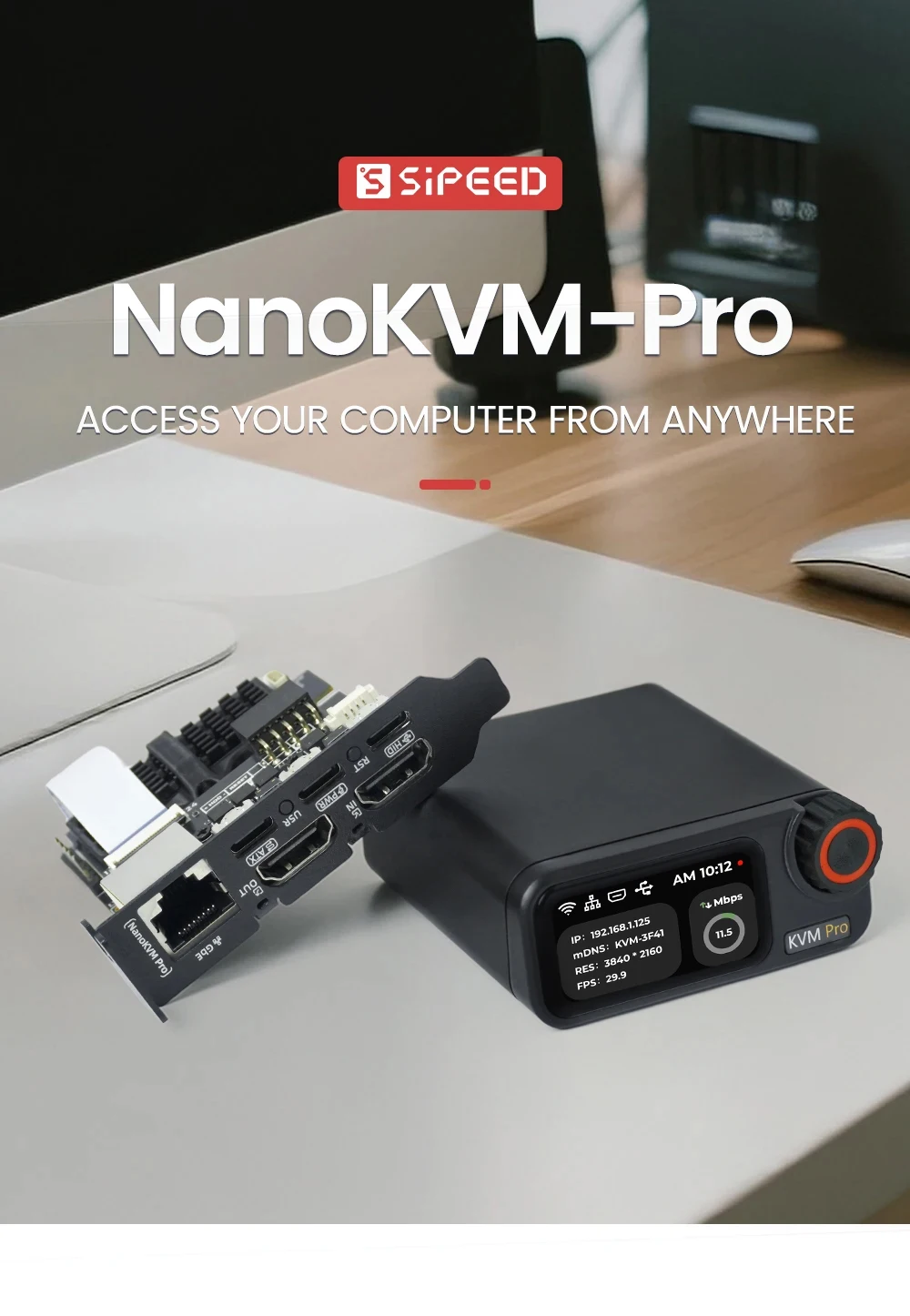

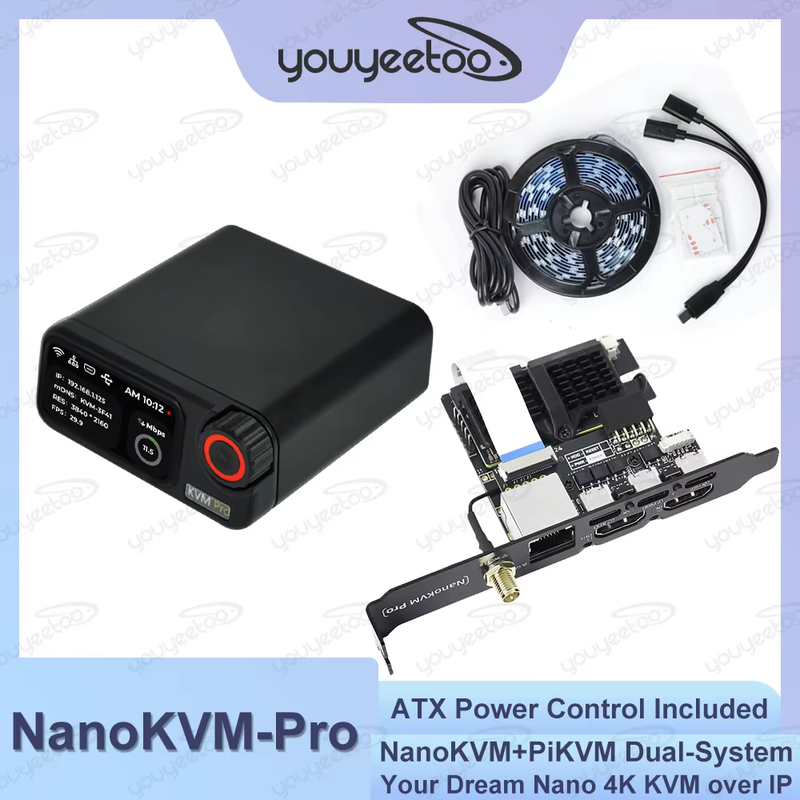

• To meet the needs of different users, NanoKVM Pro offers two forms: NanoKVM-Desk and NanoKVM-ATX:

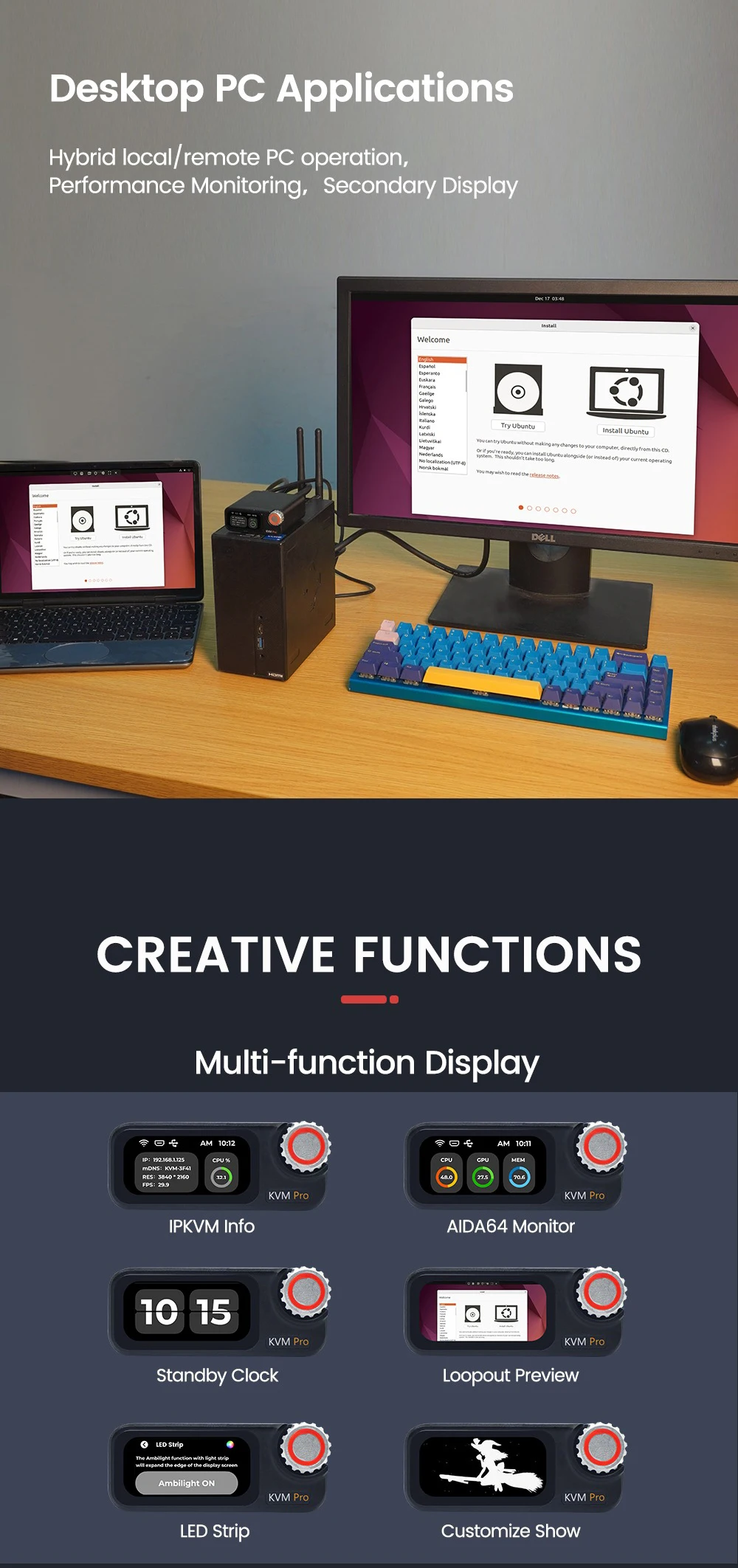

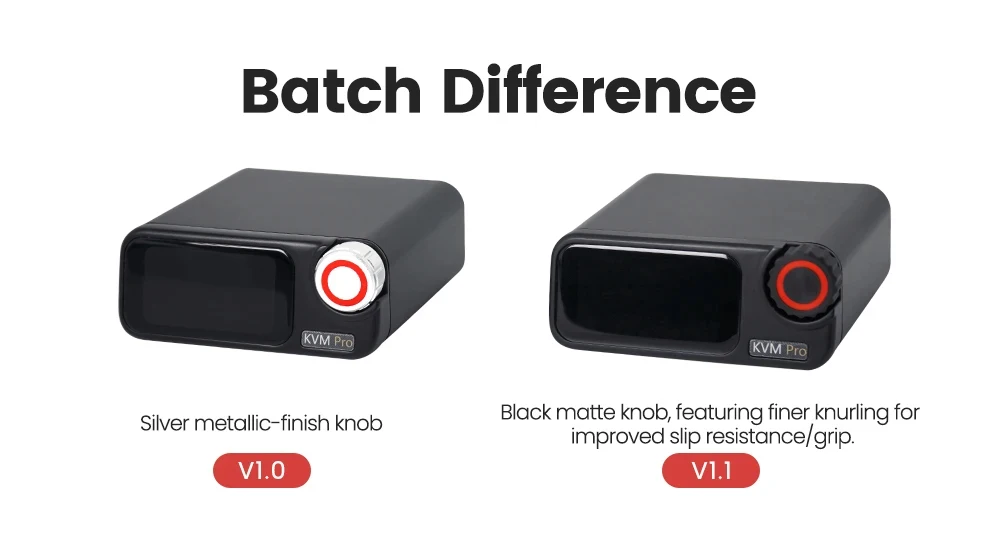

• NanoKVM-Desk is the desktop version of NanoKVM Pro. The main body uses an anodized frosted metal shell, and the front panel uses a 1.47-inch touchscreen to display KVM core information. It can also be used to easily set hardware functions or as a mini secondary screen. Combined with the stepless knob on the left side, it provides a more premium user experience.

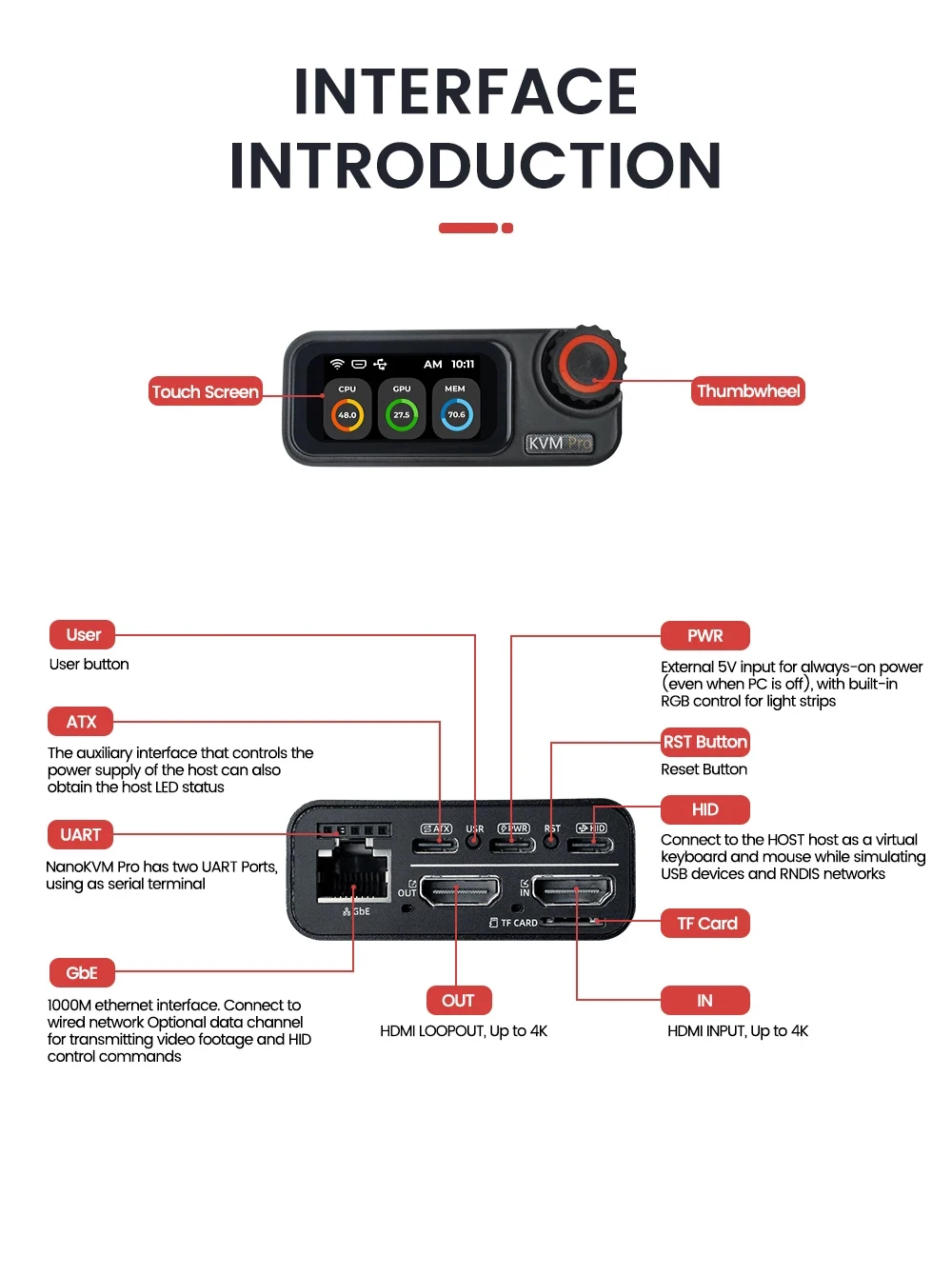

• NanoKVM-ATX is the chassis version of NanoKVM Pro. It comes standard with a half-height/full-height bracket for installation inside the chassis. The built-in USB cable [3] and power control interface make installation easier for host users. Remote control can be achieved by connecting externally via HDMI, Ethernet, and USB.

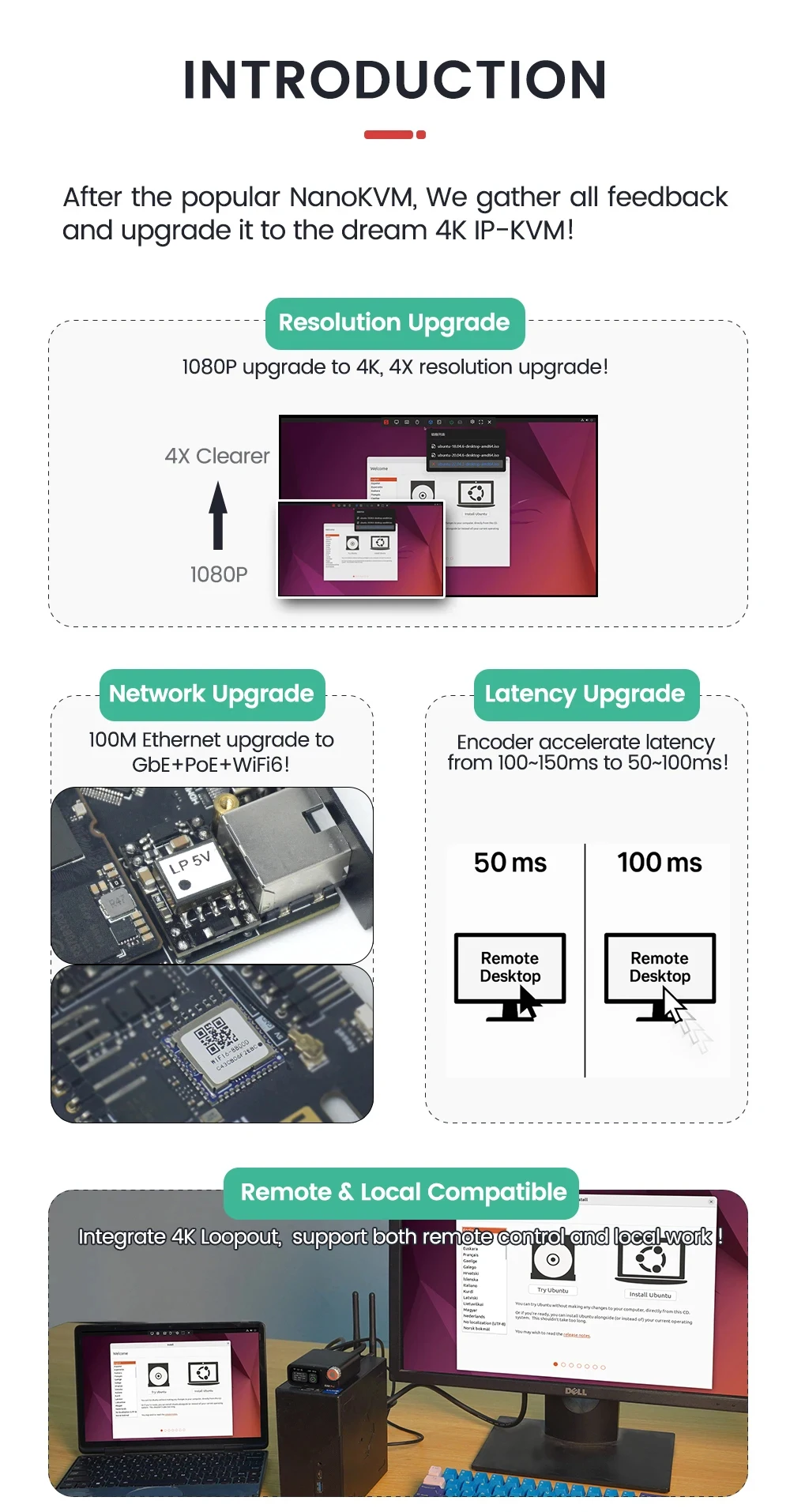

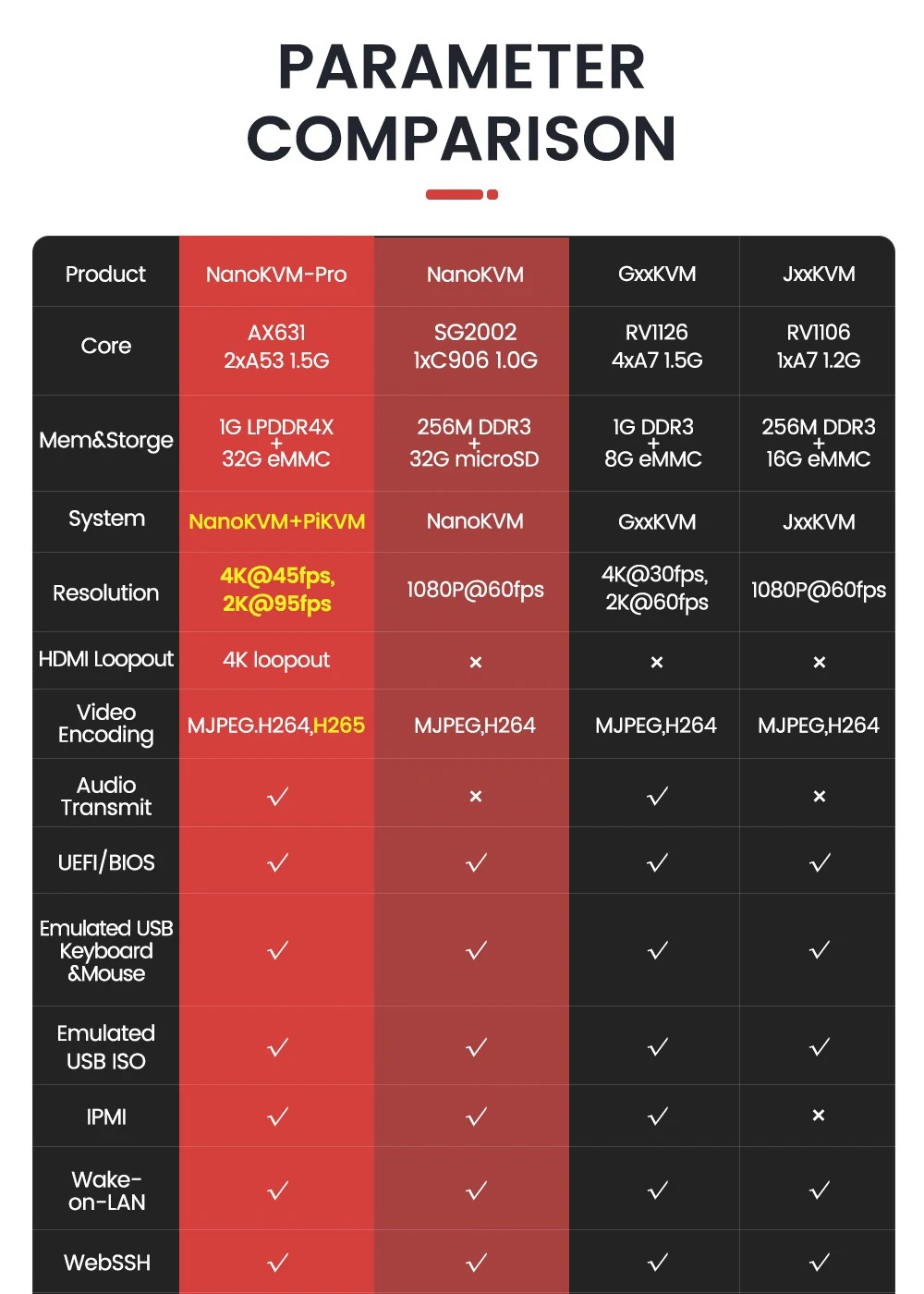

• The NanoKVM Pro uses the AX630 as its main control core and employs an ARM 1.2G dual-core A53 CPU; external 1GB LPDDR4 memory provides powerful computing support for remote desktop connections. It has a built-in HDMI loop-out + acquisition chip, providing up to 4K 60FPS HDMI loop-out and 4K 45FPS video acquisition [1]. Thanks to the efficient and powerful image processing architecture of the AX630, the NanoKVM-Pro can transmit high-resolution images with extremely low latency, with a typical latency as low as 60ms for 2K images.

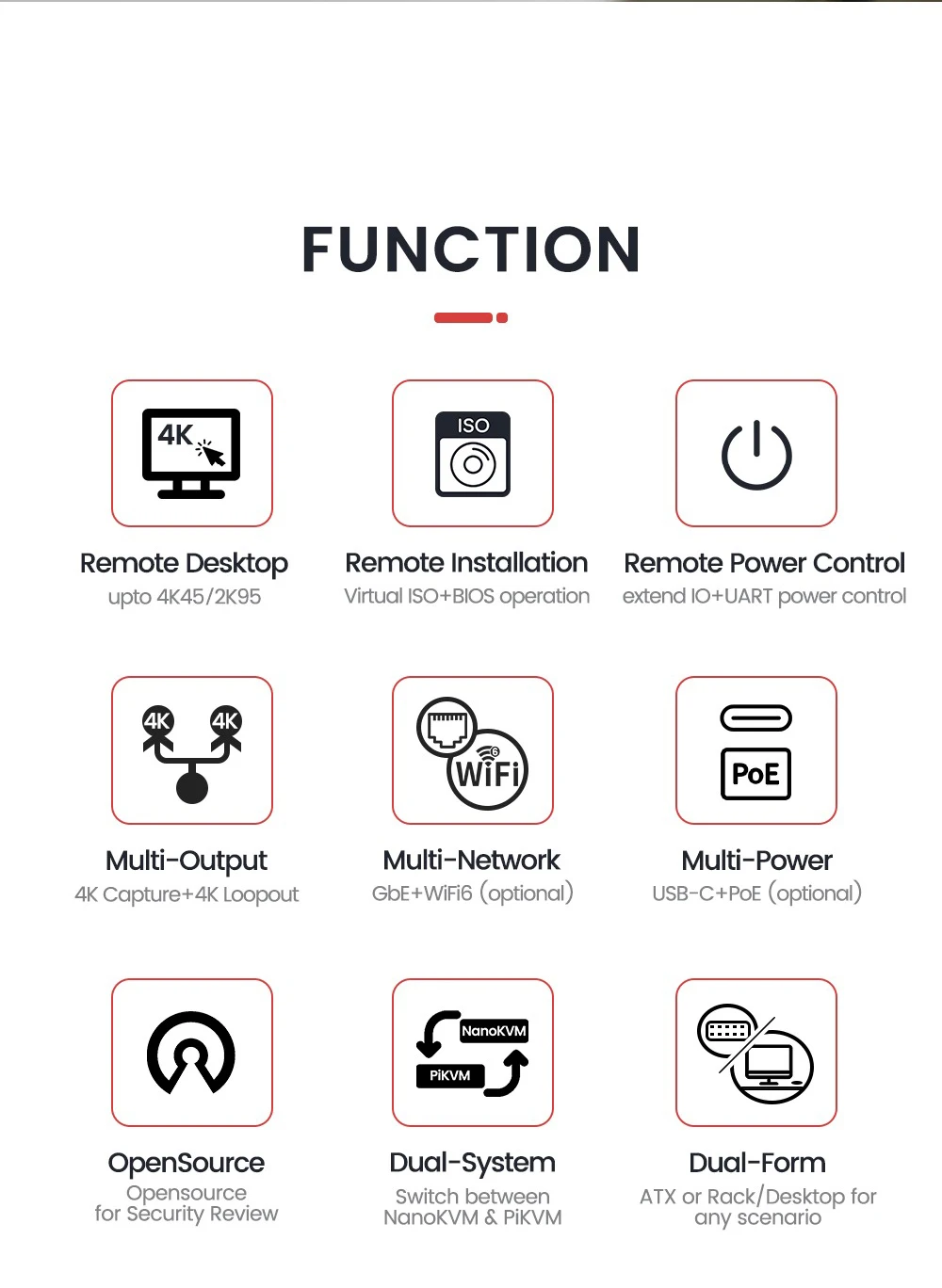

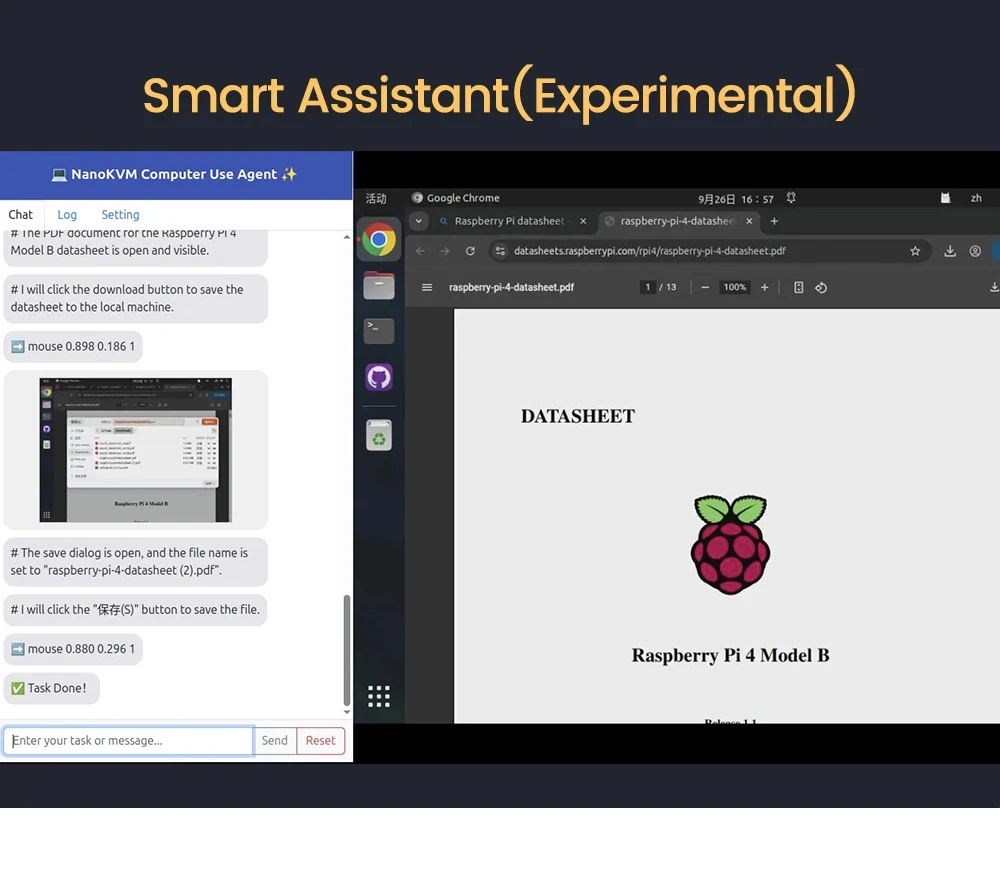

• The IP-KVM series products are hardware add-ons for remote desktops. They capture images via HDMI, synchronize the images and keyboard/mouse operations in real time via the network, and finally simulate keyboard and mouse to control the computer. Since this process does not require host software and is entirely implemented by external hardware, the NanoKVM can achieve BIOS-level control of the host, especially in scenarios such as remote power on/off, multi-system switching, BIOS configuration, and remote installation. Thanks to its upgraded performance, NanoKVM Pro not only provides reliable support for temporary maintenance but also excels in remote work due to its low latency and high resolution. We will continue to upgrade the NanoKVM Pro software, bringing more convenient automation/MCP functions and broader compatibility.

• To meet different user needs, NanoKVM Pro offers options such as WiFi, PoE, and screen edge synchronized light strips.
