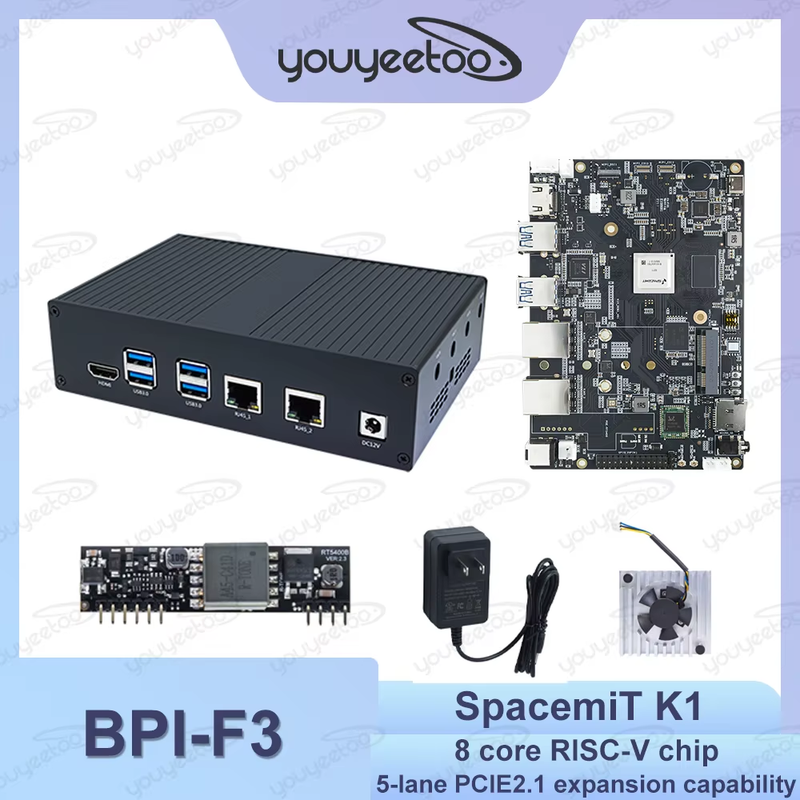

Banana Pi BPI-F3 Industrial Grade Development Board SpacemiT K1 Soft Routing 8 Core RISC-V AI CPU 2.0 TOPs Single Board Computer

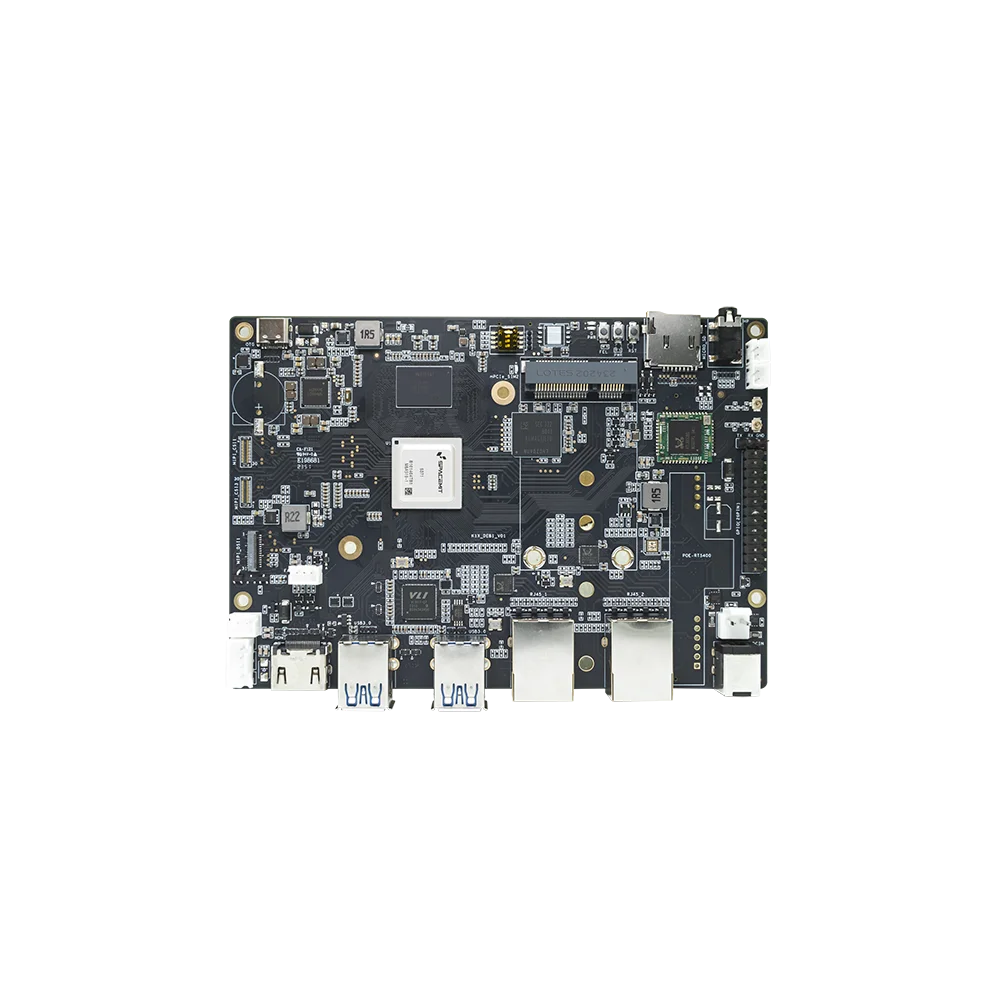

Banana Pi BPI-F3 Industrial Grade Development Board SpacemiT K1 Soft Routing 8 Core RISC-V AI CPU 2.0 TOPs Single Board ComputerBPI-F3 Introduction

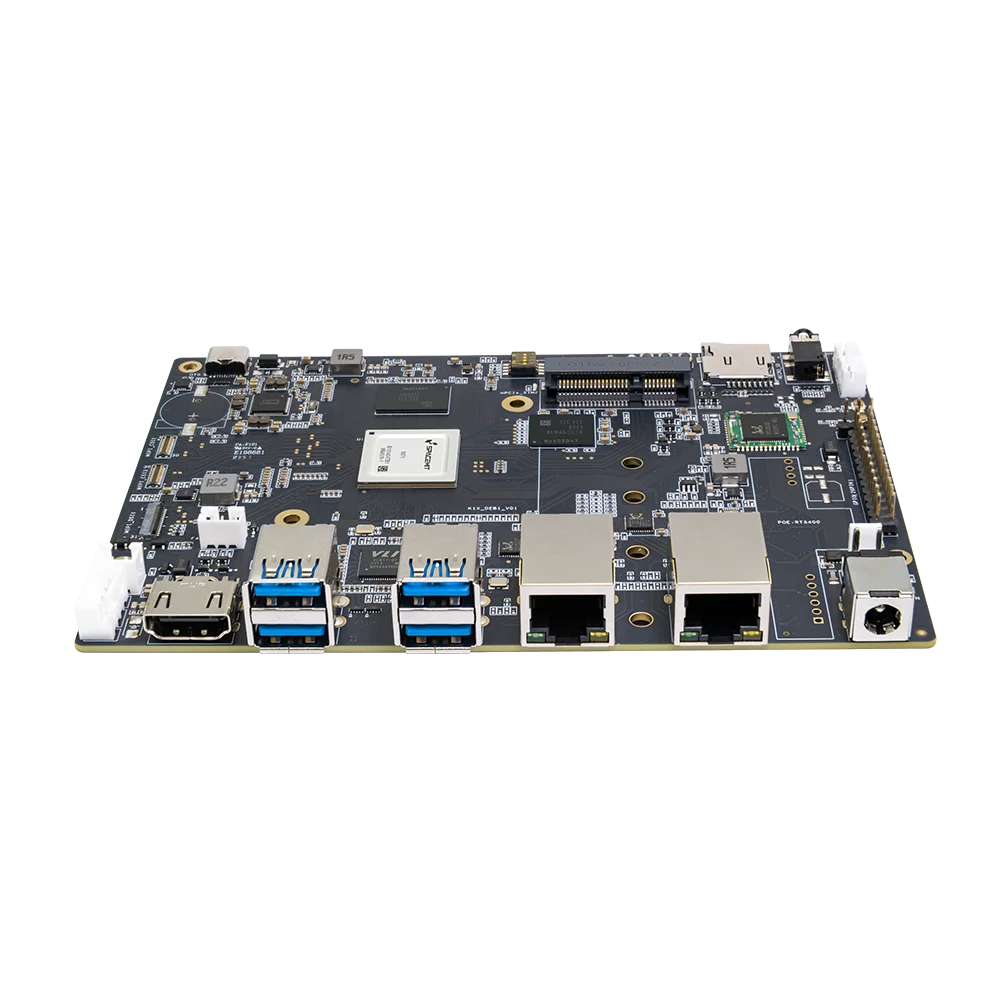

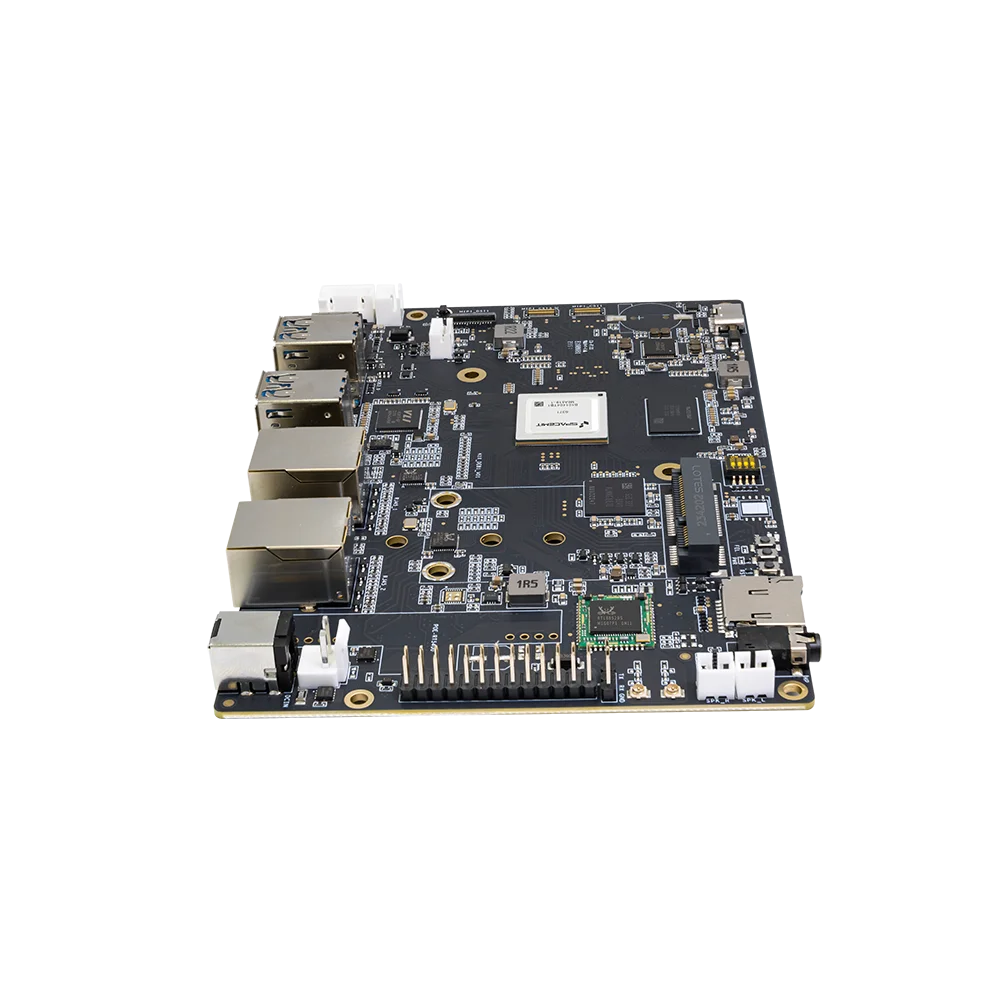

Banana Pi BPI-F3 is a industrial grade RISC-V development board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 2/4/8/16G DDR and 8/16/32/128G eMMC onboard.2x GbE Ethernet prot, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera.
About SpacemiT K1 8 core RISC-V chip
SpacemiT K1 is an octa-core 64-bit RISC-V AI CPU. Base on RISC-V open instruction set architecture,we are committed to create more energy efficient and more commonly used AI processor platform,promote global open source and open ecological computing power construction.
SpacemiT K1 is mainly used for single board computer,network storage,cloud computer,smart robort,industrial control,edge computer,etc.
Key Features
▸8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
▸Single-core general computing power equivalent to 1.3 times Cortex-A55
▸Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
▸4K decoding and encoding
▸5-lane PCIE2.1 expansion capability
▸1x USB 3.0 + 2x USB 2.0 interfaces
▸12x UART serial ports
▸Operating temperature range: -40°C to 85°C
Application direction
▸NAS
▸Laptop
▸Intelligent robotics
▸Industrial control
▸AI edge computing

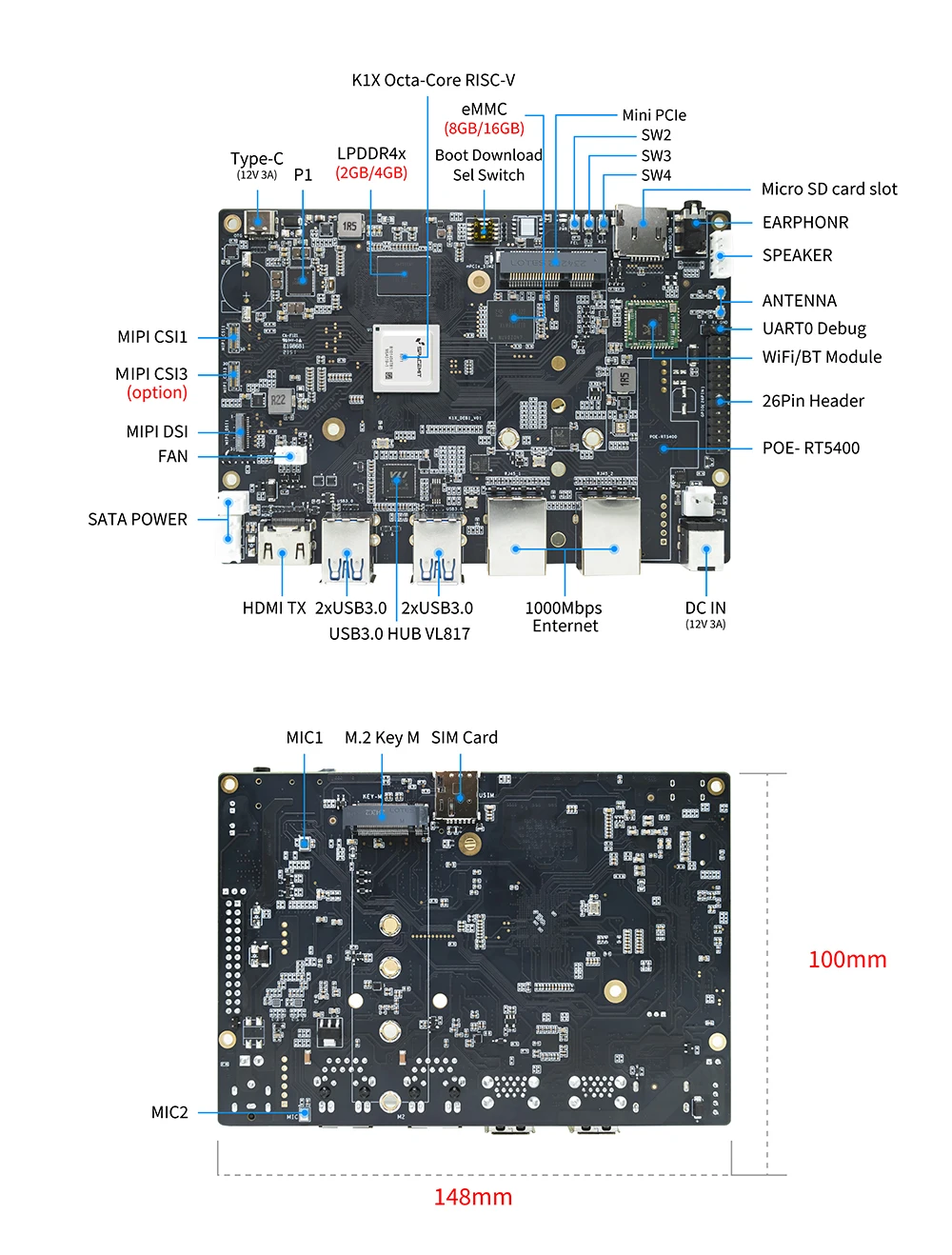

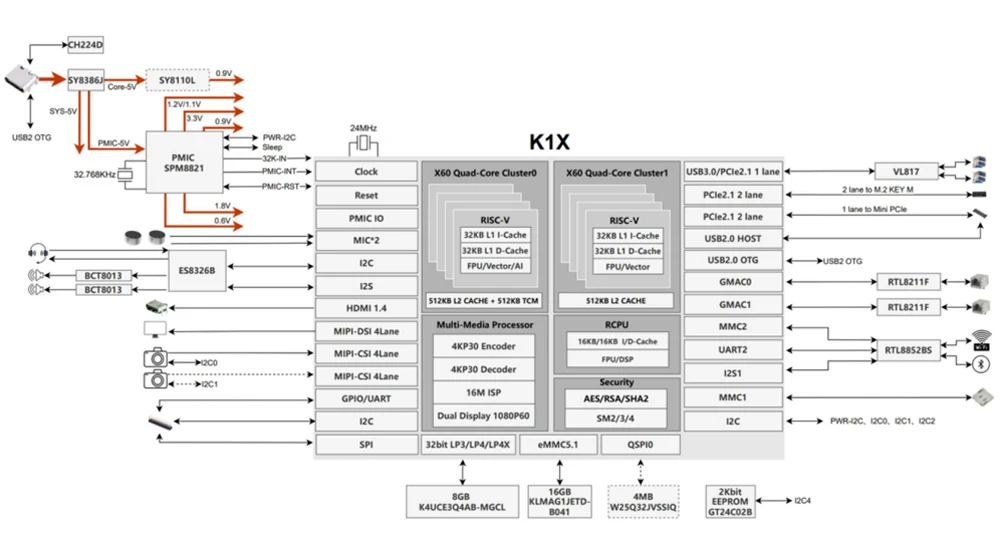

Hardware Interface
Hardware Spec
CPU | SpacemiT K1 Otca-core X60(RV64GCVB),RVA22,RVV1.0 |
AI | 2.0Tops from RlSC-V Core |
GPU | IMG BXE-2-32@819MHz,32KB SLCOpenGL ES1.1/3.2EGL1.50penCL 3.0Vulkan 1.3 |
Memory | 2/4/8/16 GB LPDDR4 (Supports up to 16G LPDDR4) |
Storage | 8/16/32/128 GB eMMC flash.(optional 4M SPI NOR,32M SPI NAND) |
SD card | MicroSD card slot (Use SD card larger than 256M, no upper limit) |
Wireless | 2.4G/5G WiFi and Bluetooth 4.2 |
Ethernet | 2x GbE Ethernet port(supports PoE with add-on PoE HAT) |
HDMI | 1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps ) |
Display | MIPI DSI interface |
Audio | Speaker，Mic， Earphone |
Camera | MIPI-CSI, Dual-shot support |
USB | 4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG |
PCIe | PCIE2.1 2lane * 2. |
GPIO | 26-pin header |
Buttons | Reset, Power and Burn |
LED | Power Status |
Power | DC in and TYPE-C in |
Size | 148x100 mm |
Weight | 200g |
POE support

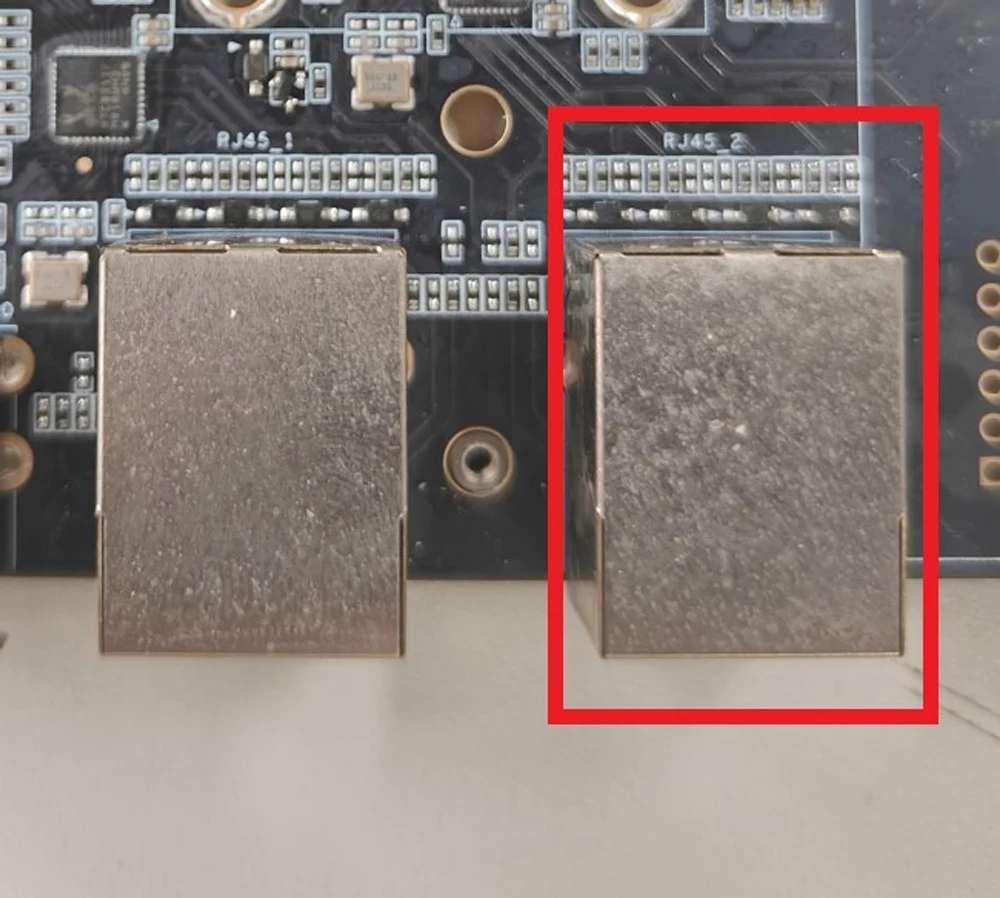

We design PoE function for BPI-F3 ,so easy to add PoE module to support PoE function.After welding the POE module, it is powered by the RJ45-2 interface.

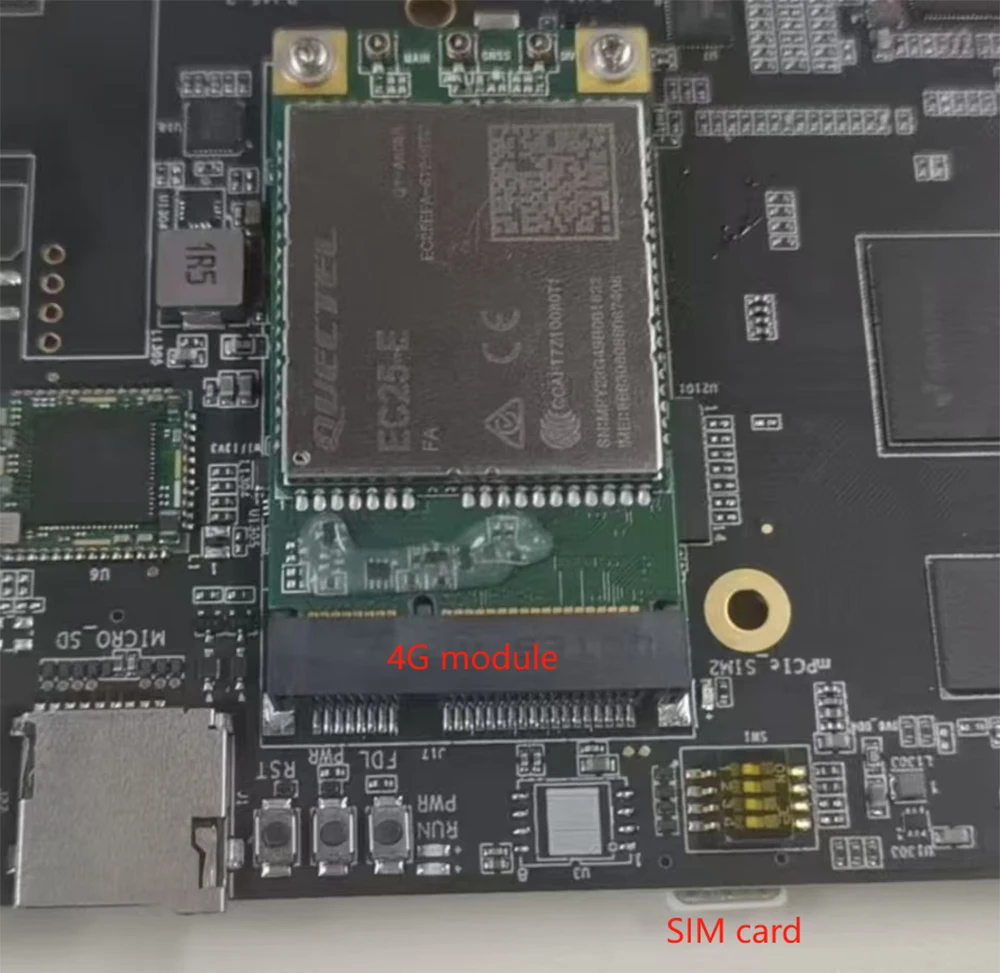

4G module
After connecting to the MINI PCIE interface and inserting the SIM card, it can be used.
