Product Description

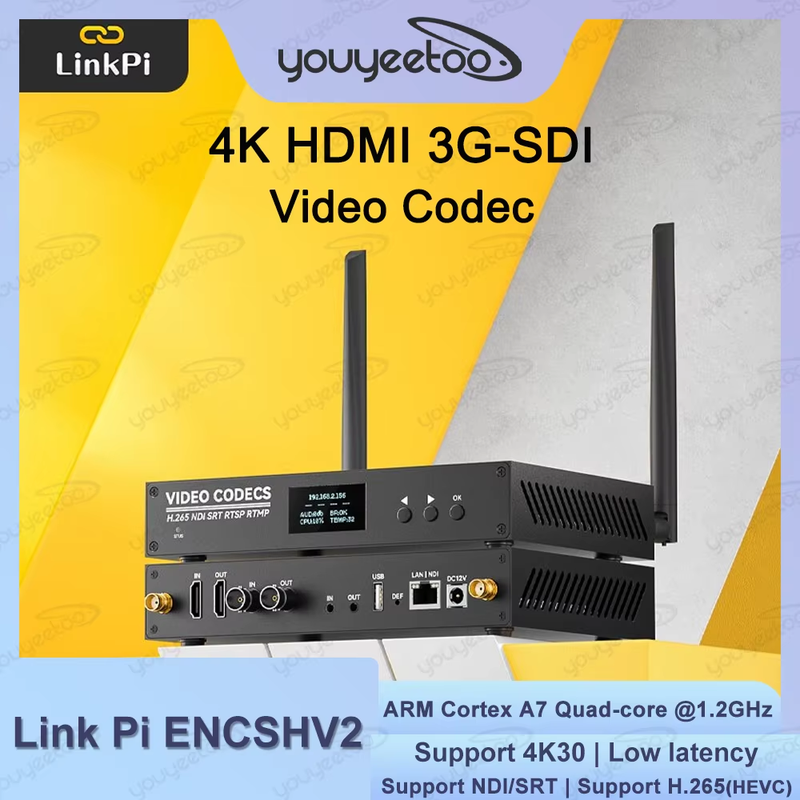

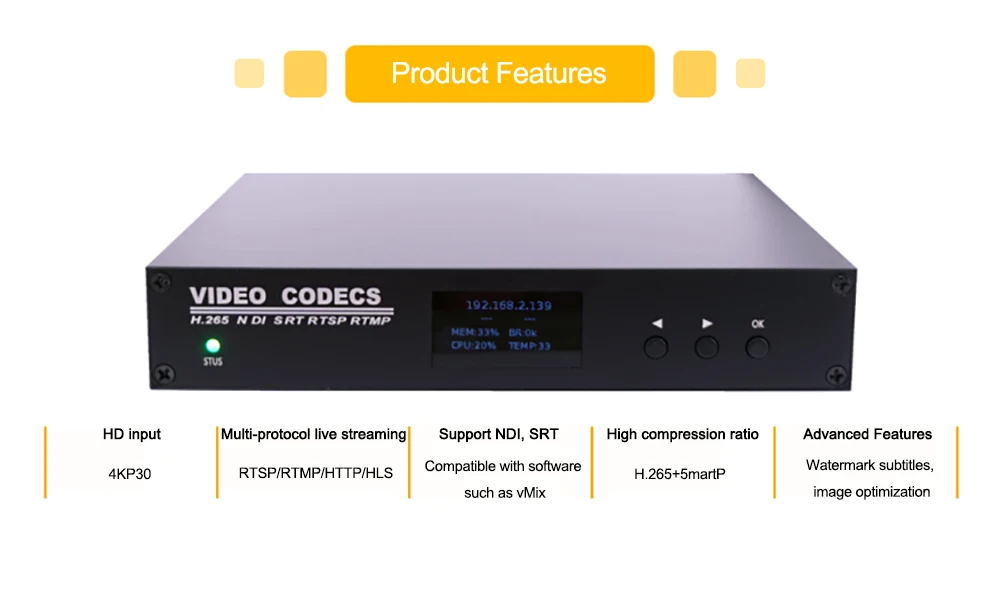

Link Pi ENCSHV2 3G-SDI Encoder 4K 30fps HDMI Decoder Built-in WiFi 6 Support SRT,NDI HX,GB28181 Live Broadcast YouTube, Facebook
Link Pi ENCSHV2 3G-SDI Encoder 4K 30fps HDMI Decoder Built-in WiFi 6 Support SRT,NDI HX,GB28181 Live Broadcast YouTube, FacebookNote:

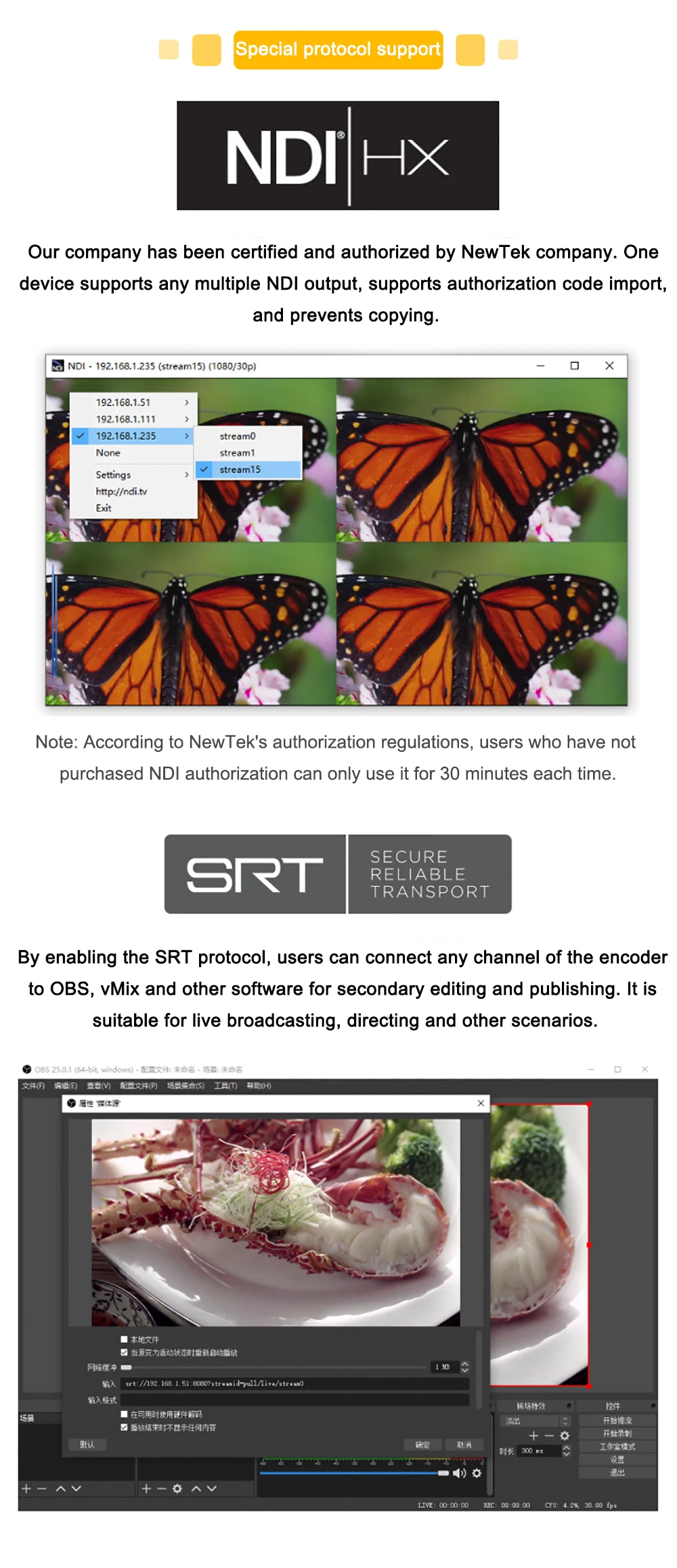

Our company has been certified and authorized by NewTek. One device supports any number of channels of NDI encoding output, and supports one channel of NDI receiving and decoding. You can enjoy both NDI encoder and decoder functions at the same time by purchasing an NDI authorization.
After purchasing, please back up the NDI authorization code, one code per machine to avoid loss.
You can also use NDI DEMO without purchasing an NDI license. It can be used for 30 minutes after startup, and the screen will be black after 30 minutes, and it can be used again for 30 minutes after restarting. But this only affects NDI, not other protocols (such as SRT, RTMP, RTSP, HTTP, UDP, etc.).
Core performance | |
CPU | ARM Cortex A7 4X1.2GHz 32KB l-Cache，32KB D-Cache |
RAM | 2GB DDR4 |
FLASH | 8GB eMmc |
Video parameters | |

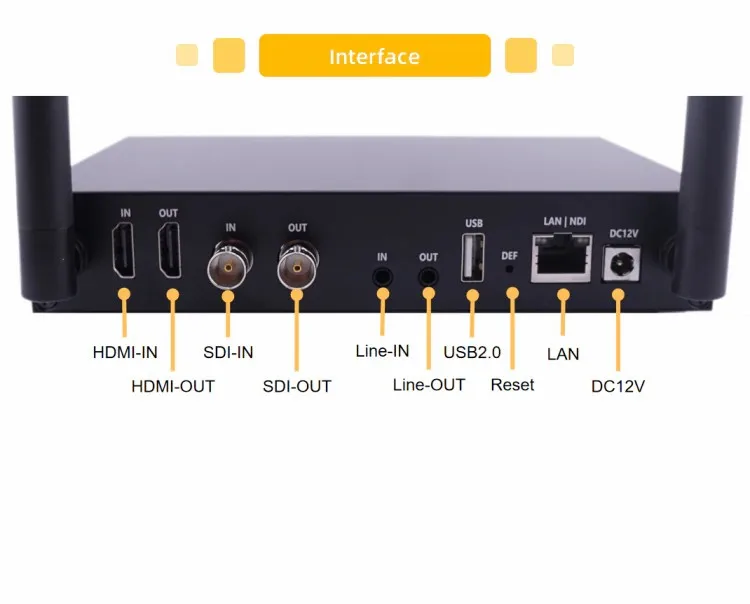

HDMI IN | HDMI 1.4 up to 4K@30fps |
SDI IN | 3G-SDI,up to 1080P60 |
HDMI OUT | Up to 4K30 |
SDI OUT | 3G-SDI Output lnput 4K30,1080P,720P,1080i,720i,1600×1200 |
Resolution | 1440×900,1366×768,1280×1024,1024×768,800×600,640x480 |
Encode | H.264 Baseline profile H.264 Main profile H.264 High profile H.265 Main profile MJPEG/JPEG Baseline |
Decode | H264,H264,MJPEG |
Encode Main | 1080P,720P,360P, customize |
Resolution | Sub: 720P,360P, customize |
Framerate | 1~60 FPS |
Other | Support SmartP, DualP |
Max Bitrate | 20Mbps |
Rate control | CBR/VBR/AVBR/FIXQP/QPMAP |
Audio parameters | |
lnput | HDMI,SDI,3.5mm Line-In |
Output | HDMI,3.5mm Line-Out |
Samplerate | 48K,44.1K,32K,16K,8K |
Codec | AAC,MP3,MPEG2,PMCA,PMCU |
Network parameters | |
LAN | 10/100M RJ45 |

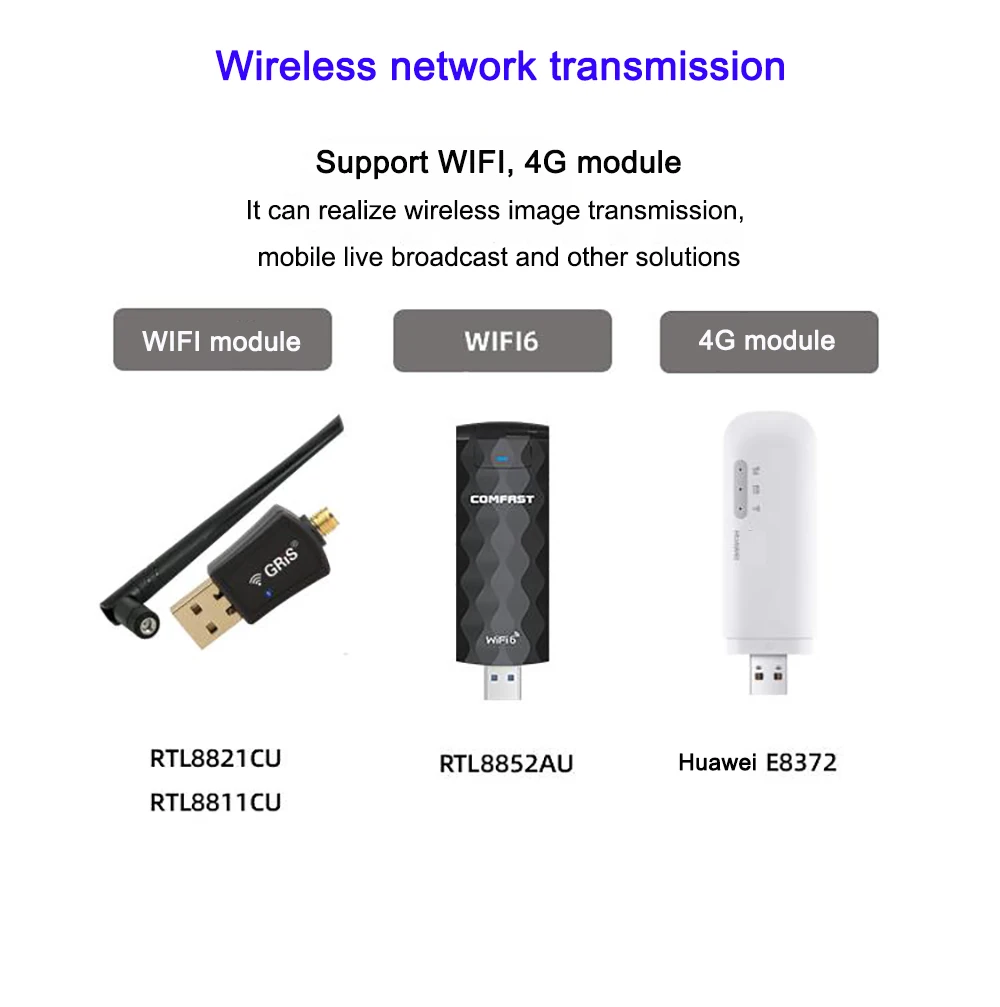

WIFI | Wifi 6(RTL8852BU) |
4G/5G | Optional |

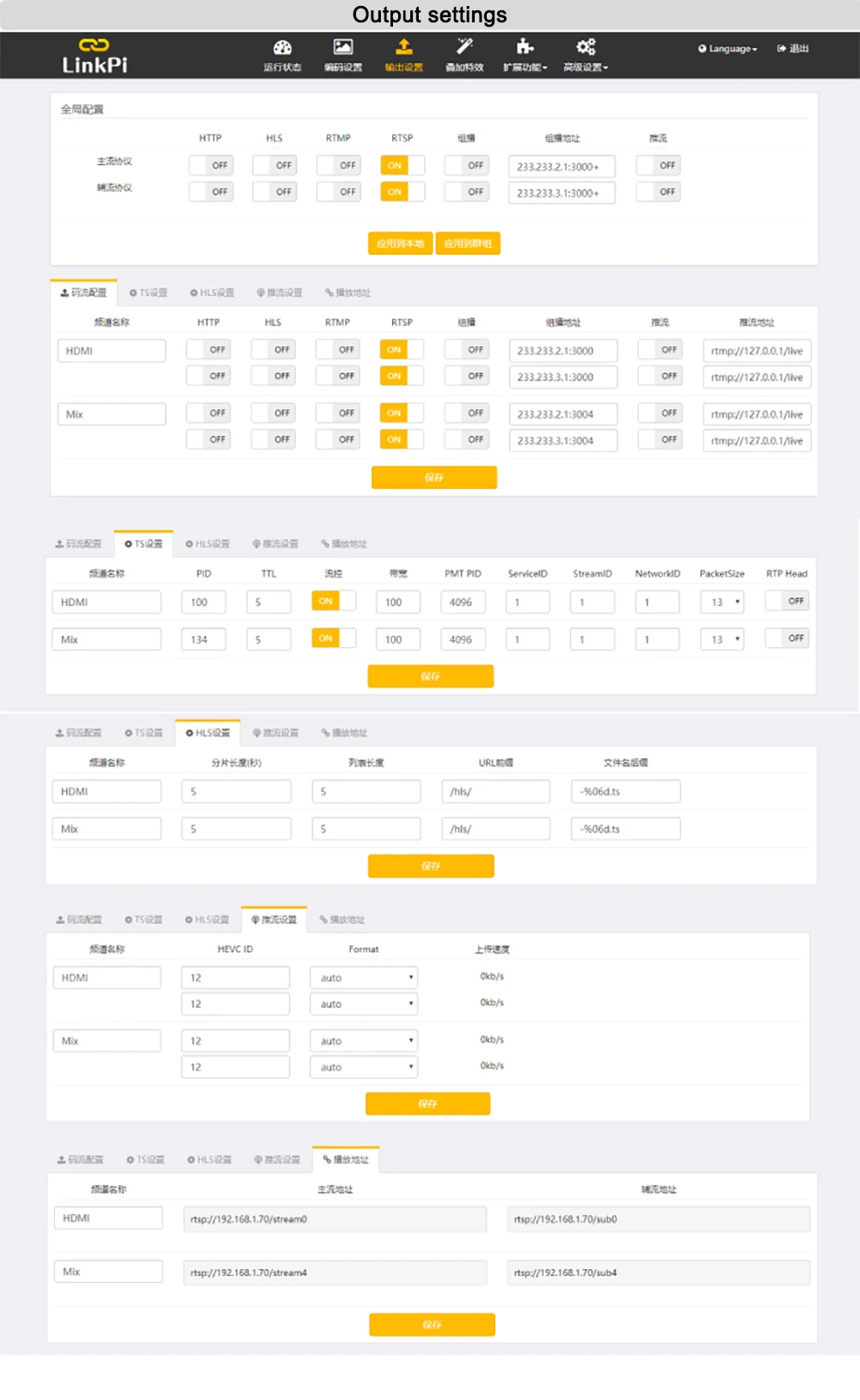

Protocols | RTSP，RTMP,HTTP, HLS, UDP, unicast, multicast |
ONVIF | Support |
SRT | Support |
NDI-HX | Support(license required) |
File record | |
Storage | USB Disk |
Record format | MP4,TS,FLV,MOV, MKV,AVI |
Basic parameters | |
Adapter | DC-12V 2A |
Power | <8w |
Size | 170×110×30 ( mm) |
Software features | |

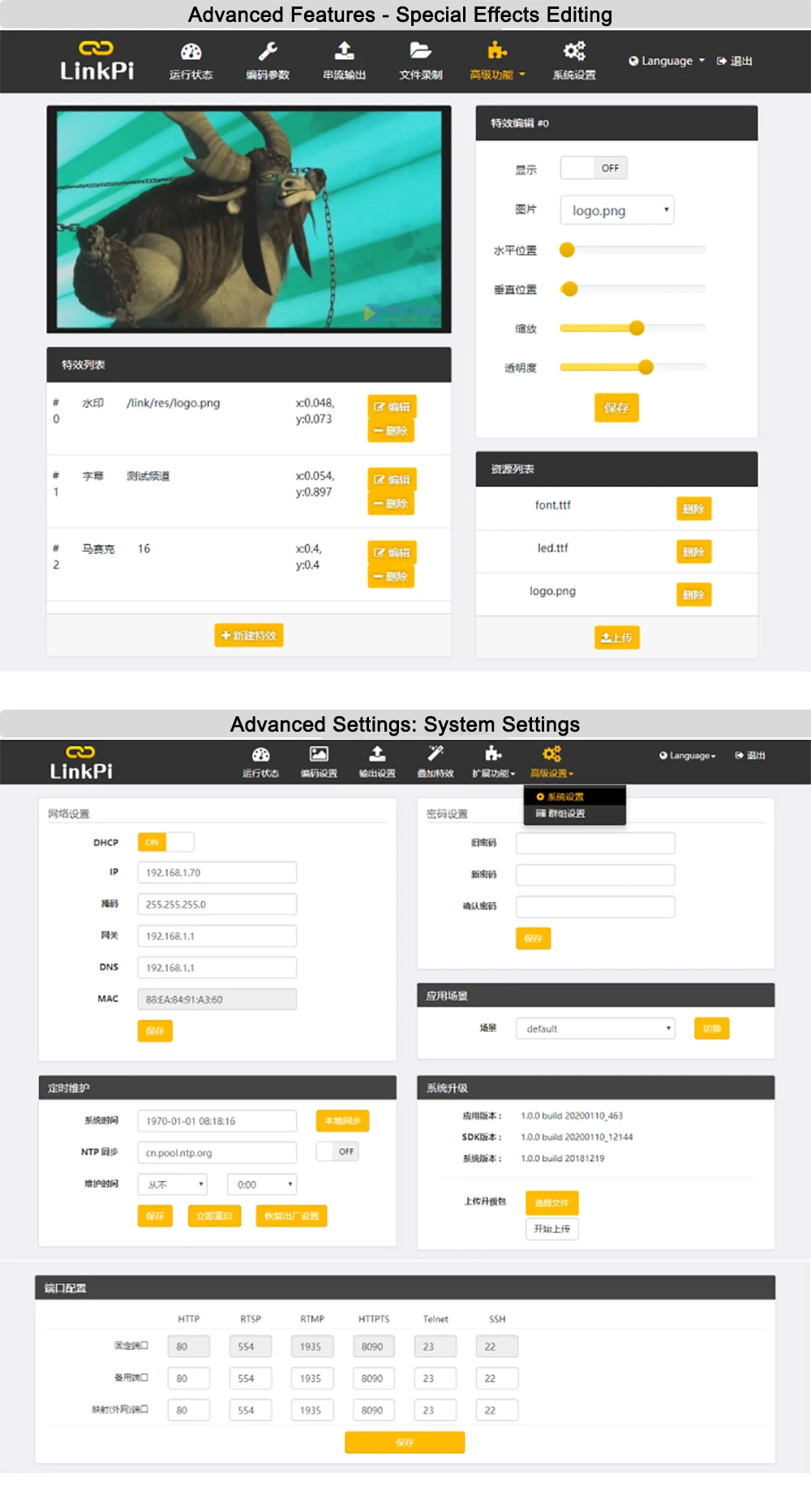

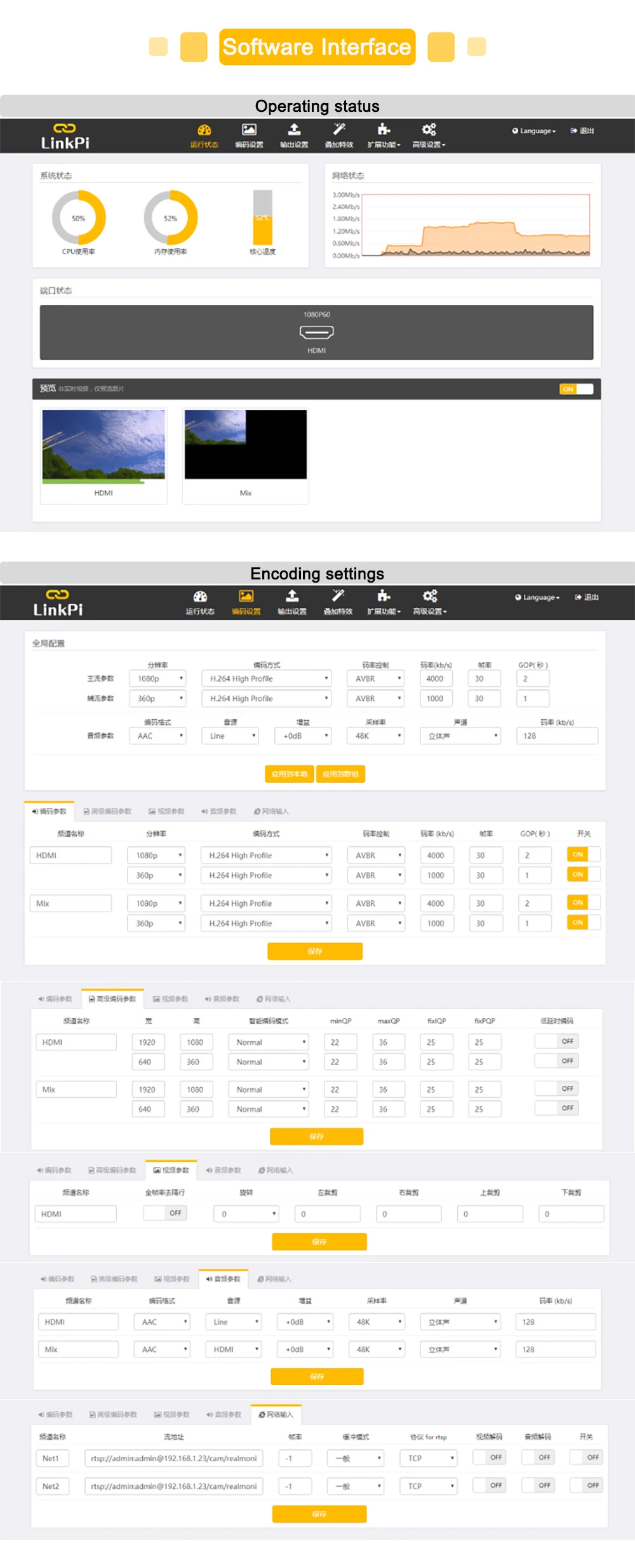

Basic functions | WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
Image adjustment | Brightness, contrast, saturation, color temperature, noise reduction, sharpening |

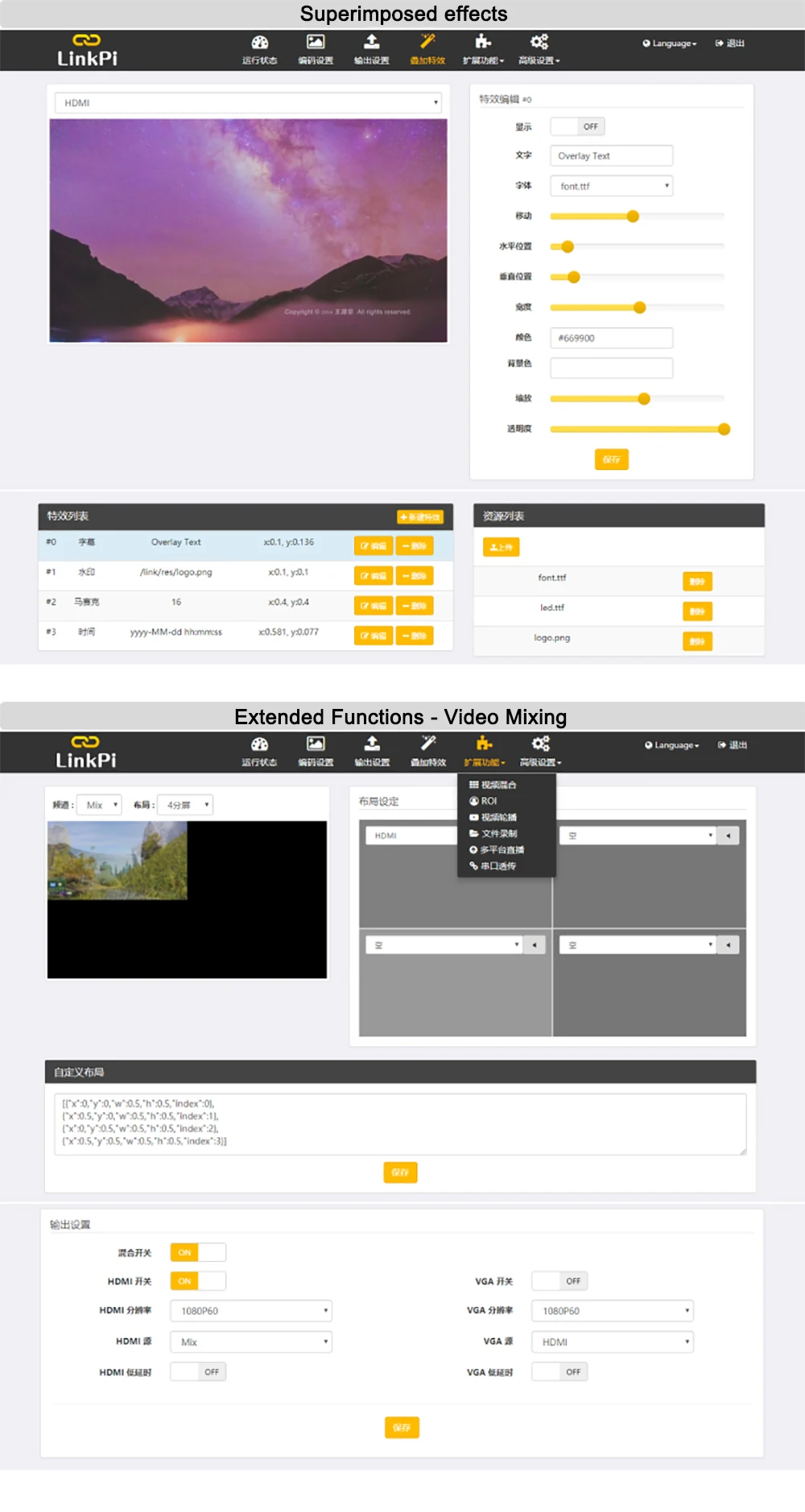

Special effect overlay | Logo, watermark, subtitle, scrolling subtitle, mosaic, time stamp |
Resource management | Custom fonts, upload watermark Logo pictures |
