Product Description
Banana Pi BPI-M2 Berry Mini Single Board Computer Allwinner A40i Quad-core Cortex -A7 CPU SATA Linux Raspberry Pi And Orange Pi

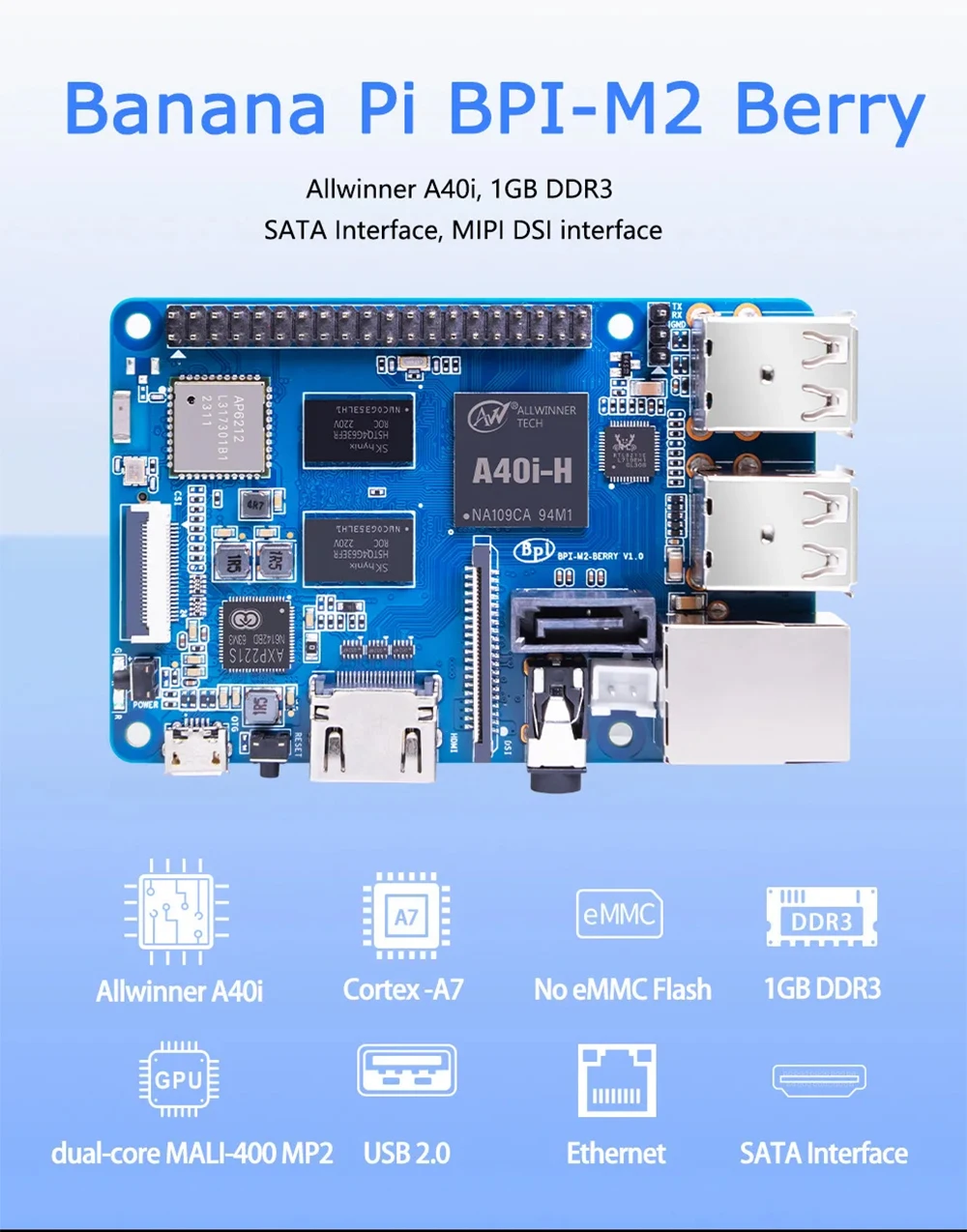

Banana Pi BPI-M2 Berry Mini Single Board Computer Allwinner A40i Quad-core Cortex -A7 CPU SATA Linux Raspberry Pi And Orange PiBPI-M2 Berry Introduction
Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner A40i SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and last but not least, a SATA port.
Also being a member of the Banana Pi family, the M2 Berry is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the V40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
All size is same as raspberry pi 3,so you can use raspberry pi 3 case for BPI-M2 Berry.
Key Features
Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
1GB DDR3 SDRAM.
WiFi & BT onboard
SATA Interface
4*USB 2.0
MIPI DSI interface
CSI camera interface

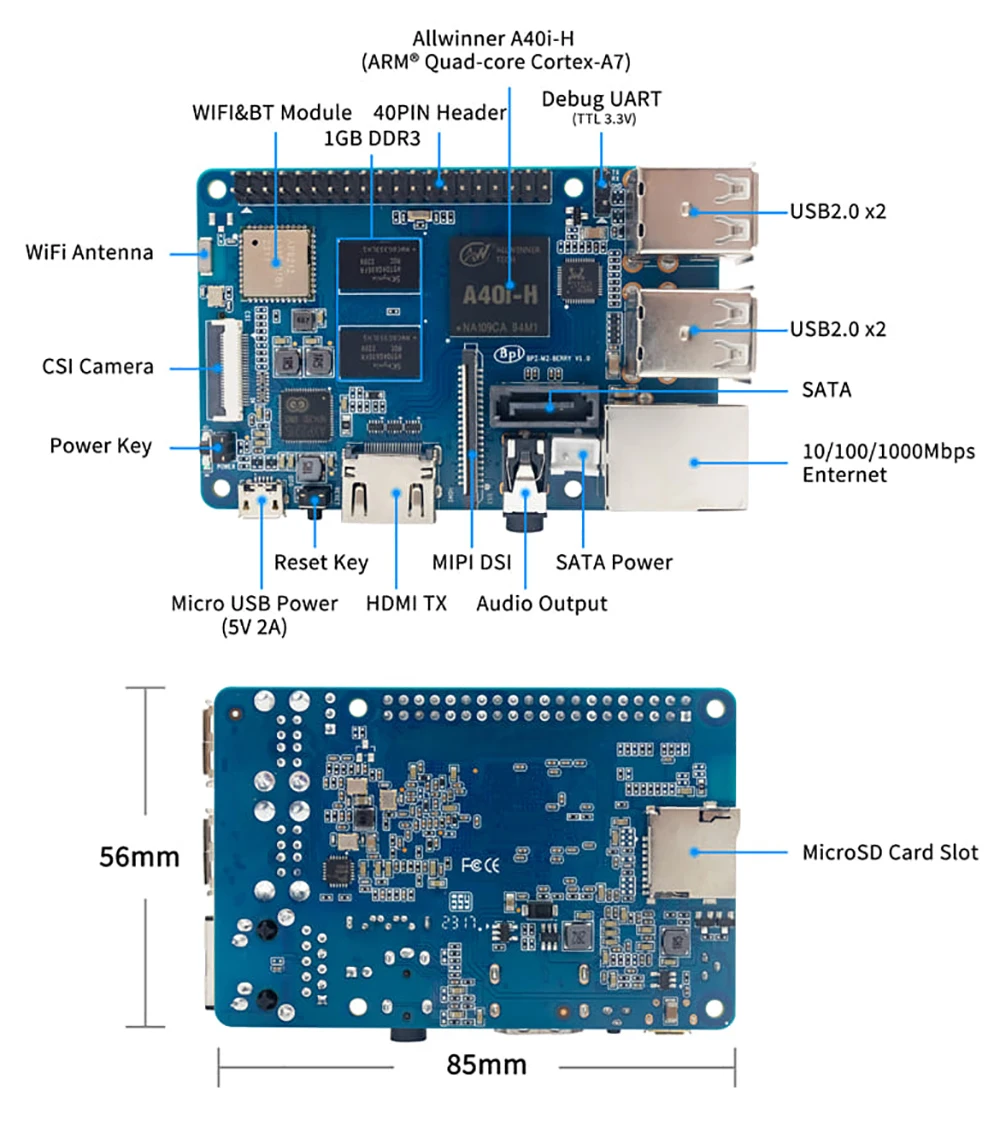

Hardware Interface
Hardware Spec
HardWare Specification of Banana Pi M2_Berry | |
Soc | Allwinner A40i/R40/V40 |
CPU | quad-core cortex -A7,the most power efficient CPU core ARM’s ever development |
GPU | dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode. |
SDRAM | 1GB DDR3 with 733MHz\(shared with GPU\) |
SATA | suppoort SATA interface |
GPIO | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
On board Network | 10/100/1000Mbps Ethernet \(Realtek RTL8211E/D\) |
Wifi Module | WiFi 802.11 b/g/n \(AP 6212 module on board\) |
Bluetooth | BT4.0 |
On board Storage | MicroSD \(TF\) card,No eMMC onboard |
Display | 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4 |
Video | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing: High-deinition\(HD\)H.264 video encoder is up to 1080P@45fps |
Audio outputs | HDMI, analog audio \(via 3.5 mm TRRS jack\), I2S audio \(also potentially for audio input\) |
Camera | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps |
USB | 4 USB 2.0 host, 1 USB 2.0 OTG |
Buttons | Reset button, Power button, U-boot button |
Leds | Power status Led and RJ45 Led |
IR | No onboard IR receiver |
DC Power | 5V/2A with micro USB port |
Battery | No 3.7V lithium battery power support |
Sizes | 85mmX56mm,same size as raspberry pi 3 |
Weight | 40g |
